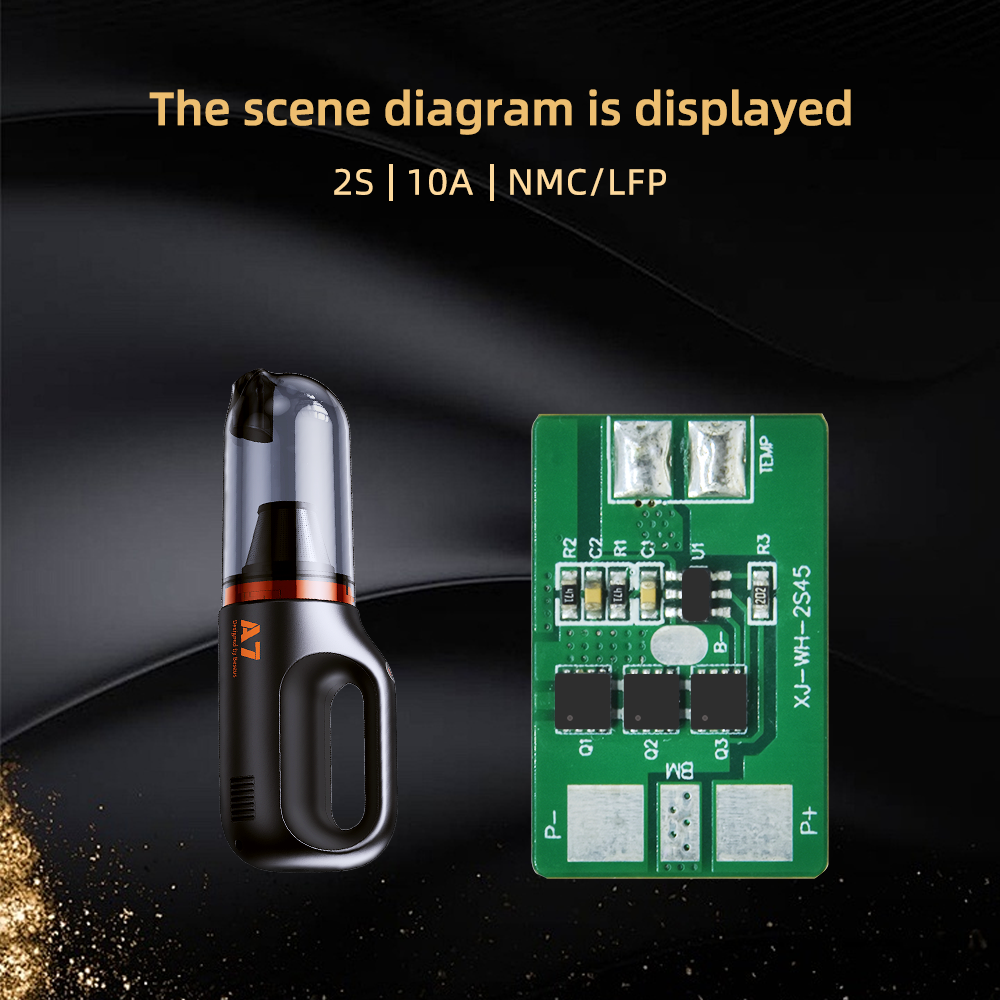

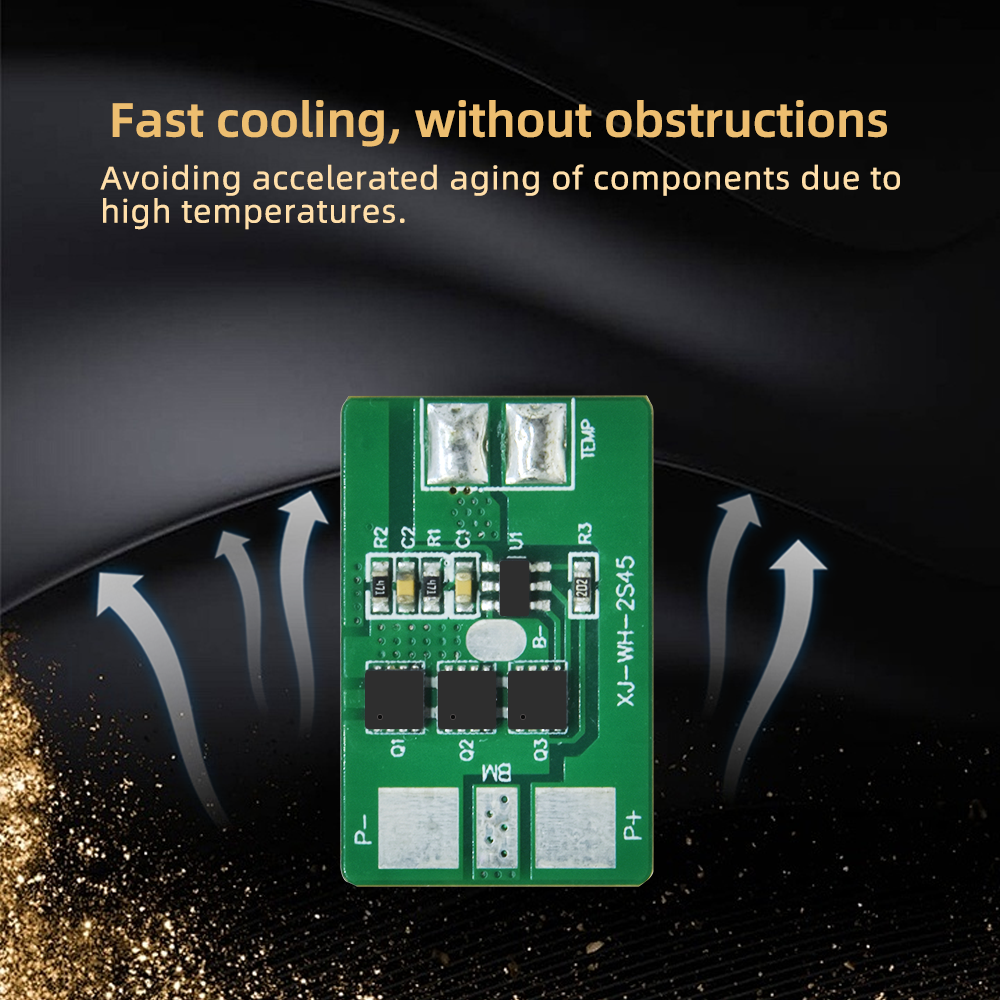

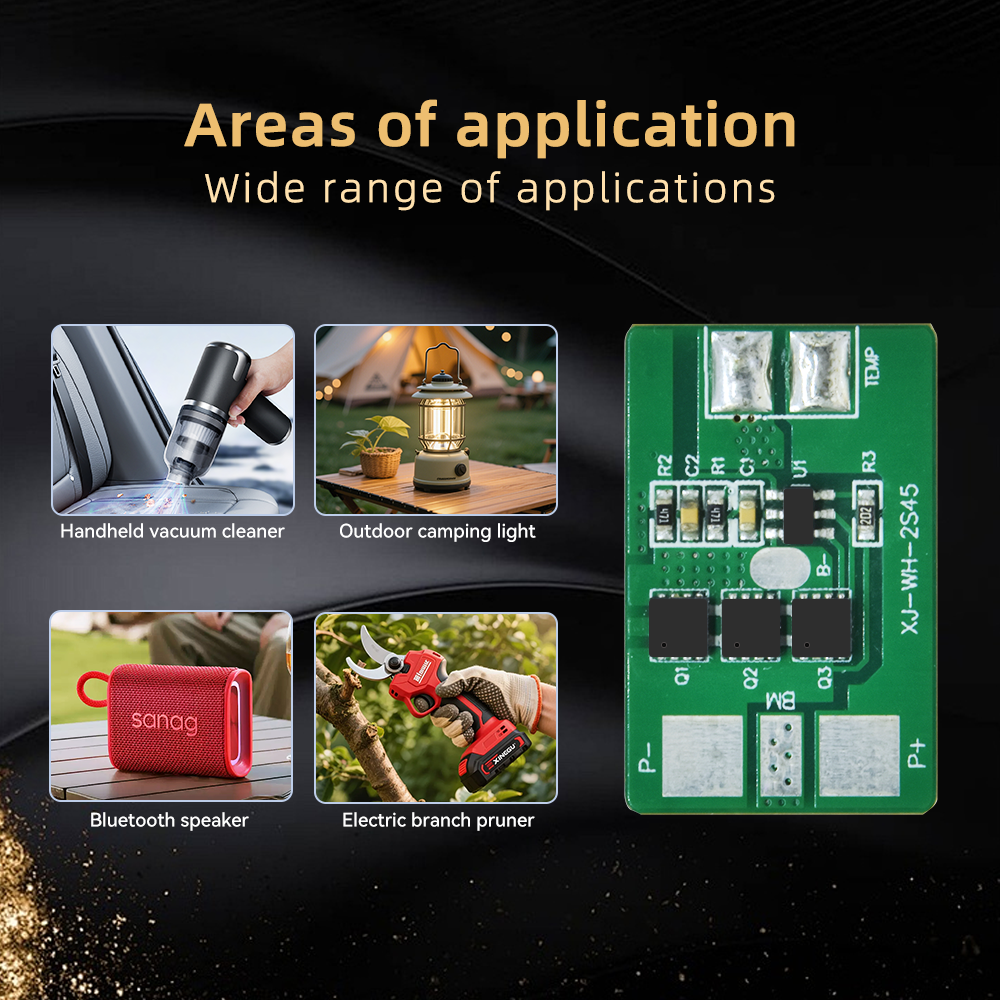

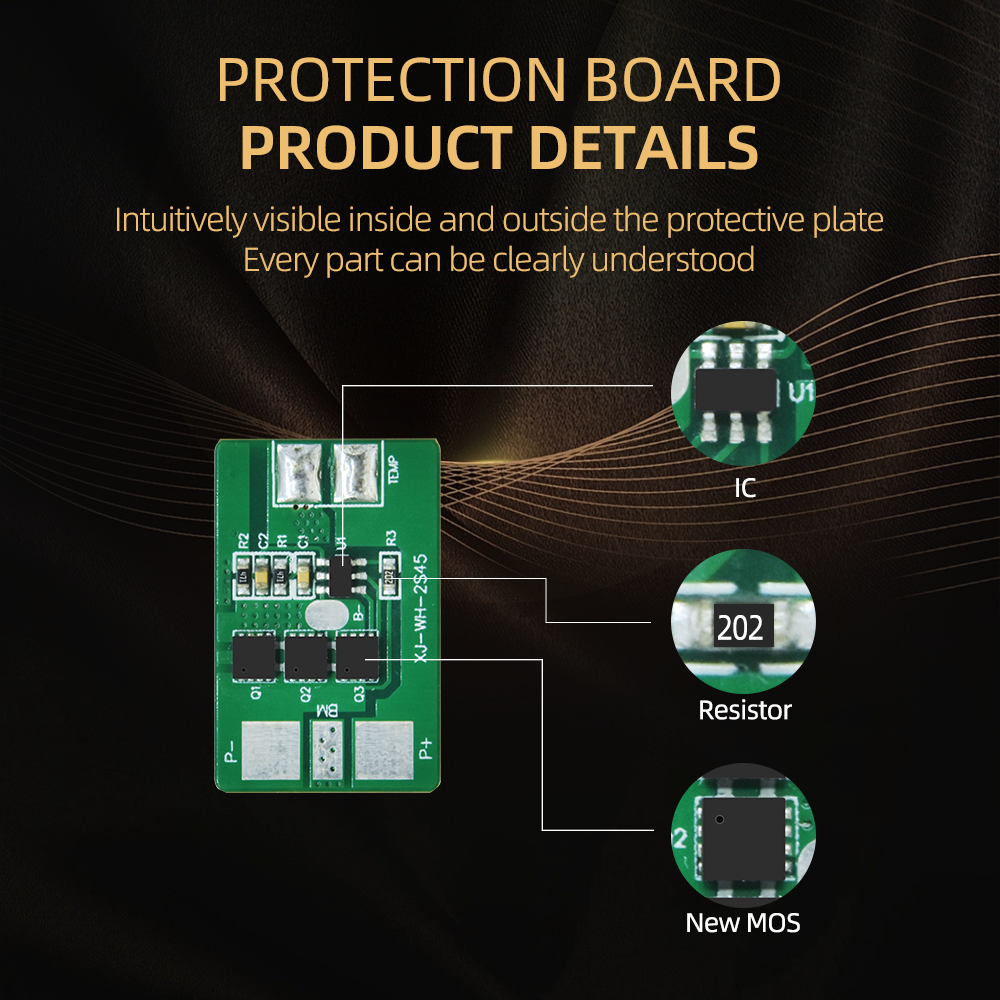

XJ-WH-2S 10A BMS Common Port With NTC Battery Protection Board
XJ-WH-2S BMS, 2S 10A battery protection board, common port with NTC temp protetion.
|
Product Name
|
2S Battery BMS
|
|
Size
|

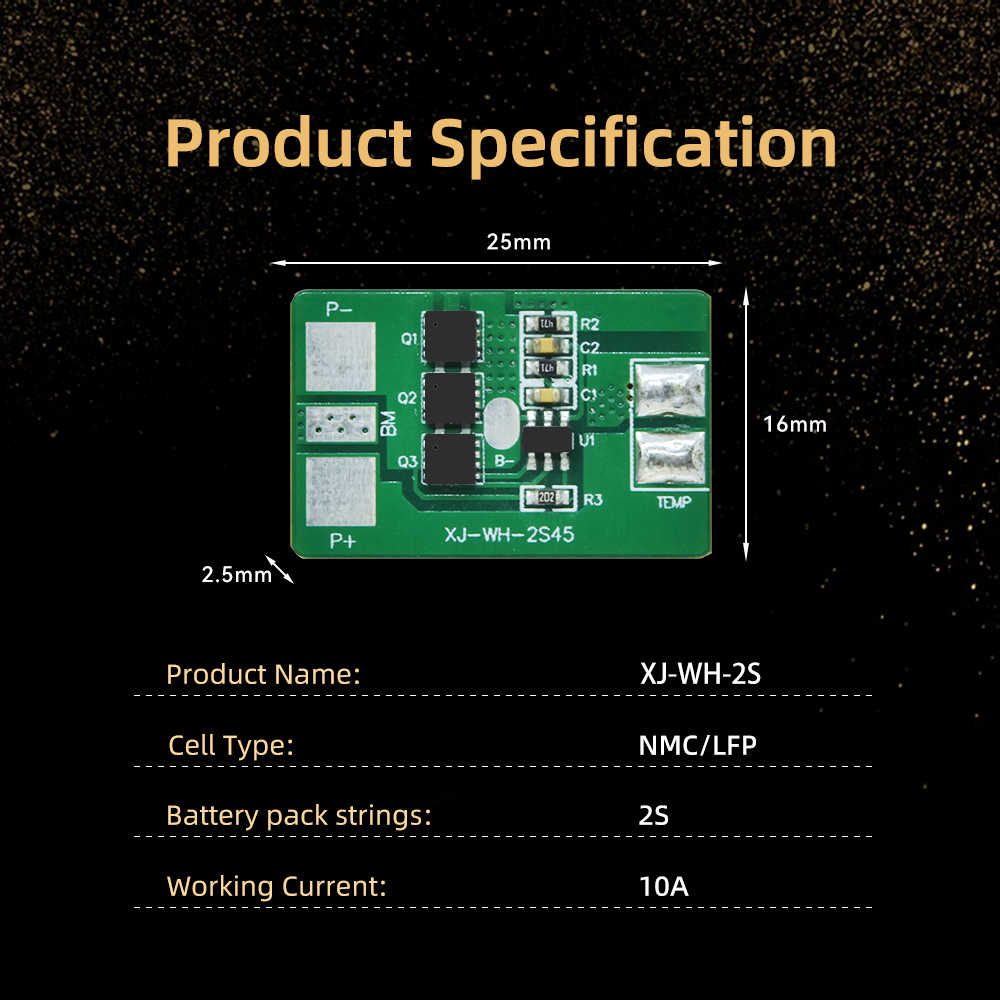

Length 25mm * Width 16mm * Thickness 2.5mm
|
|
Series
|
2S |
|
Current
|
10A
|
|
Single Cell Battery Voltage
|
3.2V / 3.7V / 4.2V
|
|
Cell Type
|
LifePO4/NMC/Lithium
|
|

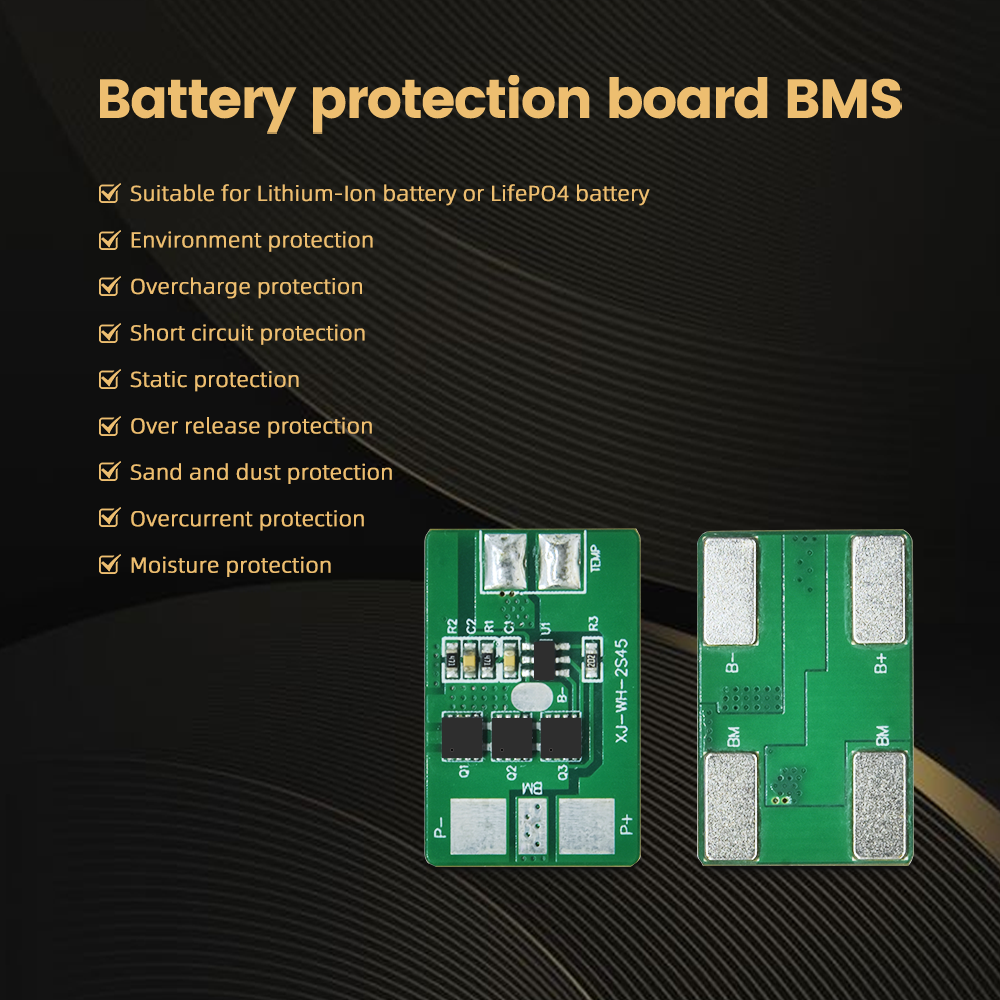

Function
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Electrostatic protection, Dust Protection, Moisture Protection, NTC Temp Protection, NTC Temp Protection
|
|
Warranty
|
24 Months
|

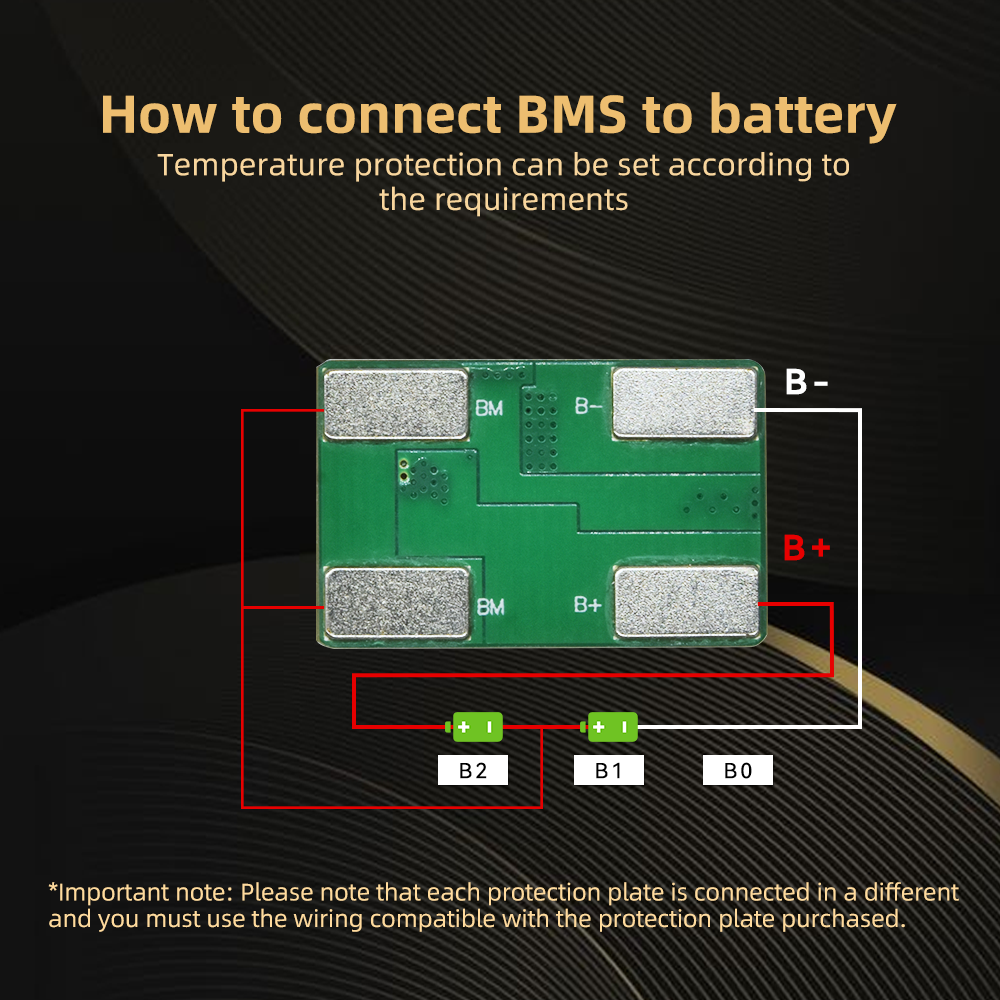

| Item | Symbol | Inspection standard | Unit | |||
| Min | Typical | Max | ||||
| Overcharge protection | Overcharge detection voltage | VDET1 | 4.4 | 4.425 | 4.45 | V |
| Overcharge detection delay time | tVDET1 | 800 | 1000 | 1200 | ms | |
| Overcharge release voltage | VREL1 | 4.175 | 4.225 | 4.275 | V | |
| Over-discharge protection | Over-discharge detection voltage | VDET2 | 2.45 | 2.5 | 2.55 | V |
| Over-discharge detection delay time | tVDET2 | 102.4 | 128 | 153.6 | ms | |
| Over-discharge release voltage | VREL2 | 2.7 | 2.8 | 2.9 | V | |
| Overcurrent protection | Overcurrent detection voltage | VDET3 | 0.14 | 0.15 | 0.16 | V |
| Overcurrent protection current | IDP | 30 | 35 | 40 | A | |
| Detection delay time | tVDET3 | 6.4 | 8 | 9.6 | ms | |
| Short-circuit protection | Detection delay time | TSHORT | 224 | 280 | 336 | μS |
| Protection release condition | Disconnect the external short-circuit load or charge and restore | |||||
| Internal resistance | Main circuit on-resistance | RDS | 80 | mΩ | ||
| Current consumption | Current consumption during normal operation | IDD | 10 | μA | ||
| Quiescent current | Current consumption during sleep mode | IPWN | 0.1 | μA | ||
| Discharging | 0V charging function | NO | ||||
