XJ-SH06 Smart 7S-16S 24V 48V 51.2V 200A BMS with Bluetooth and Balance for Solar Energy Storage Lifepo4/Li-ion battery packs

This model is designed to support 7-16 series configurations. It has a maximum continuous working current of 200A and is fully compatible with ternary lithium, lithium iron phosphate battery packs. Equipped with HD TFT display, easy to operate, and supports screen LOGO customization.

details

description

Protocol	Number	Inverter Brand
CNC		Pylontech CANBUS protocol 2018 (Pylontech)
	2	Growatt BMS CAN-Bus-protocol-low-voltage-V1.08 (Growatt)
	3	LV BMS Protocol (CAN) for Solar Inverter Family EN_V1.5 GoodWe
	4	Luxpowertek Battery CAN Protocol_2021 (Pengcheng)
	5	PV1800F-CAN communication Protocol1.04.04 (Mercer)
	6	victron energy canbus_bms_protocol (Victor)
	7	GINLONG CAN LV V1.0-2019.12.28 (Ginlong)
	8	BMS CAN-Bus-protocol-low-voltage-V1.05 (Shangke)
	9	MEGAREVO CAN Inverter LV V1.1 (Megarevo CAN)
	10	SMA CAN 2.0 (SMA)
	11	Schneider CAN protocol (Schneider)
	12	STUDER CAN V1.02-2018.06.14 (Special Energy Innovation)
485		RS485-protocol-pylon-low-voltage-new protocol design V3.5 (Paineng)
	2	Growatt_BMS_RS485_Protocol_1xSxxP_ESS_Rev2.01 (Growatt)
	3	Voltronic Inverter and BMS 485 communication protocol 20200325 (day, month, yuan)
	4	Deye 485 communication protocol ( Deye )
	5	Luxpowertek Battery 485 Protocol ( Pengcheng )
	6	WOW RS485 Modbus V1.3 (Gravel)
	7	Schneider 485 V2.0.pdf (Schneider)
	8	Eaton 485 Protocol (Eaton)
	9	MUST 485 Protocol (Mercer)

Features

1. Equipped with balanced temperature control, it monitors temperature changes in the battery pack and working environment, as well as the voltage of each cell to protect the battery.

2. Other Interfaces RS232/RS485/CAN

3. Operation, alarm, and power indication

4. Bluetooth Supports Android,ISO, Harmony

5. Support Parallel Connection

6. PC SOFTWARE

Application

The battery management system features built - in Bluetooth for real - time monitoring of battery charge, voltage, and current. It enables quick setting of protection parameters like over - charge and over - discharge protection.

It also has RS485/CAN protocols. RS485 allows stable long - distance data transmission, while CAN offers high - speed, interference - tolerant data transfer for seamless in - vehicle communication.

A smart BMS protection board balances cell charging and discharging in multi - cell battery packs. This extends battery life, enhancing EV performance, range, and reliability for a better user experience.

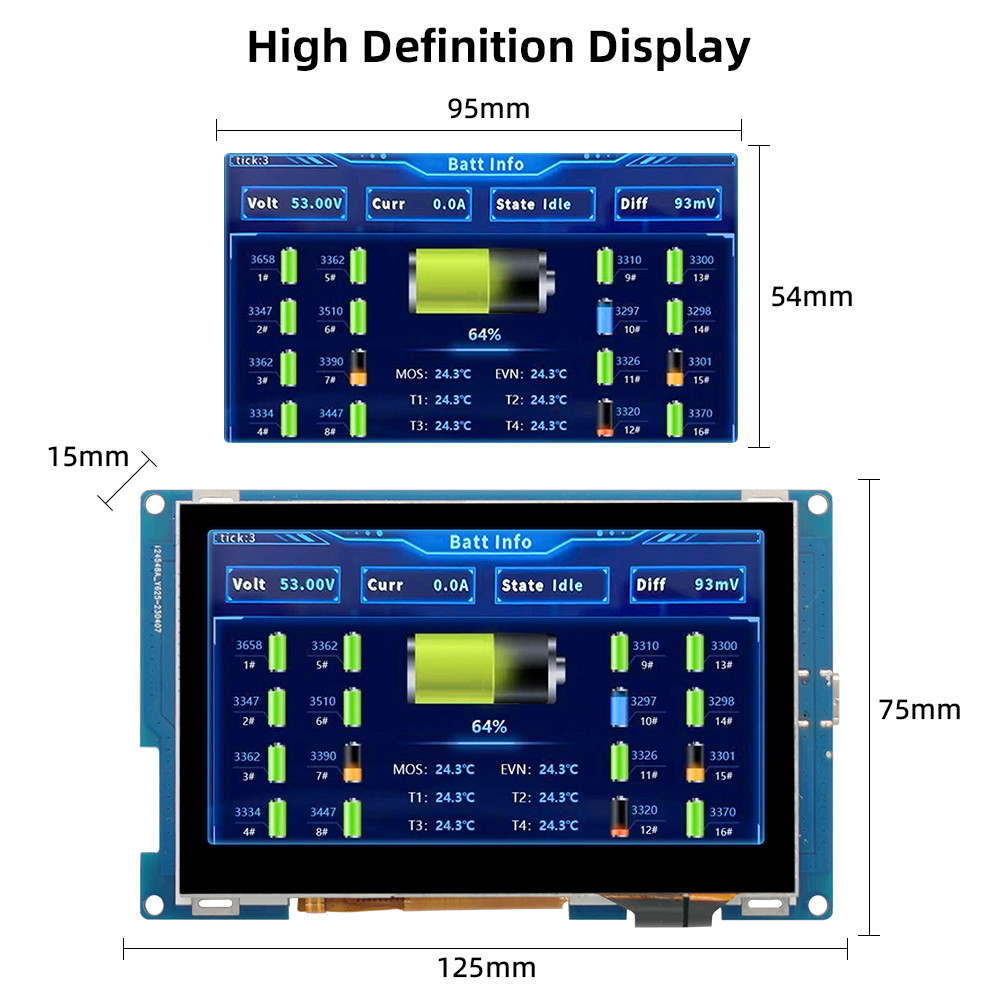

This model is highly adaptable as it is suitable for common inverters available on the market. It comes equipped with an HD tft display, ensuring clear visibility of information. The operation is a breeze, even for those new to the system. It also supports screen LOGO customization, allowing for a personalized touch. Additionally, professional technical support is provided. Multiple protection functions are in place to safeguard your battery's SOC and SOH, making your battery safer and effectively extending its service life.

Versions	Specification

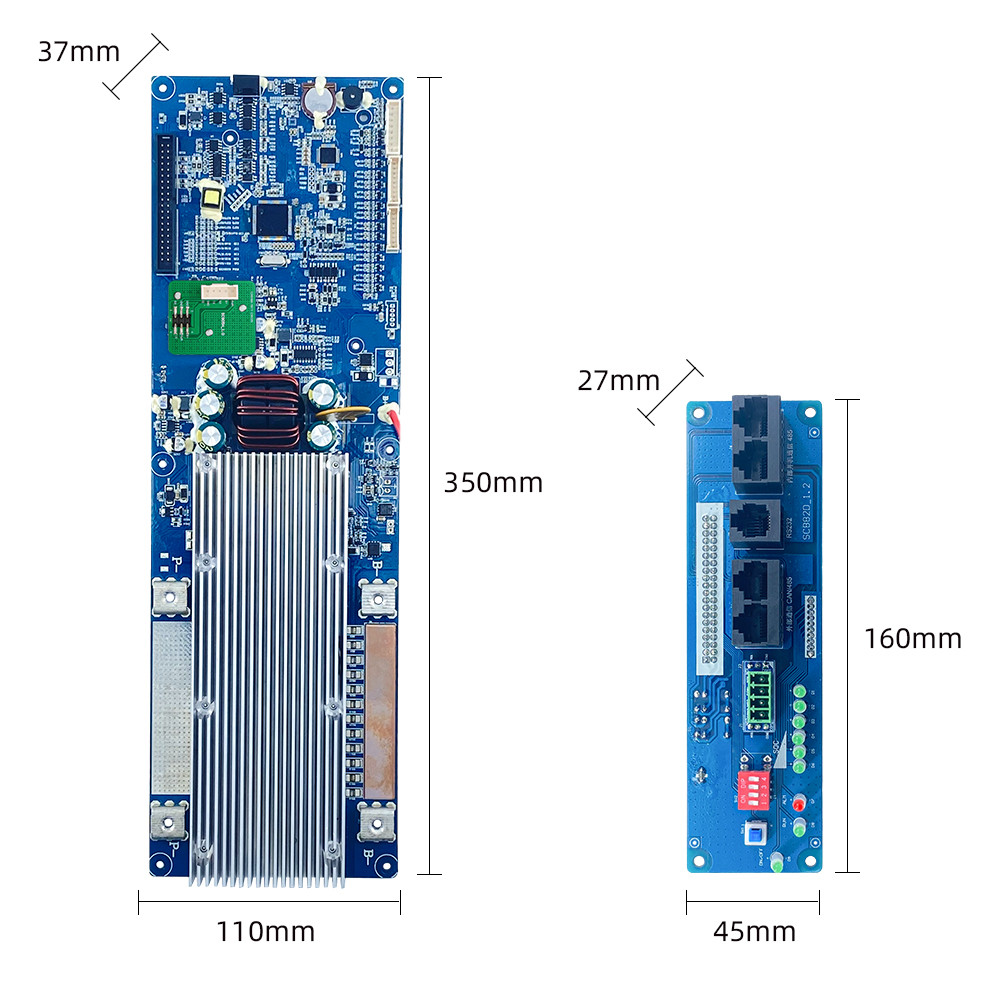

(1) 7S-16S BMS with Bluetooth Module	Supports 22.4- 51.2V 200A battery pack Charging Current: 20A Support parameter modification Dimension: 35011037mm Bluetooth module APP
(2) 7S-16S BMS with Button Display	Supports max 200A continuous current Peak Current reach 140A Charging : 5-50A Support parameter modification Dimension: 35011037mm Button Display
(3) 7S-16S BMS with 4.3 inches HD Touch Display	Supports max 200A continuous current Peak Current reach 140A Charging : 5-50A Support parameter modification Dimension: 35011037mm 4.3 inches Touch Display
