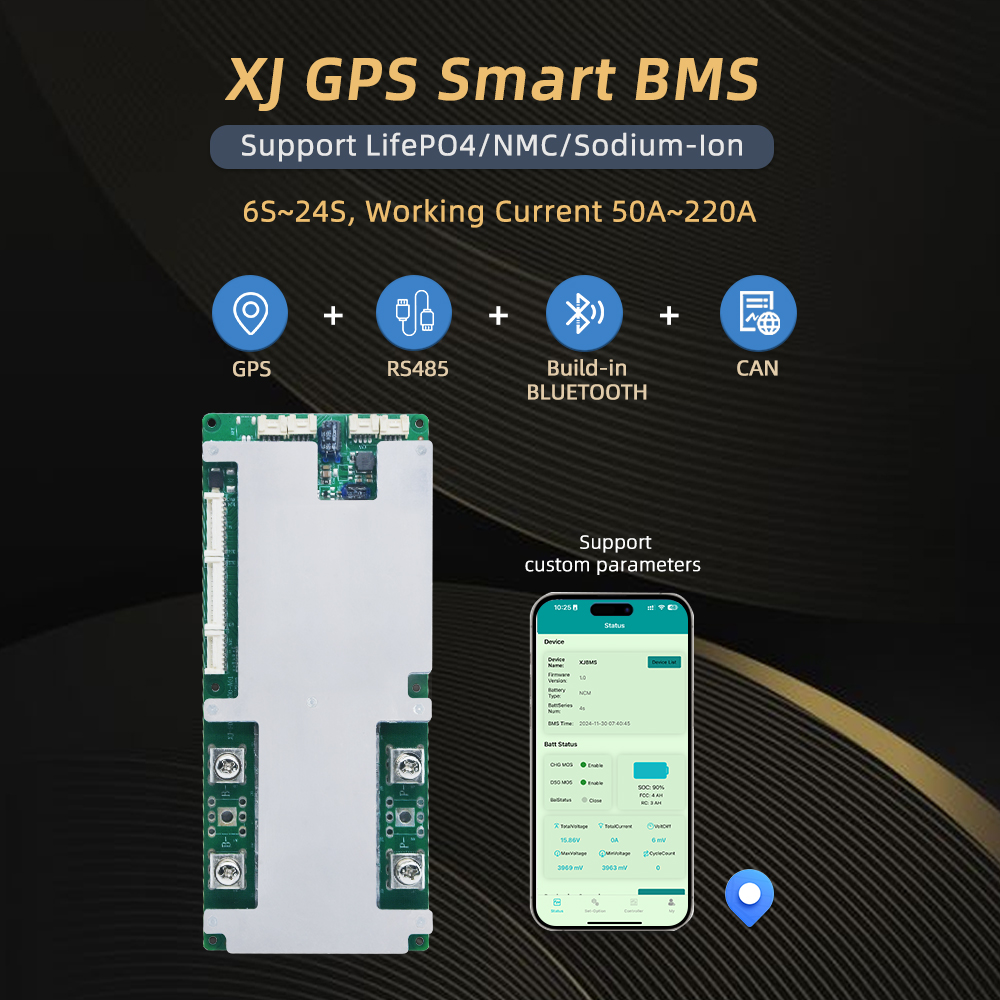

XJ GPS BMS RS485 CAN Bluetooth 5S~24S 200A BMS with 2A Active Balance
XJ-F001-24S200-A01 is a high-power 5-24S lithium battery management system supporting bidirectional 200A charging/discharging with Bluetooth connectivity. Features real-time monitoring, comprehensive protections, and customizable parameters.
|
Type |
Specification |
|
(1) XJ-F001-24S200-A01 |
Supports 5-24S Batteries. Battery Type: NMC/LFP/SIB

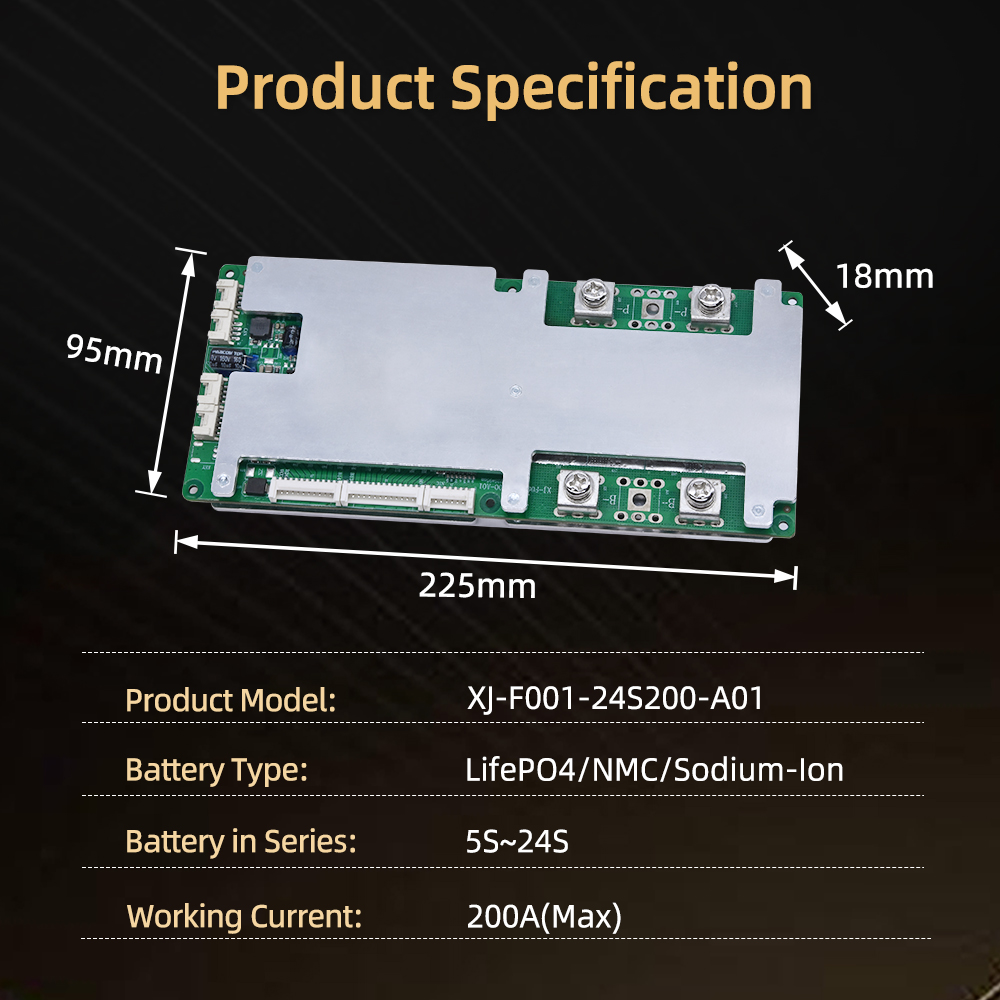

Dimension: 225*95*18mm |
XJ-F001-24S200-A01 is a high-power 5-24S lithium battery management system supporting bidirectional 200A charging/discharging with Bluetooth connectivity. Features real-time monitoring, comprehensive protections, and customizable parameters.
Features:
1.Wide Voltage Range
Supports 5-24 series battery packs with overcharge/discharge protection for individual cells.
2.High-Current Handling
Rated for 200A continuous charging/discharging with short-circuit protection up to 1600A.
3.Wireless Control
Bluetooth-enabled APP /mini program for real-time status, parameter adjustment, and firmware updates.
4. Safety Protections
Overcurrent, short-circuit, and thermal safeguards with self-recovery capabilities.
5. 2A Active Balancing
Built-in active balancing 2A, 2X Faster Than 1A Standard.
6. All-in-One Communication
GPS Tracking + Bluetooth APP + CAN/RS485 + UART.
GPS Tracking + Bluetooth APP + CAN/RS485 + UART.
7. 200+ Historical Data Logs
Timestamps, Events, Voltage, etc.
Timestamps, Events, Voltage, etc.
8. Energy-Saving Standby Mode
Remote Wake-Up Supported
Remote Wake-Up Supported
Application:
Ideal for high-power applications requiring robust battery management, including electric vehicles, industrial machinery. Ensures stable performance and extended battery lifespan under demanding conditions.
Yacht/AGV/RV/Forklift/EV......
Yacht/AGV/RV/Forklift/EV......
