Smart BMS

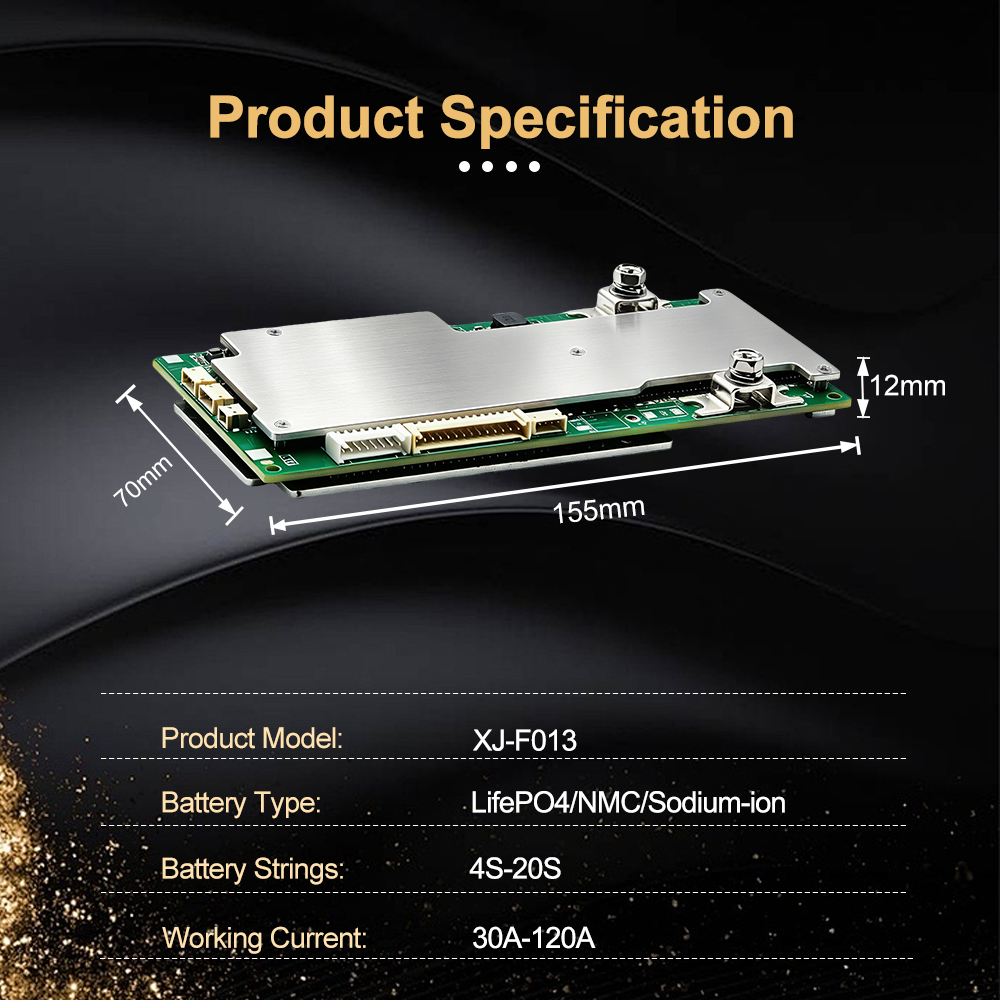

XJ-F013 4S-20S 30A-120A Smart Bluetooth RS485 CAN UART GPS BMS

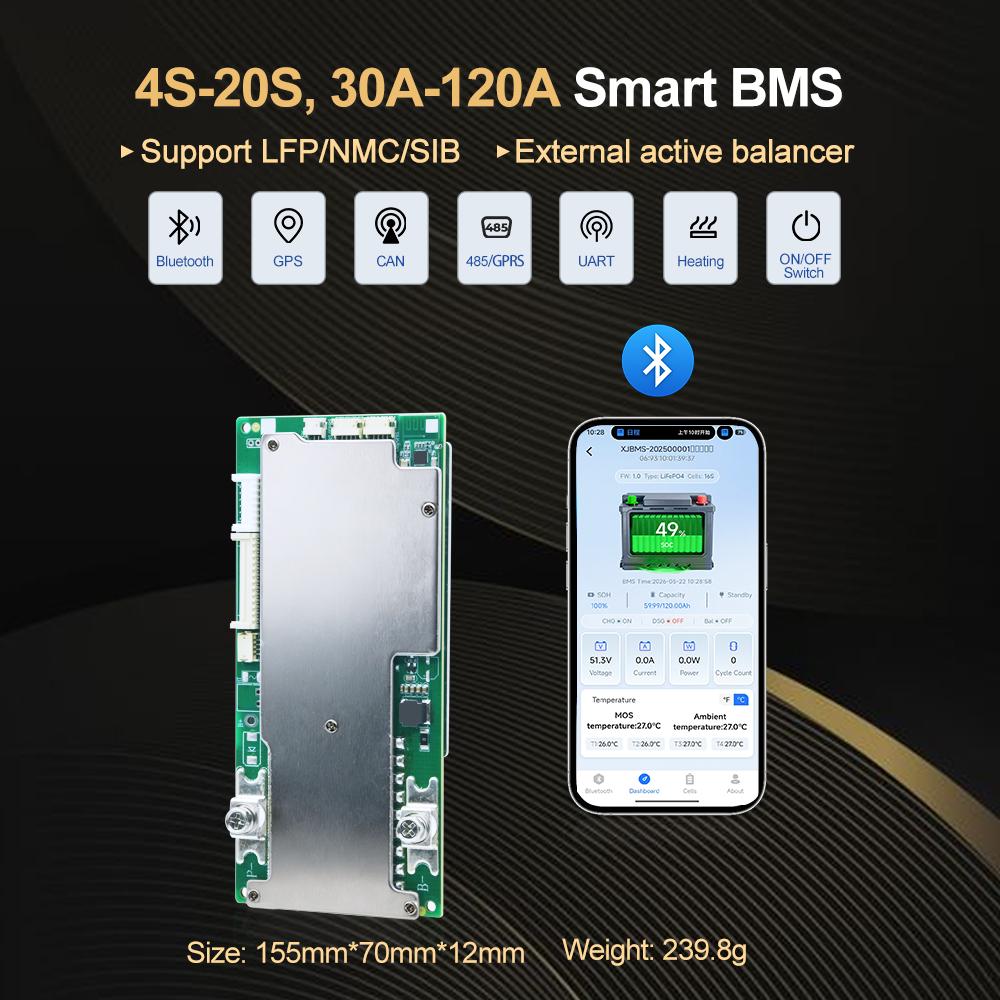

XJ-F013 smart BMS, with RS485, CAN, UART/Bluetooth, GPS, and heating, balance, weak current switch, NTC. 4S-20S 30A-120A, can be used in LFP/NMC/Sodium battery.
Key Features:

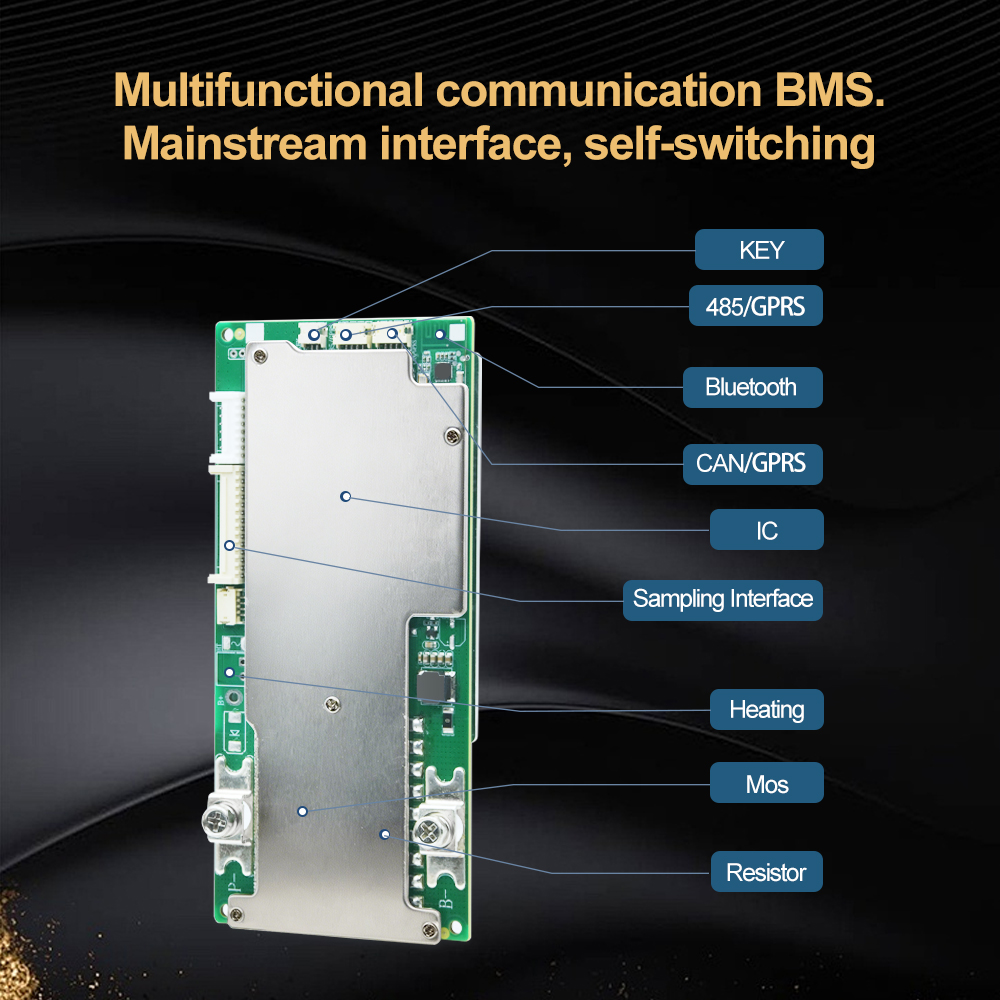

* RS485, CAN, UART/Bluetooth, GPS
* Heating function and weak current switch
* Balancing and NTC, support external active balancer

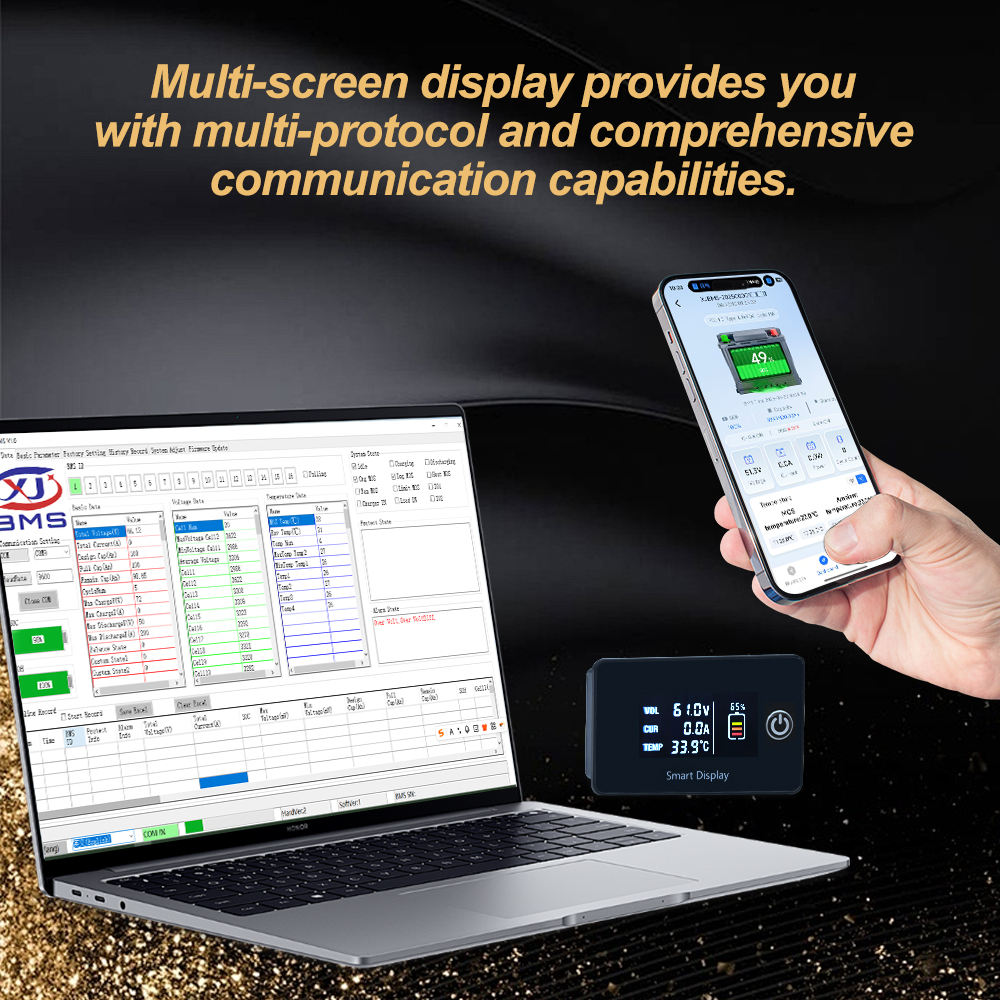

* Easy to control or check the battery data by your computer or your phone.
|
Basic functions
|
Number of strings
|
20 strings (support 4~20 strings)
|
|
Maximum continuous current
|
120A
|
|
|
Storage function
|
More than 340 records can be stored (adjusted according to storage IC)
|
|
|
Equalization function
|
Passive charge balancing
|
|
|
Pre-discharge function
|
YES
|
|
|
Weak current switch
|
Optional
|
|
|
Charging activation function
|
YES
|
|
|
History function
|
YES
|
|
|
Temperature collection
|
Cell temperature
|
3 NTC
|
|
MOS temperature
|
1 NTC
|
|
|
Other functions (optional)
|
Heating function
|
YES
|
|
Bluetooth function
|
YES
|
|
|
Communication function
|
485 or UART Communications
|
YES
|
|
Bluetooth (built-in or external)
|
YES
|
