XJ-F006 Smart BMS UART CAN 10S 11S 12S 13S 15A 20A 25A Split Port BMS

This model XJ-F006 suitable for 10S-13S 25A(MAX) LiFePO4, NMC (Li-ion), and Sodium-ion batteries.

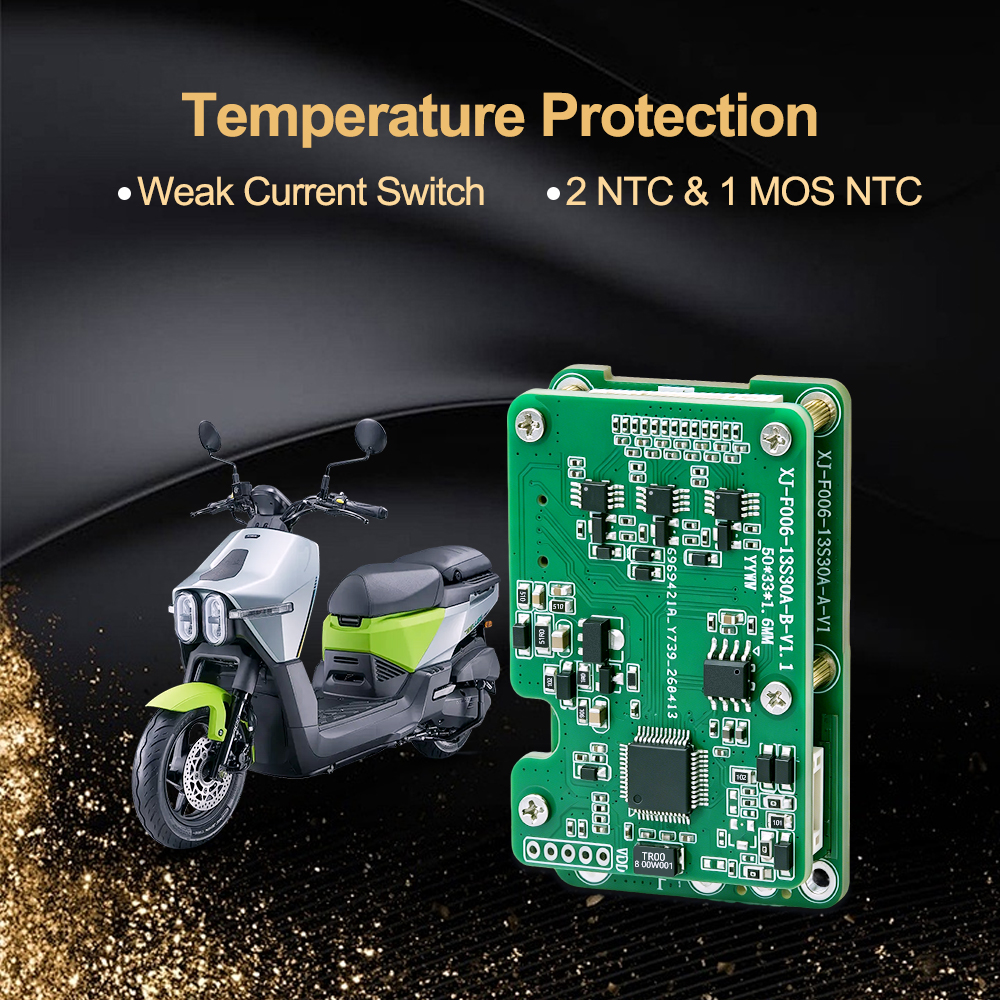

With CAN, UART communication port. With weak current switch, 3 NTC temp sensors, split port, charge 10A, discharge 25A (max).

This BMS can be used in shared lithium battery pack for electric 2-wheels vehicle.

Model XJ-F006
Series 10S-13S
Current Charge 10A, discharge 25A (MAX)
Voltage 36V-48V
Cell Type LifePO4/NMC/Sodium-ion
Function Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, NTC Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection
Warranty 24 Months
Board Size 55*33*14MM
OEM/ODM Acceptable
Application Shared Lithium Battery Pack

Product Data

Product Description

XJ-F006 Smart Bluetooth BMS 10S-13S 25A Split Port with Balance NTC CAN Interface

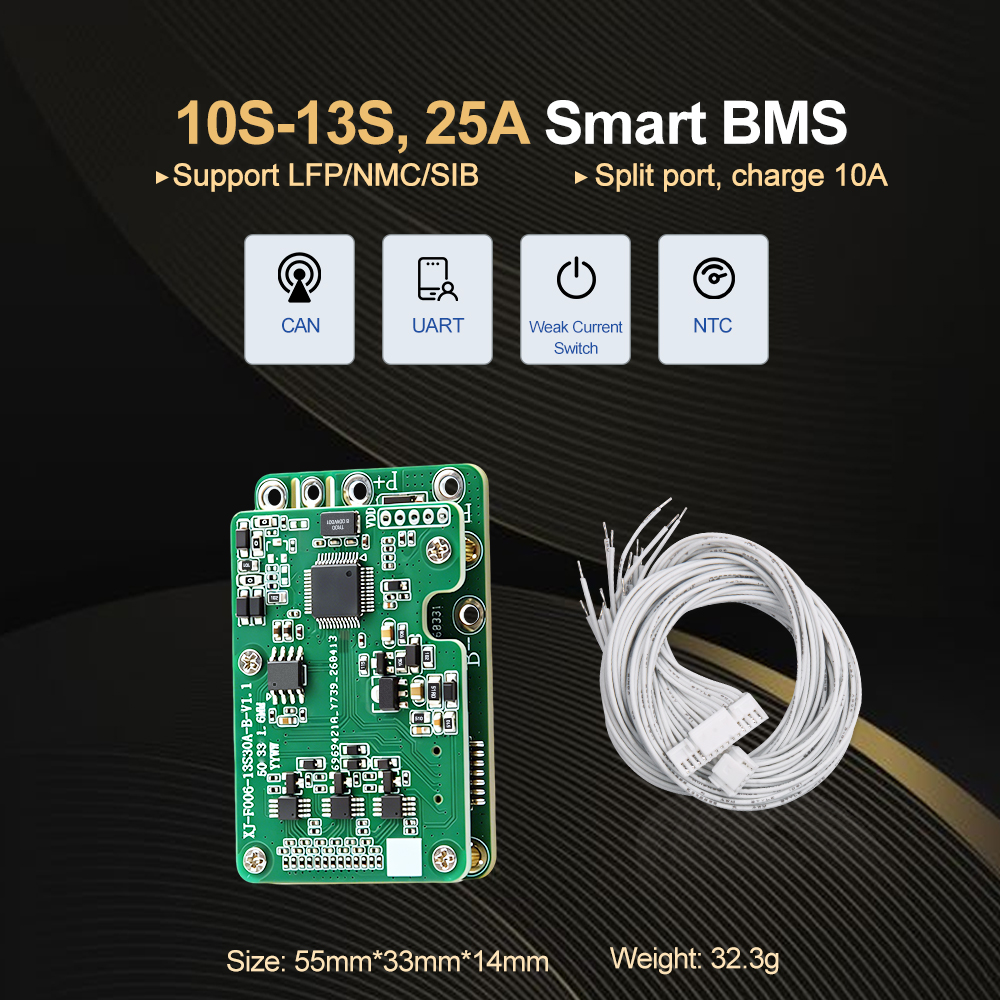

XJ-F006 Smart BMS, CAN + UART, 10S-13S 25A Spllit Port BMS, charge 10A, discharge 25A (max).

1. CAN, UART communication port

2. Weak current switch (optional)

3. Split Port, charge 10A, discharge 25A (max)

Application to shared lithium battery pack.

Product Name	Smart BMS battery management system
Size	Length 55mmWidth 33mmThickness 14mm
Series	10S~13S
Current	15A~25A
Voltage	36V~48V
Cell Type	LFP/NMC/Li-ion/Sodium-Ion Battery
Warranty	24 Months
