Smart BMS
XJ-F005 21S-24S 30A-120A RS485/UART CAN GPS Bluetooth Balance NTC Smart BMS
XJ-F005 21S-24S 30A-120A BMS, for LifePO4, Li-ion, sodium-ion batteries. With RS485/UART, CAN, GPS, Bluetooth, balance, NTC, anti-fire, weak current switch, heating.
Main Function:

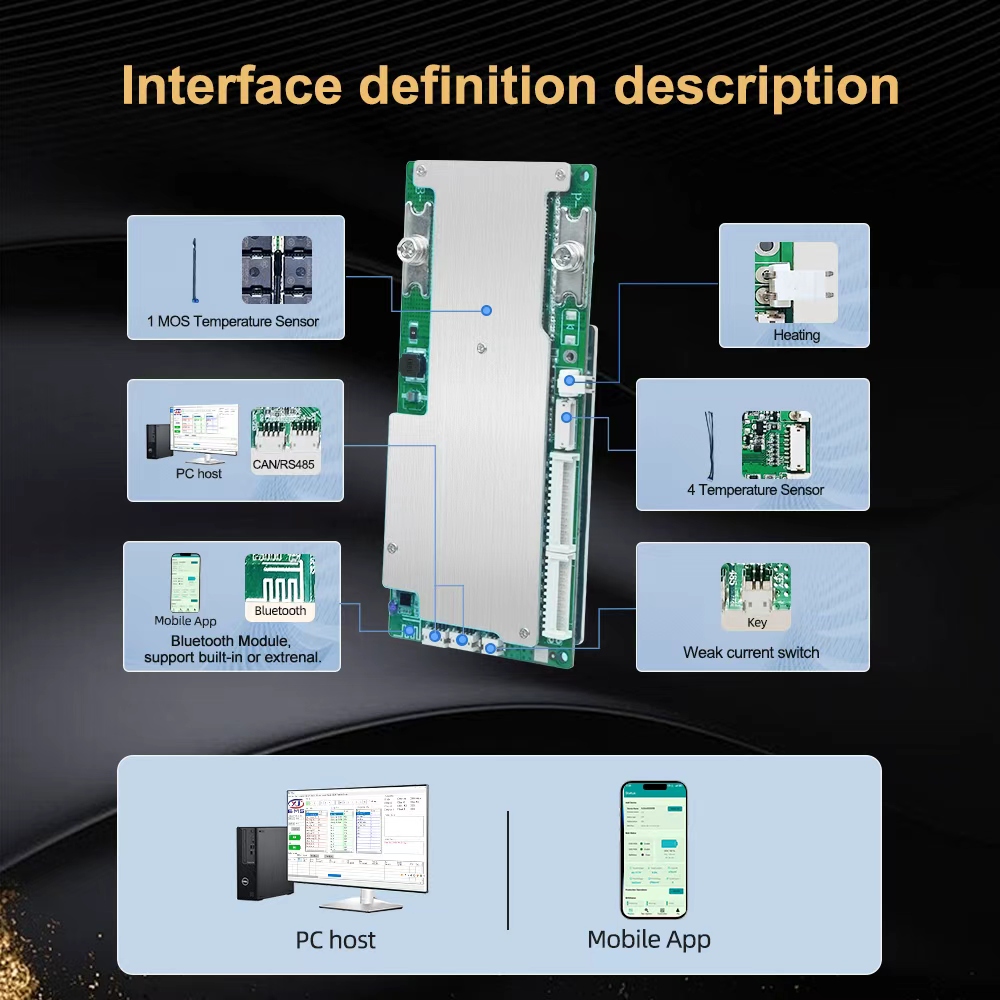

* 485/UART, CAN communication (optional)
* Available GPS
* Bluetooth module, built-in or external (optional)
* Heating, anti-fire and weak current switch (optional)
* Balancing and NTC
* Easy to control or check the battery data by your computer or your phone.
|
Product Name
|
Smart GPS BMS battery management system
|
|

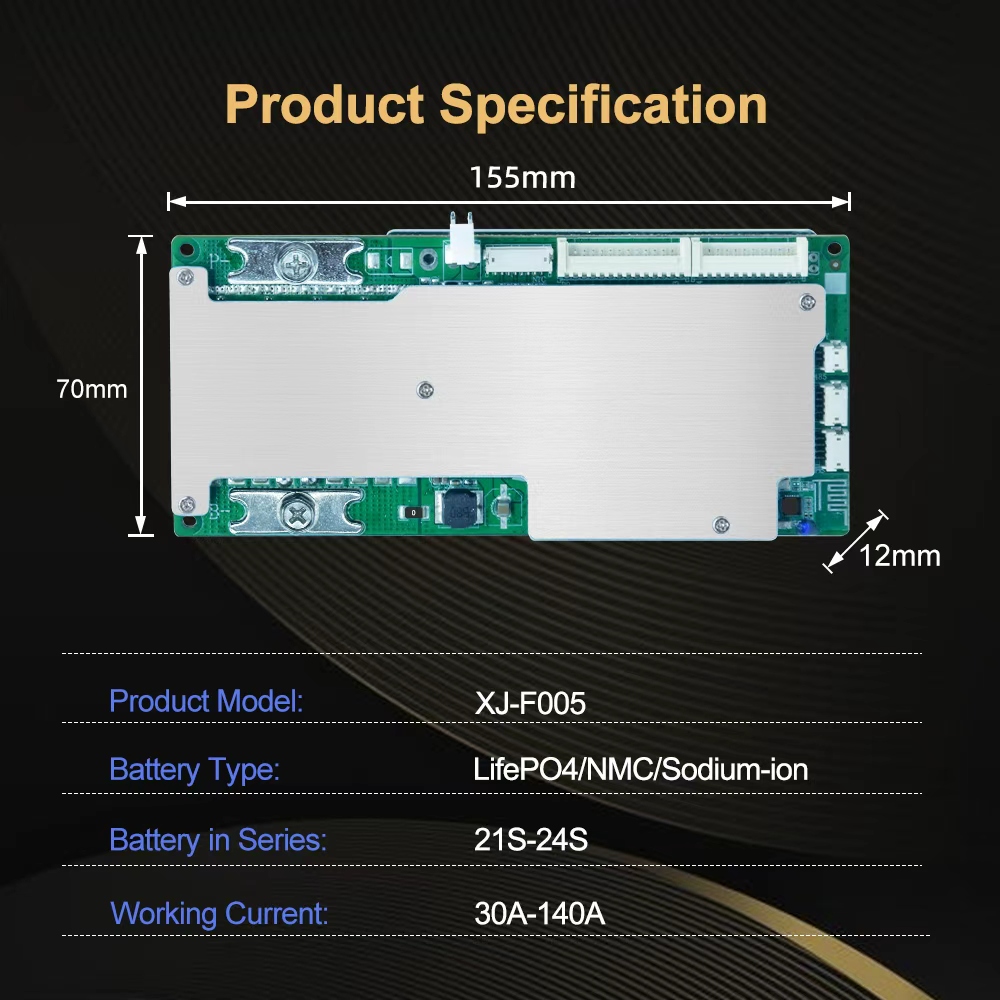

Size
|
Length 155mm*Width 70mm*Thickness 12mm
|
|
Series
|
21S~24S
|
|
Current
|
30A~120A
|
|
Voltage
|
12.8V~80V
|
|
Cell Type
|
LFP/NMC/Li-ion/Sodium-Ion Battery
|
|

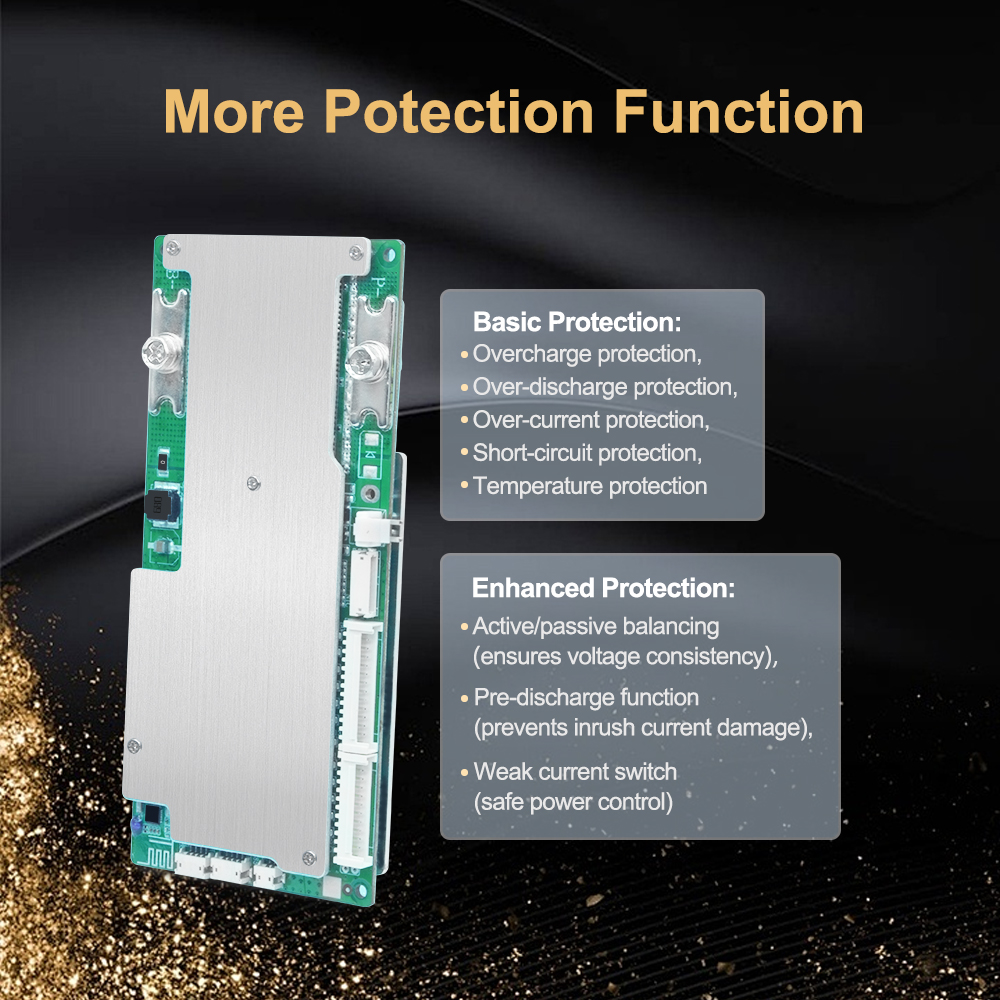

Function
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance function,
Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection |
|
Warranty
|
24 Months
|
|
Basic functions
|
Number of strings
|
24 strings (support 21~24 strings)
|
|
Maximum continuous current
|
120A
|
|
|
Storage function
|
More than 340 records can be stored (adjusted according to storage IC)
|
|
|
Equalization function
|
Passive charge balancing
|
|
|
Pre-discharge function
|
YES
|
|
|
Weak current switch
|
Optional
|
|
|
Charging activation function
|
YES
|
|
|
History function
|
YES
|
|
|

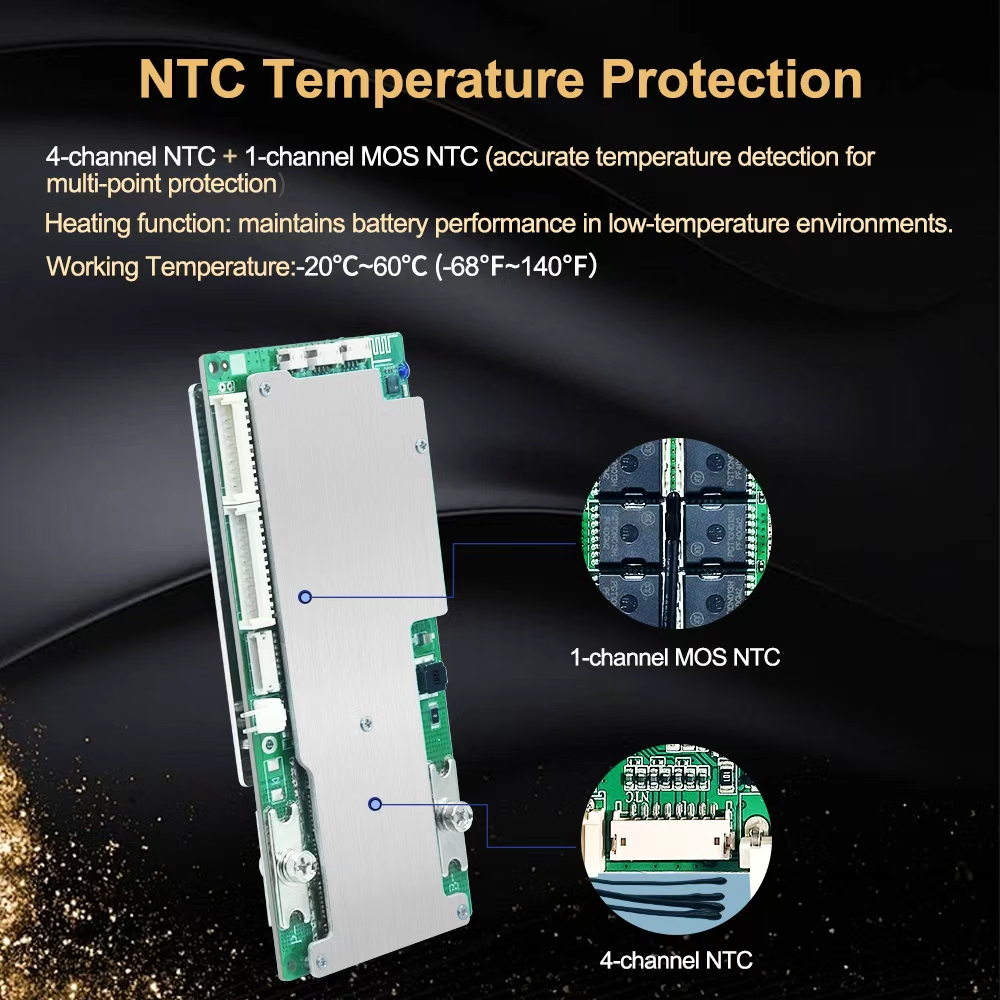

Temperature collection
|
Cell temperature
|
4 NTC
|
|
MOS temperature
|
1 NTC
|
|
|
Other functions (optional)
|
Heating function
|
YES
|
|
Bluetooth functionality
|
YES
|
|
|
GPS
|
Optional
|
|
|
Communication function
|
485/CAN/UART
|
YES
|
|
Bluetooth
|
YES
|
| AFE internal protection parameters | AFE short-circuit protection | 640A , 96uS |
| AFE discharge overcurrent | 320A , 100mS | |
| AFE single-cell overvoltage | 3850mV | |
| AFE cell undervoltage | 2000mV |
