Smart BMS

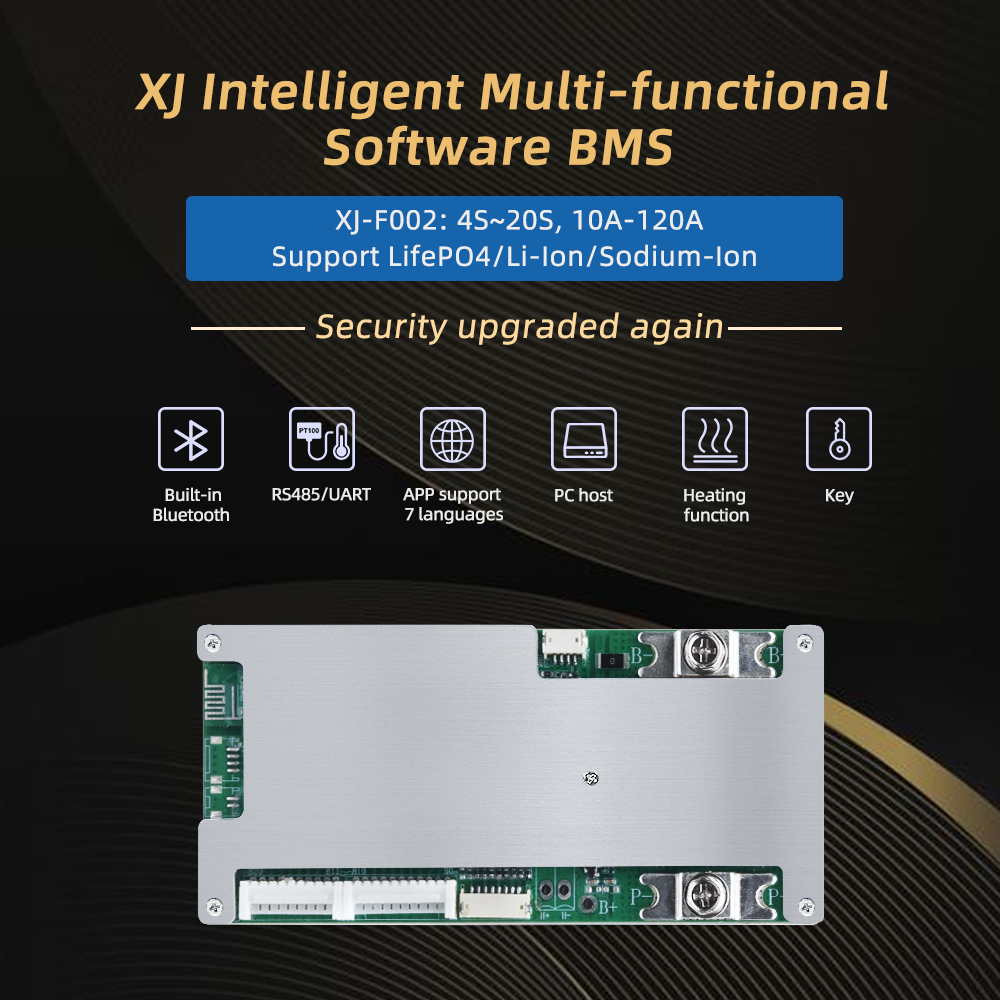

XJ-F002 BMS 485 UART Bluetooth Heating Weak Current Switch Balancing NTC Smart Software BMS
Model: XJ-F002, 485/UART, BT BMS, 4S-20S, 10A-120A, application LifePO4, NMC (Li-ion), Sodium-ion battery.
Main Function:

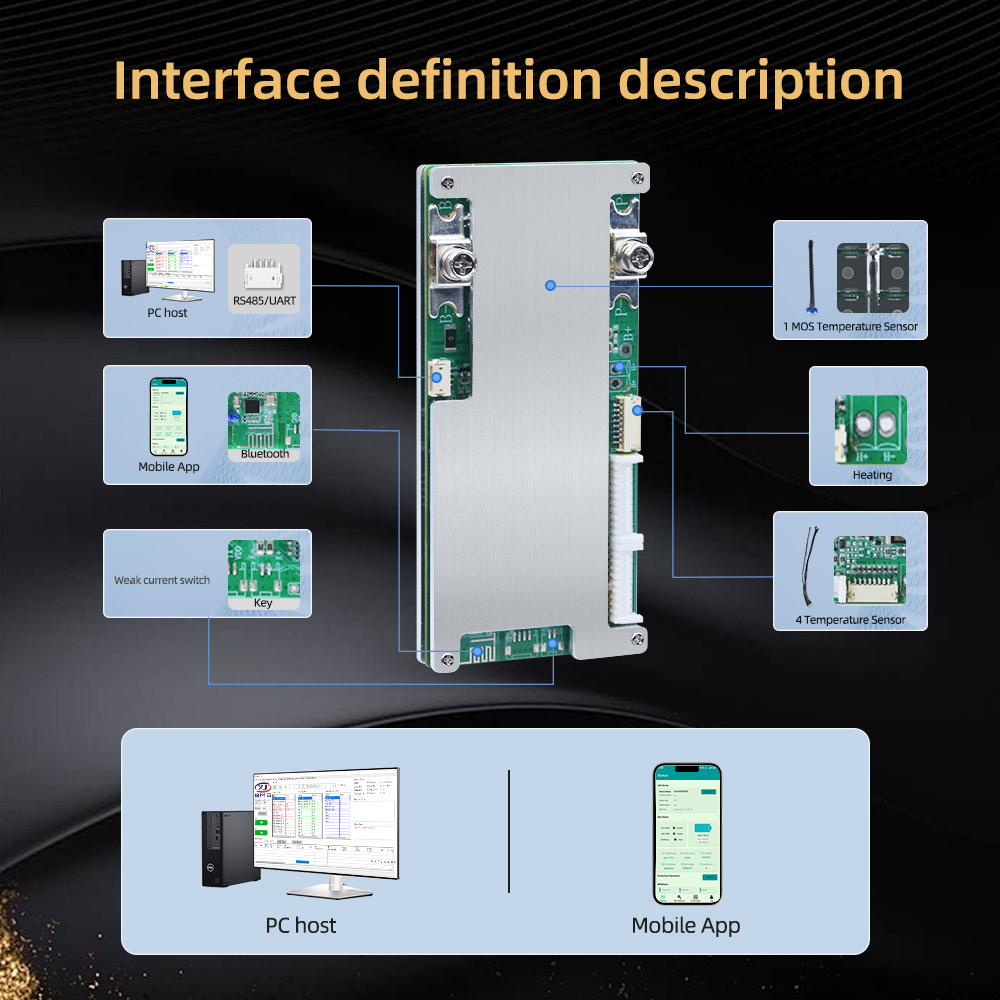

* 485 or UART communication (optional)
* Bluetooth module, built-in or external (optional)
* Heating function and weak current switch (optional)
* Balancing and NTC
* Easy to control or check the battery data by your computer or your phone.
|
Product Name
|
485 & BT Smart BMS battery management system BMS
|
|

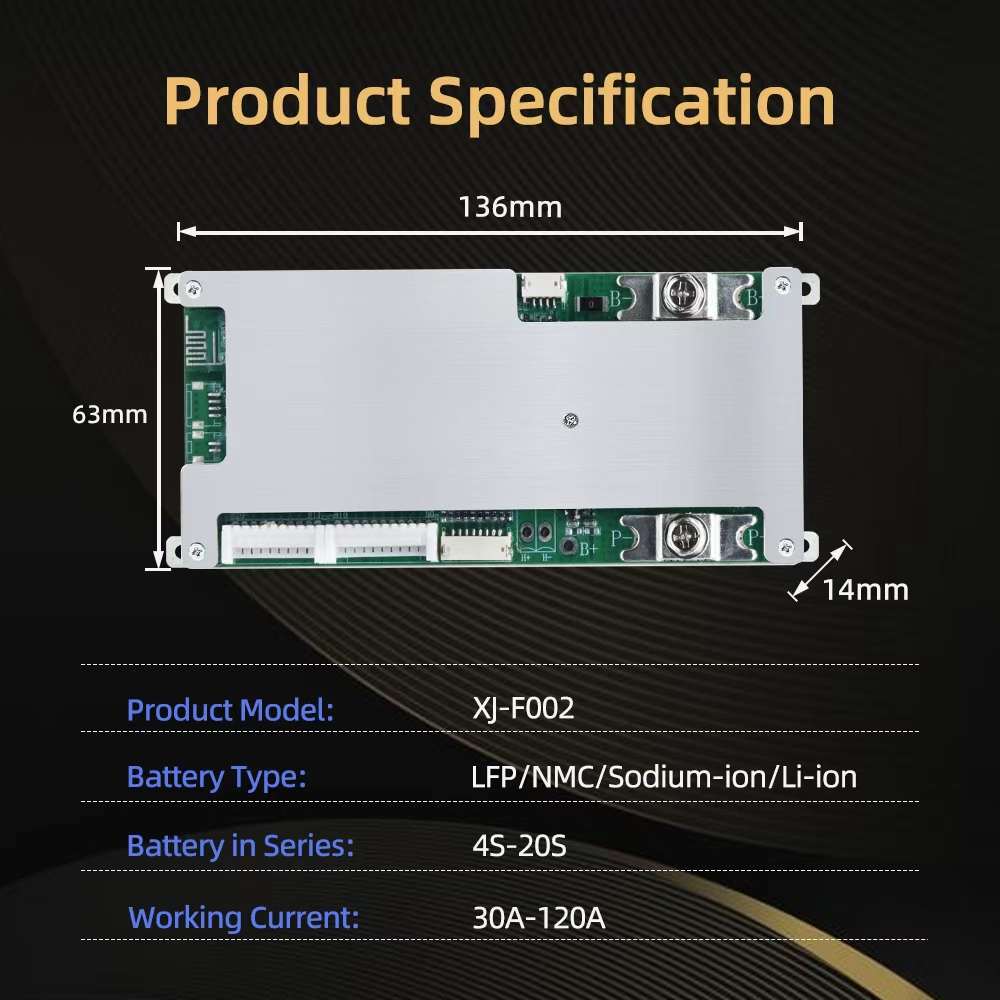

Size
|
Length 136mm*Width 63mm*Thickness 14mm
|
|
Series
|
4S~20S
|
|
Current
|
10A~120A
|
|
Voltage
|
12.8V~74V
|
|
Cell Type
|
LFP/NMC/Li-ion/Sodium-Ion Battery
|
|
Function
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance function,
Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection |
|
Warranty
|
24 Months
|
|
Basic functions
|
Number of strings
|
20 strings (support 4~20 strings)
|
|
Maximum continuous current
|
120A
|
|
|
Storage function
|
More than 340 records can be stored (adjusted according to storage IC)
|
|
|
Equalization function
|
Passive charge balancing
|
|
|
Pre-discharge function
|
YES
|
|
|
Weak current switch
|
Optional
|
|
|
Charging activation function
|
YES
|
|
|
History function
|
YES
|
|
|

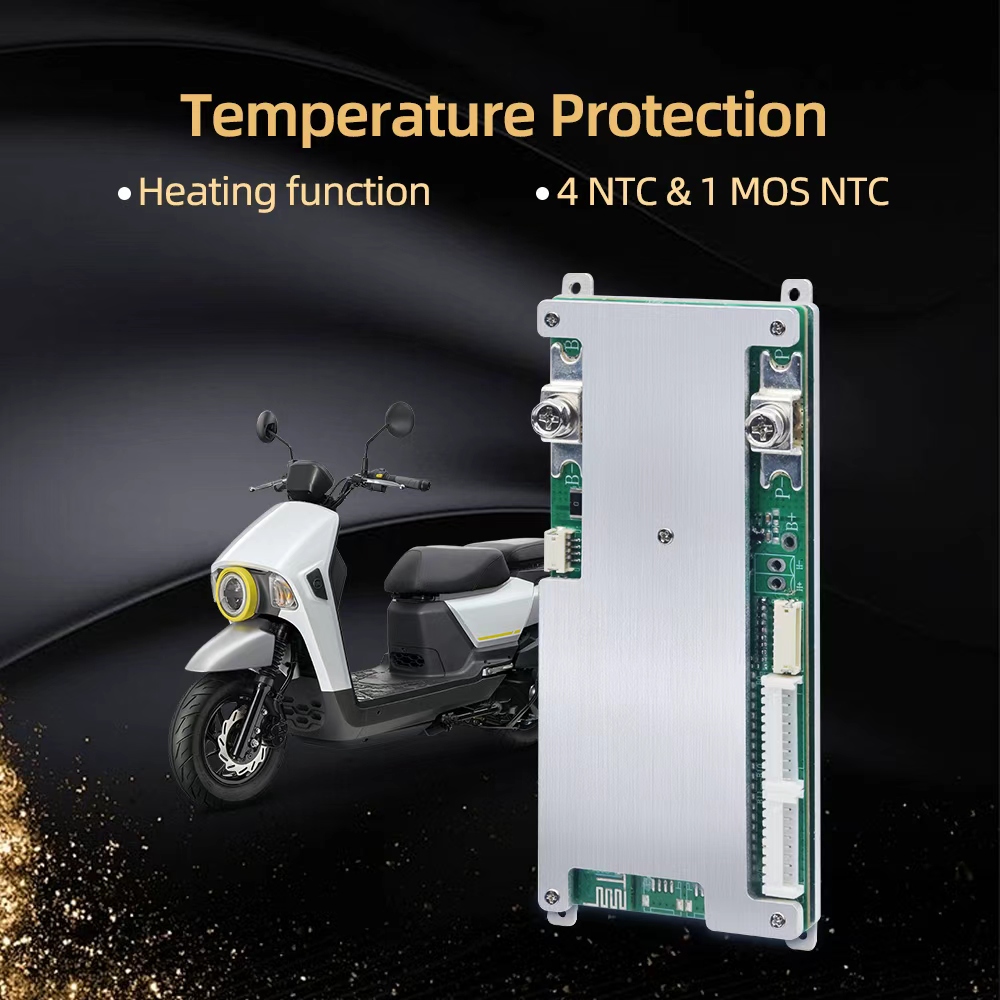

Temperature collection
|
Cell temperature
|
4 NTC
|
|
MOS temperature
|
1 NTC
|
|
|
Other functions (optional)
|
Heating function
|
YES
|
|
Bluetooth function
|
YES
|
|
|
Communication function
|
485 or UART Communications
|
YES
|
|
Bluetooth (built-in or external)
|
YES
|
| AFE internal protection parameters | AFE short-circuit protection | 480A , 96uS |
| AFE discharge overcurrent | 160A , 100mS | |
| AFE single-cell overvoltage | 3850mV | |
| AFE cell undervoltage | 2000mV |
