XJ-DHX-5C-A-1 1S 1A 3.2V 3.7V Single Cell Battery BMS
1S 1A 3.2V 3.7V Single Cell Battery BMS
|

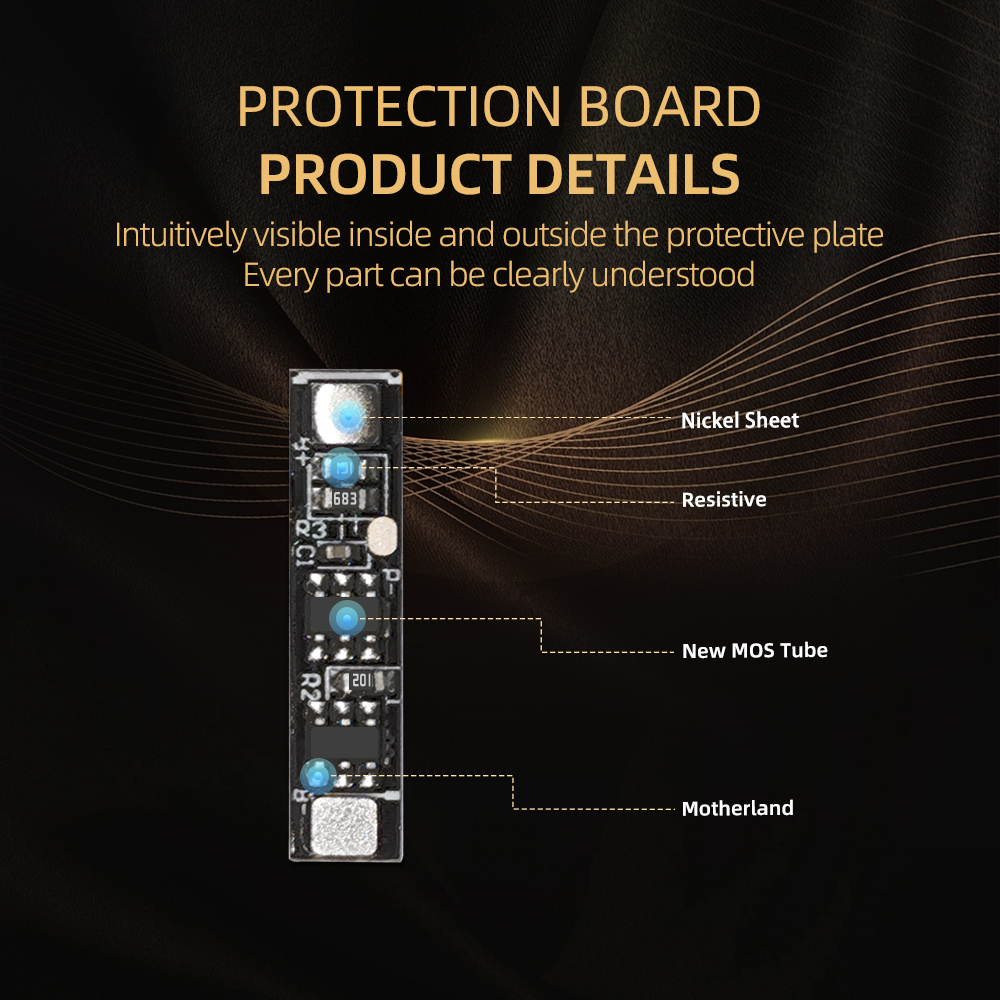

Product Name
|
1S BMS battery management system
|
|
Size
|

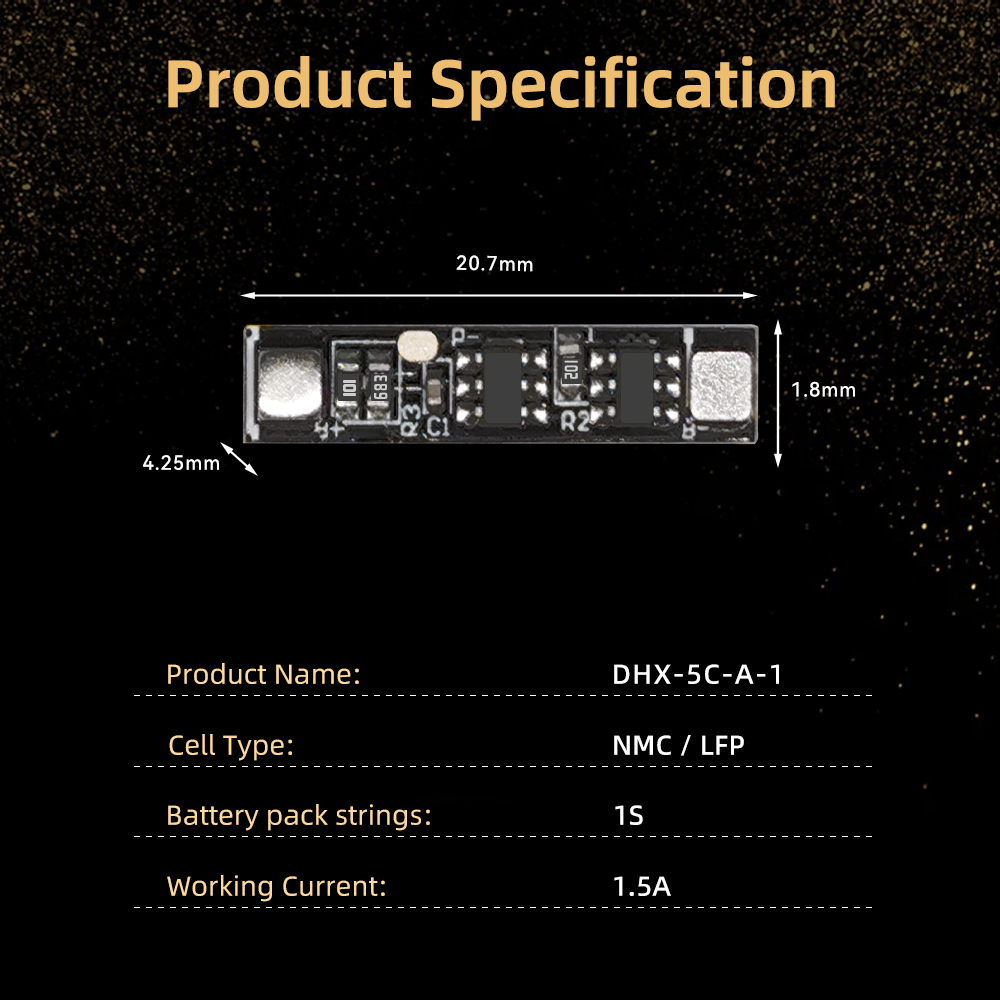

Length 20.7mm*Width 1.8mm*Thickness 4.25mm
|
|
Series
|
1S
|
|
Current
|
1A
|
|
Voltage
|
3.2V / 3.7V
|
|
Battery Cell Type
|
NMC 3.7V Battery / LifePO4 3.2V Battery
|
|

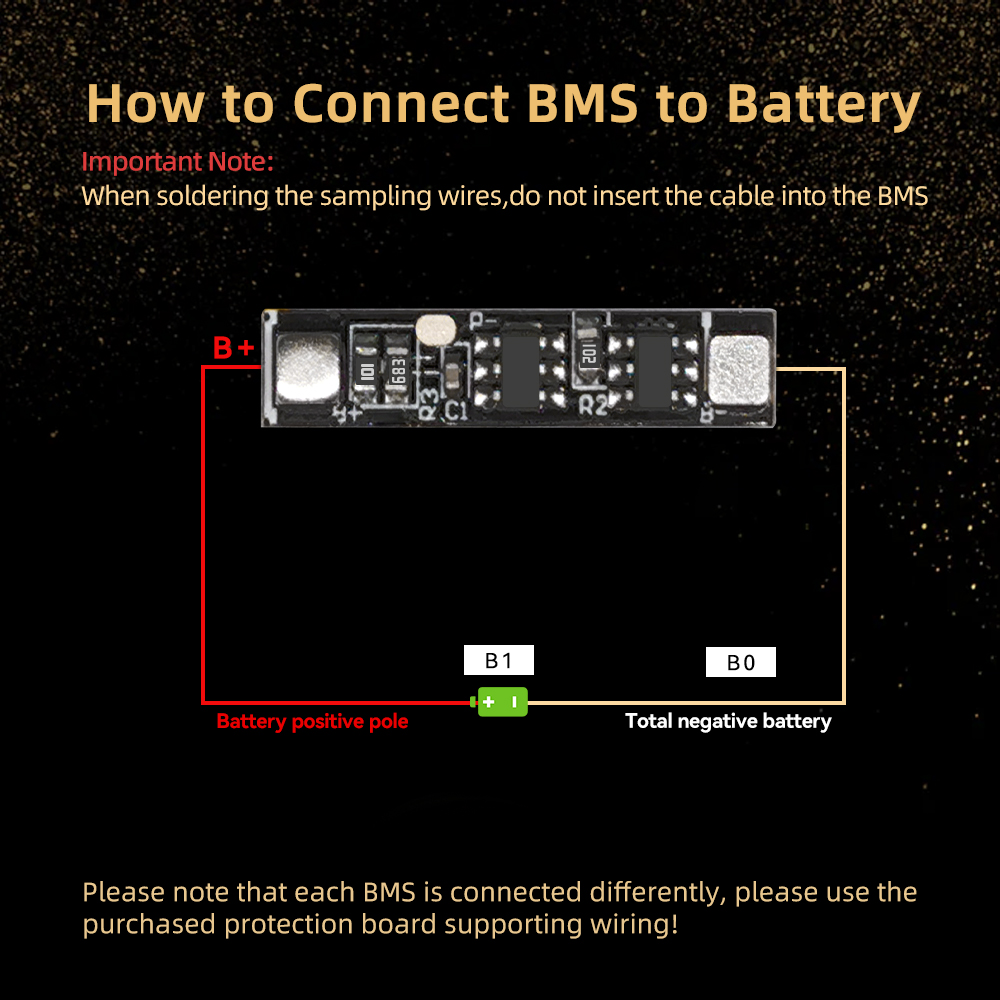

Input & Output
|
Same port, charge and discharge 1A
|
|
Protection
|

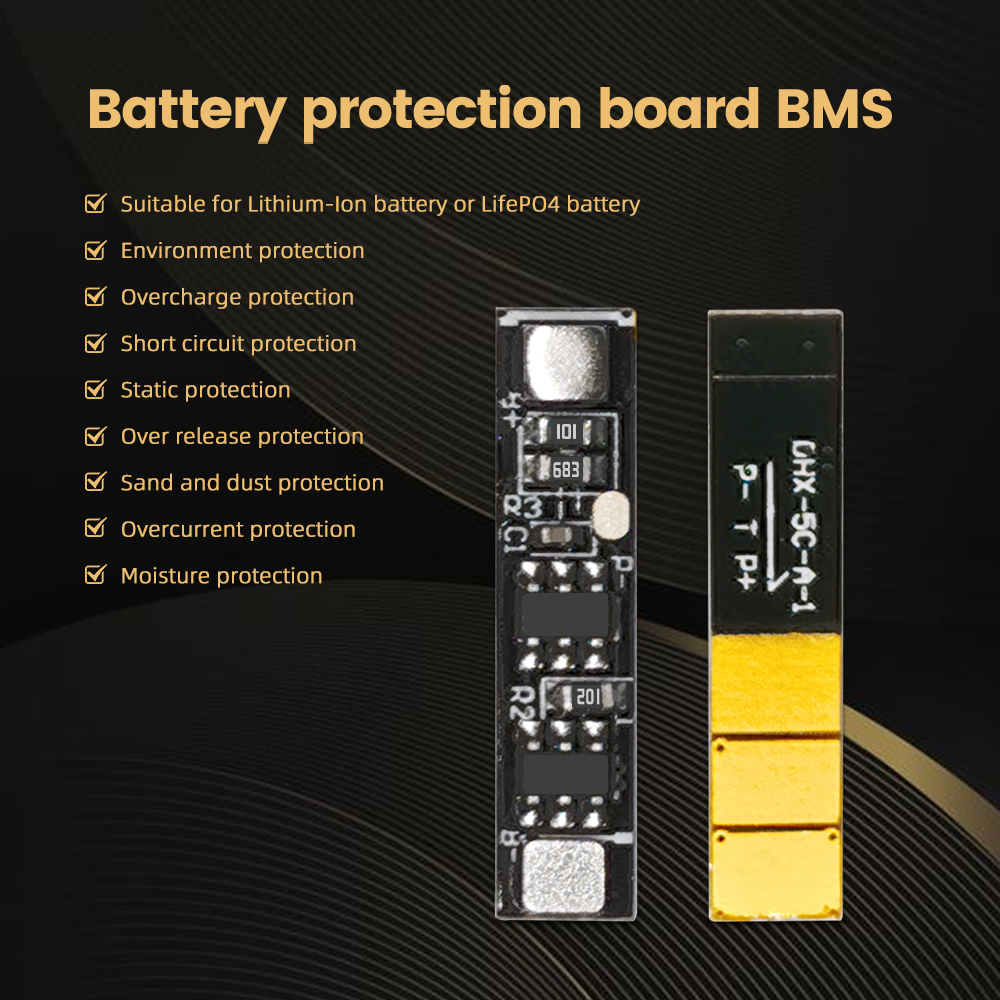

Overcharge protection, Over-discharge protection, Over-current protection, Short-circuit protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
| Item | Min | Typical | Max | Unit | |
| Overcharge protection voltage (V) | 4.23 | 4.28 | 4.33 | V | |
| Overcharge protection delay time(s) | 80 | 120 | 160 | mS | |
| Overcharge recovery voltage (V) | 4.03 | 4.08 | 4.13 | V | |
| Over discharge protection voltage(V) | 2.3 | 2.4 | 2.4 | V | |
| Over discharge protection delay time(ms) | 40 | 60 | 80 | mS | |
| Over discharge recovery voltage (V) | 2.9 | 3 | 3.1 | V | |
| Over Discharge-current detection voltage (V) | 0.12 | 0.15 | 0.18 | V | |
| Over Discharge-current protection(A) | 2 | 3 | 5 | A | |
| Over Discharge-current protection delay time (ms) | 5 | 7 | 10 | mS | |
| Over Charge-current detection voltage (V) | -0.8 | -0.5 | -0.2 | V | |
| Over Charge current protection (A) | - | - | - | A | |
| Over Charge-current protection delay time (ms) | 5 | 10 | mS | ||
| Short-circuit protection time(µs) | 200~600us | uS | |||
| PCM current consumption (µA) | Operating mode | 6 | uA | ||
| Sleep Mode | / | / | / | uA | |
| Interior Resistance （mΩ） | ≤60mΩ | ||||
| NTC（25℃） | / | ||||
| ID | / | ||||
| Input voltage(B+ to B-) | -0.3 | 6 | V | ||
| Maximum continuous charging current | 1 | A | |||
| Maximum continuous discharge current | 1 | A | |||
| Suggested operating temperature | -40 | 85 | ℃ | ||
| 0V battery charging function | Allow | ||||
