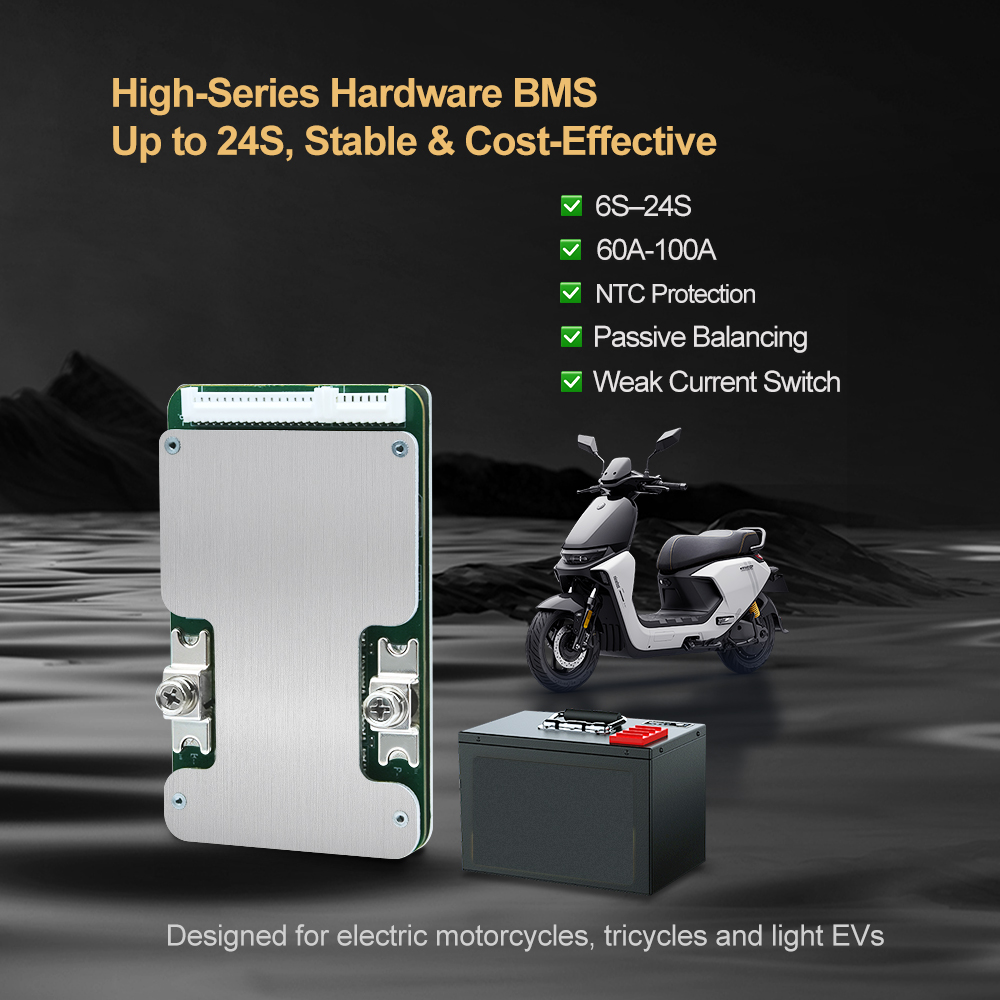

XJ-D647 6S-24S 60A-100A BMS with Passive Balance NTC Weak Current Switch
XJ-D647 6S-24S 60A-100A BMS, with passive balance, NTC, weak current switch, application to LFP/NMC/Sodium Ion battery.
|
Product Name
|
BMS battery management system
|
|
Size
|

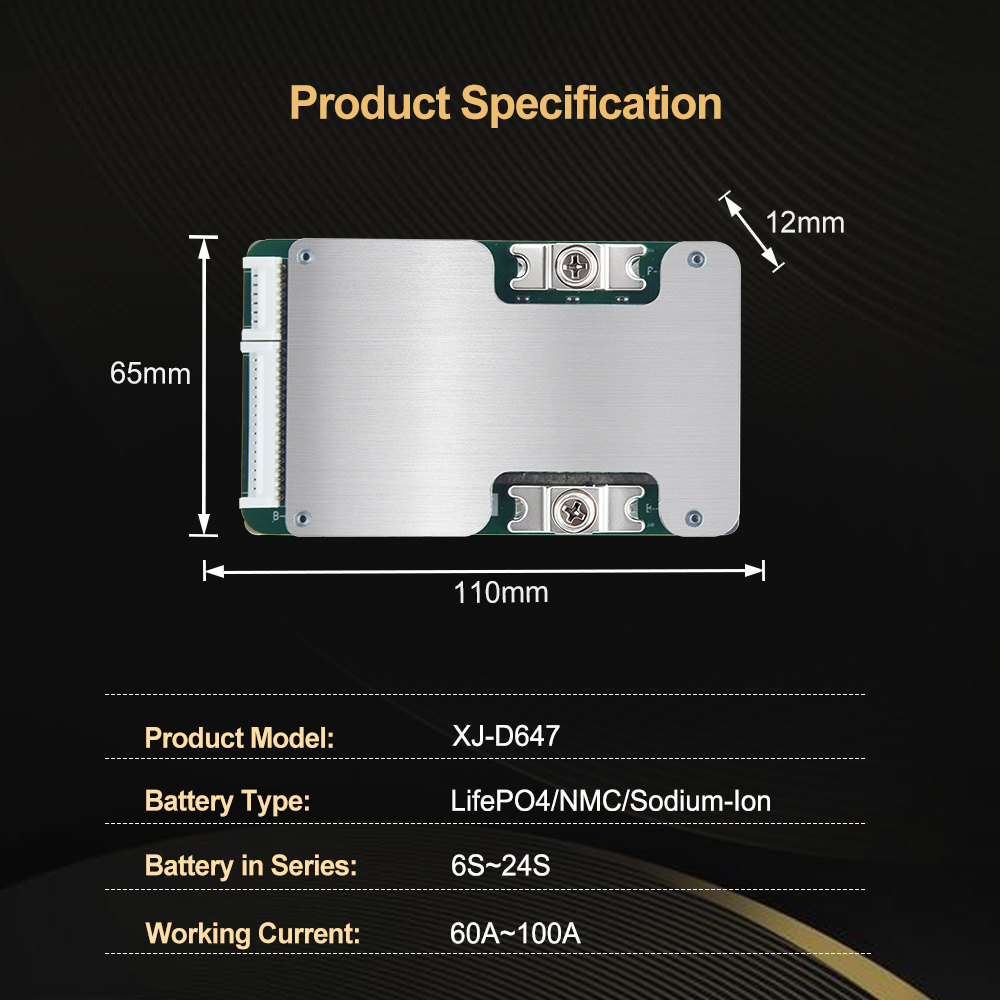

Length 110mm * Width 65mm * Thickness 12mm
|
|

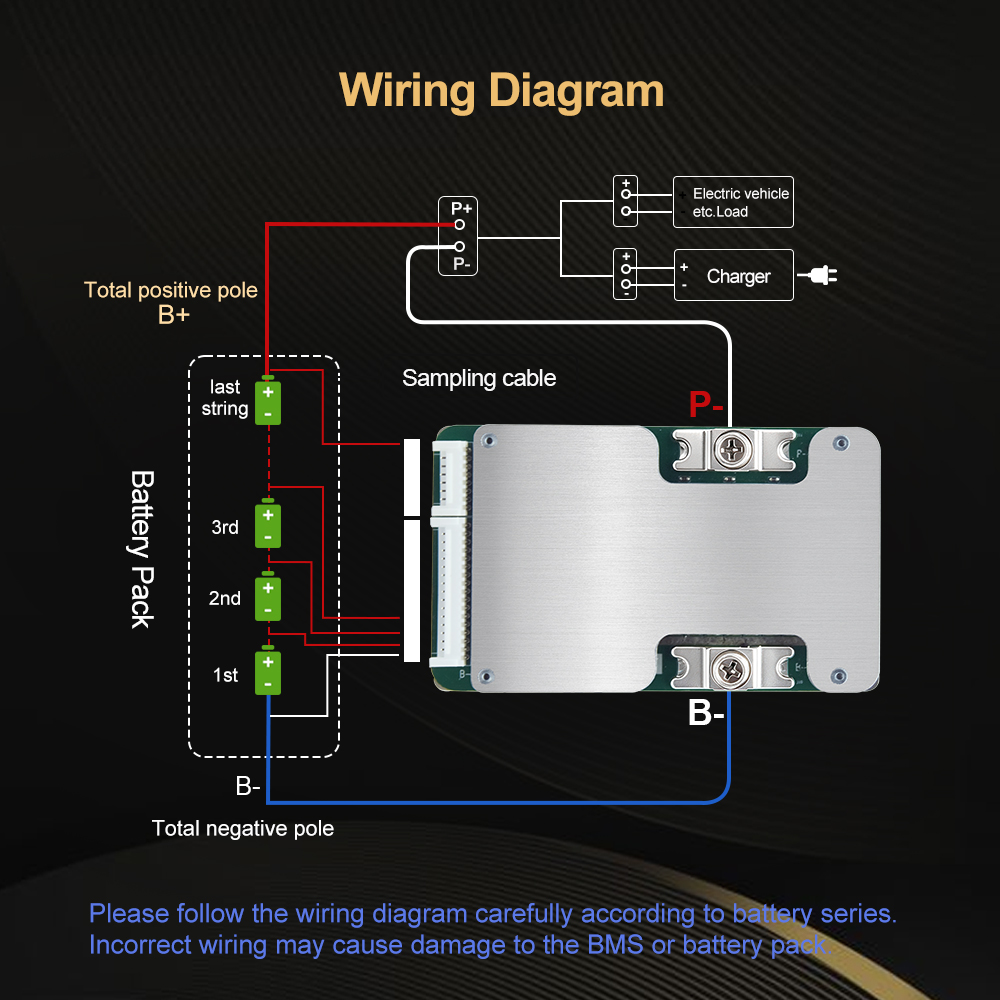

Series
|
6S to 24S
|
|
Current
|
60A to 100A
|
|
Voltage
|
18V~100V
|
|
Cell Type
|

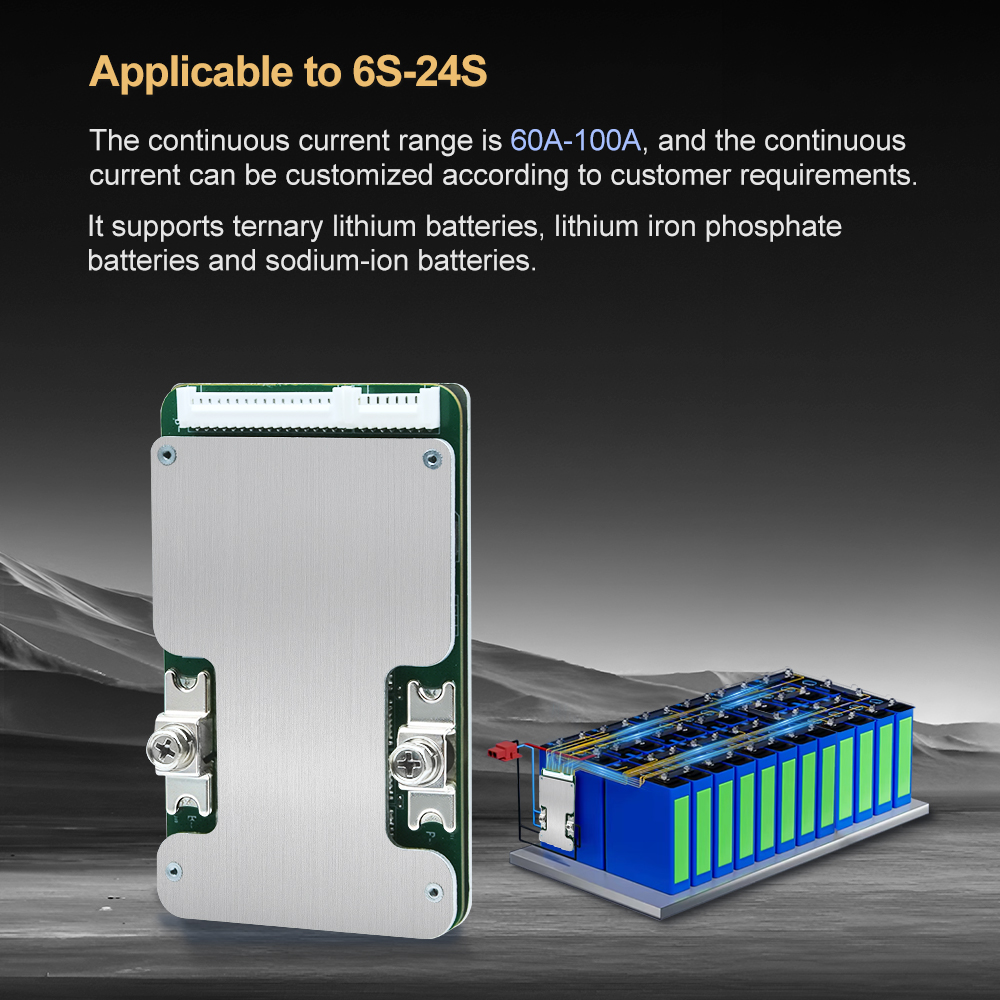

LFP/NCM/Sodium-Ion/Li-ion Battery
|
|
Function
|

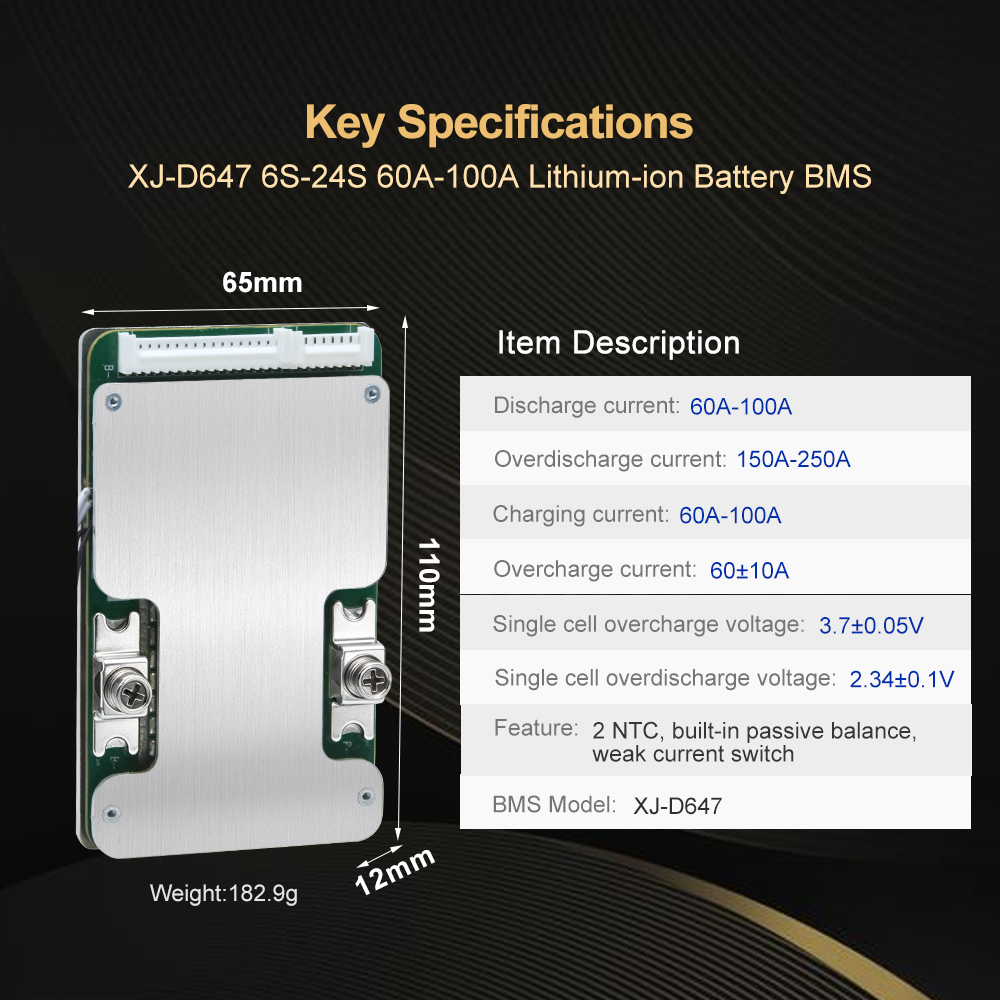

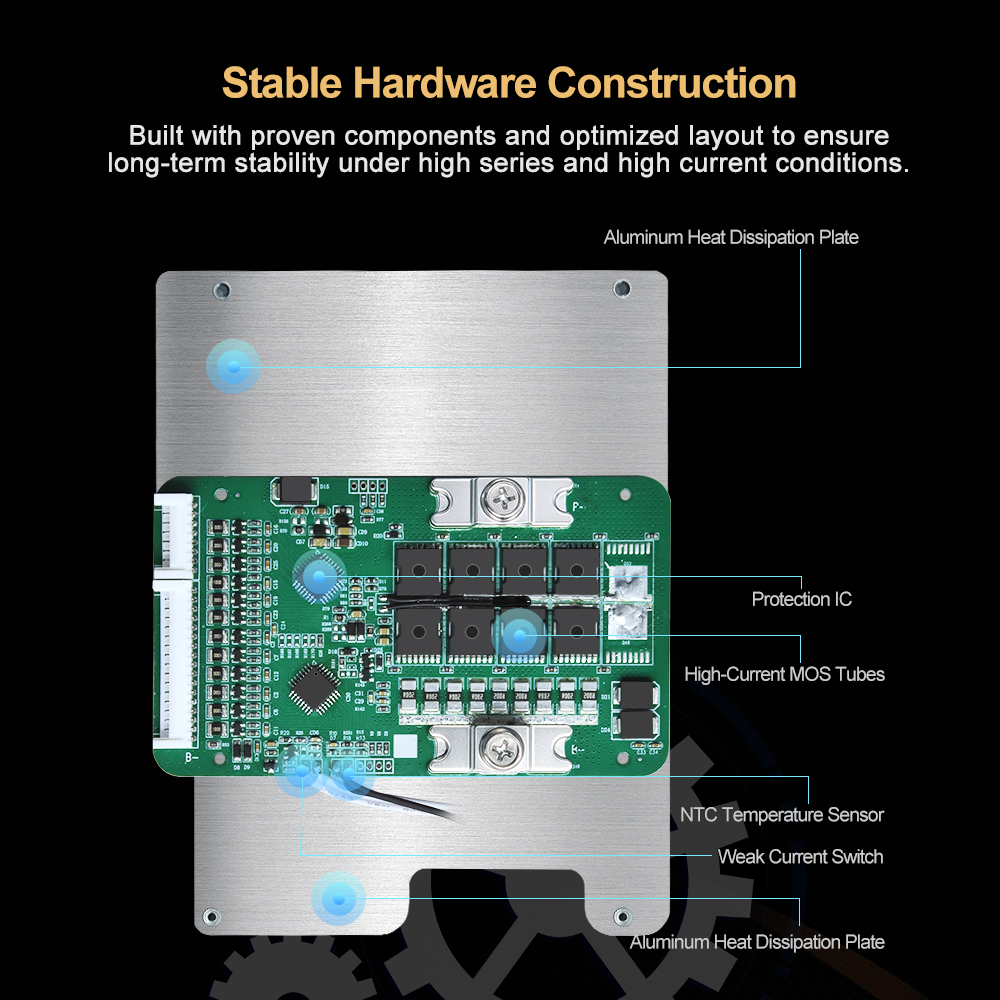

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance function, Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
|
Item (the spec of 16S 80A)
|
Min
|
Typical
|
Max
|
Unit
|
|
Battery pack charging voltage
|
67.2
|
V
|
||
|
Charging MOS withstand voltage
|
100
|
V
|
||
|
Discharging MOS withstand voltage
|
100
|
V
|
||
|
Single-cell overcharge detection voltage
|
4.2
|
4.25
|
4.3
|
V
|
|
Overcharge recovery voltage
|
4.1
|
4.15
|
4.2
|
V
|
|
Overcharge detection delay
|
500
|
1000
|
1500
|
mS
|
|
Single-cell over-discharge detection voltage
|
2.6
|
2.7
|
2.8
|
V
|
|
Over-discharge recovery voltage
|
2.9
|
3
|
3.1
|
V
|
|
Over-discharge detection delay
|
500
|
1000
|
1500
|
mS
|
|
Battery pack continuous discharge current
|
80
|
A
|
||
|
Battery pack continuous charge current
|
80
|
A
|
||
|
Discharge overcurrent protection 1
|
108.5
|
118.5
|
128.5
|
A
|
|
Overcurrent protection delay 1
|
500
|
1000
|
1500
|
mS
|
|
Discharge overcurrent protection 2
|
170
|
180
|
190
|
A
|
|
Overcurrent protection delay 2
|
50
|
100
|
150
|
mS
|
|
Charge overcurrent protection
|
108.5
|
118.5
|
128.5
|
A
|
|
Overcurrent protection delay
|
500
|
1000
|
1500
|
mS
|
|
Self-consumption
|
80
|
uA
|
||
|
Balance current
|
30
|
-
|
80
|
mA
|
|
Balance voltage
|
4.075
|
4.1
|
4.125
|
V
|
|
Charge temperature protection
|
High temperature: 65±3°C, recovery to 55±3°C; Low temperature: 0±3°C, recovery to 5±3°C
|
|||
|
Discharge temperature protection
|
High temperature: 75±3°C, recovery to 65±3°C; Low temperature: -25±3°C, recovery to -20±3°C
|
|||
|
Output short-circuit/over-discharge/over-current protection recovery
|
Automatic recovery after removing the load after short-circuit, over-discharge, or overcurrent protection.
|
|||
|
Short-circuit protection delay
|
100
|
300
|
500
|
uS
|
|
Normal operating state B- to P- internal resistance
|
30
|
mΩ
|
||
|
Continuous 80A output current, maximum temperature rise
|
40
|
℃
|
||
|
Weak current switch
|
/
|
|||
