XJ-D603 6S-10S 10A-30A BMS for Electric Scooters with Balance NTC Weak Current Switch
XJ-D603 BMS, 6S-10S 10A-30A, with balance and NTC, available weak current switch, application to electric scooters.
|
Product Name
|
E-scooters BMS battery management system
|
|
Size
|

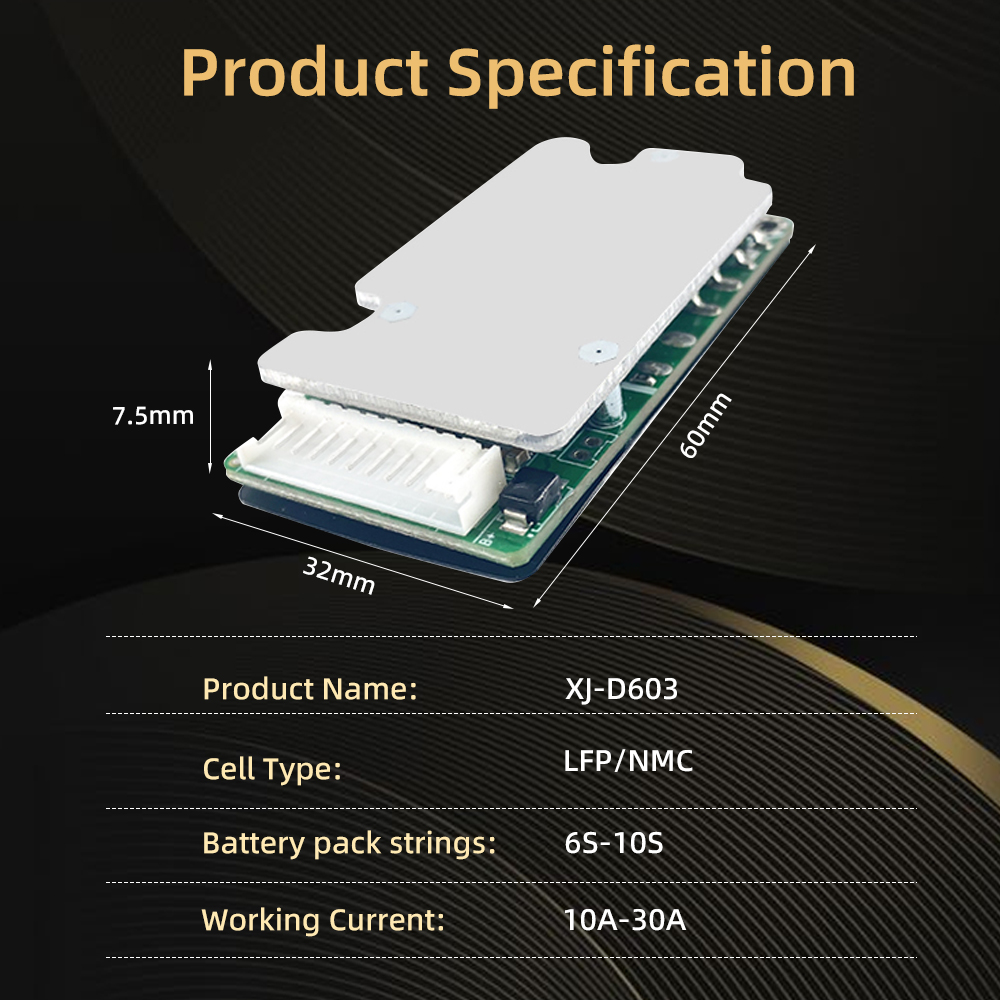

Length 60mm*Width 32mm*Thickness 7.5mm
|
|
Series
|
6S-10S
|
|
Current
|
10A-30A
|
|
Input & output
|
Common port or seperate port, optional
|
|
Cell Type
|
LifePO4/NMC (Li-ion)
|
|

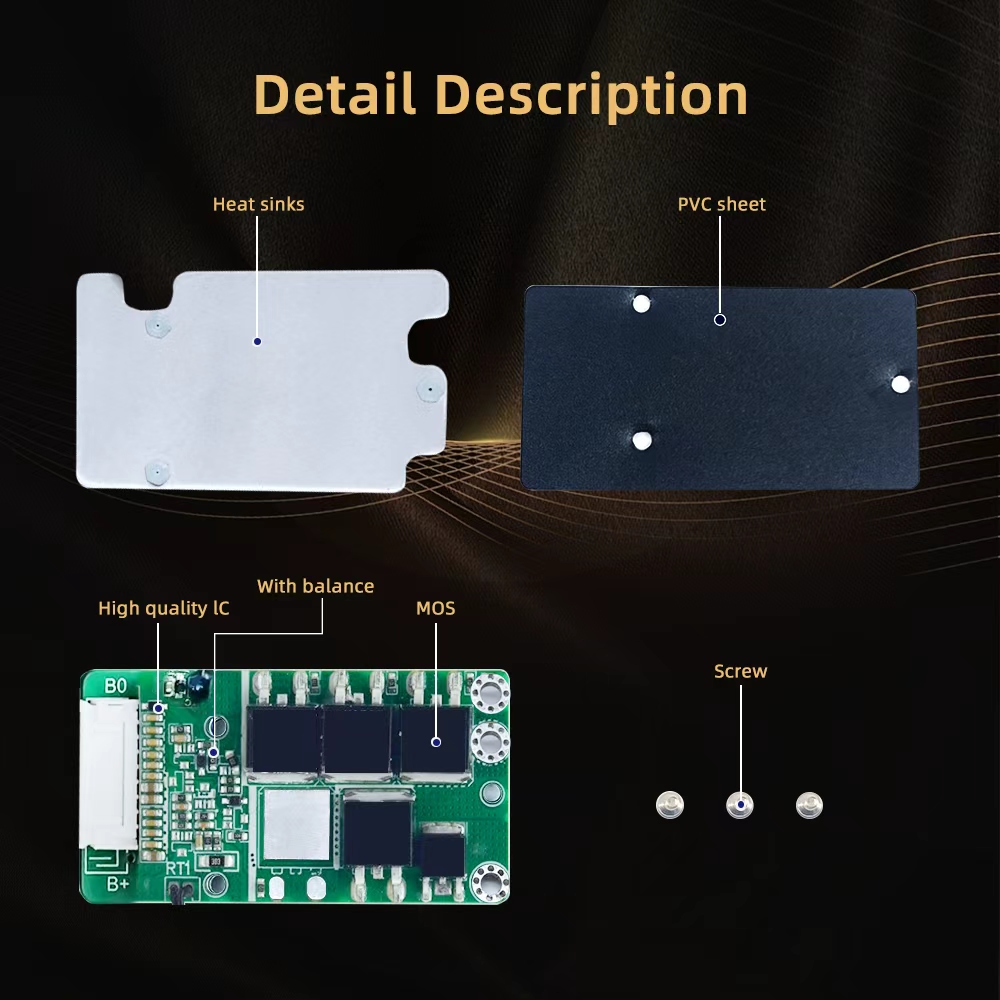

Function
|

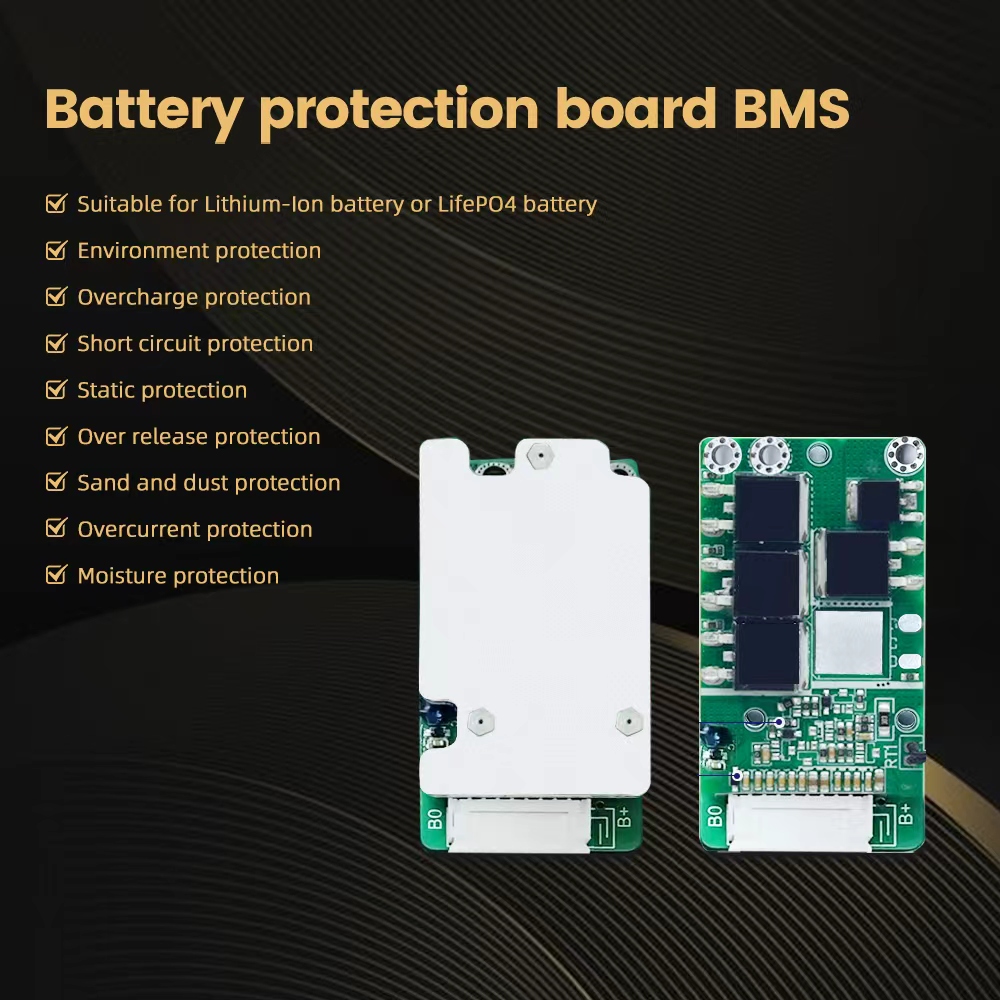

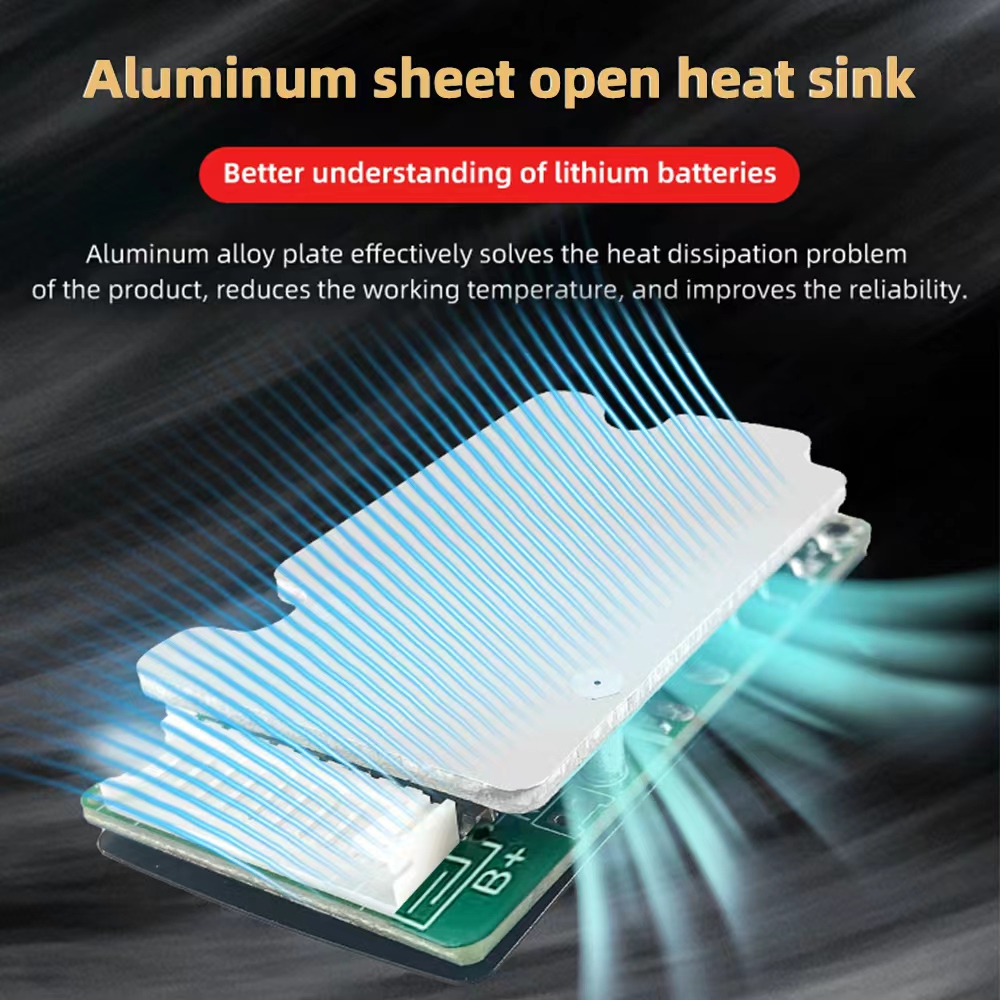

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance, NTC Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Weak Current Switch
|
Optional
|
|
Warranty
|
24 Months
|
|

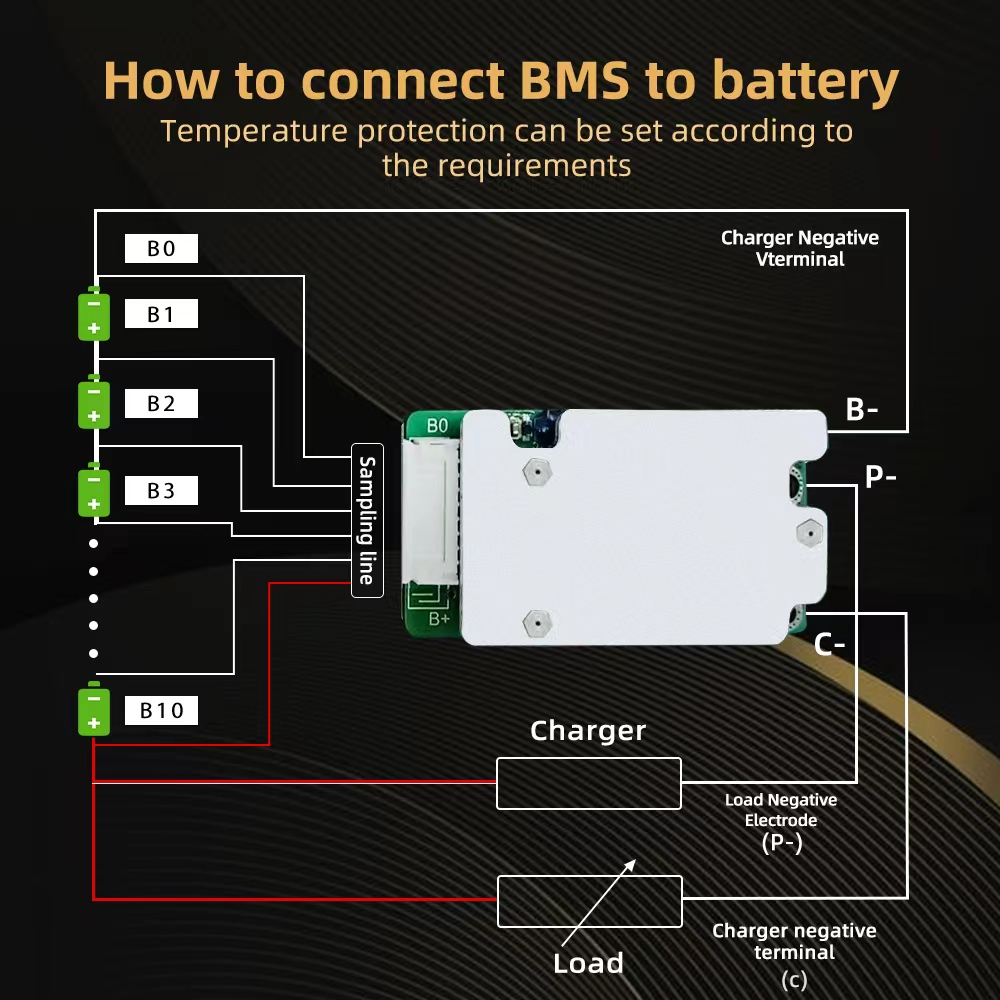

Item (the spec of 10S 30A common port)
|
Min
|
Typical
|
Max
|
Unit
|
|
Battery pack charging voltage
|
42.5
|
V
|
||
|
Charging MOS withstand voltage
|
85
|
V
|
||
|
Discharging MOS withstand voltage
|
85
|
V
|
||
|
Single-cell overcharge detection voltage
|
4.225
|
4.25
|
4.275
|
V
|
|
Overcharge recovery voltage
|
4
|
4.05
|
4.1
|
V
|
|
Overcharge detection delay
|
500
|
1000
|
1500
|
mS
|
|
Single-cell over-discharge detection voltage
|
2.6
|
2.7
|
2.8
|
V
|
|
Over-discharge recovery voltage
|
2.9
|
3
|
3.1
|
V
|
|
Over-discharge detection delay
|
500
|
1000
|
1500
|
mS
|
|
Battery pack continuous discharge current
|
30
|
A
|
||
|
Battery pack continuous charge current
|
10
|
A
|
||
|
Discharge overcurrent protection 1
|
70
|
80
|
90
|
A
|
|
Discharge overcurrent protection delay 1
|
500
|
1000
|
1500
|
mS
|
|
Discharge overcurrent protection 2
|
130
|
140
|
150
|
A
|
|
Discharge overcurrent protection delay 2
|
50
|
100
|
150
|
mS
|
|
Self-consumption
|
||||
|
Charge overcurrent protection
|
12
|
|||
|
Charge overcurrent protection delay
|
500
|
|||
|
Balance current
|
30
|
40
|
60
|
mA
|
|
Balance voltage
|
4.06
|
4.1
|
4.14
|
V
|
|
Charge temperature protection
|
50±4℃.
|
|||
|
Discharge temperature protection
|
70±4℃.
|
|||
|
Output short-circuit/over-discharge/overcurrent protection recovery
|
Automatic recovery after removing the load after short circuit/over discharge/over current protection
|
|||
|
Short-circuit protection delay
|
100
|
300
|
600
|
uS
|
|
Normal operating state B- to P- internal resistance
|
10
|
mΩ
|
||
|
Maximum temperature rise at 30A continuous output current
|
40
|
℃
|
||
