XJ-D565 6S-24S 30A-60A LifePO4 Lithium-ion NMC Sodium-ion Battery Management System BMS
XJ-D565 BMS, 6S-24S, 30A-60A, suitable for LFP, NMC, Sodium-ion batteries, with balance, NTC, and weak current switch.
|
Product Name
|
BMS battery management system
|
|
Size
|

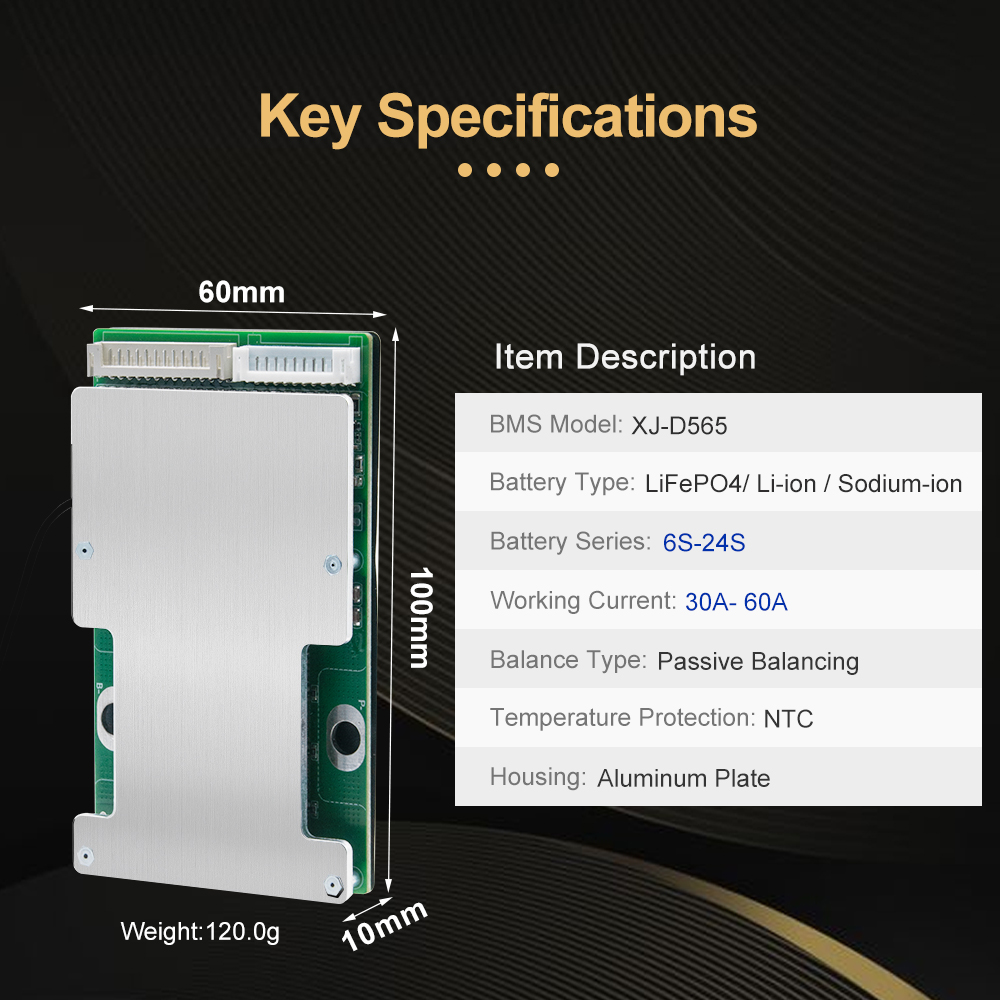

Length 100mm*Width 60mm*Thickness 10mm
|
|
Series
|
6S~24S
|
|
Current
|
30A~60A
|
|
Voltage
|
18V~100V
|
|

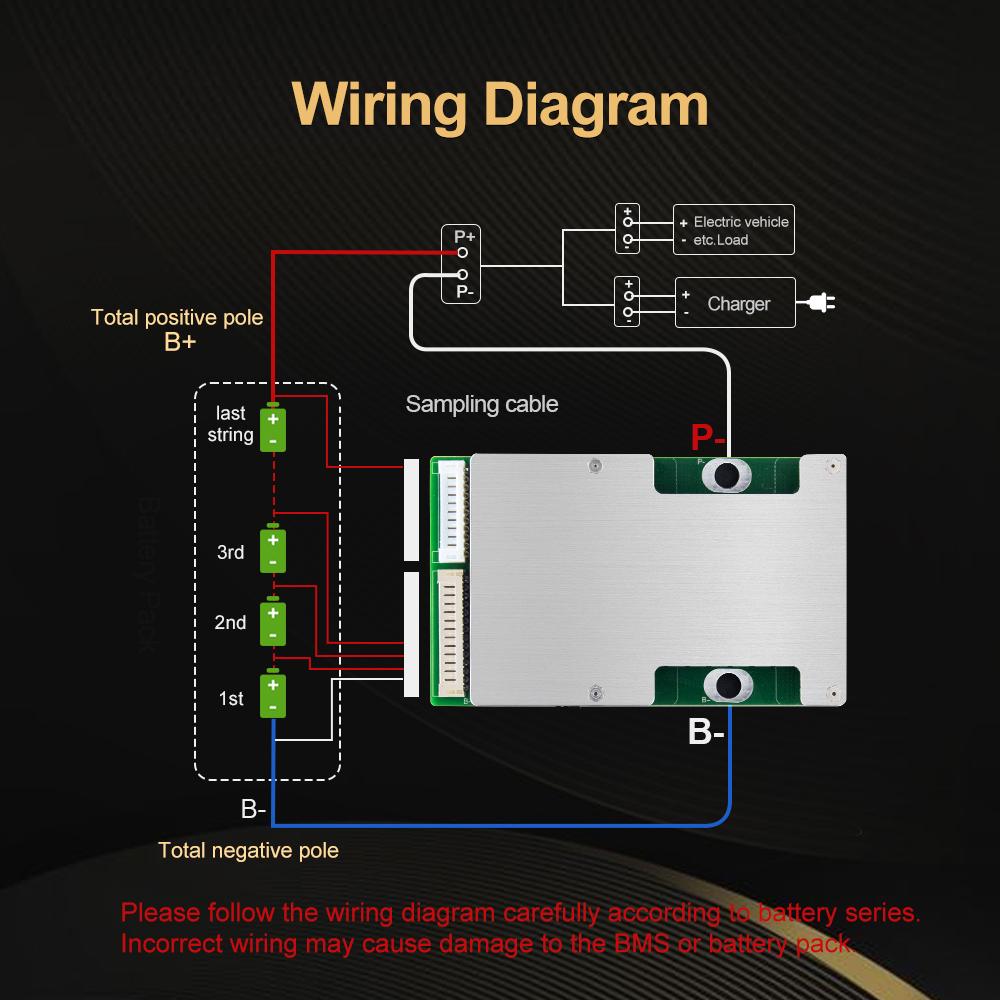

Input & Output
|
Common port
|
|
Cell Type
|
LifePO4/NMC (Li-ion)/Sodium-ion Battery
|
|

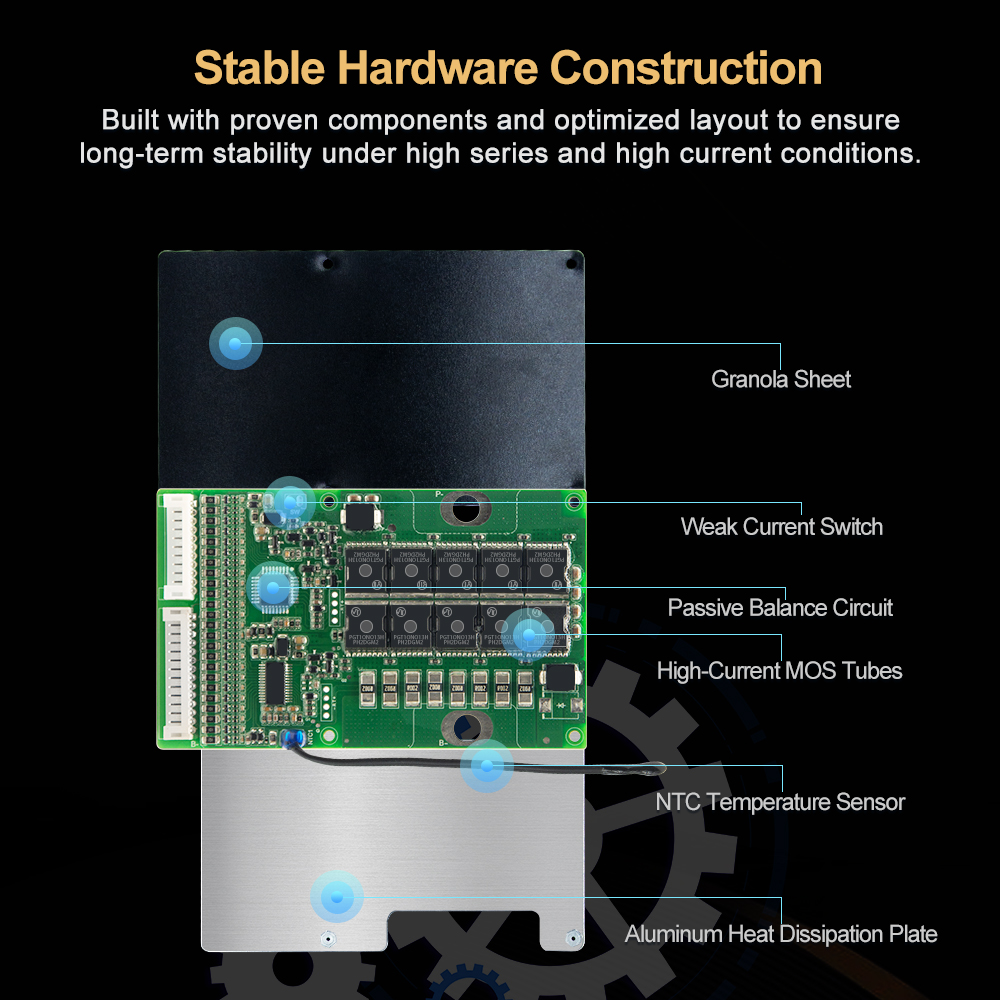

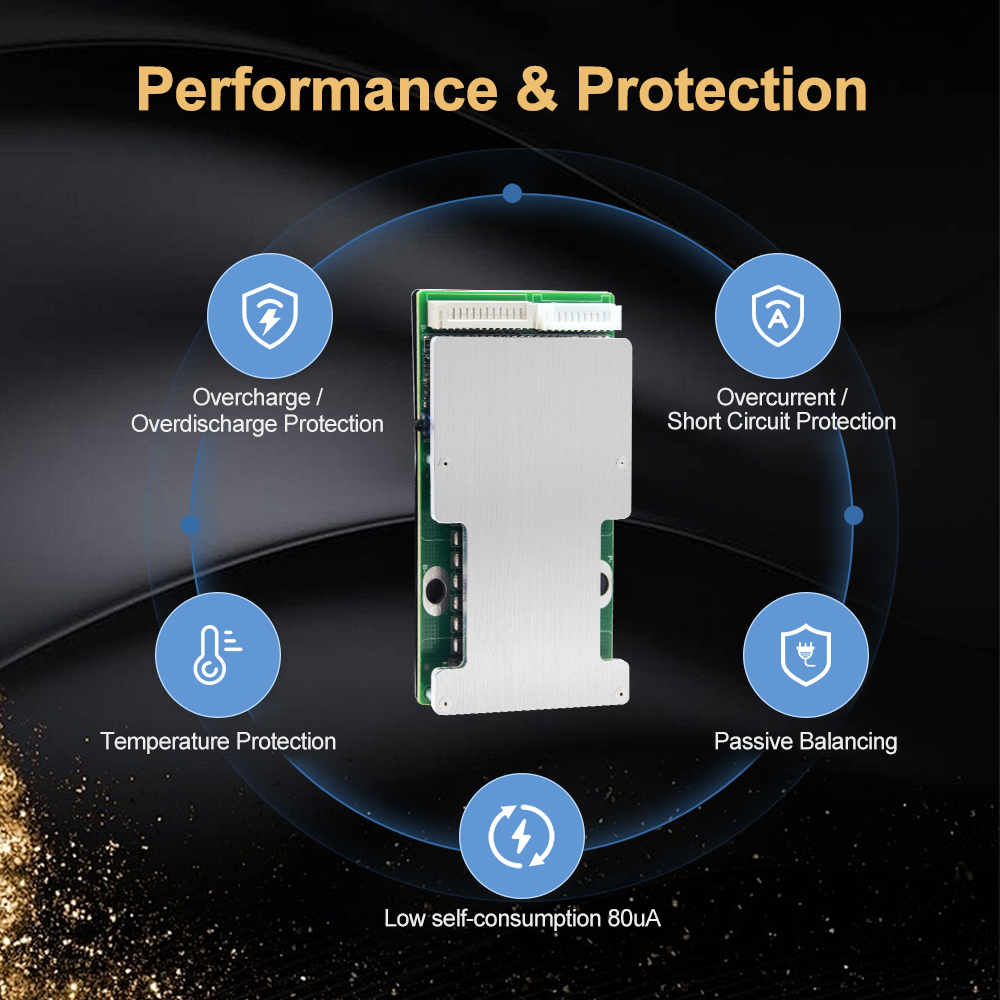

Function
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance, NTC, On/off switch (weak current switch), Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
|
Item (the spec of 24S 30A NMC 3.7V Battery)
|
Min
|
Typical
|
Max
|
Unit
|
|
Battery pack charging voltage
|
86.4
|
V
|
||
|
Charging MOS withstand voltage
|
100
|
V
|
||
|
Discharging MOS withstand voltage
|
100
|
V
|
||
|
Single cell overcharge detection voltage
|
3.6
|
3.65
|
3.7
|
V
|
|
Overcharge recovery voltage
|
3.5
|
3.55
|
3.6
|
V
|
|
Overcharge detection delay
|
500
|
1000
|
1500
|
mS
|
|
Single cell over-discharge detection voltage
|
2.25
|
2.3
|
2.35
|
V
|
|
Over-discharge recovery voltage
|
2.6
|
2.7
|
2.8
|
V
|
|
Over-discharge detection delay
|
500
|
1000
|
1500
|
mS
|
|
Battery pack continuous discharge current
|
30
|
A
|
||
|
Battery pack continuous charging current
|
30
|
A
|
||
|
Charging overcurrent protection
|
32
|
35
|
38
|
A
|
|
Overcurrent protection delay
|
500
|
1000
|
1500
|
mS
|
|
Discharging overcurrent protection
|
58
|
63
|
68
|
A
|
|
Overcurrent protection delay
|
500
|
1000
|
1500
|
mS
|
|
Self-dissipation
|
80
|
uA
|
||
|
Equalization current
|
30
|
-
|
60
|
mA
|
|
Equalization voltage
|
3.4
|
3.45
|
3.5
|
V
|
|
Charging temperature protection
|
High temperature 55±3℃, recovers to 50±3℃; Low temperature 0±3℃, recovers to -5±3℃
|
|||
|
Discharging temperature protection
|
High temperature 75±3℃, recovers to 65±3℃; Low temperature -20±3℃, recovers to -10±3℃
|
|||
|
Output short circuit/over-discharge/overcurrent protection recovery
|
Automatic recovery after removing the load following short circuit/over-discharge/over-current protection.
|
|||
|
Short circuit protection delay
|
250
|
360
|
550
|
uS
|
|
Normal operating state B-to-P- internal resistance
|
30
|
mΩ
|
||
|
Continuous 30A output current maximum temperature rise
|
40
|
℃
|
||
