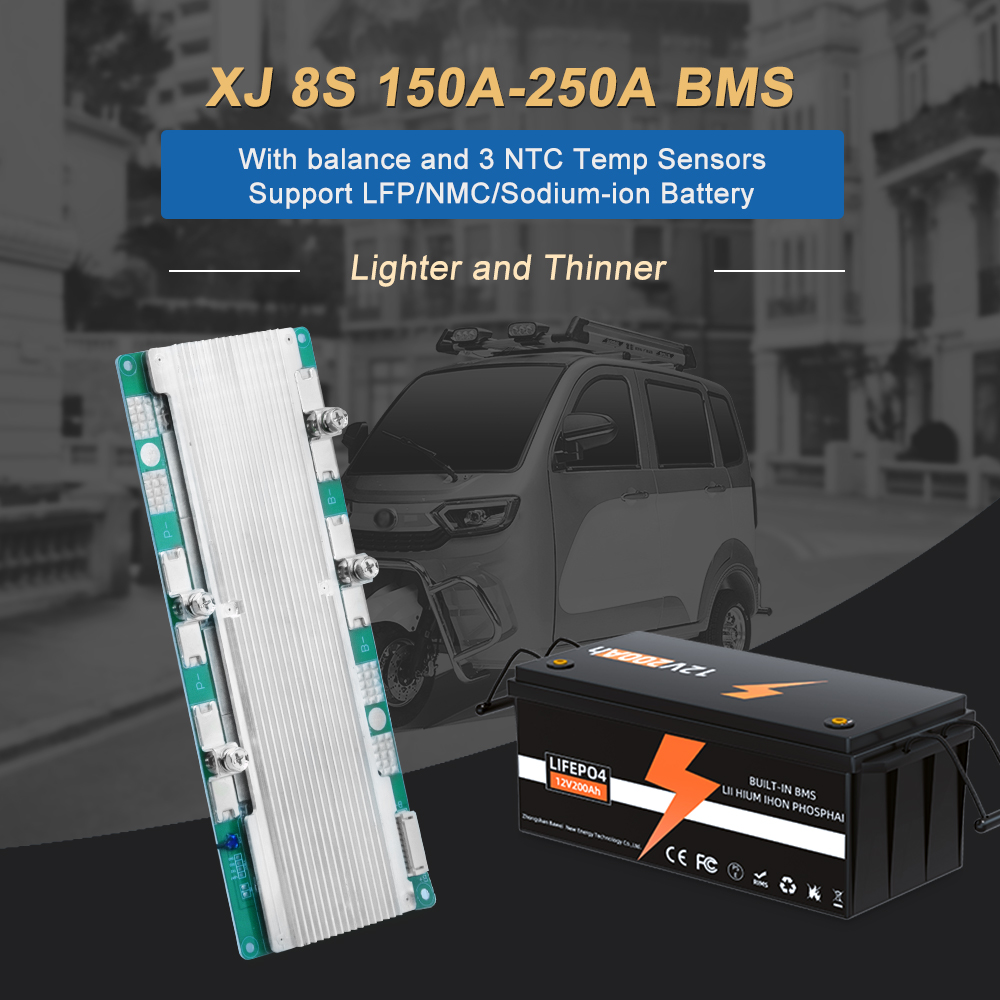

XJ-D549 8S 150A 200A 250A Car Starting BMS with Balance NTC LFP NMC SIB Battery
XJ-D549 8S 150A/200A/250A BMS, for LifePO4/Li-ion/Sodium-ion battery, with balance and NTC.
|
Product Name
|
8S 200A Car Jumper Starter BMS
|
|

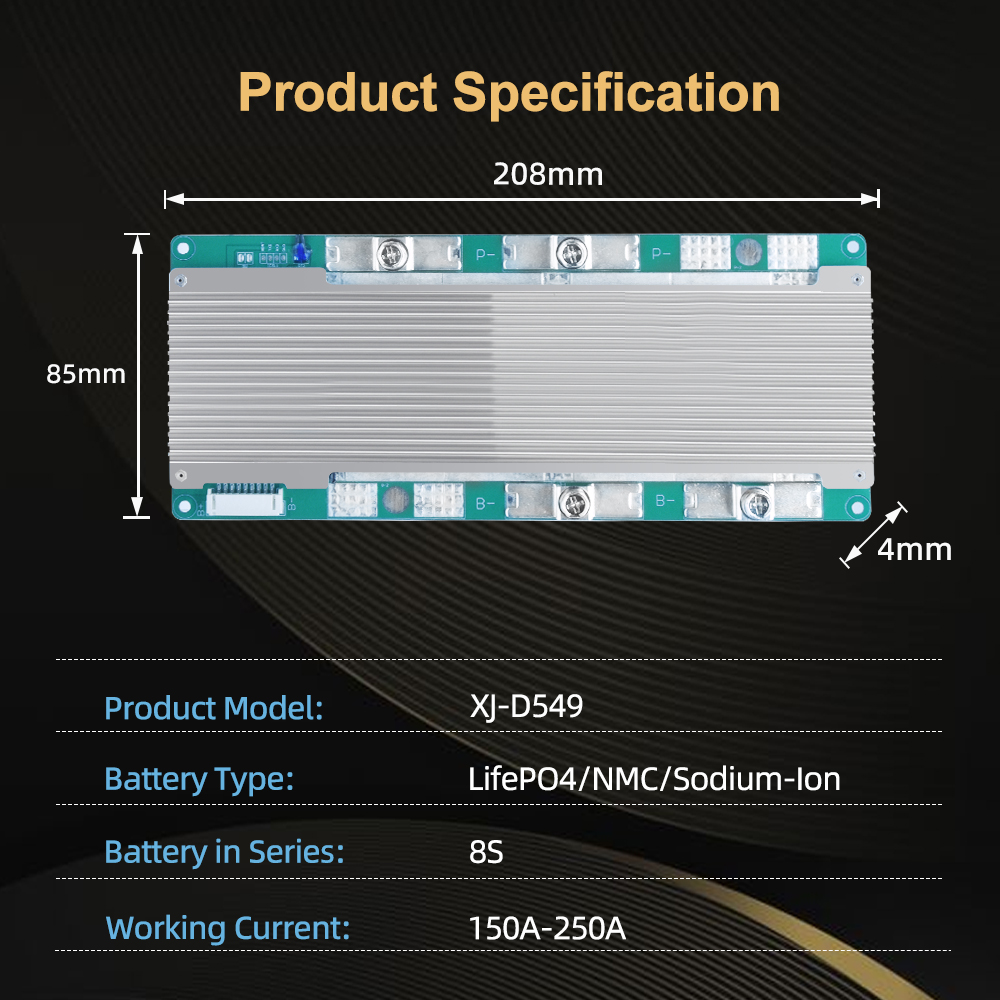

Size
|
Length 208mm*Width 85mm*Thickness 4mm
|
|
Series
|
8S
|
|
Input & output
|
Common port, charging & discharging 150A/200A/250A
|
|
Cell Type
|
LFP/NMC/Sodium-Ion battery
|
|
Working Temperature
|
-20℃~70℃
|
|

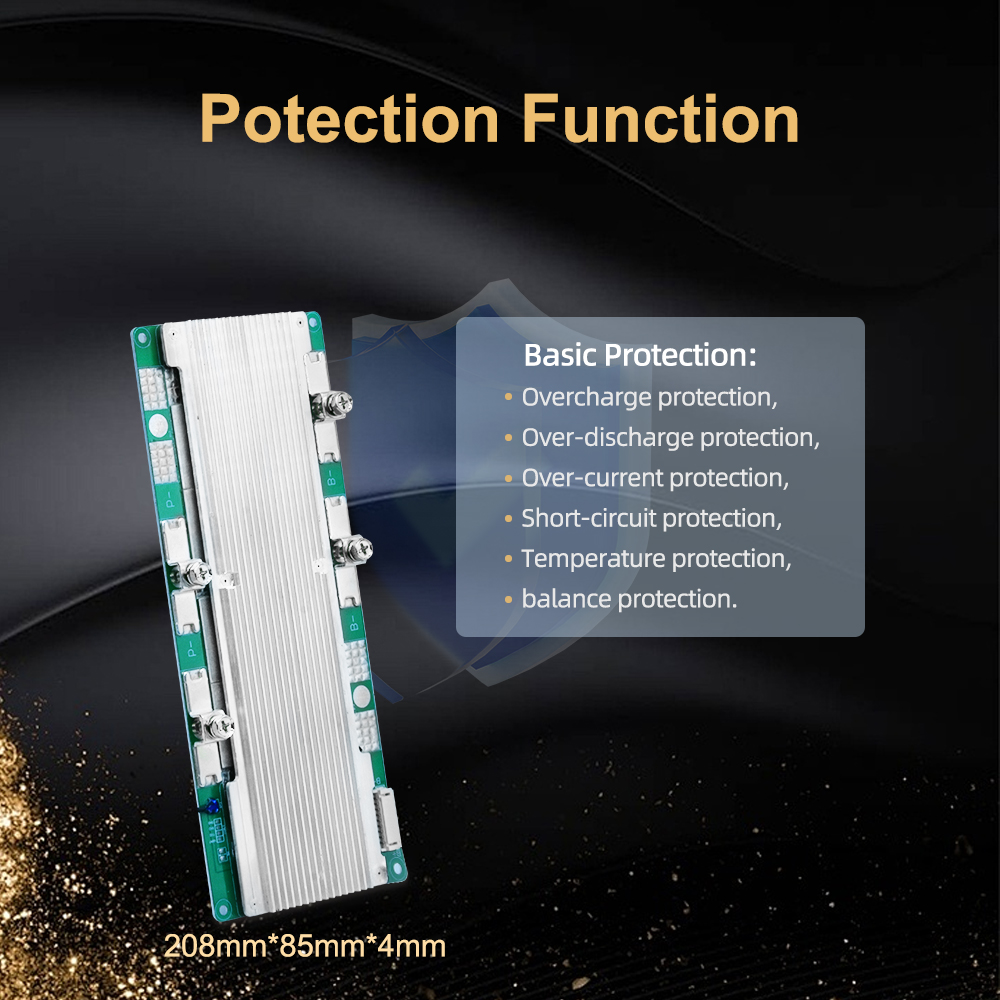

Function
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance, NTC Temperature sensor, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
|
Technical Guidance
|
YES
|
|
Item (the spec of 8S 200A)
|
Min
|
Typical
|
Max
|
Unit
|
|
Battery pack charging voltage
|
28.8
|
V
|
||
|
Charging MOS withstand voltage
|
100
|
V
|
||
|
Discharging MOS withstand voltage
|
100
|
V
|
||
|
Single cell overcharge detection voltage
|
3.625
|
3.65
|
3.675
|
V
|
|
Overcharge recovery voltage
|
3.5
|
3.55
|
3.6
|
V
|
|
Overcharge detection delay
|
500
|
1000
|
1500
|
mS
|
|
Single cell over-discharge detection voltage
|
2
|
2.1
|
2.2
|
V
|
|
Over-discharge recovery voltage
|
2.6
|
2.7
|
2.8
|
V
|
|
Over-discharge detection delay
|
500
|
1000
|
1500
|
mS
|
|
Battery pack continuous discharge current
|
200
|
A
|
||
|
Battery pack continuous charging current
|
200
|
A
|
||
|
Discharge overcurrent protection
|
1900
|
2000
|
2100
|
A
|
|
Overcurrent protection delay
|
500
|
1000
|
1500
|
mS
|
|
Self-consumption
|
40
|
uA
|
||
|
Battery equalization turn-on voltage
|
3.475
|
3.5
|
3.525
|
V
|
|
Battery equalization current
|
30
|
|||
|

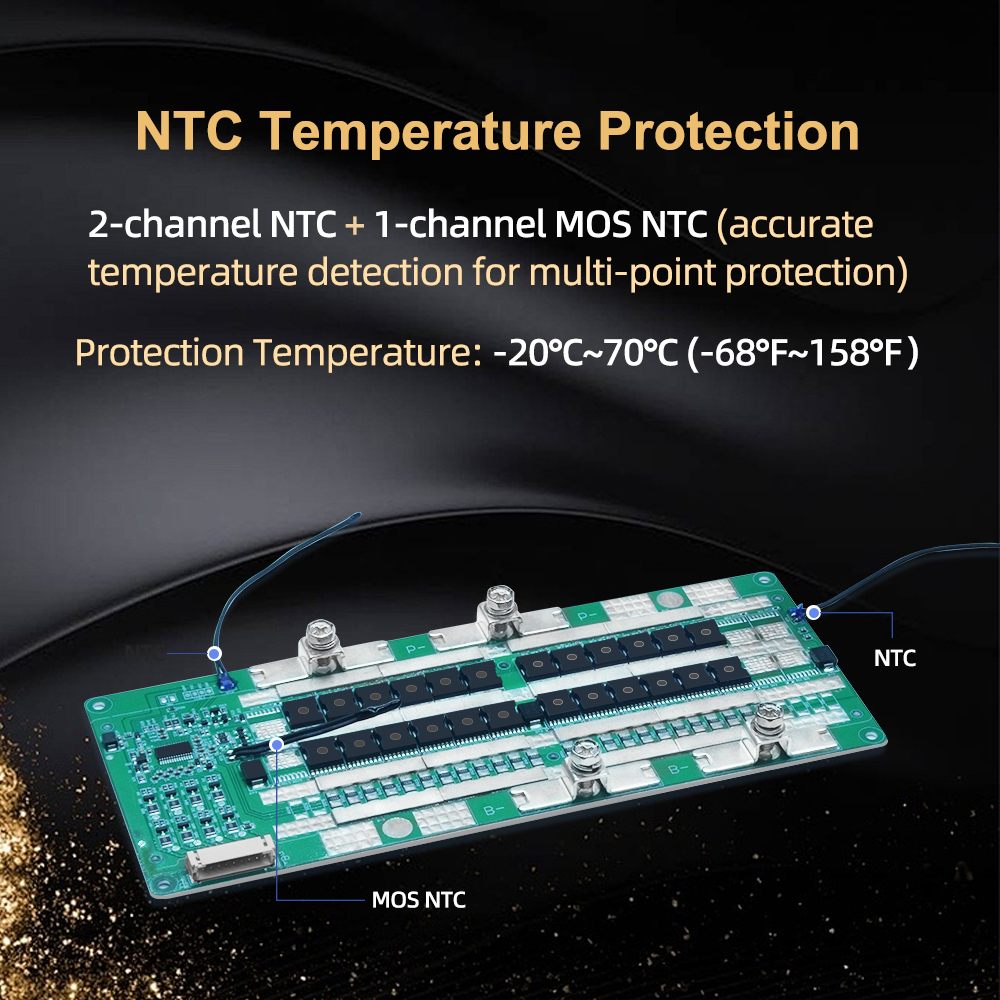

Charging high temperature protection temperature
|
45
|
|||
|
Charging high temperature recovery temperature
|
40
|
|||
|
Discharge high temperature protection temperature
|
65
|
70
|
75
|
℃
|
|
Discharge high temperature recovery temperature
|
55
|
60
|
65
|
℃
|
|
Charging low temperature protection temperature
|
-5
|
0
|
5
|
℃
|
|
Charging low temperature recovery temperature
|
0
|
|||
|
Discharge low temperature protection temperature
|
-25
|
|||
|
Discharge low temperature recovery temperature
|
-20
|
|||
|
Temperature protection delay
|
3
|
S
|
||
|
Output short circuit/over-discharge/overcurrent protection recovery
|
Automatic recovery after removing load following short circuit/over-discharge/over-current protection
|
|||
|
Short circuit protection delay
|
160
|
300
|
600
|
uS
|
|
Normal operating state B-to-P- internal resistance
|
30
|
mΩ
|
||
|
Continuous 200A output current maximum temperature rise
|
45
|
℃
|
||
