4S BMS
XJ-D545 3S/4S 50A-100A BMS 12V with Balance NTC Battery Balance LifePO4/Li-ion/Sodium-ion
3S/4S 12V 50A-100A BMS, with balance and NTC, application to LifePO4/Li-ion/Sodium-ion battery.
|

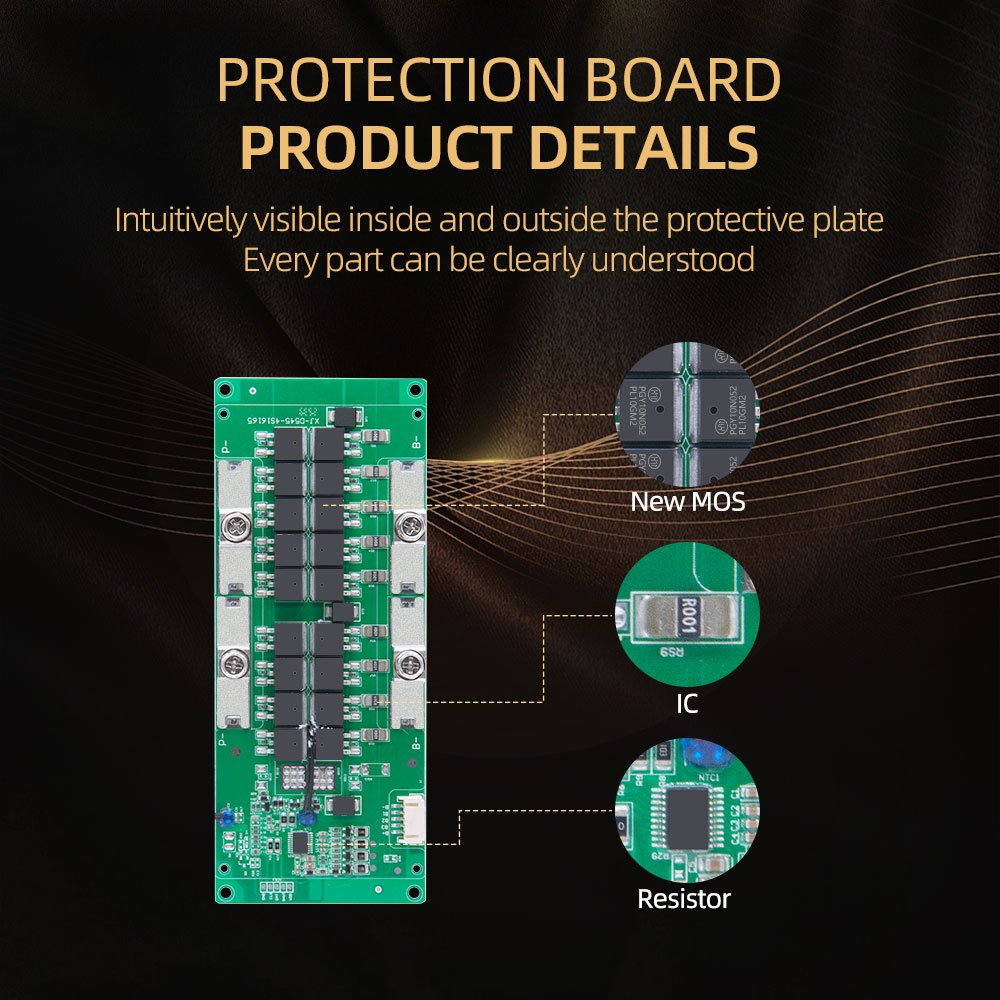

Product Name
|
3S/4S 50A-100A BMS battery management system
|
|
Size
|

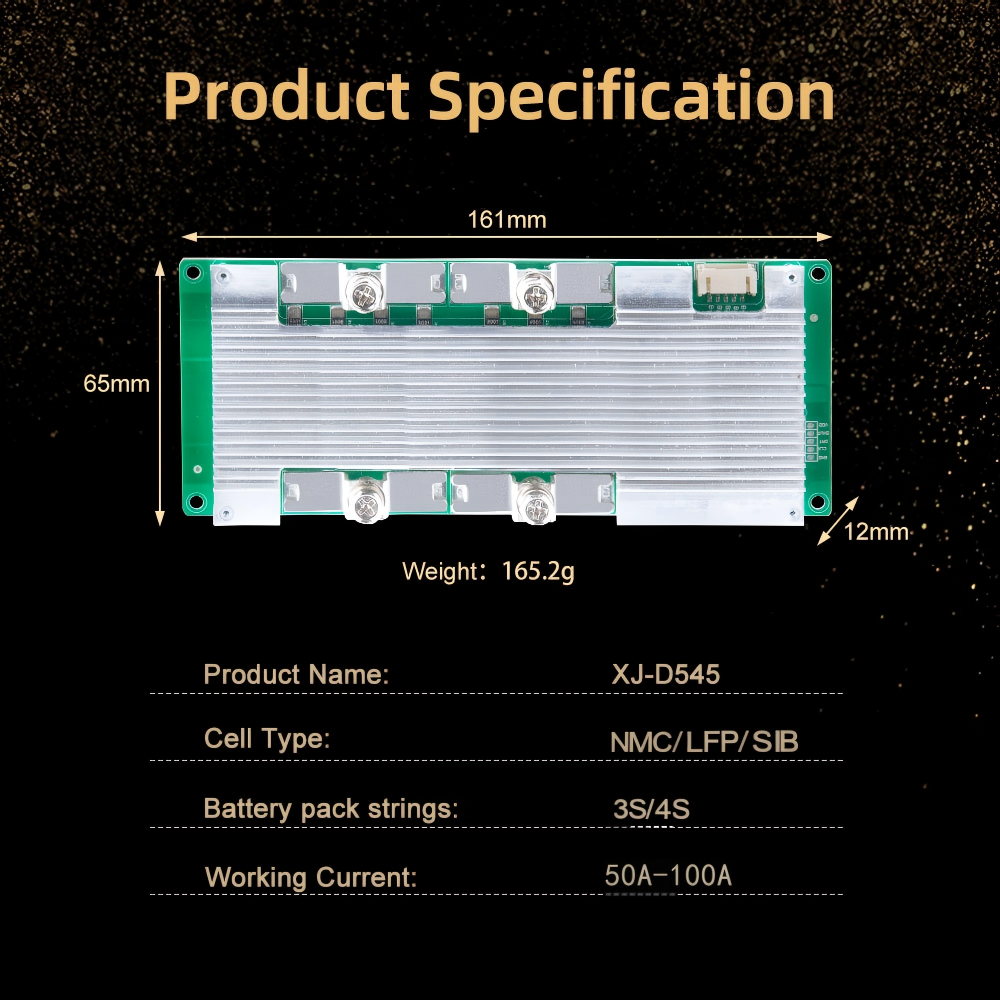

Length 161mm*Width 65mm*Thickness 12mm
|
|
Series
|
3S/4S
|
|
Current
|
50A-100A
|
|
Cell Type
|
LifePO4 / Li-ion / Sodium-ion
|
|
Function
|
Balance, NTC temperature sensors
|
|

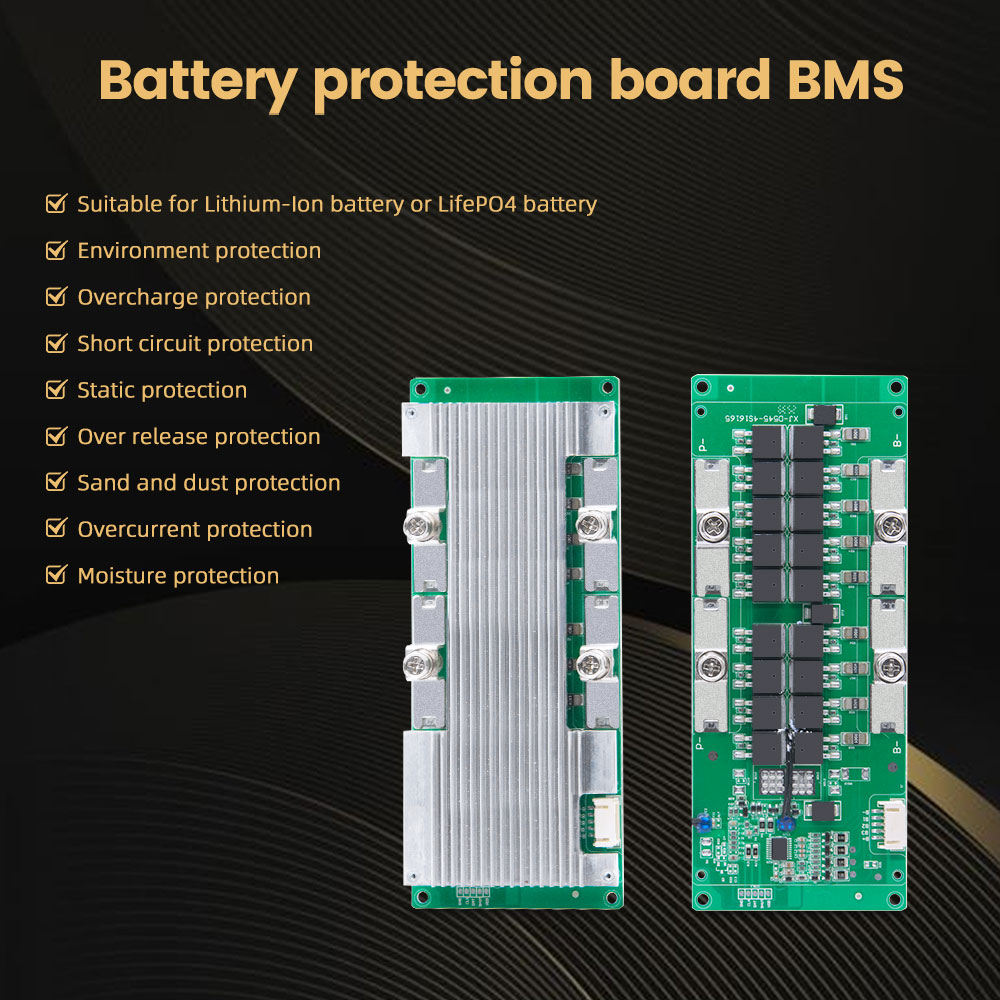

Function
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance function,
Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection |
|
Warranty
|
24 Months
|
|

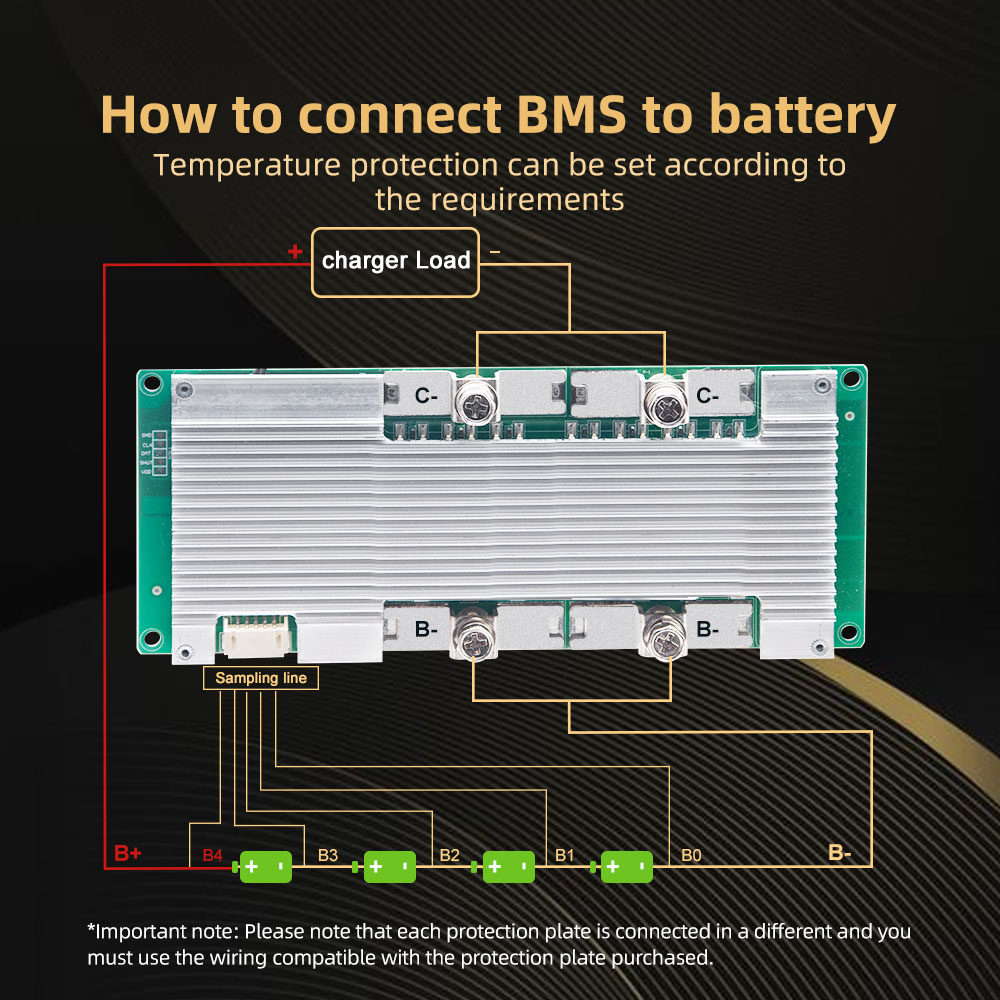

Item
|
Min
|
Typical
|
Max
|
Unit
|
|
Battery Pack Charging Voltage
|
14.4
|
V
|
||
|
Charging MOSFET Voltage Rating
|
100
|
V
|
||
|
Discharging MOSFET Voltage Rating
|
100
|
V
|
||
|
Single Cell Overcharge Detection Voltage
|
3.6
|
3.65
|
3.7
|
V
|
|
Overcharge Recovery Voltage
|
3.5
|
3.55
|
3.6
|
V
|
|
Overcharge Detection Delay
|
500
|
1000
|
1500
|
mS
|
|
Single Cell Overdischarge Detection Voltage
|
2.2
|
2.3
|
2.4
|
V
|
|
Overdischarge Recovery Voltage
|
2.6
|
2.7
|
2.8
|
V
|
|
Overdischarge Detection Delay
|
500
|
1000
|
1500
|
mS
|
|
Battery Pack Continuous Discharge Current
|
100
|
A
|
||
|
Battery Pack Continuous Charge Current
|
100
|
A
|
||
|
Discharge Overcurrent Protection
|
220
|
250
|
280
|
A
|
|
Overcurrent Protection Delay
|
500
|
1000
|
1500
|
mS
|
|
Self-Consumption
|
50
|
uA
|
||
|
Balancing Current
|
50
|
-
|
70
|
mA
|
|
Balancing Voltage
|
3.425
|
3.45
|
3.475
|
V
|
|
Charging Temperature Protection
|
High temperature: 50 ± 3℃, return to: 45 ± 3℃; Low temperature: 0 ± 3℃, return to: 5 ± 3℃.
|
|||
|
Discharging Temperature Protection
|
High temperature: 70 ± 3℃, recovery: 60 ± 3℃; Low temperature: -20 ± 3℃, recovery: -15 ± 3℃.
|
|||
|
Output Short-Circuit/Overdischarge/Overcurrent Protection Recovery
|
Automatically recovers after short-circuit/overdischarge/overcurrent protection when load is removed
|
|||
|
Short-Circuit Protection Delay
|
100
|
300
|
600
|
uS
|
|
Internal resistance from B- to P- in normal operating condition
|
50
|
mΩ
|
||
