XJ-D495 6S-16S 10A-60A Common Port BMS Balance NTC BMS
XJ-D495 BMS, 6S-16S 10A-60A, for LifePO4, NMC Li-ion batteries, with balance and NTC.
|

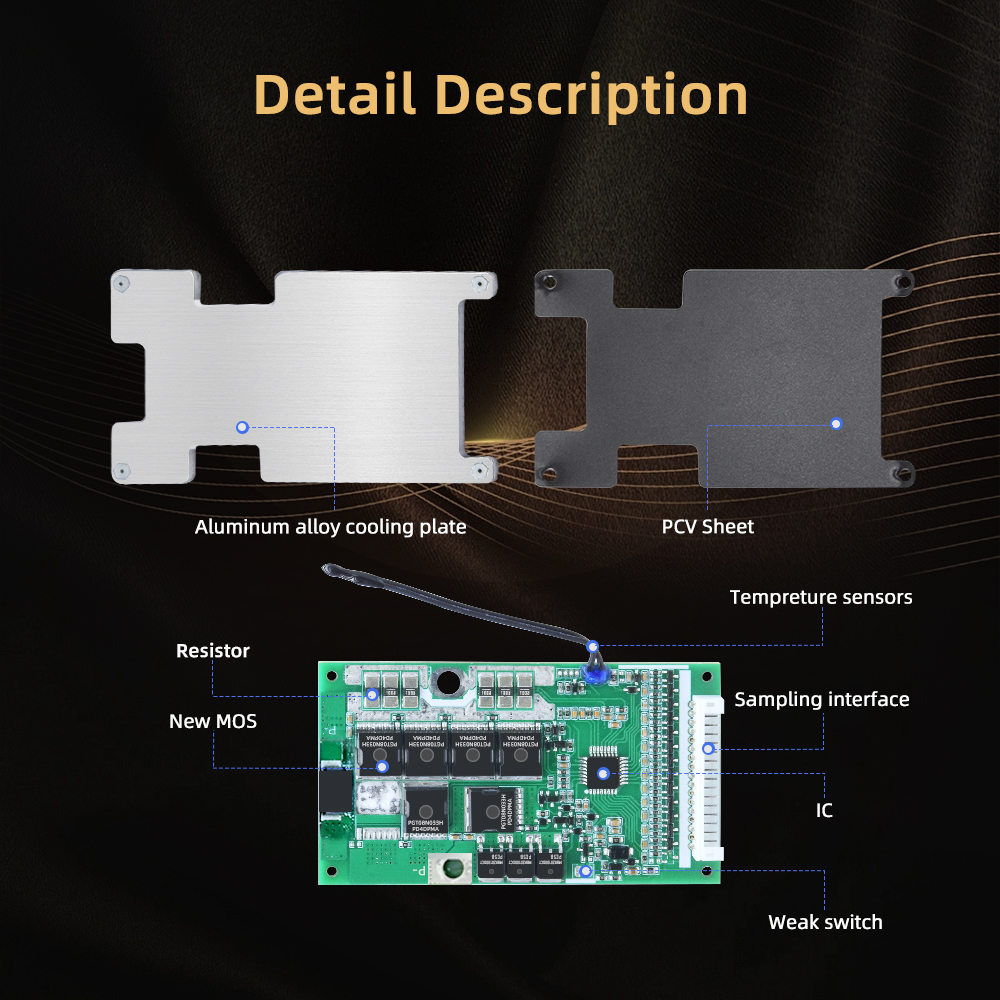

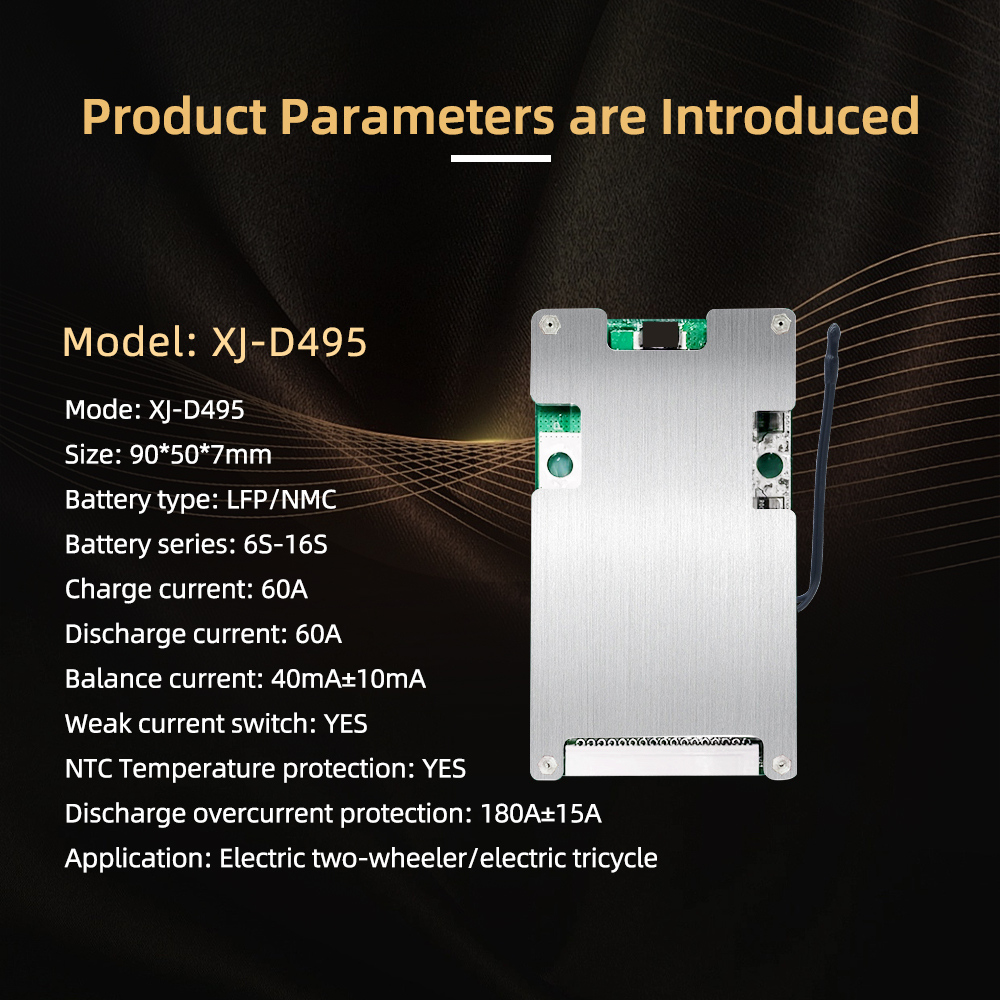

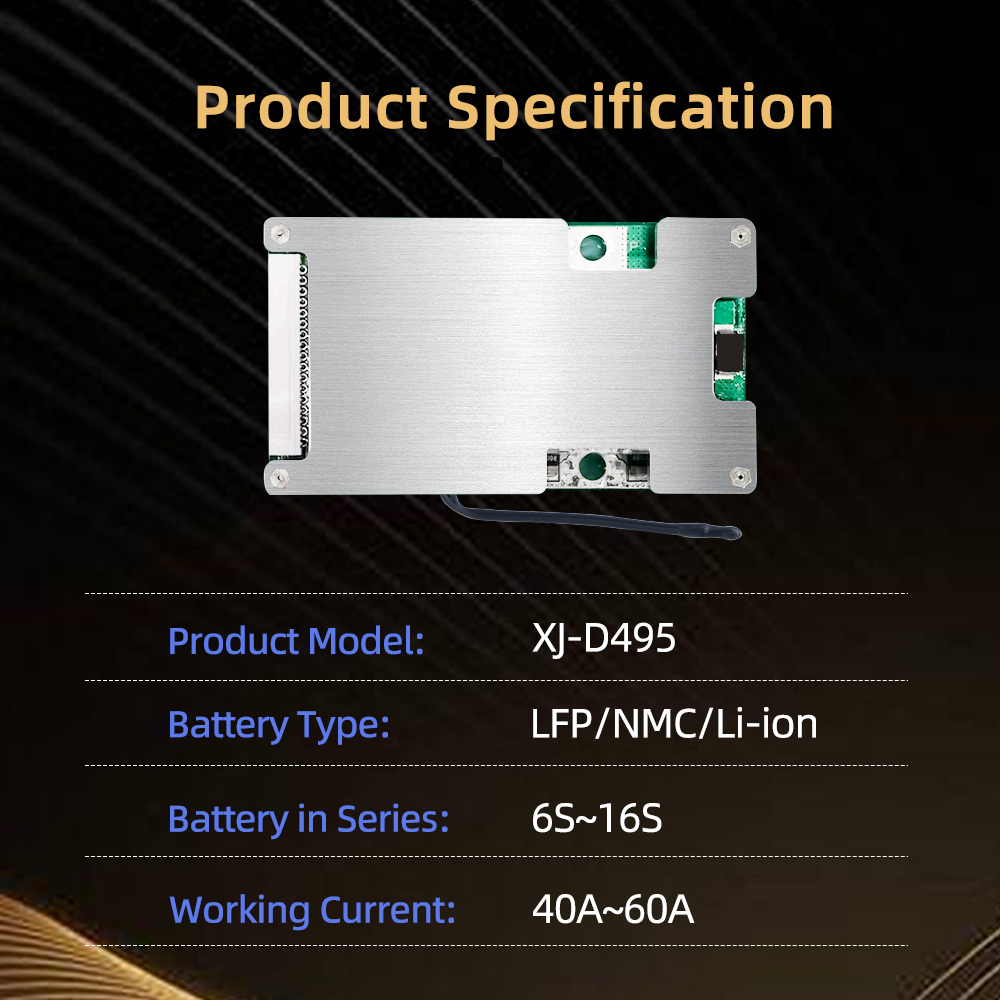

Product Name
|
BMS battery management system
|
|
Size
|

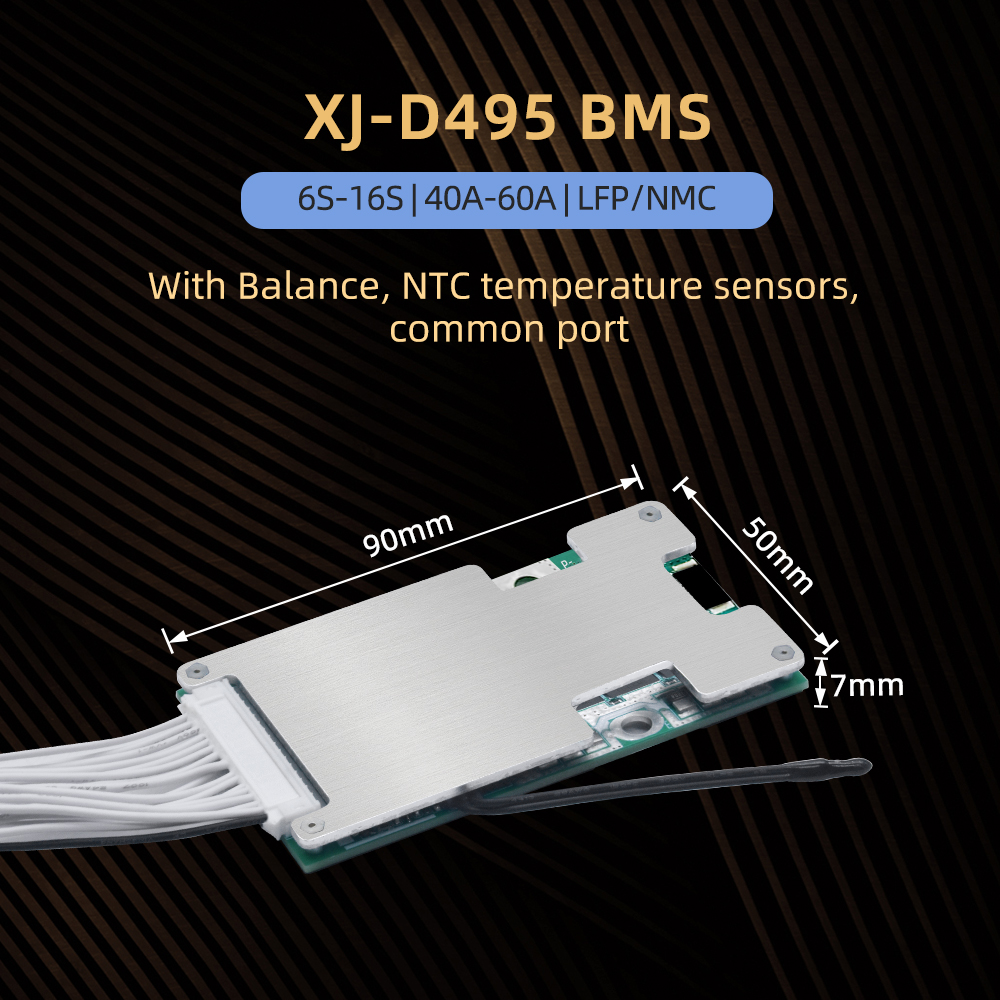

Length 90mm*Width 50mm*Thickness 7mm
|
|
Series
|
6S~16S
|
|
Current
|
10A~60A
|
|
Voltage
|
18V~60V
|
|
Input & Output
|

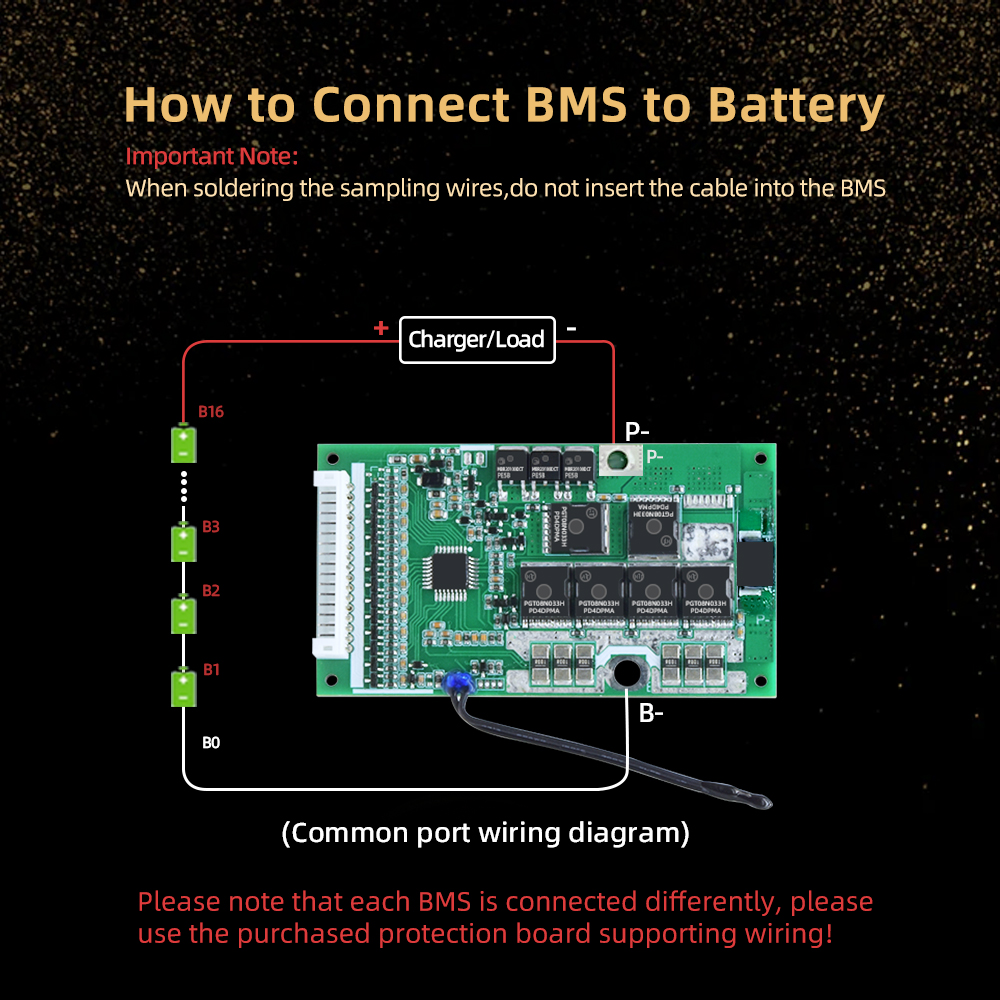

Common port
|
|
Cell Type
|
LifePO4/NMC (Li-ion) Battery
|
|
Function
|

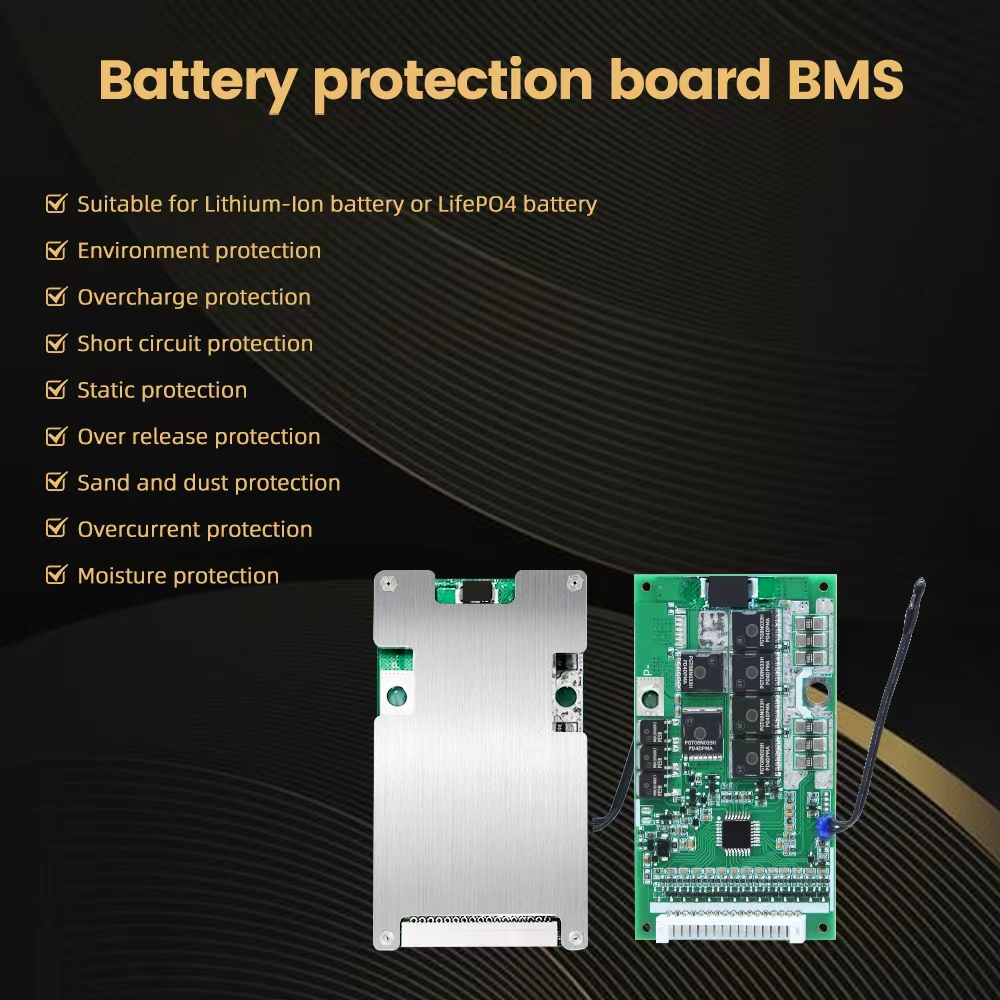

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance, NTC, On/off switch (weak current switch), Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
|
Item (the spec of 16S 60A)
|
Min
|
Typical
|
Max
|
Unit
|
|
Battery pack charging voltage
|
67.2
|
V
|
||
|
Charging MOS withstand voltage
|
100
|
V
|
||
|
Discharging MOS withstand voltage
|
100
|
V
|
||
|
Single-cell overcharge detection voltage
|
4.225
|
4.25
|
4.275
|
V
|
|
Overcharge recovery voltage
|
4.1
|
4.15
|
4.2
|
V
|
|
Overcharge detection delay
|
800
|
1000
|
1200
|
mS
|
|
Single-cell over-discharge detection voltage
|
2.6
|
2.7
|
2.8
|
V
|
|
Over-discharge recovery voltage
|
2.9
|
3
|
3.1
|
V
|
|
Over-discharge detection delay
|
500
|
1000
|
1500
|
mS
|
|
Battery pack continuous discharge current
|
60
|
A
|
||
|
Battery pack continuous charge current
|
60
|
A
|
||
|
Discharge overcurrent protection
|
165
|
180
|
200
|
A
|
|
Overcurrent protection delay
|
800
|
1000
|
1500
|
mS
|
|
Self-consumption
|
60
|
uA
|
||
|
Balance current (4.20V)
|
30
|
40
|
50
|
mA
|
|
Charge temperature protection
|
High temperature: 55±3°C, recovery to 50±3°C; Low temperature: 0±3°C, recovery to 5±3°C
|
|||
|
Discharge temperature protection
|
High temperature: 75±3°C, recovery to 65±3°C; Low temperature: -20±3°C, recovery to -15±3°C
|
|||
|
Output short-circuit/over-discharge/over-current protection recovery
|
Automatic recovery after removing the load after short-circuit, over-discharge, or overcurrent protection.
|
|||
|
Short-circuit protection delay
|
100
|
300
|
600
|
uS
|
|
Normal operating state B- to P- internal resistance
|
10
|
mΩ
|
||
|
Continuous 60A output current, maximum temperature rise
|
40
|
℃
|
||
|
Charge, not discharge
|
/
|
|||
|
Charge port 0V
|
/
|
|||
|
Weak current switch
|
Optional
|
|||
