Hardware BMS

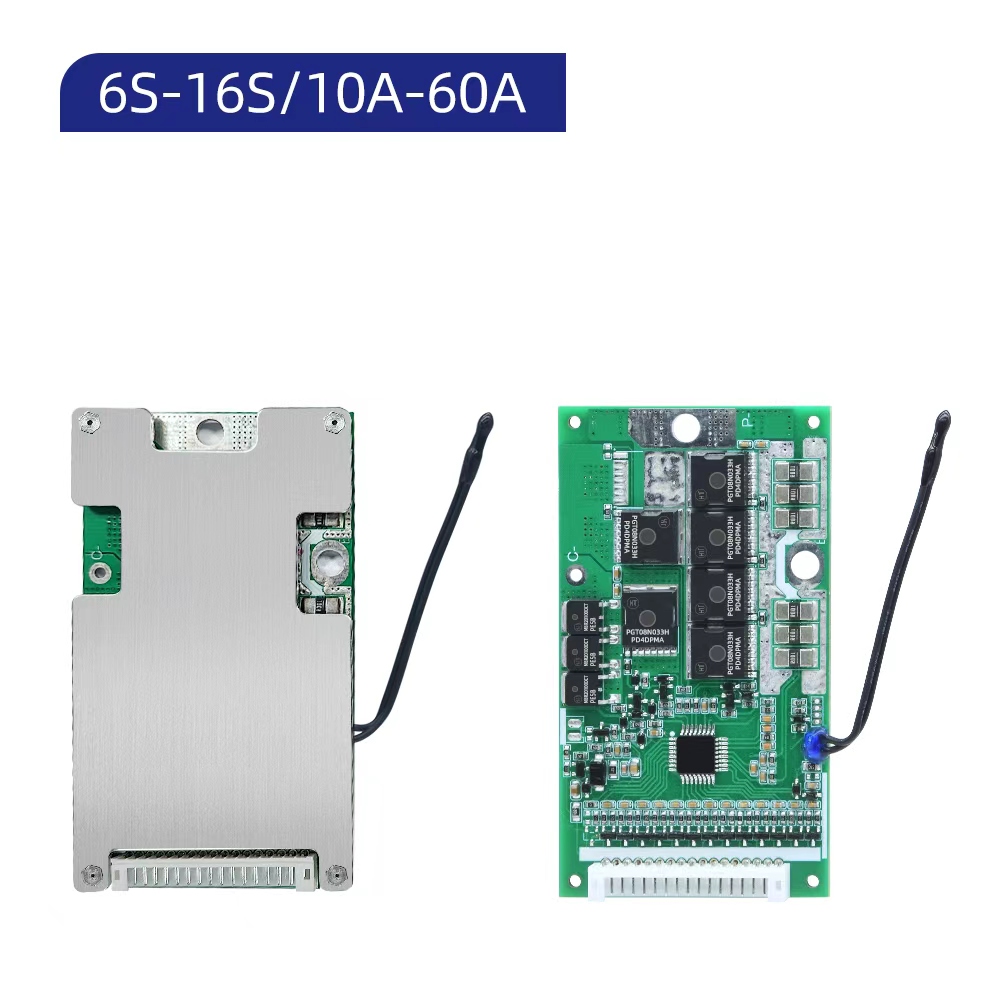

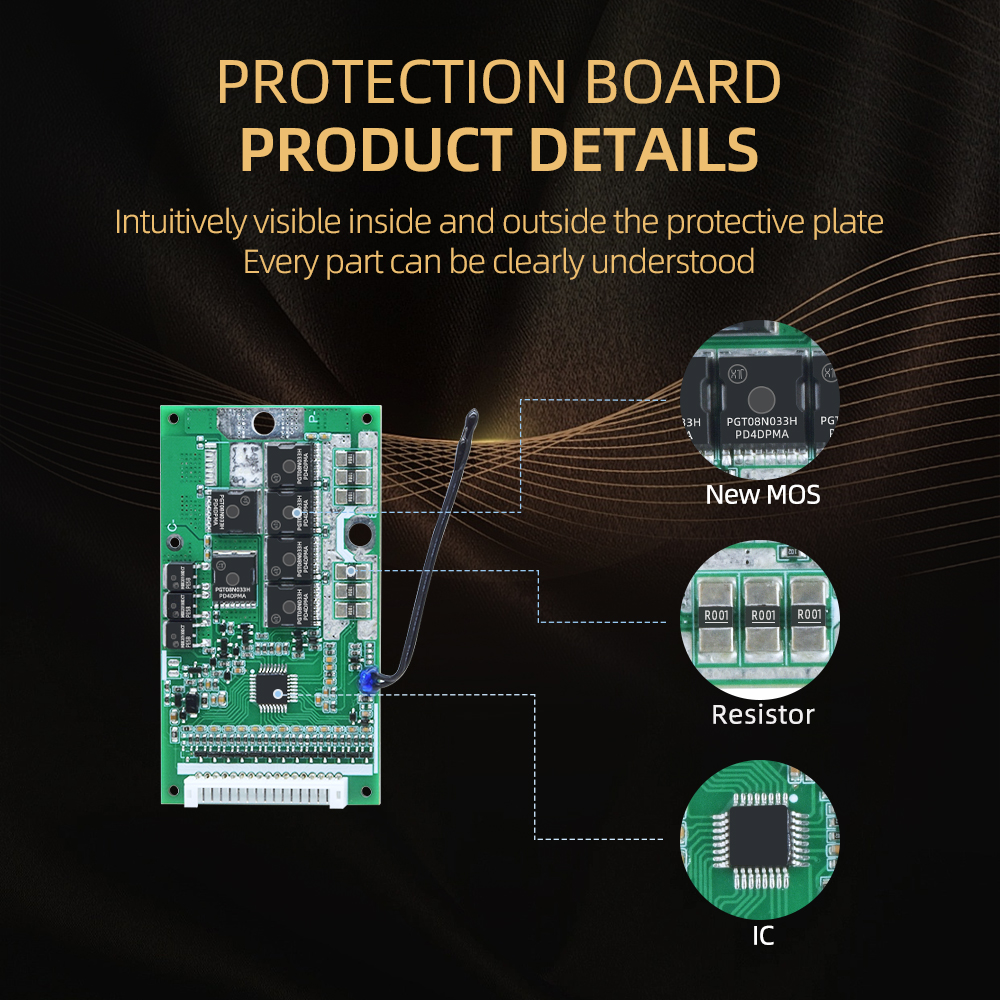

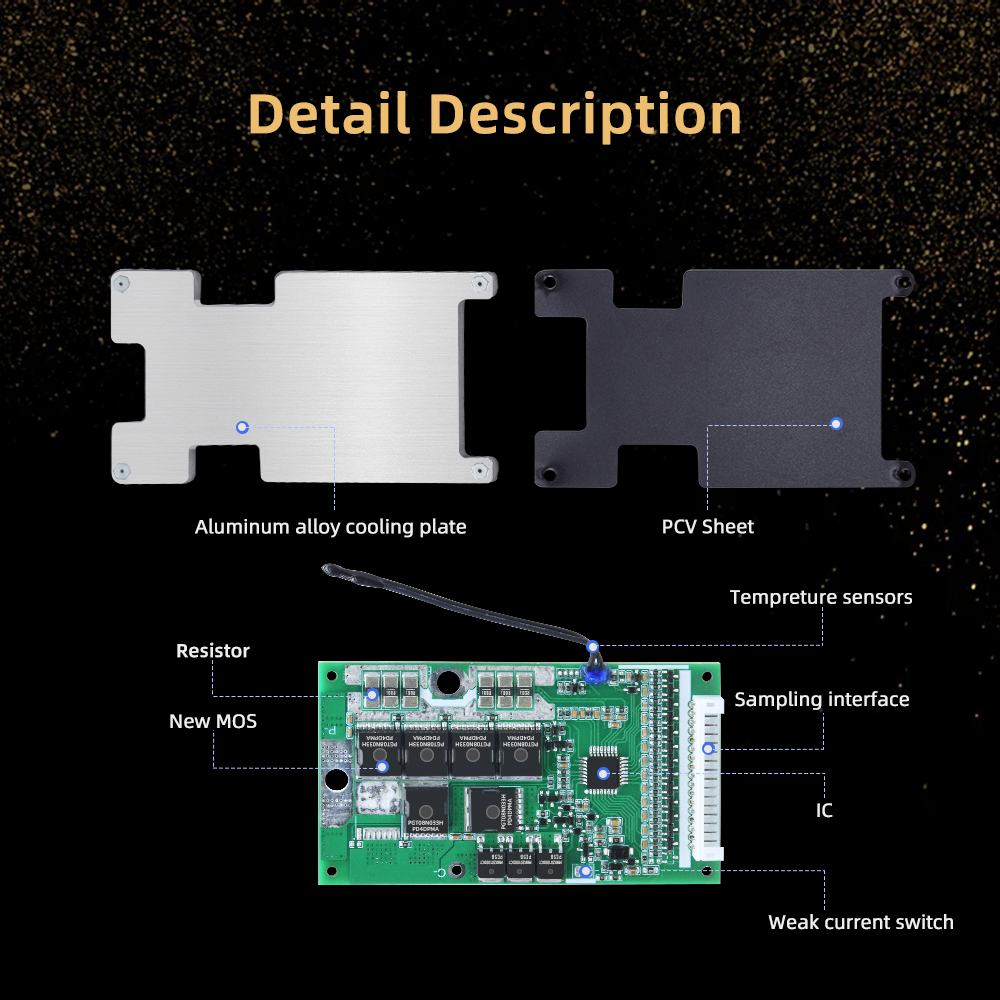

XJ-D494 6S-16S 10A-60A BMS Seperate Port NTC Balance Weak Current Switch
6S-16S 10A-60A, seperate port, charge max 5A, discharge 10A-60A, with balance, NTC and weak current switch.
|

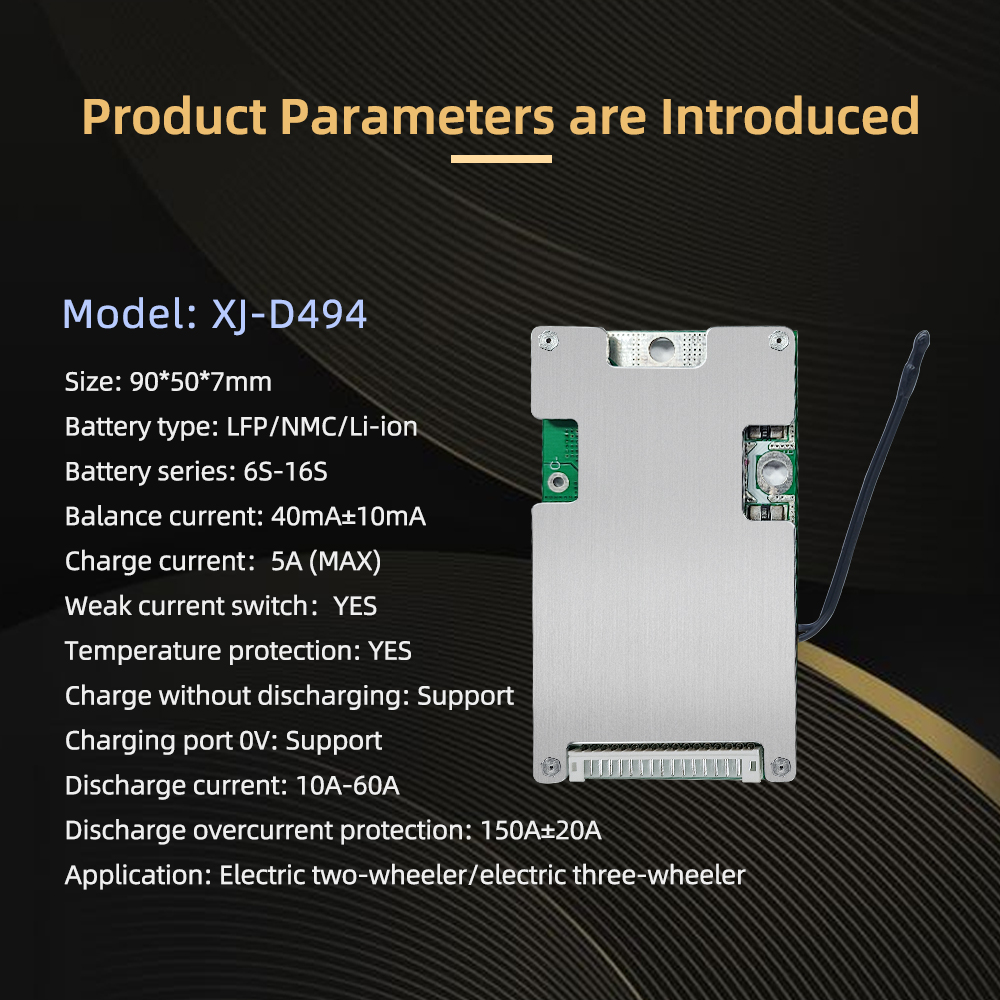

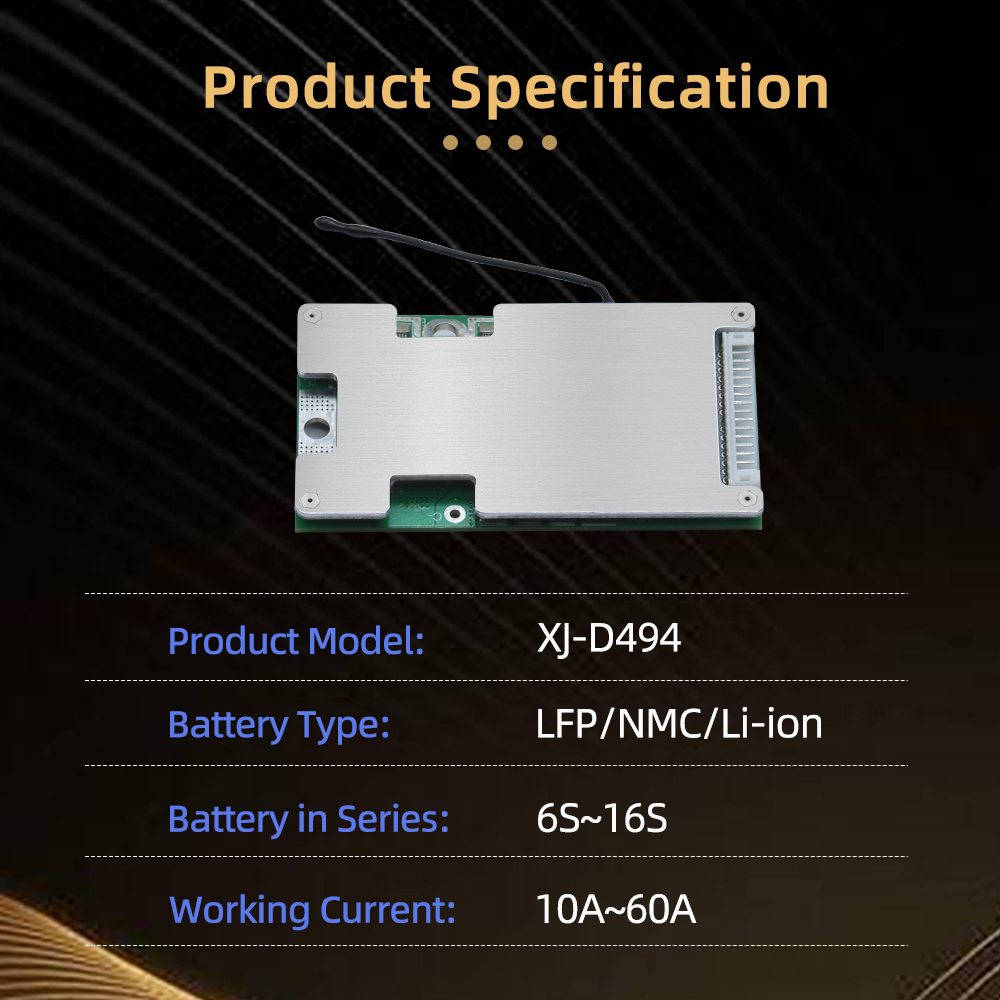

Product Name
|
BMS battery management system
|
|
Size
|

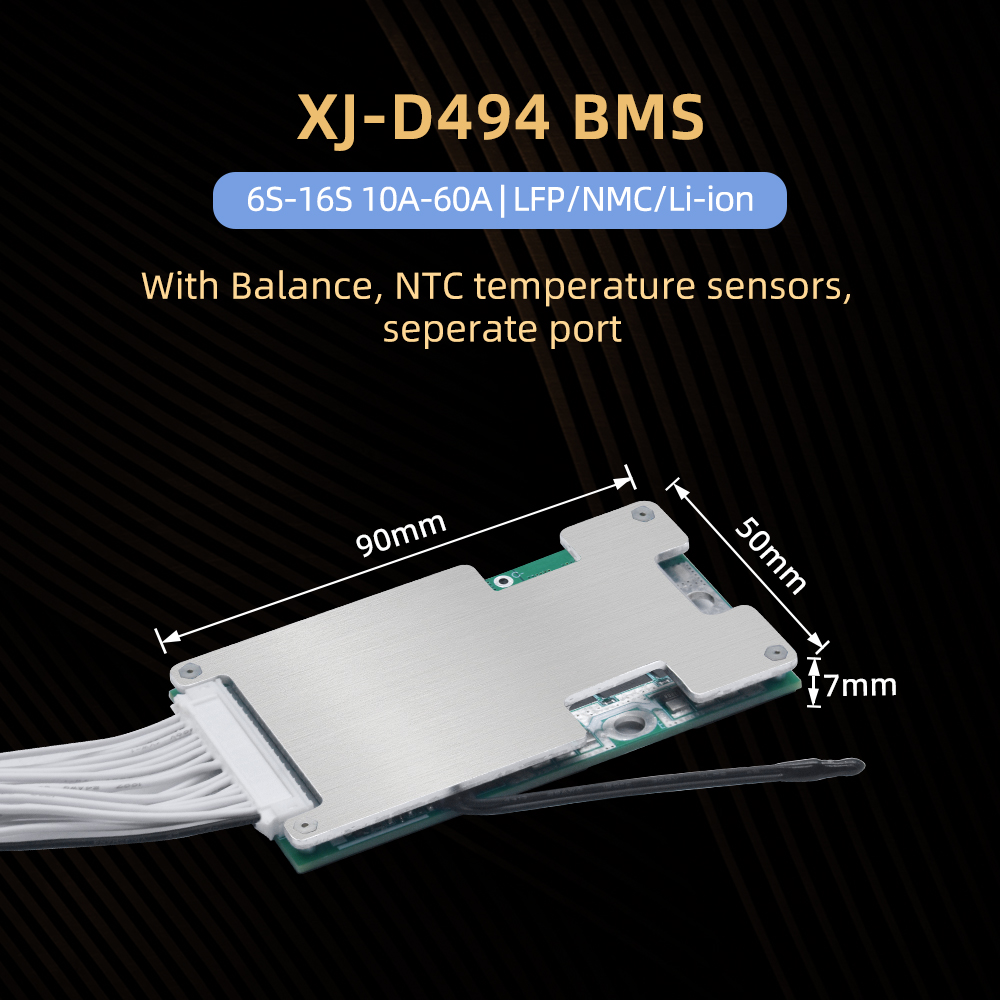

Length 90mm*Width 50mm*Thickness 70mm
|
|
Series
|
6S-16S
|
|
Current
|
10A-60A
|
|
Voltage
|
24V-58V
|
|
Temperature Sensors
|
Yes
|
|
Balance
|
Yes
|
|
Battery Cell Type
|
NMC 3.7V Battery / LifePO4 3.2V Battery
|
|

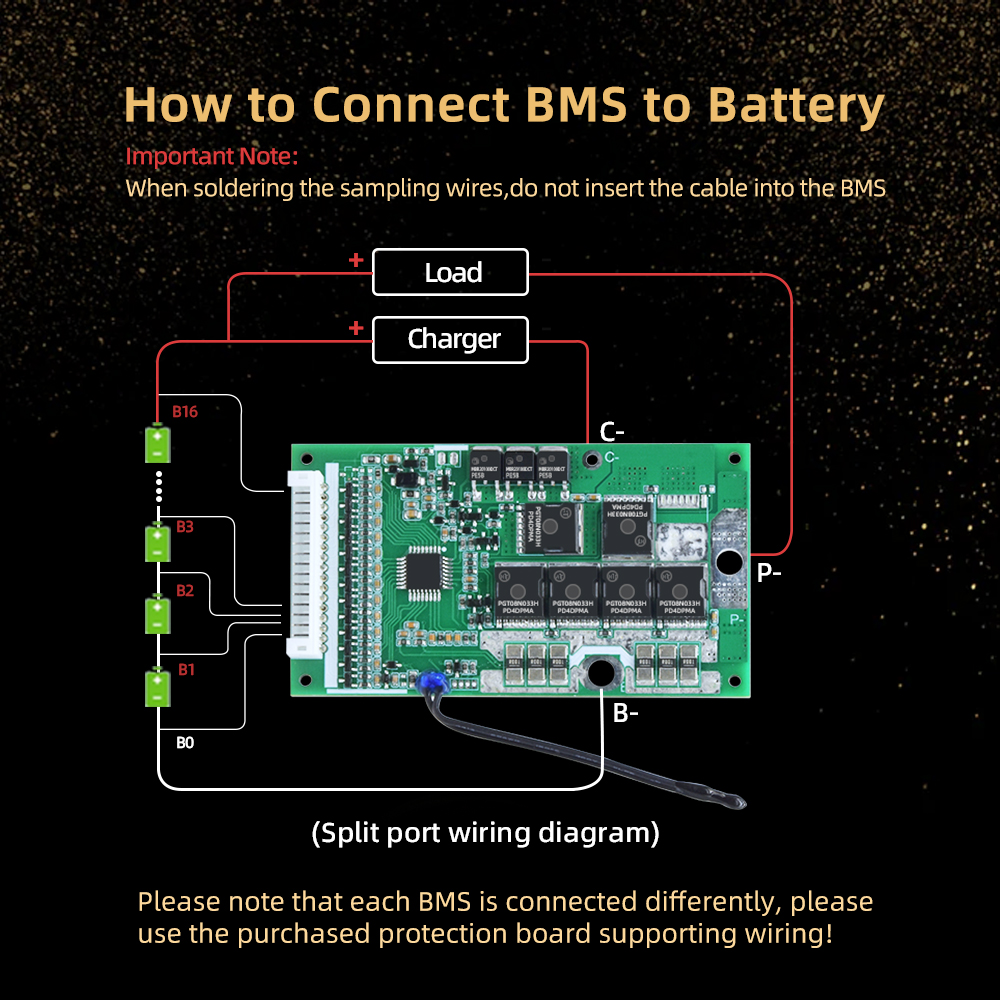

Input & output
|
Separate port, charge max 5A, discharge 10A-60A
|
|

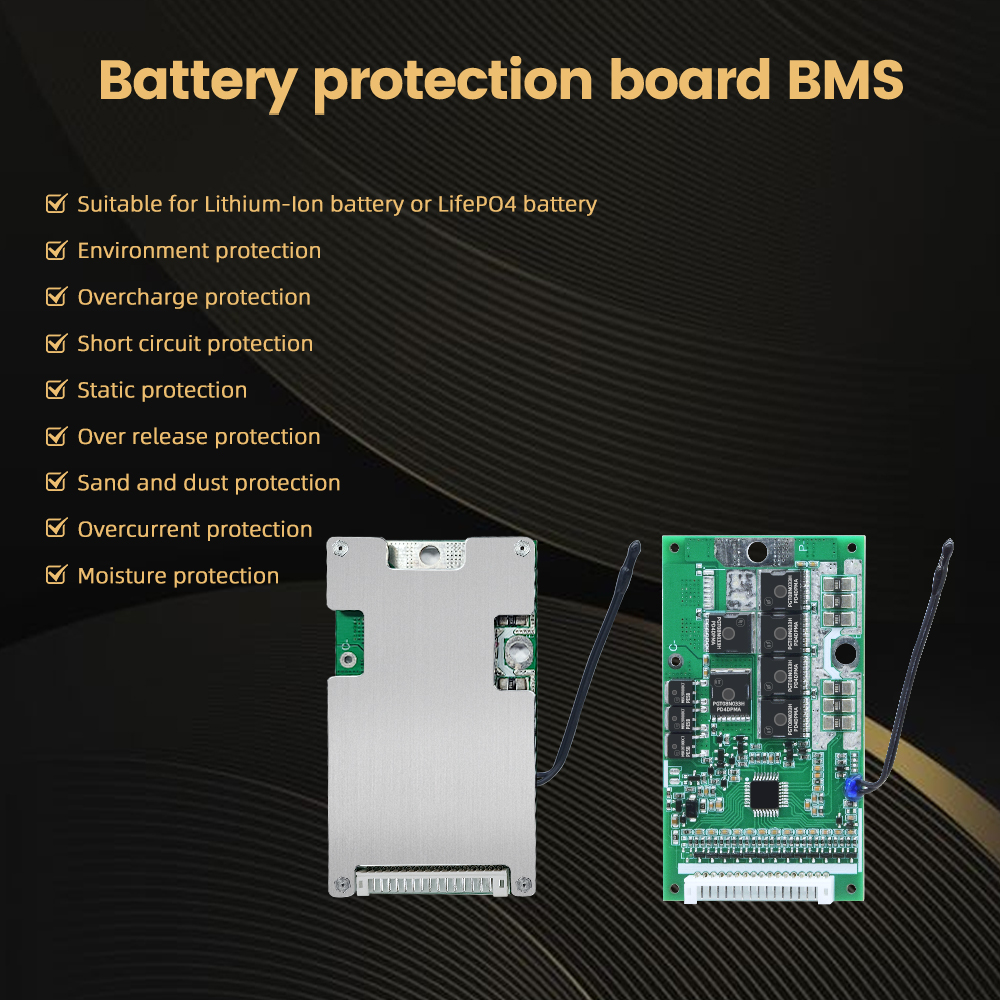

Protection
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance function, NTC Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
| Item (The data of 16S 45A NMC) | Min | Typical | Max | Unit |
| Battery pack charging voltage | 58.8 | V | ||
| The withstand voltage of the charging MOS | 80 | V | ||
| Discharge MOS withstand voltage value | 80 | V | ||
| Single-cell overcharge detection voltage | 4.225 | 4.25 | 4.275 | V |
| Overcharge recovery voltage | 4.1 | 4.15 | 4.2 | V |
| Overcharge detection delay | 800 | 1000 | 1200 | mS |
| Single-section overdischarge detection voltage | 2.75 | 2.8 | 2.85 | V |
| Overdischarge recovery voltage | 2.8 | 2.9 | 3 | V |
| Over-discharge detection delay | 500 | 1000 | 1500 | mS |
| Continuous discharge current of the battery pack | 45 | A | ||
| Continuous charging current of the battery pack | 5 | A | ||
| Discharge overcurrent protection | 130 | 150 | 170 | A |
| Overcurrent protection delay | 800 | 1000 | 1500 | mS |
| Self-consumption | 60 | uA | ||
| Equilibrium current (4.24V) | 30 | 40 | 50 | mA |
| Charging temperature protection | High temperature: 45±3℃, recovery: 40±3℃; Low temperature -40±3℃, recovery -35±3℃ | |||
| Discharge temperature protection | High temperature: 65±3℃, recovery: 55±3℃; Low temperature -40±3℃, recovery -35±3℃ | |||
| Output short circuit/overdischarge/overcurrent protection recovery | After short-circuit/overdischarge/overcurrent protection, the load is removed and it automatically recovers | |||
| Short-circuit protection delay | 100 | 300 | 600 | uS |
| Under normal working conditions, the internal resistance is B- to P- | 10 | mΩ | ||
| Maximum temperature rise with a continuous output current of 45A | 40 | ℃ | ||
| Charge without discharging | YES | |||
| Charging port: 0V | YES | |||
| Weak current switch | YES | |||
