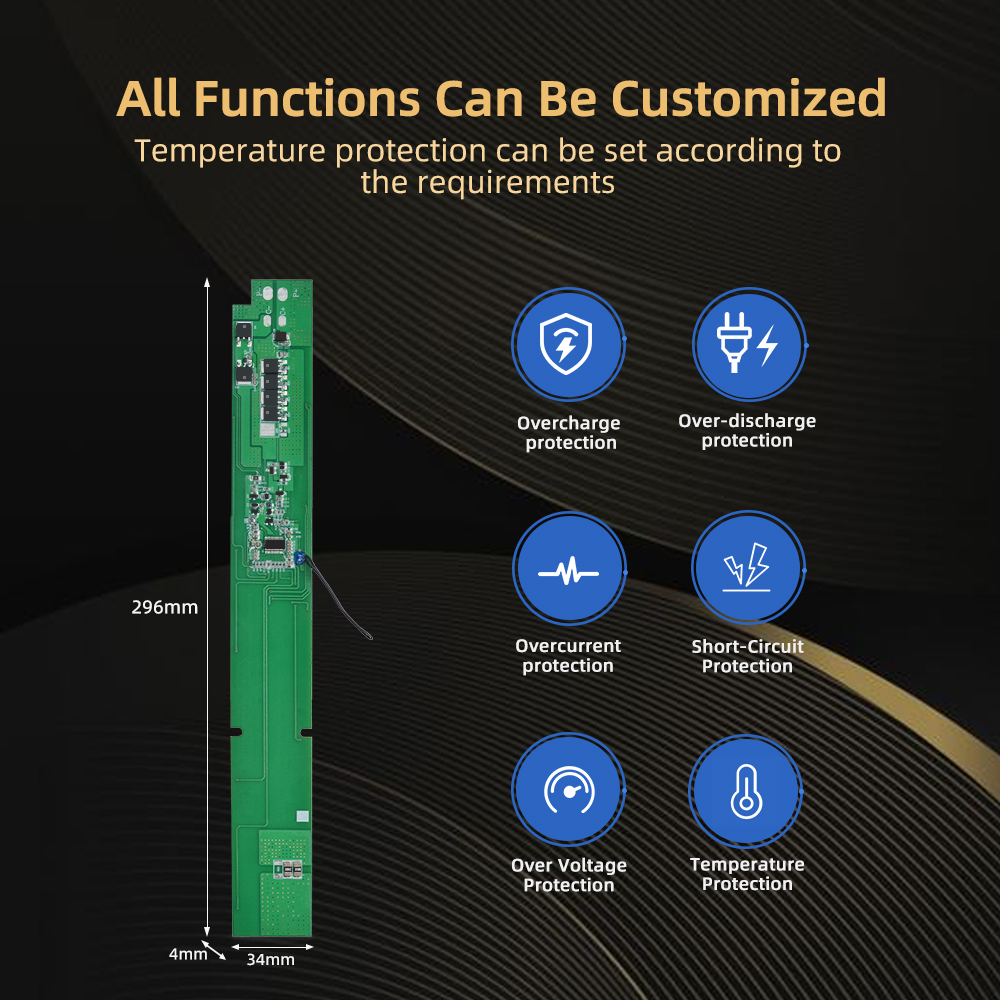

XJ-D493 BMS 10S 15A/20A/25A Seperate Port Charge 3A for E-scooter E-bikes
XJ-D493 Seperate Port BMS, 10S, Charge 3A, Discharge 15A/20A/25A, for Scooters, E-bikes
|
Model
|
XJ-D493
|
|
Series
|
10S
|
|
Charge Current
|
3A
|
|
Discharge Current
|
15A/20A/25A
|
|
Voltage
|
36V - 42V
|
|
Battery
|
LifePO4/NMC/Li-ion battery
|
|
Application
|
Electric Scooter/E-bikes
|
|
Warranty
|
2 Years
|
|
OEM&ODM
|
YES
|
| Item (the spec of 10S 15A) | Min | Typical | Max | Unit |
| Battery pack charging voltage | 42 | V | ||
| The withstand voltage of the charging MOS | 60 | V | ||
| Discharge MOS withstand voltage value | 60 | V | ||
| Single-cell overcharge detection voltage | 4.225 | 4.25 | 4.275 | V |
| Overcharge recovery voltage | 4 | 4.05 | 4.1 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Single-section overdischarge detection voltage | 2.62 | 2.7 | 2.78 | V |
| Overdischarge recovery voltage | 2.9 | 3 | 3.1 | V |
| Over-discharge detection delay | 500 | 1000 | 1500 | mS |
| Continuous discharge current of the battery pack | 15 | A | ||
| Continuous charging current of the battery pack | 3 | A | ||
| Discharge overcurrent protection | 40 | 50 | 60 | A |
| Overcurrent protection delay | 500 | 1000 | 1500 | mS |
| Self-consumption | 30 | 50 | uA | |
| Equilibrium current | / | / | / | mA |
| Charging temperature protection | High temperature: 50±5℃. Low temperature: 0±5℃. | |||
| Discharge temperature protection | High temperature: 70±5℃. Low temperature: -20±5℃. | |||
| Output short circuit/overdischarge/overcurrent protection recovery | After short-circuit/overdischarge/overcurrent protection, the load is removed and it automatically recovers | |||
| Short-circuit protection delay | 100 | 300 | 600 | uS |
| Under normal working conditions, the internal resistance is B- to P- | 30 | mΩ | ||
| Maximum temperature rise with a continuous output current of 20A | 40 | ℃ | ||
