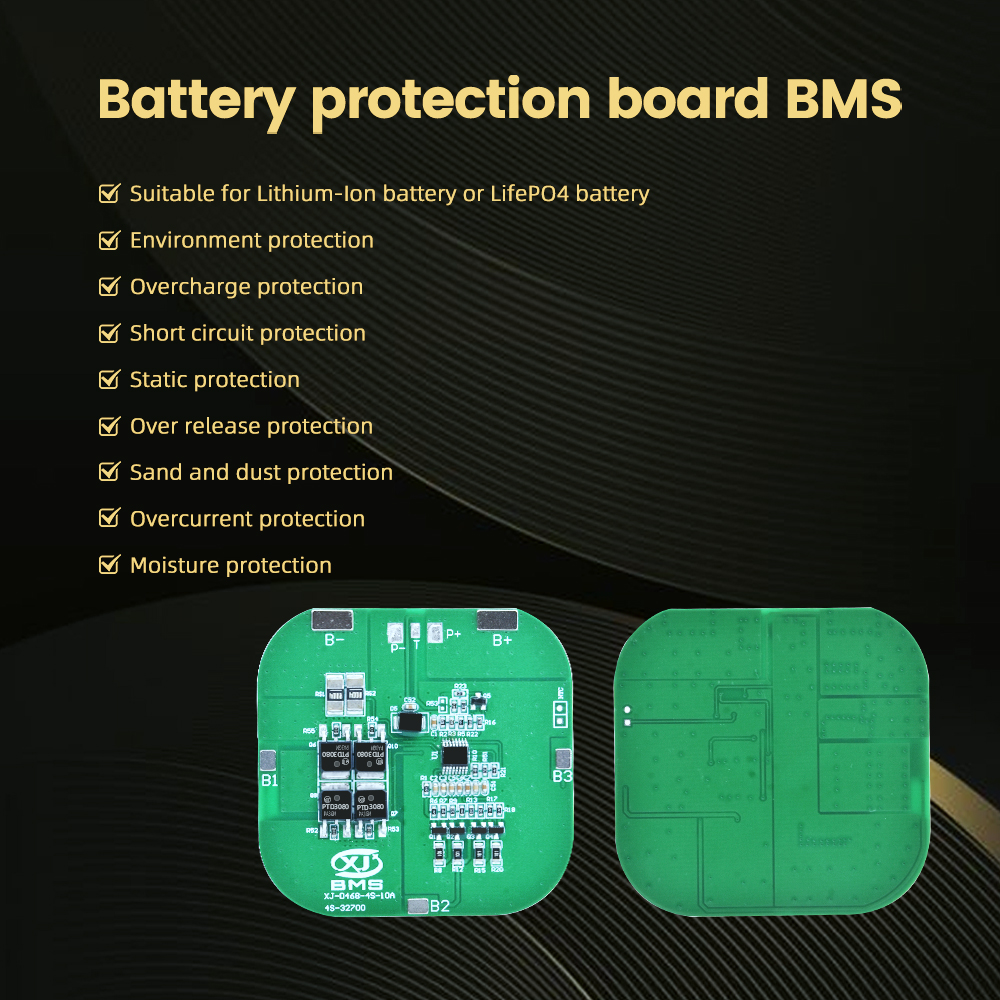

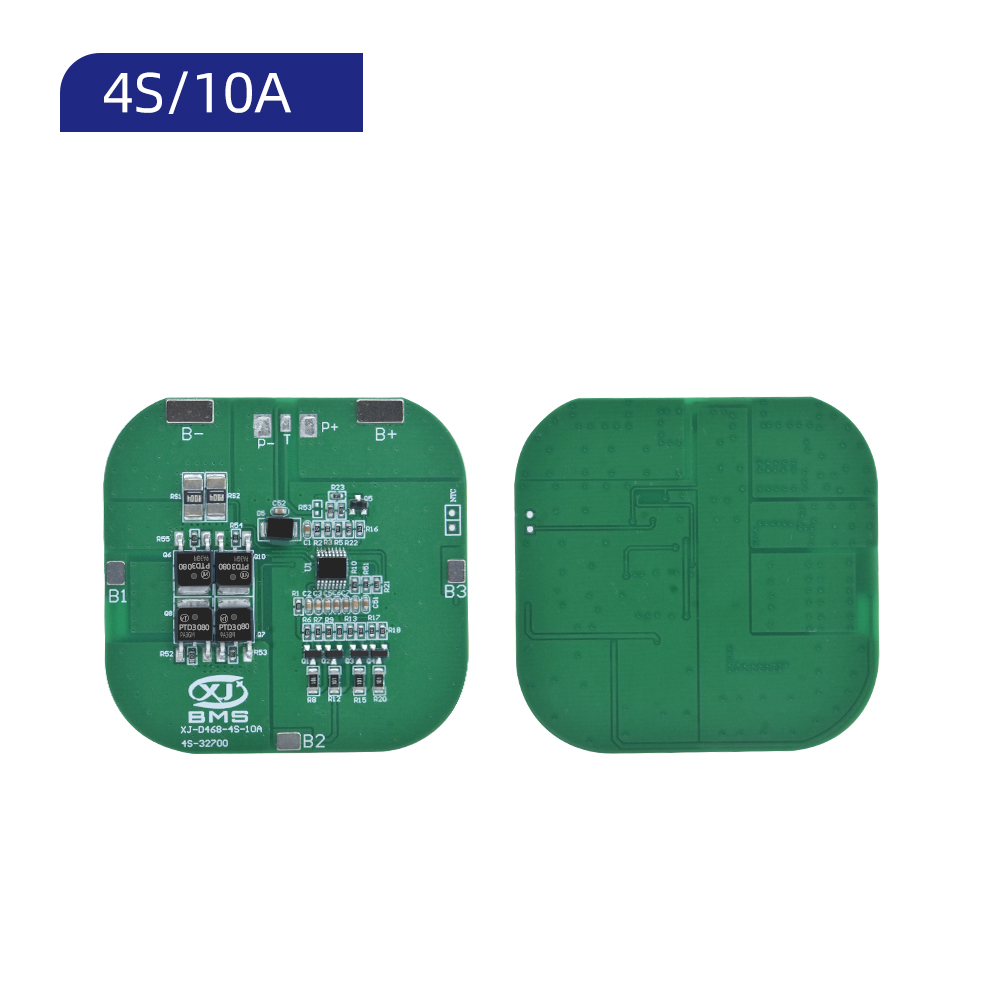

XJ-D468 4S 10A 14V BMS Same Port with Balance for 32700 Lithium Battery
4S 10A BMS, same port, balance, for 32700 lithium battery
|

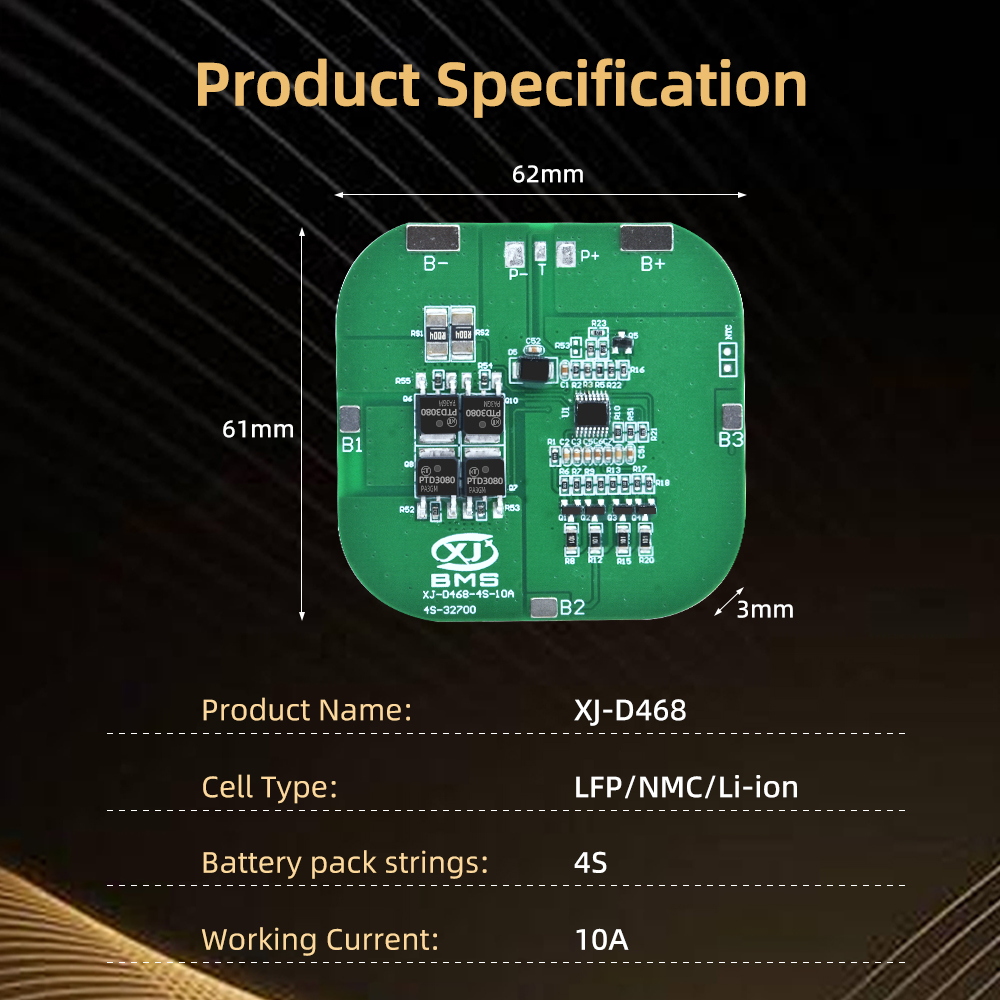

Product Name |
4S 10A BMS Battery Management System |
|
Size |

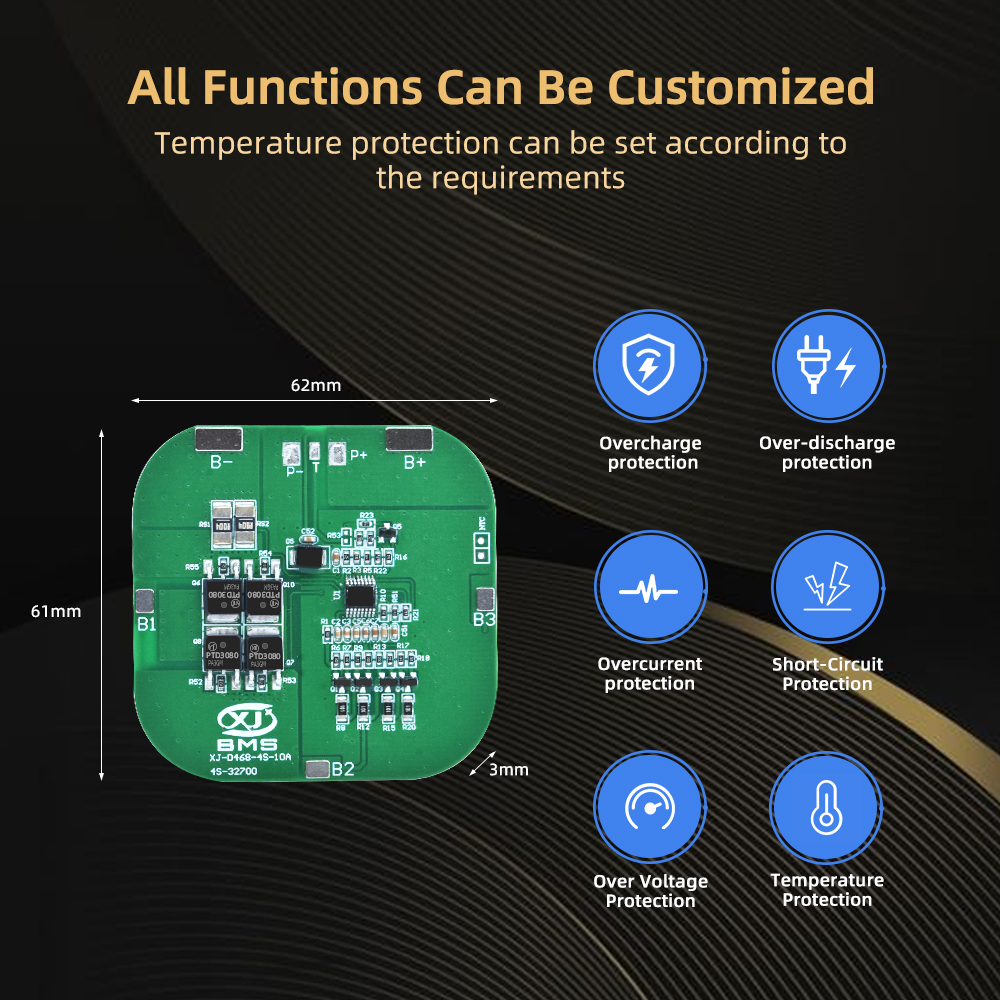

62mm*61mm*3mm |
|
Series |
4S |
|
Current |
10A |
|
Balance |
Yes |
|
Function |
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Electrostatic protection, Dust Protection, Moisture Protection |
|
Warranty |
24 Months |
| Item | Min | Typical | Max | Unit |
| Battery pack charging voltage | 14.4 | V | ||
| Charging MOS withstand voltage value | 30 | V | ||
| Discharge MOS withstand voltage value | 30 | V | ||
| Single-cell overcharge detection voltage | 3.6 | 3.65 | 3.7 | V |
| Overcharge recovery voltage | 3.5 | 3.55 | 3.6 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Single-section over-discharge detection voltage | 2.2 | 2.3 | 2.4 | V |
| Over-discharge recovery voltage | 2.6 | 2.7 | 2.8 | V |
| Over-discharge detection delay | 500 | 1000 | 1500 | mS |
| Continuous discharge current of the battery pack | 10 | A | ||
| Continuous charging current of the battery pack | 10 | A | ||
| Discharge overcurrent protection | 20 | 25 | 30 | A |
| Overcurrent protection delay | 500 | 1000 | 1500 | mS |
| Short-circuit protection delay | 100 | 500 | 1000 | uS |
| Self-consumption | 30 | 50 | uA | |
| Balanced current | 30 | - | 50 | mA |
| Equalization voltage | 3.5 | 3.525 | 3.55 | V |
| Charging temperature protection | / | |||
| Discharge temperature protection | / | |||
| Output short circuit/overdischarge/overcurrent protection recovery | The load automatically recovers after the short-circuit/over-discharge/over-current protection is removed | |||
| Short-circuit protection delay | 100 | 300 | 600 | uS |
| Internal resistance from B- to P- under normal working conditions | 30 | mΩ | ||
| The maximum temperature rise with a continuous output current of 10A | 40 | ℃ | ||
