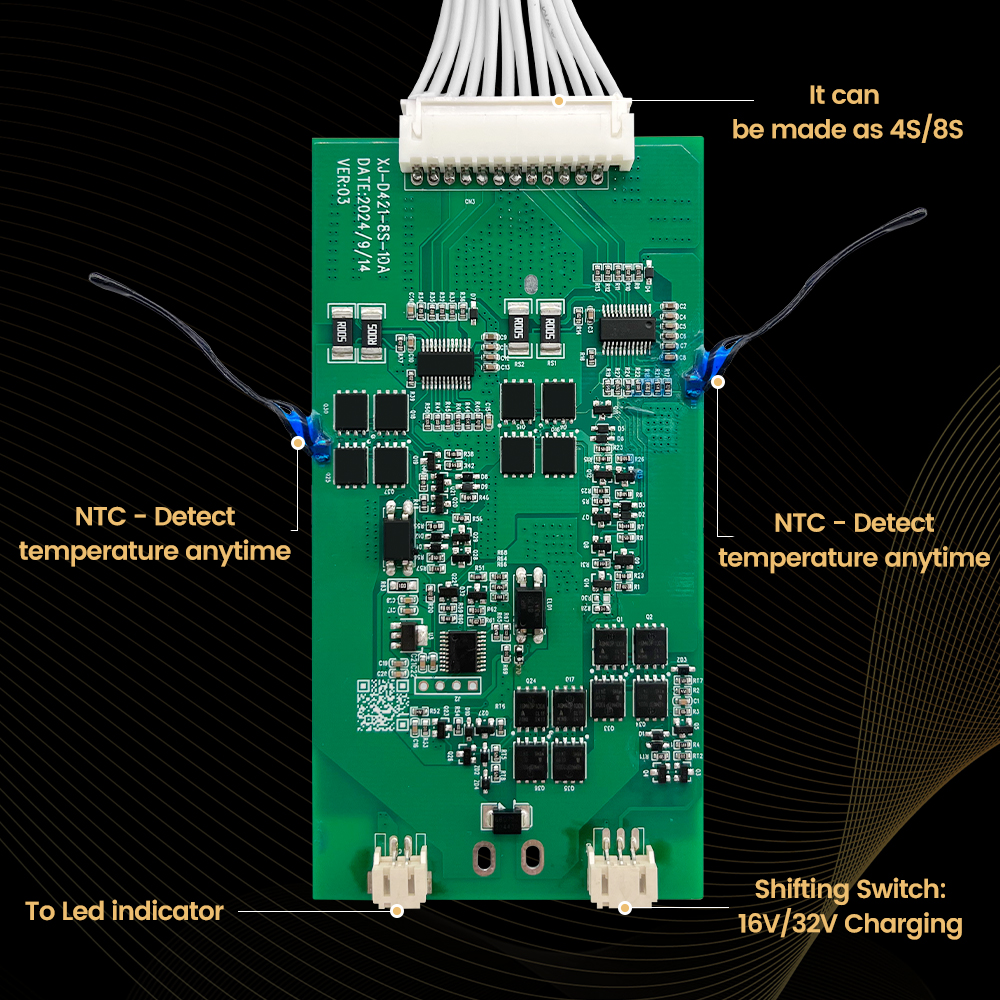

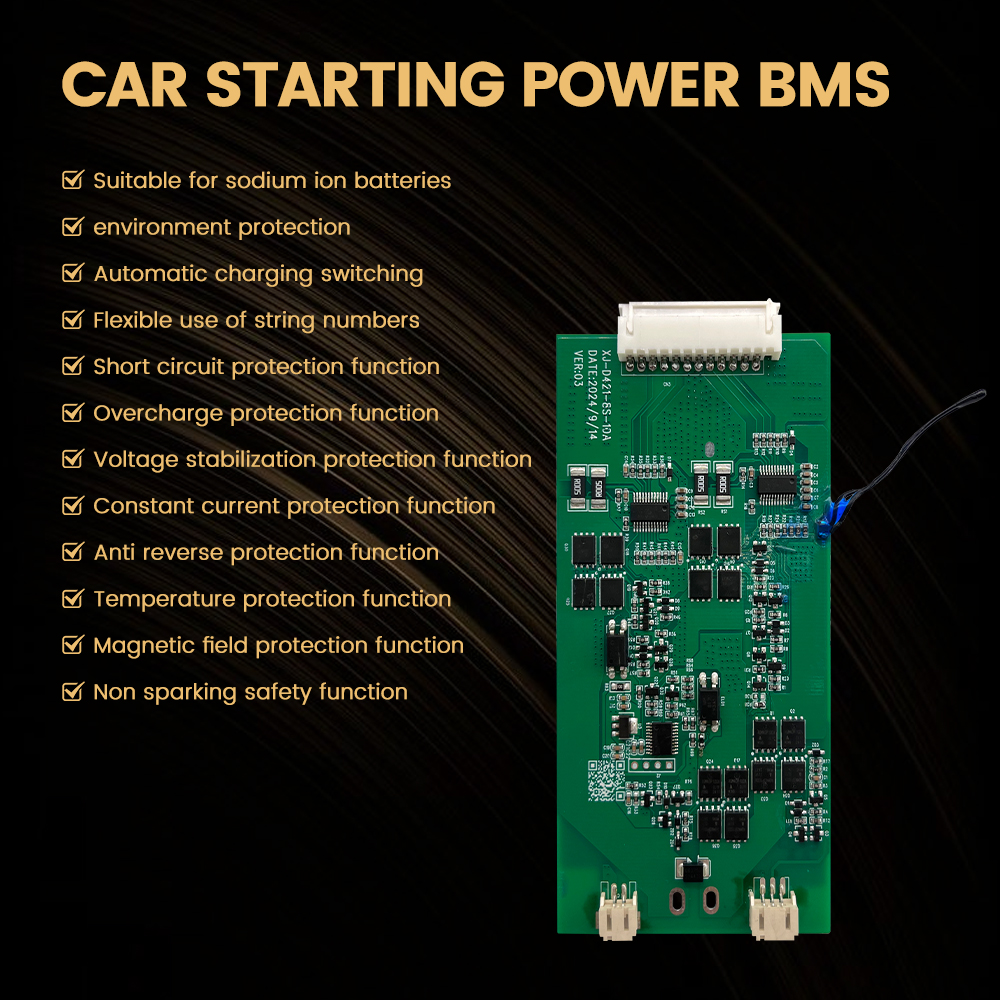

XJ-D421 4S/8S 10A Sodium Battery Starter Source - Battery Control Board
|
Type |
Specification |
|
(1) XJ-D421-10A Sodium Battery Starter Source - Battery Control Board |
Supports 4-8S Batteries. Battery Type: Sodium-ion
Dimension: 118*60*7mm |
|
Project |
Symbol |
The detailed content |
Standard |
|
input voltage range |
VDET1 |
Single battery voltage |
1.0V-3.95V |
|
|
tVDET1 |
8 series total voltage |
0V－31.6V |
|
Single charging voltage |
VOV
|
Overcharge protection voltage for a single battery |
3.90V±50mV |
|
12.6V-16.8V |
VOV |
Battery fully charged total voltage |
31.6V±100mV |
|
Charging current |
Vid |
Charging current value |
5≤Charging Current≧10A |
|
Overcharge protection release voltage |
VOVR
|
After the battery is fully charged, it is protected and the protection voltage value is released |
3.95V±50mV |
|
Overcharge protection delay |
TOV
|
The process time of stopping charging when the battery is fully charged |
500-1500ms |
|
Static power consumption |
uA |
Self depletion caused by stopping work |
≤100uA |
|
Charging temperature protection |
TCOT
|
Temperature protection value of battery during charging |
high temperature：55℃±3℃ Low temperature：-5℃±3℃ |
|
Discharge temperature protection |
TDOT
|
Temperature protection value of battery during discharge |
high temperature：75℃±3℃ |
|
Power indicator light |
|
Power display shows the voltage of 4 battery strings and the total voltage of 7 battery strings |
0V-31.6V |
|
Battery level switch |
|
Voltage switching display between 4-series and 7-series batteries |
First gear, second gear |
|
Charger voltage 16V |
|
One set of chargers is fully charged and automatically switches to the second set for charging |
16V±50mV |
|
Environmental requirements |
℃ |
Operating/storage temperature |
-15℃－65℃ |
|
|
0%RH |
Operating/storage humidity |
10%RH－70%RH |
|

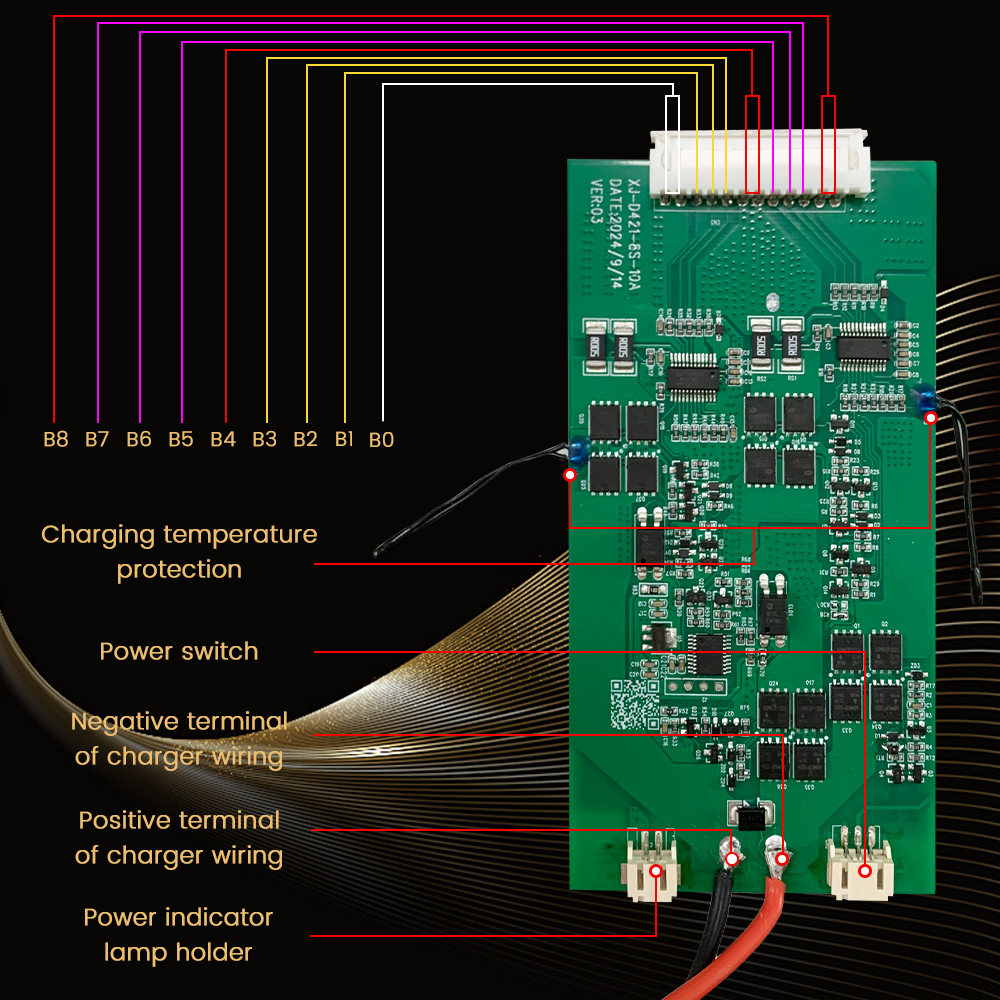

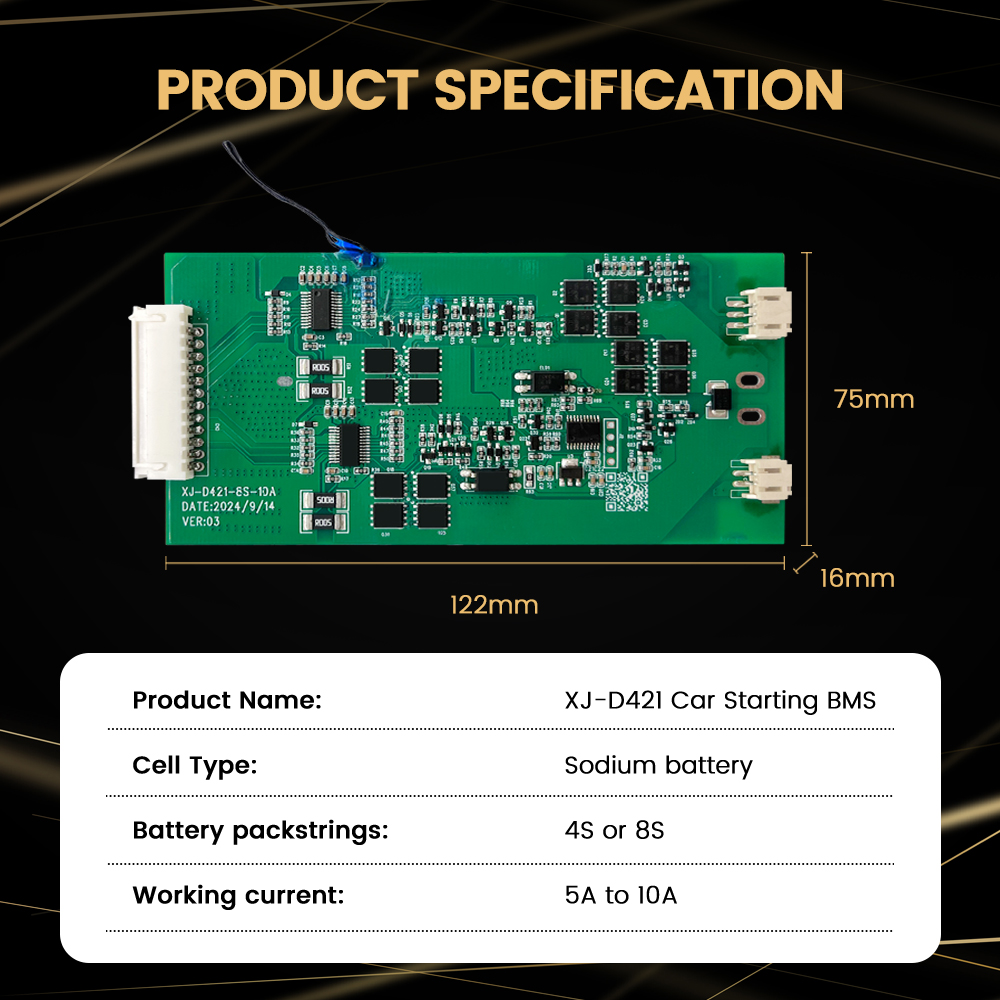

PCB Size
|
|
PCB Length, Width, Thickness
|
≦118*60*7mm |
