5S BMS
XJ-D330 5S 18V 21V 20A Battery Charging Protection Board Li-Ion Lithium Battery Pack Protection Circuit Board BMS Module for Power Tools

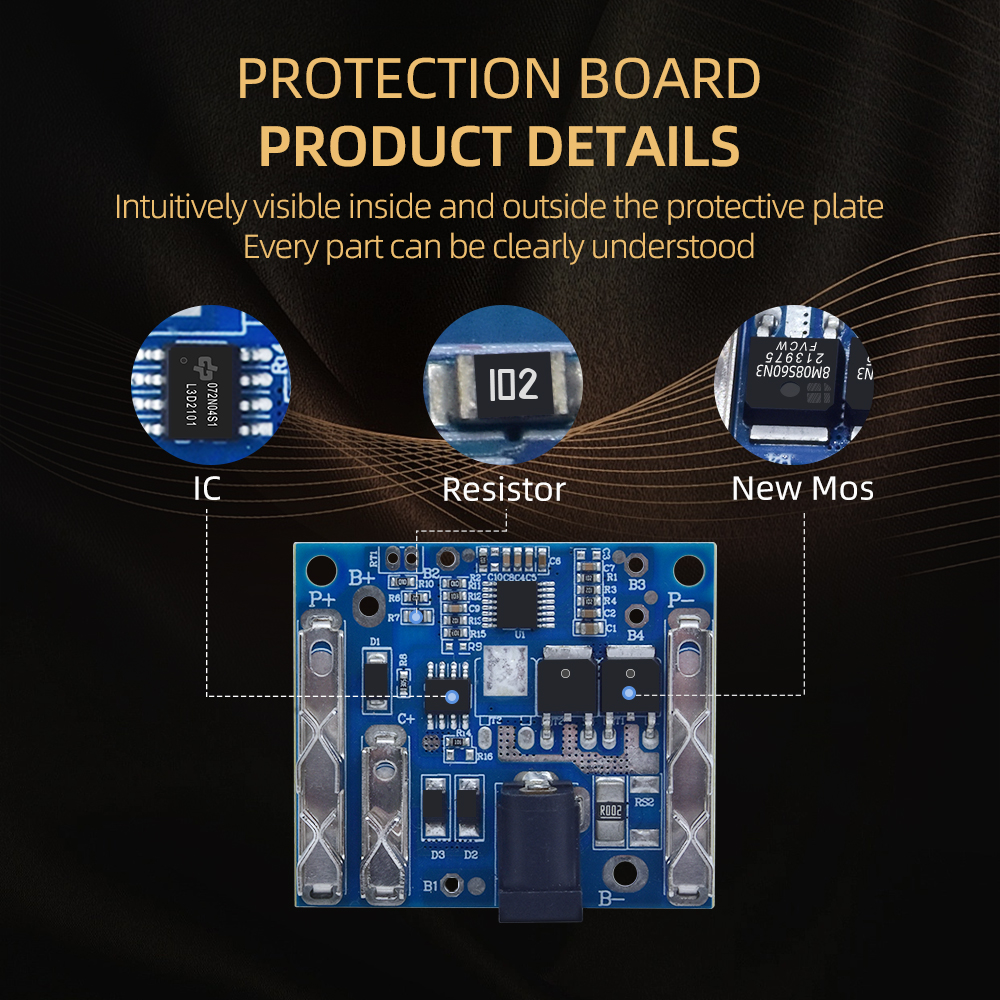

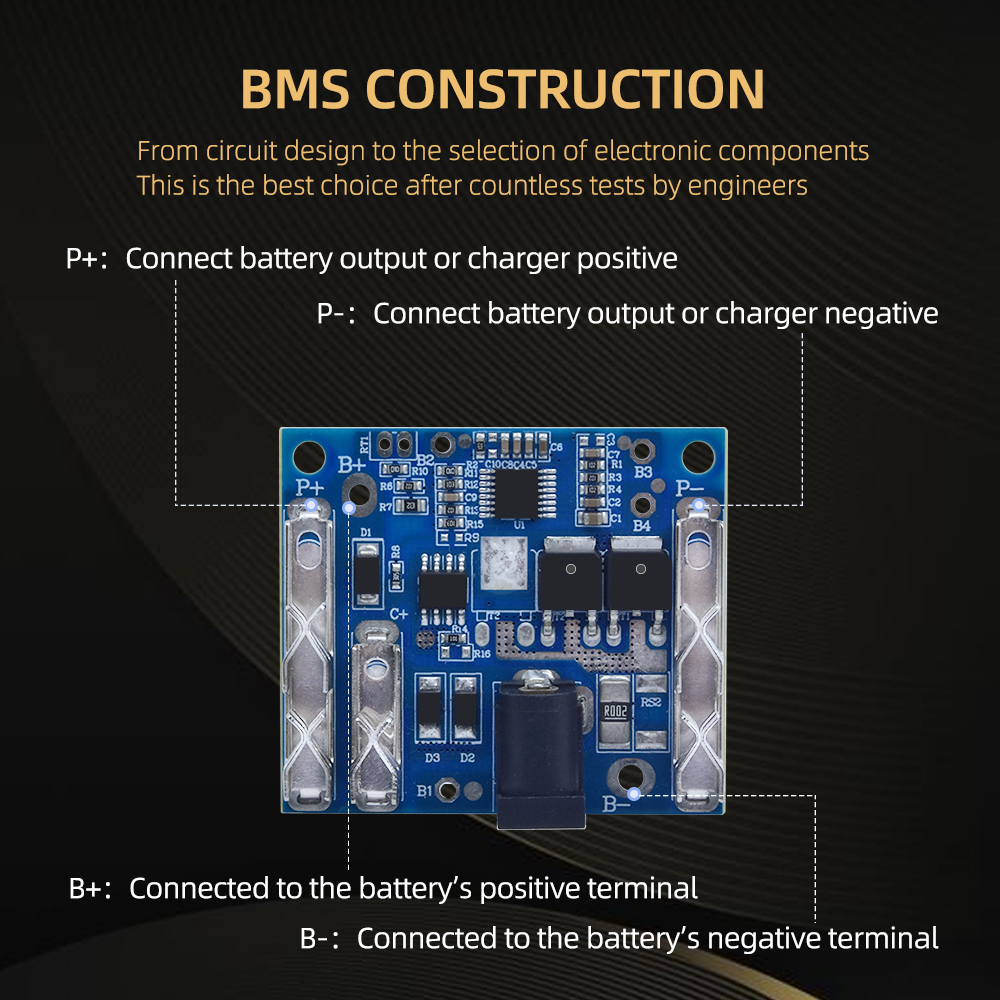

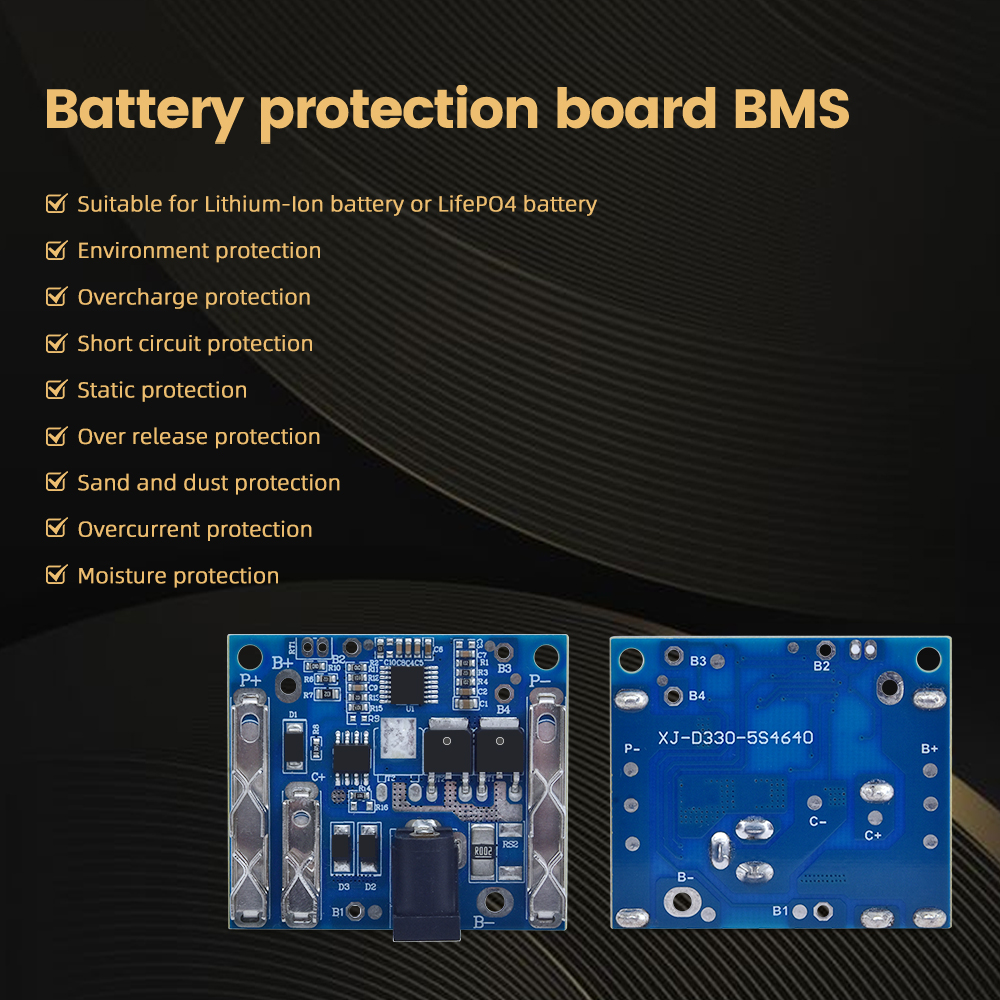

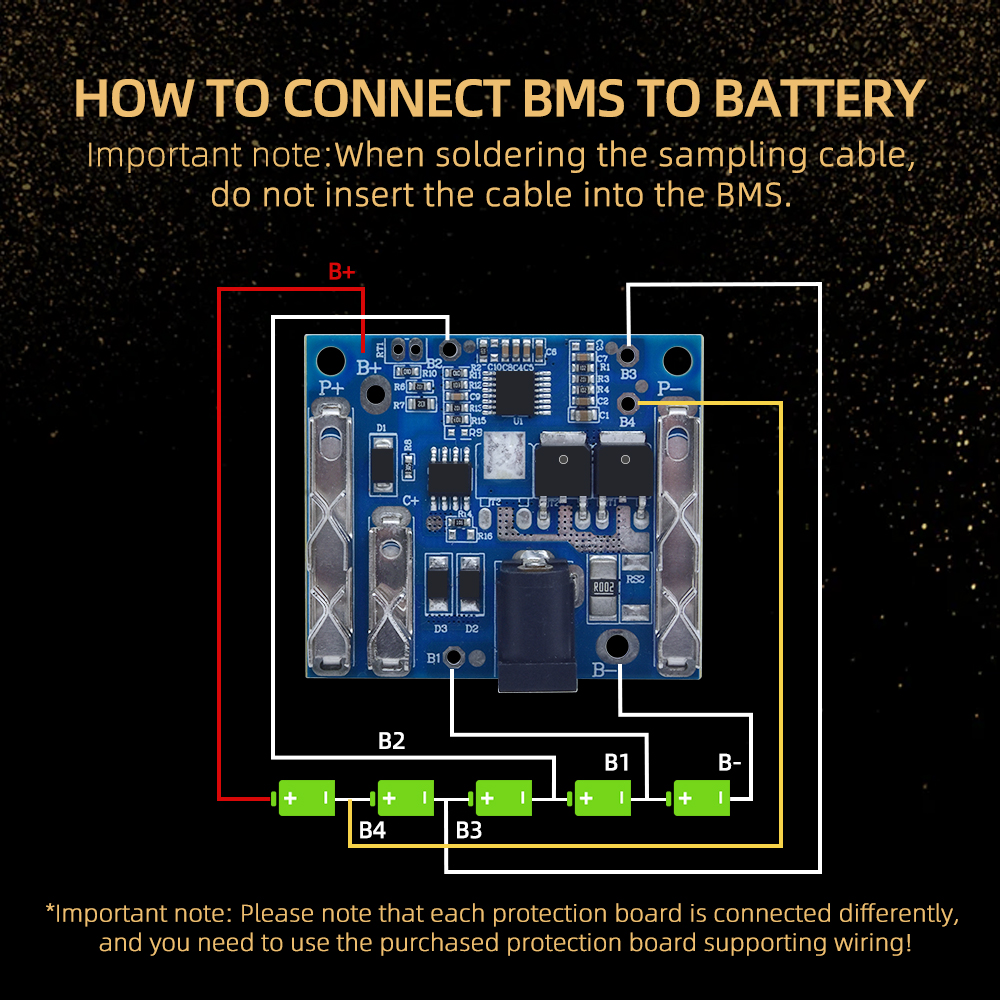

5S 18V 21V 20A Battery Charging Protection Board Li-Ion Lithium Battery Pack Protection Circuit Board BMS Module For Power Tool
|

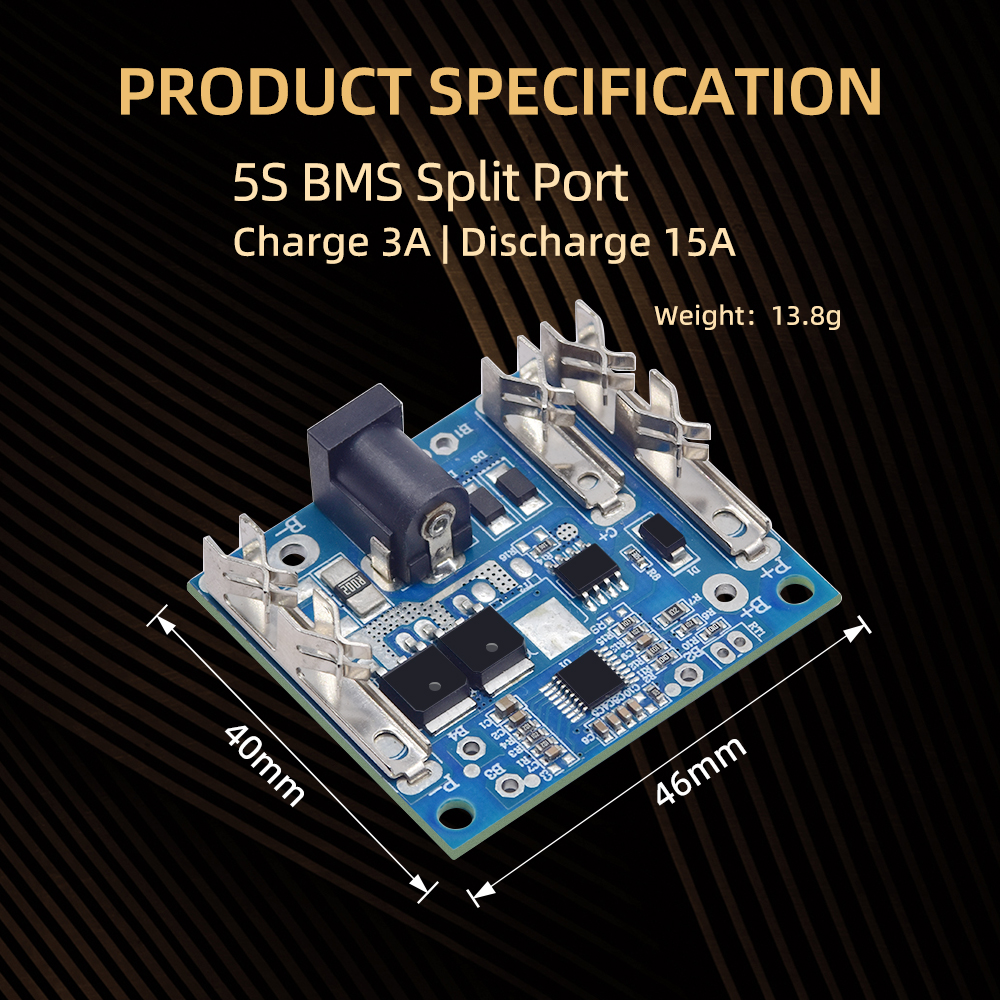

Item
|
Inspection standard
|
Unit
|
|||
|
Minimum
|
Typical
|
Maximum
|
|||
|
Overcharge protection
|
Overcharge detection voltage
|
4.225
|
4.25
|
4.275
|
V
|
|
Overcharge detection delay time
|
500
|
1000
|
1500
|
ms
|
|
|
Overcharge release voltage
|
4.1
|
4.15
|
4.2
|
V
|
|
|
Overdischarge protection
|
Overdischarge detection voltage
|
2.62
|
2.7
|
2.78
|
V
|
|
Overdischarge detection delay time
|
500
|
1000
|
1500
|
ms
|
|
|
Overdischarge release voltage
|
2.9
|
3
|
3.1
|
V
|
|
|
Overcurrent protection
|
Overcurrent detects voltage
|
0.085
|
0.1
|
0.115
|
V
|
|
Overcurrent Protects the current
|
40
|
|
60
|
A
|
|
|
Detection delay time
|
500
|
1000
|
1500
|
ms
|
|
|
Short circuit protection
|
Detection delay time
|
150
|
250
|
350
|
μS
|
|
Protection release condition
|
Disconnect external short-circuit load or charge recovery
|
||||
|
Internal resistance
|
Main circuit on-state resistance
|
|
|
30
|
mΩ
|
|
Current consumption
|
It usually consumes current during operation
|
|
|
40
|
μA
|
|
Static current
|
Current consumed during sleep
|
|
|
9
|
uA
|
|
Charging
|
0V charging function
|
Yes
|
|||
