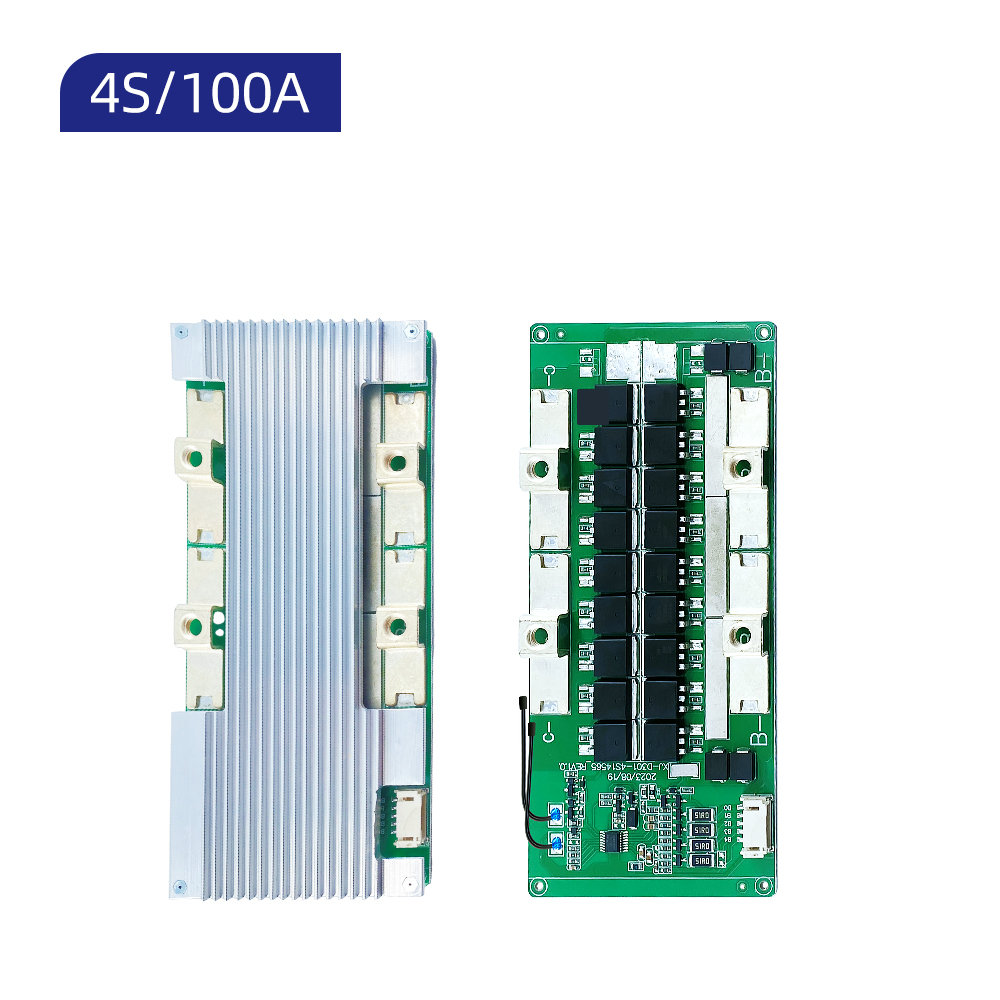

XJ-D301 4S 12V 100A BMS for LifePO4 NMC Battery Management System
4S 100A BMS, application to Electric two-wheelers/electric tricycles/outdoor energy storage batteries...
|
Product Name
|
4S 12V 100A BMS battery management system
|
|
Size
|
Length 150mm*Width 65mm*Thickness 15mm
|
|
Series
|
4S
|
|
Current
|
100A
|
|
Cell Type
|
LifePO4 / NMC /Li-ion
|
|
Function
|
Balance, NTC temperature sensors
|
|
Function
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance function,
Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection |
|
Warranty
|
24 Months
|
|
Item
|
Min
|
Typical
|
Max
|
Unit
|
|
Battery Pack Charging Voltage
|
14.6
|
14.6
|
V
|
|
|
Charging MOSFET Voltage Rating
|
85
|
V
|
||
|
Discharging MOSFET Voltage Rating
|
85
|
V
|
||
|
Single Cell Overcharge Detection Voltage
|
3.6
|
3.65
|
3.7
|
V
|
|
Overcharge Recovery Voltage
|
3.5
|
3.55
|
3.6
|
V
|
|
Overcharge Detection Delay
|
500
|
1000
|
1500
|
mS
|
|
Single Cell Overdischarge Detection Voltage
|
2.2
|
2.3
|
2.4
|
V
|
|
Overdischarge Recovery Voltage
|
2.6
|
2.7
|
2.8
|
V
|
|
Overdischarge Detection Delay
|
500
|
1000
|
1500
|
mS
|
|
Battery Pack Continuous Discharge Current
|
100
|
A
|
||
|
Battery Pack Continuous Charge Current
|
100
|
A
|
||
|
Discharge Overcurrent Protection
|
180
|
300
|
220
|
A
|
|
Overcurrent Protection Delay
|
5
|
10
|
15
|
mS
|
|
Self-Consumption
|
30
|
50
|
uA
|
|
|
Balancing Current
|
60
|
70
|
80
|
mA
|
|

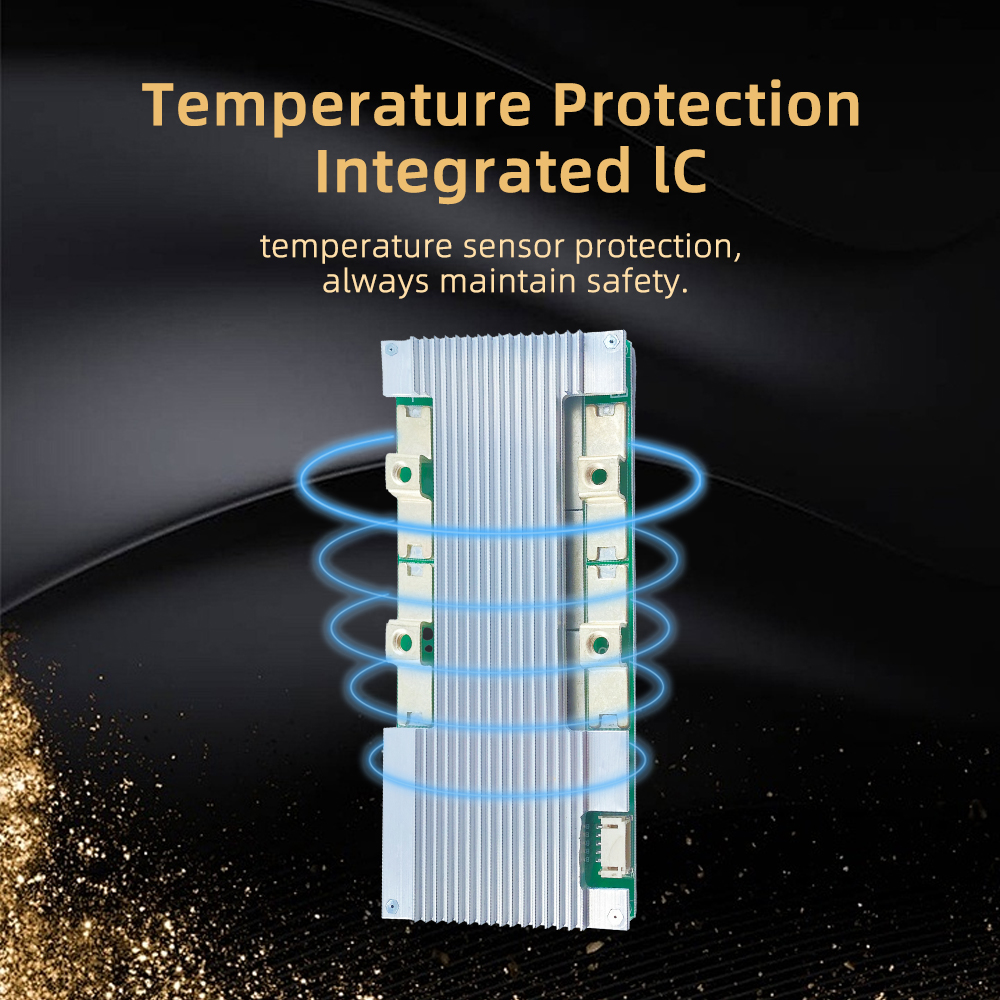

Charging Temperature Protection
|
65±4℃
|
|||
|
Discharging Temperature Protection
|
75±4℃
|
|||
|
Output Short-Circuit/Overdischarge/Overcurrent Protection Recovery
|
Automatically recovers after short-circuit/overdischarge/overcurrent protection when load is removed
|
|||
|
Short-Circuit Protection Delay
|
100
|
300
|
600
|
uS
|
|
Internal Resistance (B- to P- under normal operation)
|
10
|
mΩ
|
||
|
Maximum Temperature Rise at 100A Continuous Output Current
|
40
|
℃
|
||
