XJ-D203 10S 36V 20A BMS for Scooter E-bike LifePO4 NMC Lithium Battery
XJ-D203 10S 20A 36V BMS, for LifePO4/NMC/Lithium battery, application to electric scooters/e-bicycle...
|

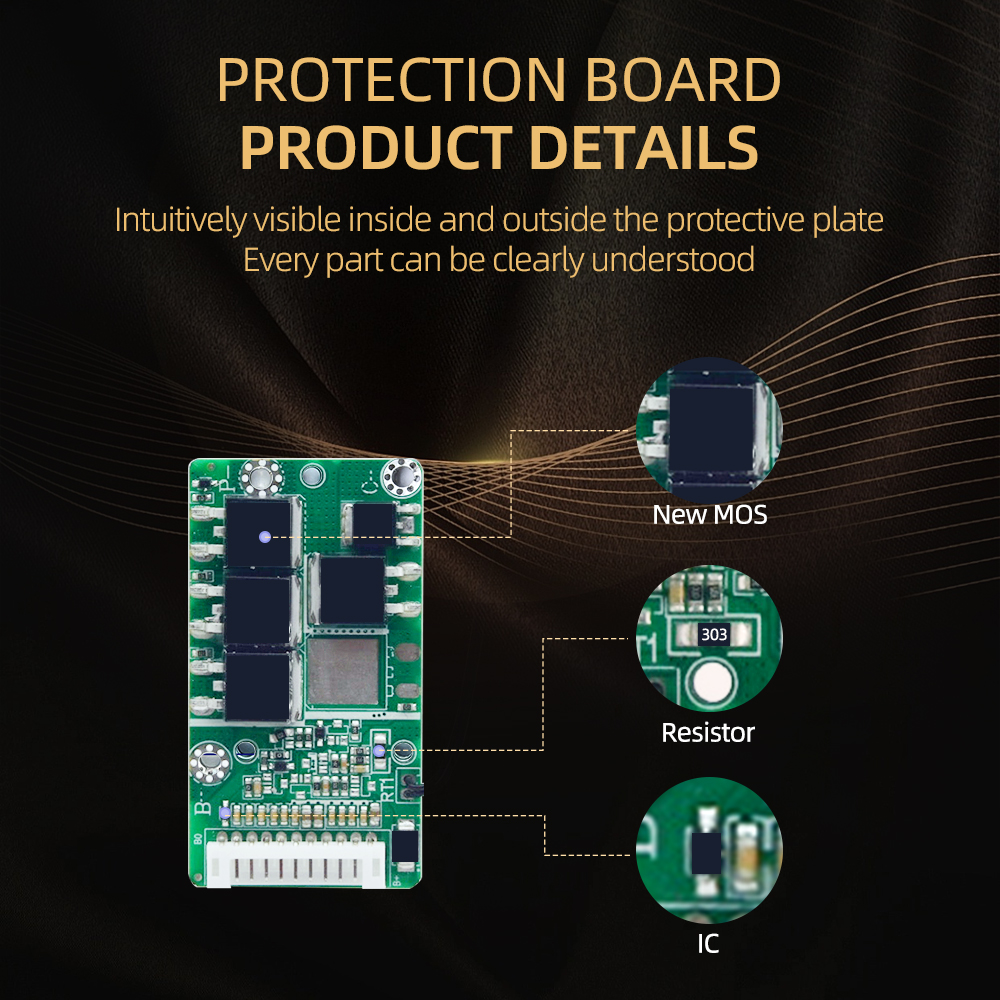

Product Name
|
10S 36V 20A battery management system BMS
|
|

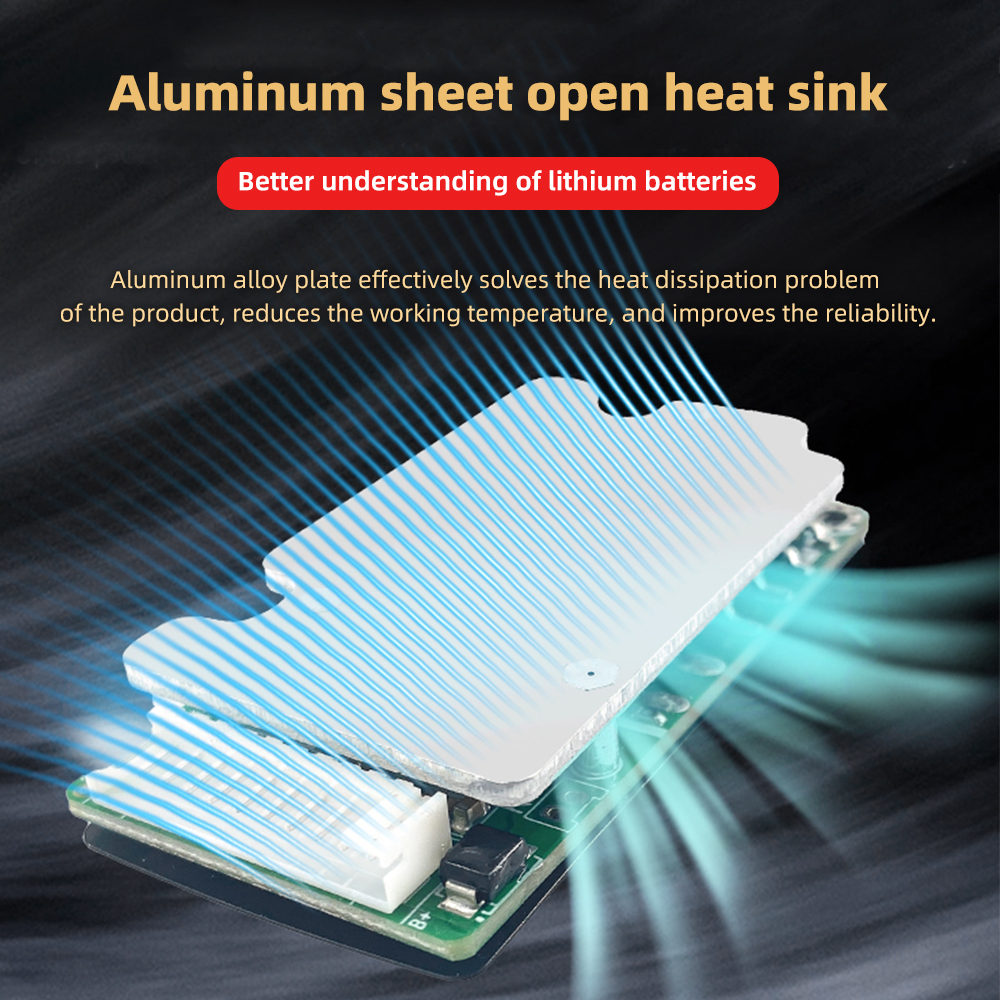

Size
|

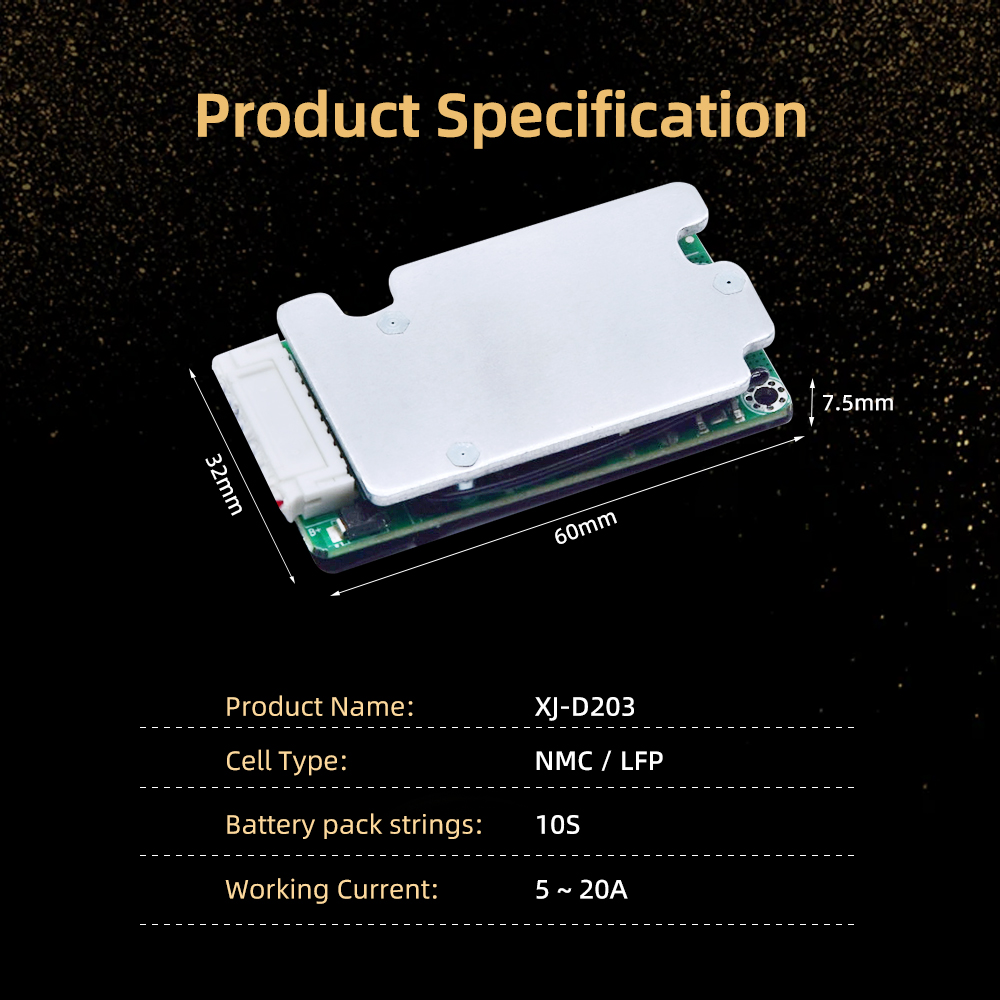

Length 60mm*Width 32mm*Thickness 7.5mm
|
|
Series
|
10S
|
|
Current
|
15A 20A
|
|
Max working current
|
Discharge 20A/Charge 5A
|
|

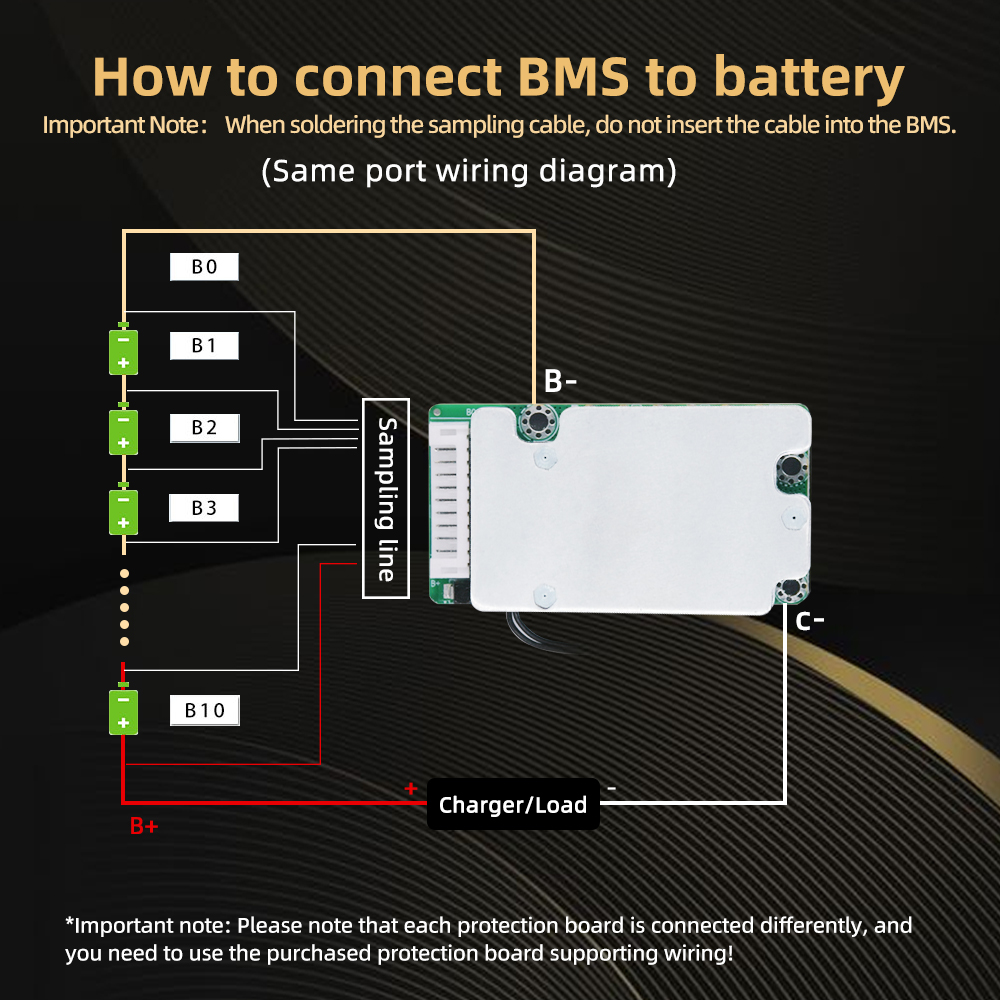

Output Method
|

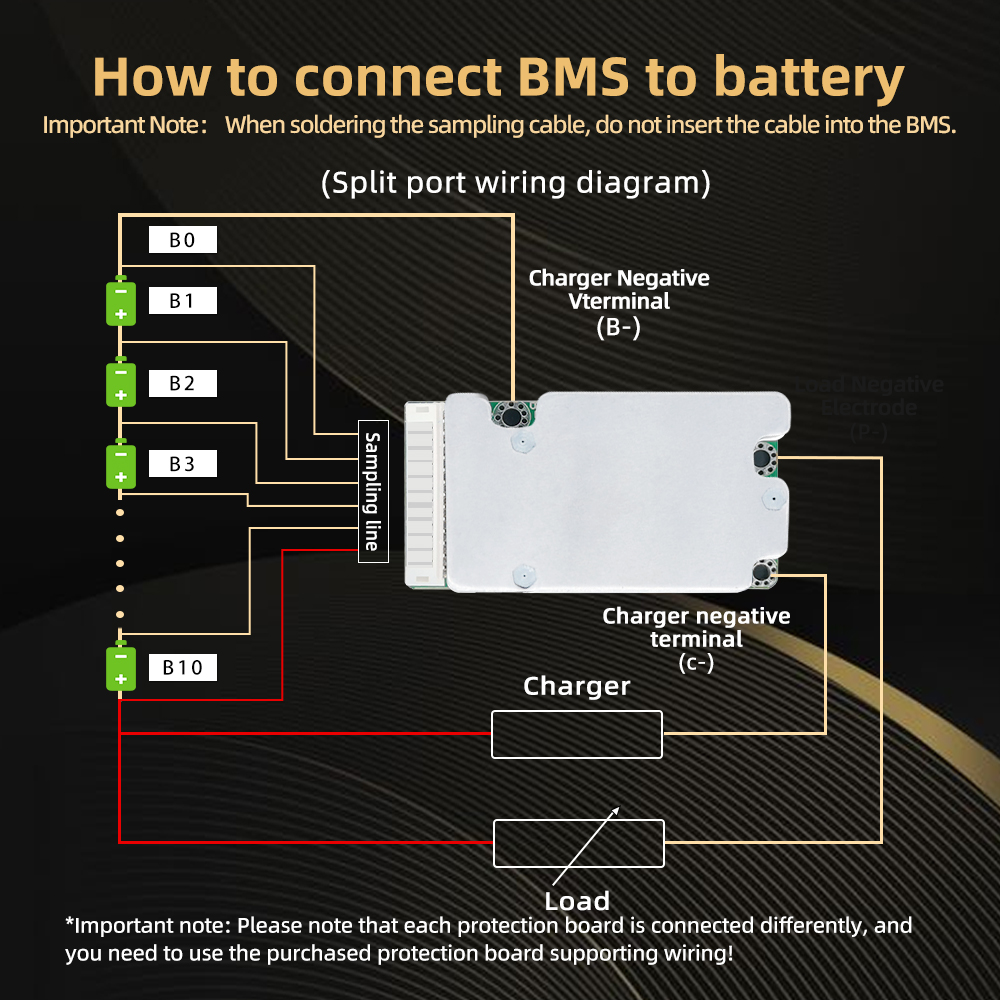

Same port/Split port (optional)
|
|
Cell Type
|
LFP/NCM/Li-ion
|
|

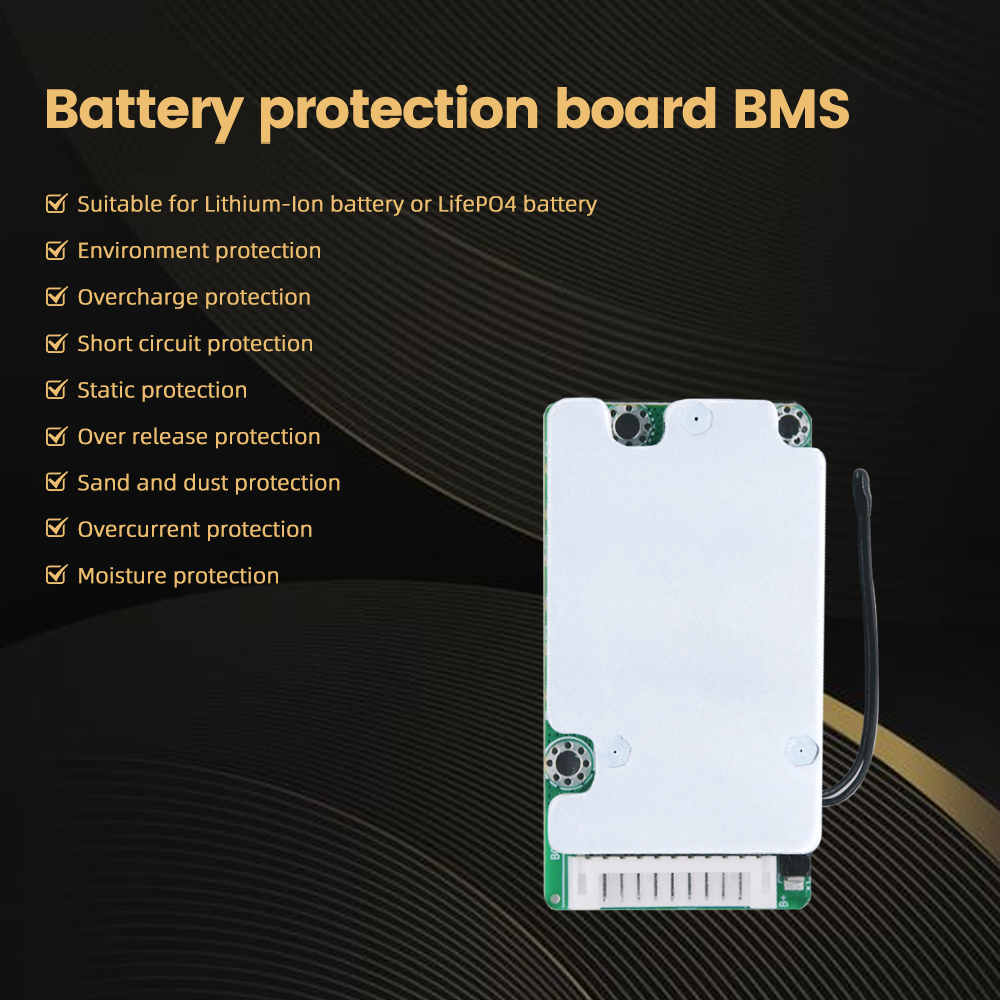

Function
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance function,
Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection |
|
Warranty
|
24 Months
|
| Parameter (The specification of 10S 20A Battery) | Min | Typical | Max | Unit |
| Battery Pack Charge Voltage | 42.5 | 42.5 | V | |
| Charge MOSFET Voltage Withstand Rating | 60 | V | ||
| Discharge MOSFET Voltage Withstand Rating | 60 | V | ||
| Single Cell Overcharge Detection Voltage | 4.225 | 4.25 | 4.275 | V |
| Overcharge Recovery Voltage | 4 | 4.05 | 4.1 | V |
| Overcharge Detection Delay | 500 | 1000 | 1500 | mS |
| Single Cell Overdischarge Detection Voltage | 2.6 | 2.7 | 2.8 | V |
| Overdischarge Recovery Voltage | 2.9 | 3 | 3.1 | V |
| Overdischarge Detection Delay | 500 | 1000 | 1500 | mS |
| Continuous Discharge Current | 15 | A | ||
| Continuous Charge Current | 5 | A | ||
| Discharge Overcurrent Protection | 90 | 100 | 110 | A |
| Overcurrent Protection Delay | 800 | 1000 | 1500 | mS |
| Standby Current Consumption | 30 | 50 | uA | |
| Cell Balancing Current | --- | --- | --- | mA |
| Charge Temperature Protection | 55±4℃. | |||
| Discharge Temperature Protection | 75±4℃. | |||
| Protection Recovery (SC/OVD/OCP) | Auto-recovery after fault clearance (load removal) | |||
| Short Circuit Protection Delay | 100 | 300 | 600 | uS |
| Internal Resistance (B- to C-) | 10 | mΩ | ||
| Max Temperature Rise 25A Continuous | 40 | ℃ | ||
