XJ-D200 10S 20A 42V BMS for E-scooter Split Port Charge 10A Discharge 20A

This model XJ-D200 BMS, 10S 20A, is designed for scooters and e-bikes. Split port, charging 10A, discharging 20A (optional), with temperature sensors, over-short, over-discharge, over-voltage, and over-current protection. Suitable for NMC 3.7V batteries and LifePO4 3.2V batteries. When the 20A discharge continues, the high temperature reaches 40℃. With common port and seperate port (optional)

Model XJ-D200
Battery Cell 10S
Charge Current 10A
Discharge Current 20A
Cell Type LifePO4/NMC/Li-ion
Size 62*35*10MM
Feature Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection
Warranty 24 Months

Product Data

Description

XJ-D200 10S 42V 20A E-scooters BMS, seperate port, charge 10A discharge 20A

Product Name	BMS battery management system

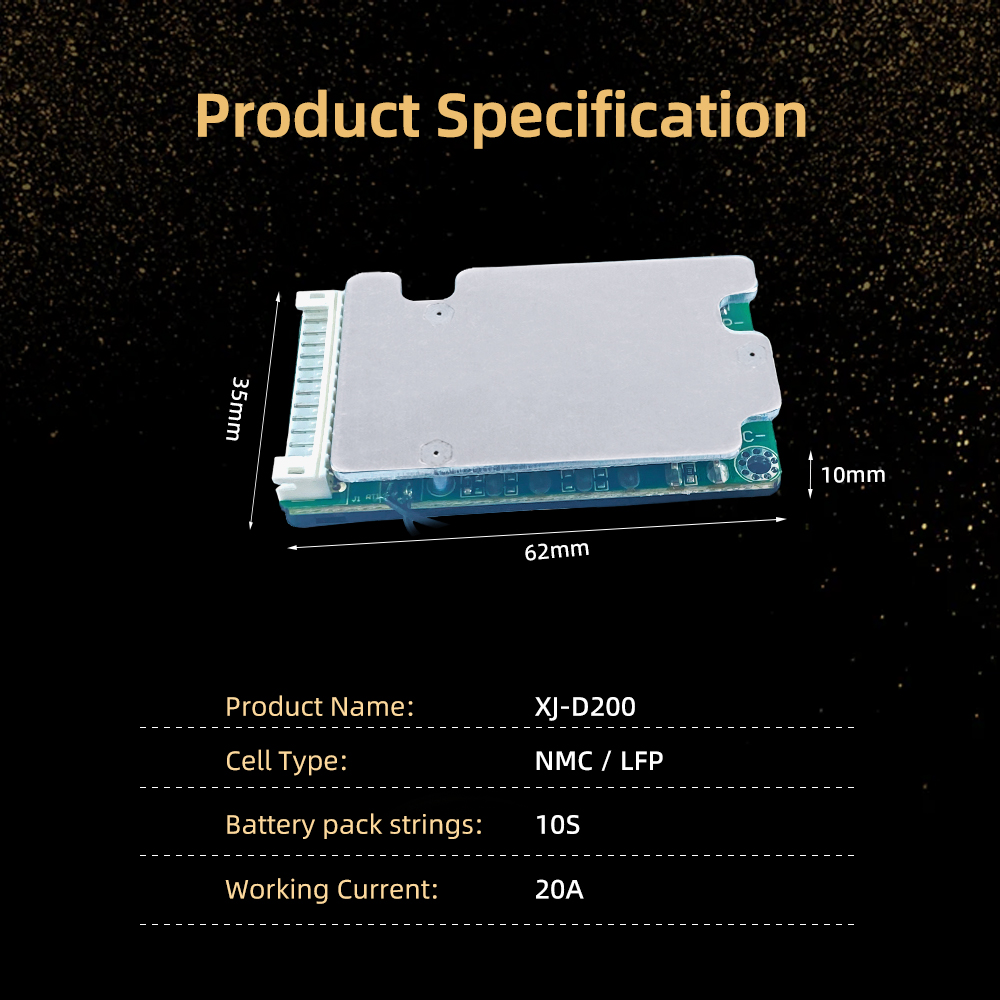

Size	Length 62mmWidth 35mmThickness 10mm
Series	10S
Current	Charge 10A, discharge 20A
Voltage	42V
Temperature Sensors	Yes
Battery Cell Type	NMC 3.7V Battery / LifePO4 3.2V Battery

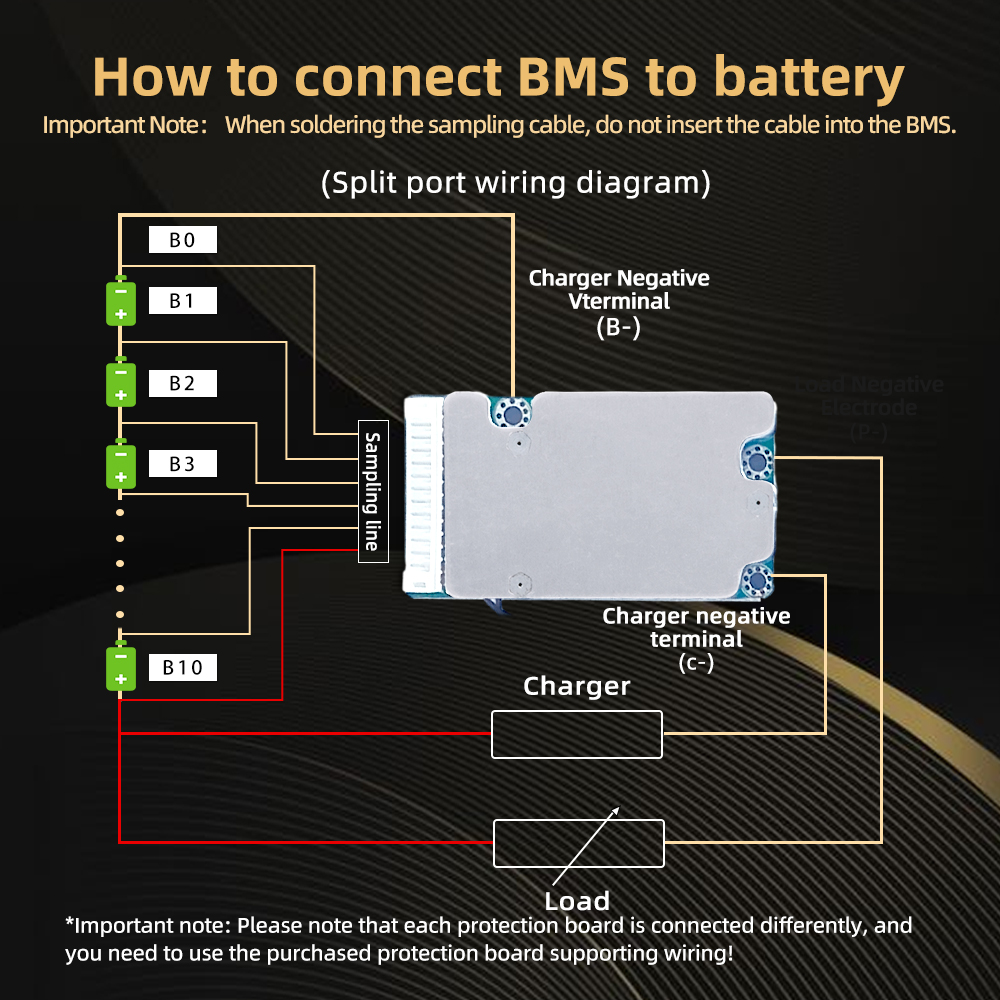

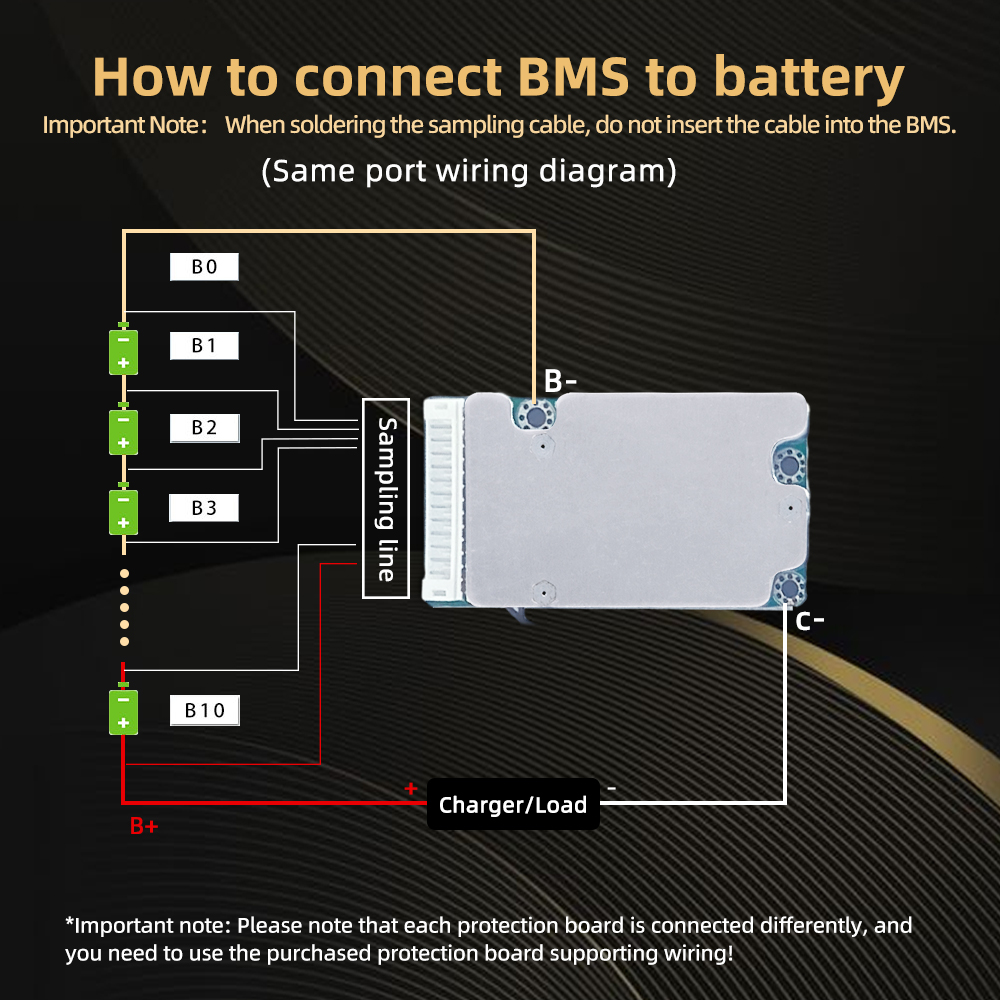

Function	Same port or split port (optional)

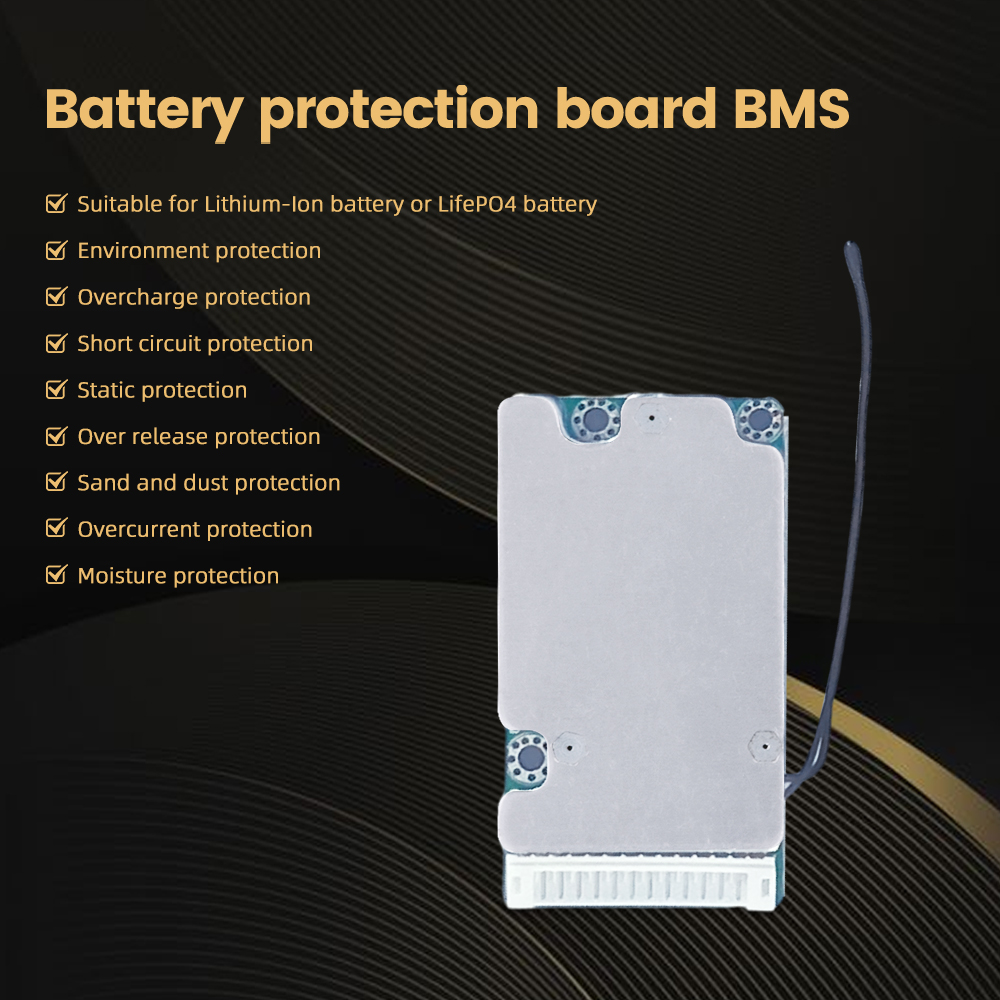

Protection	Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection
Warranty	24 Months

Item (The spec of 10S 20A)	Min	Typical	Max	Unit
Battery pack charging voltage		42.5	42.5	V
The withstand voltage of the charging MOS	80			V
Discharge MOS withstand voltage value	80			V
Single-cell overcharge detection voltage	4.225	4.25	4.275	V
Overcharge recovery voltage	4	4.05	4.1	V
Overcharge detection delay	500	1000	1500	mS
Single-section overdischarge detection voltage	2.6	2.7	2.8	V
Overdischarge recovery voltage	2.9	3	3.1	V
Over-discharge detection delay	500	1000	1500	mS
Continuous discharge current of the battery pack			20	A
Continuous charging current of the battery pack			10	A
Discharge overcurrent protection	70	80	90	A
Overcurrent protection delay	800	1000	1500	mS
Self-consumption		30	50	uA
Equilibrium current	---	---	---	mA
Charging temperature protection	55±4℃.
Discharge temperature protection	75±4℃.
Output short circuit/overdischarge/overcurrent protection recovery	After short-circuit/overdischarge/overcurrent protection, the load is removed and it automatically recovers
Short-circuit protection delay	100	300	600	uS
Under normal working conditions, the internal resistance is B- to P-			10	mΩ
Maximum temperature rise with a continuous output current of 15A			40	℃
