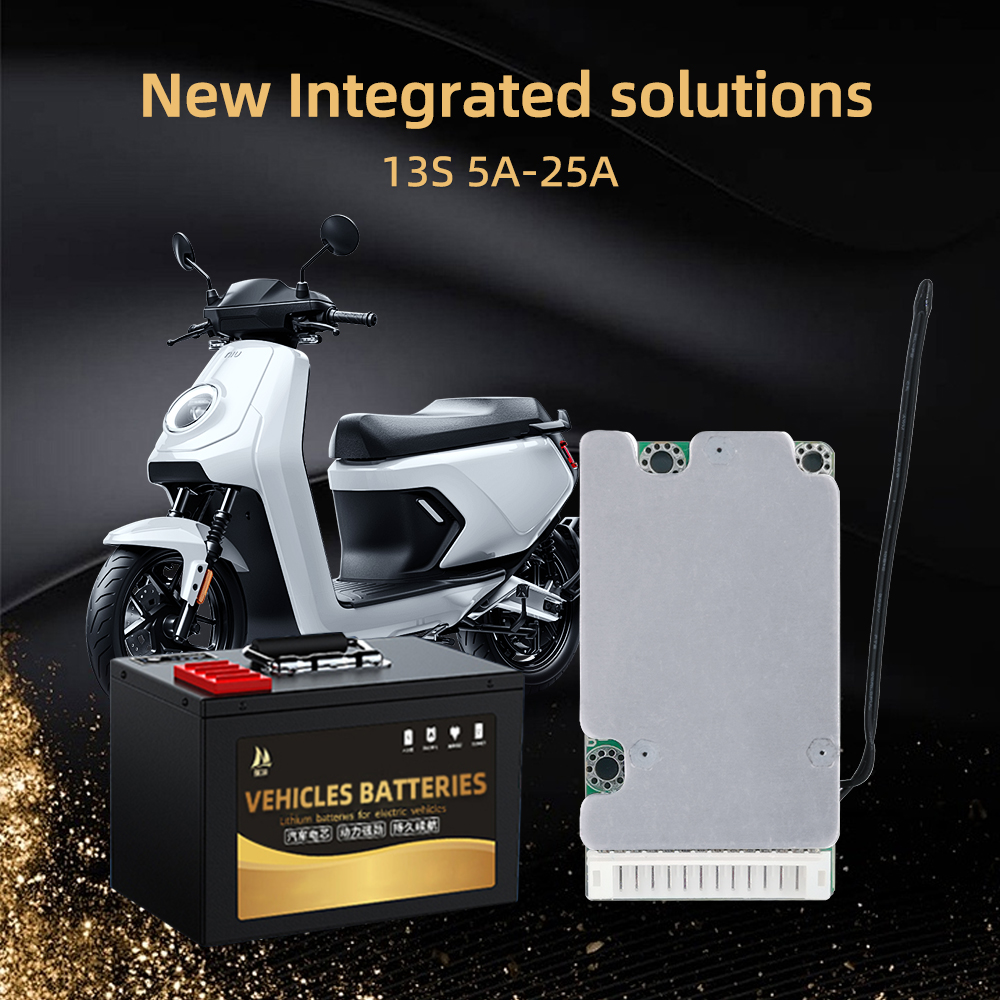

XJ-D198 13S 48V 5A 10A 15A 20A 25A BMS for Scooter E-bike LifePO4 NMC 18650 Battery
XJ-D198, 13S 48V 5A~25A BMS, application to electric bicycle, scooter...
|
Product Name
|
13S 20A BMS Battery Management System
|
|

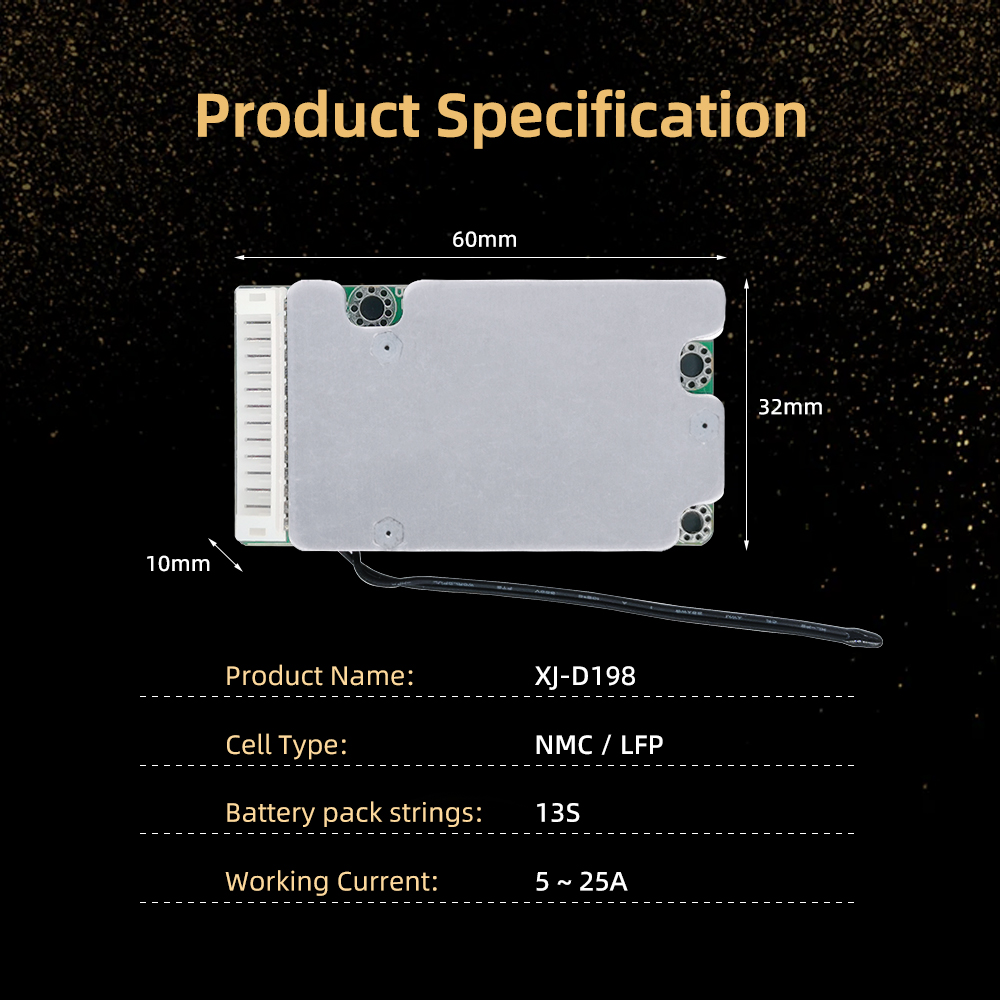

Size
|
Length 60mm*Width 32mm*Thickness 10mm
|
|
Series
|
13S
|
|
Current
|
20A
|
|
Cell Type
|
NMC 3.7V
|
|
NTC
|
Yes
|
|
Output method
|
Split Port/Same Port
|
|
Max Working Current (split port)
|
Discharge 25A/Charge 5A
|
|
Function
|

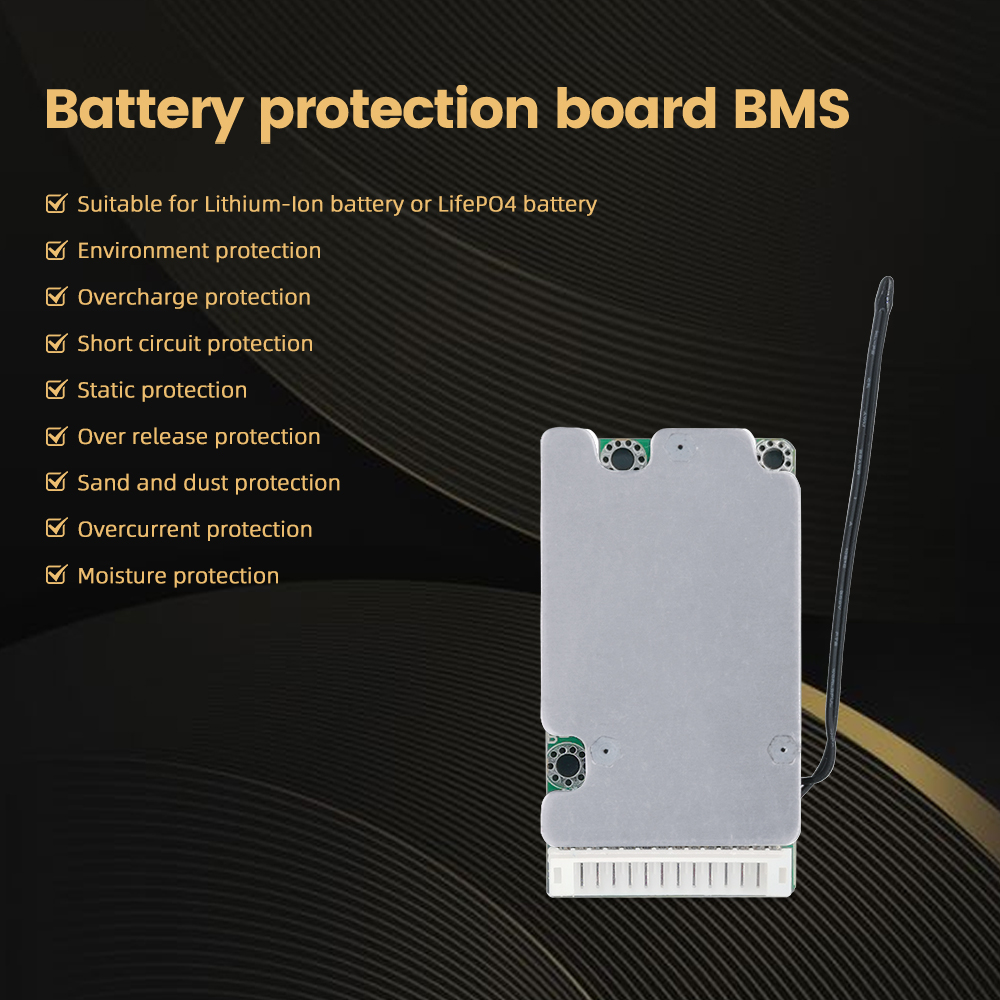

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance function, Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
| ltem(The Specification of 13S 20A BMS) | Inspection standard | Unit | ||
| Minimum | Typical | Maximum | ||
| Single-cell overcharge detection voltage |
4.2 | 4.25 | 4.3 | V |
| Overcharge recovery voltage | 4 | 4.05 | 4.1 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Single-cell overdischarge detection voltage |
2.6 | 2.7 | 2.8 | V |
| Overdischarge recovery voltage |
2.9 | 3 | 3.1 | V |
| Overdischarge detection delay | 500 | 1000 | 1500 | mS |
| Battery pack continuous discharge current |
20 | A | ||
| Battery pack continuous charge current |
20 | A | ||
| Discharge overcurrent protection |
50 | 60 | 70 | A |
| Overcurrent protection delay | 500 | 1000 | 1500 | mS |
| Self-consumption | 30 | 50 | uA | |
| Output short circuit/overdischarge/overcurrent |
Automatic recovery after removing the load after short circuit/over discharge/overcurrent protection |
|||
| Short circuit protection delay | 100 | 300 | 500 | uS |
| Normal working state B-to P- internal resistance |
50 | mQ | ||
