XJ-D162 4S 20A BMS with Balance NTC Common Port BMS for LifePO4 Li-ion Battery

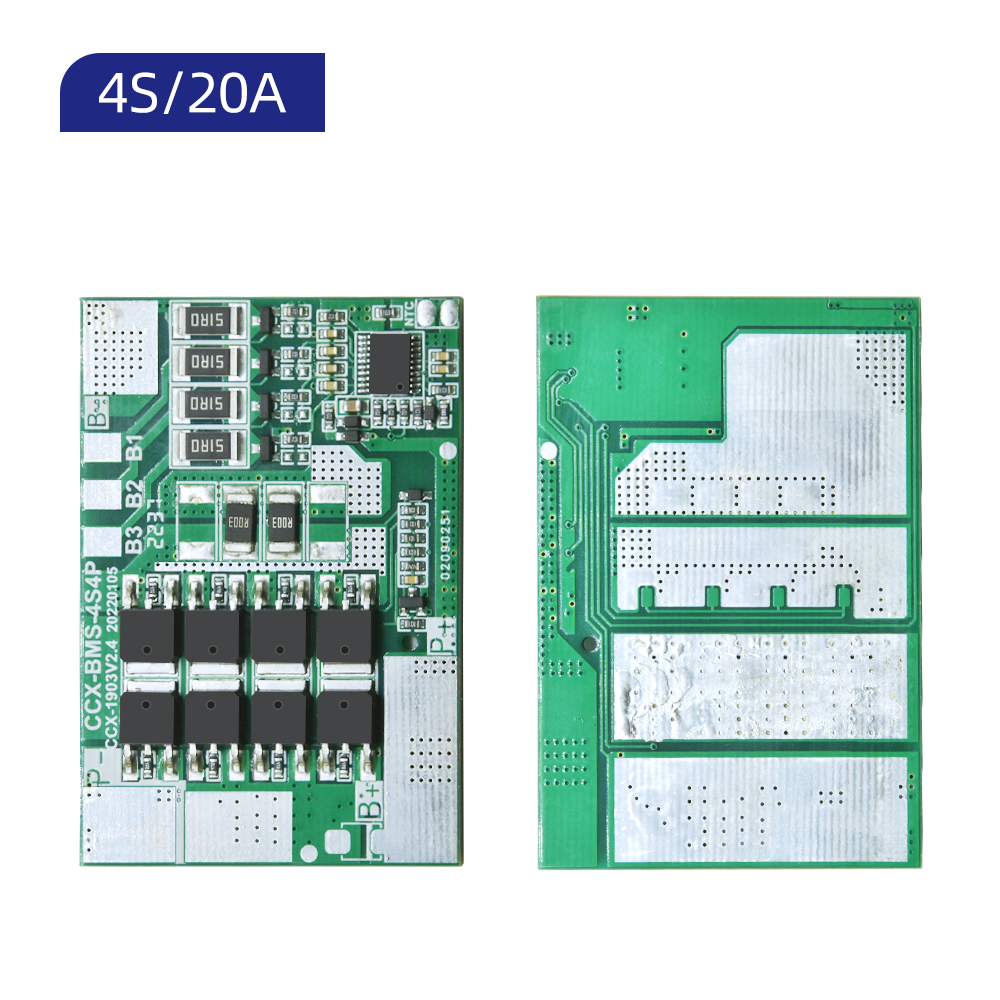

XJ-D162 BMS, 4S 20A 12V, with passive balance and NTC, common port.
|
Product Name
|
4S Battery BMS
|
|
Size
|

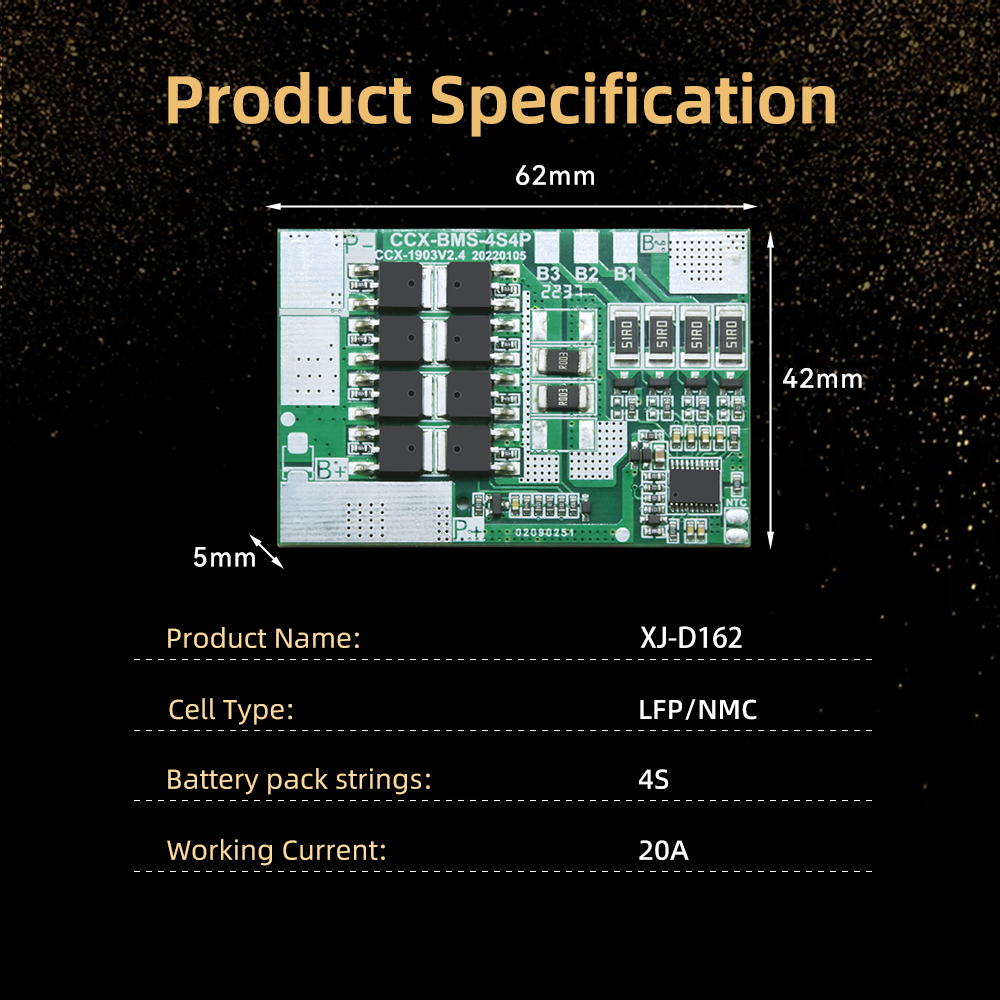

Length 62mm * Width 42mm * Thickness 5mm
|
|

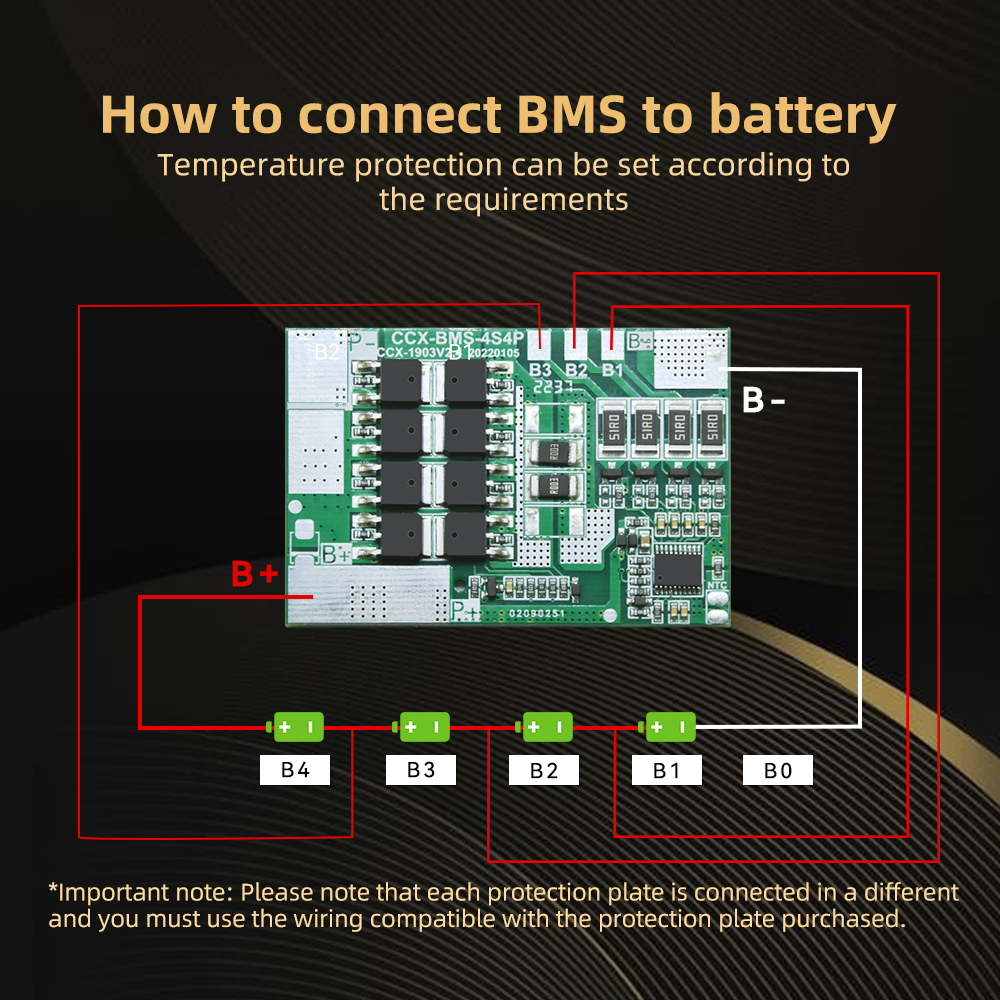

Series
|
4S |
|
Current
|
20A
|
|
Single Cell Battery Voltage
|
3.2V / 3.7V / 4.2V
|
|
Cell Type
|
LifePO4/NMC/Lithium
|
|

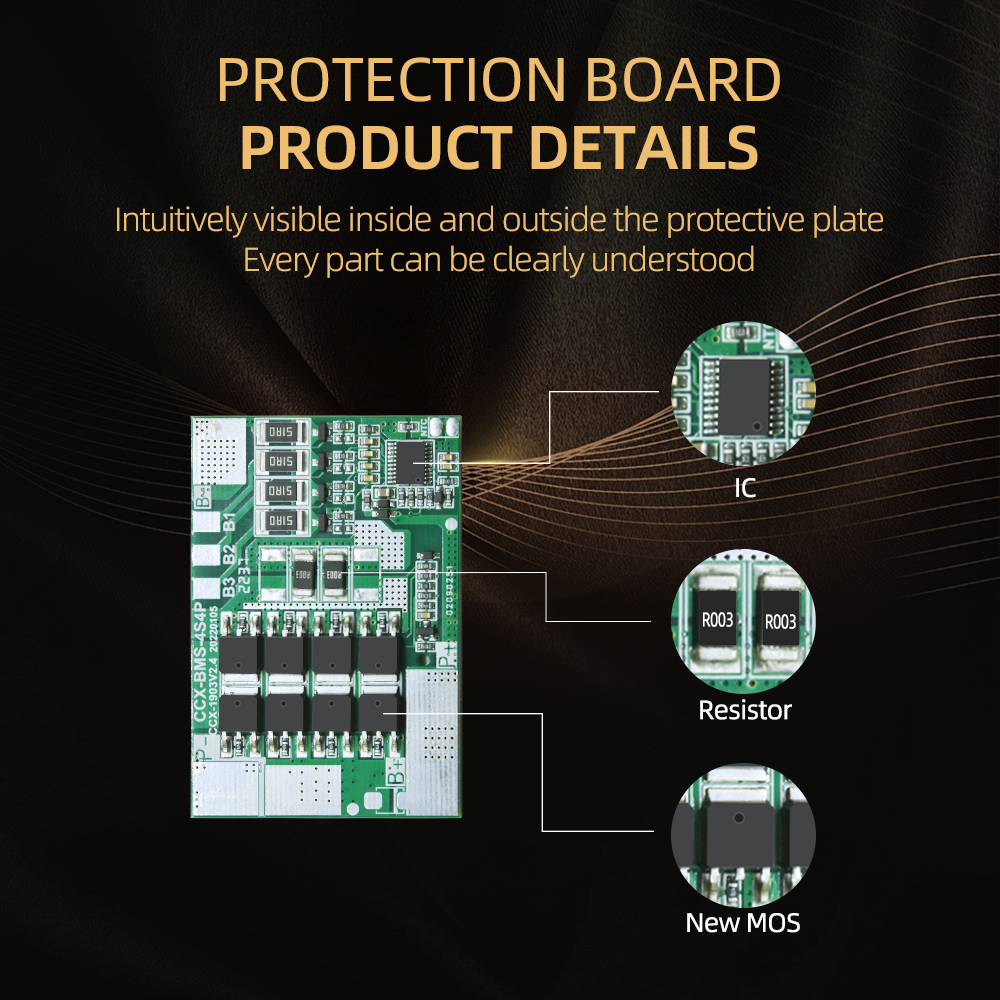

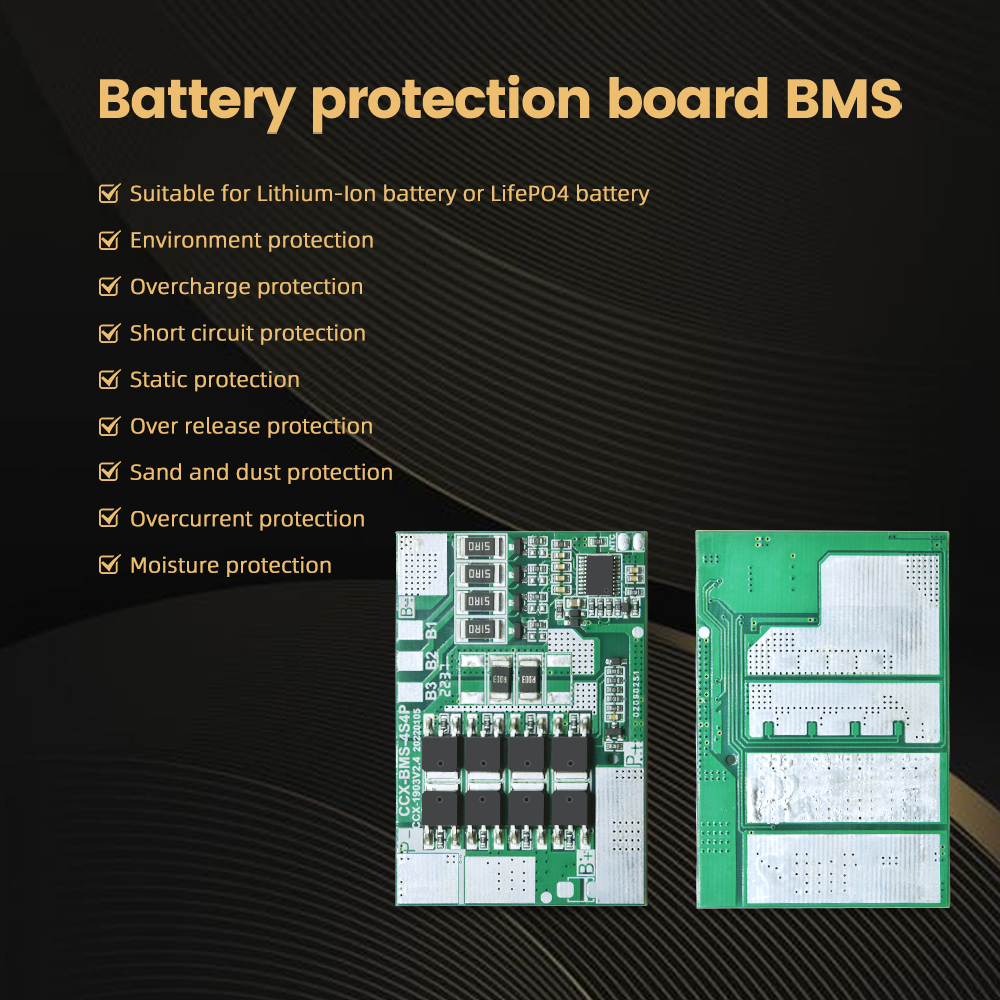

Function
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Built-in passive balance, NTC temperature sensors, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
| Item | Symbol | Inspection standard | Unit | |||
| Min | Typical | Max | ||||
| Overcharge protection | Overcharge detection voltage | VDET1 | 3.7 | 3.75 | 3.8 | V |
| Overcharge detection delay time | tVDET1 | 500 | 1000 | 1500 | ms | |
| Overcharge discharge voltage | VREL1 | 3.5 | 3.55 | 3.6 | V | |
| Over-discharge protection | Over-discharge detection voltage | VDET2 | 2.1 | 2.2 | 2.3 | V |
| Over-discharge detection delay time | tVDET2 | 500 | 1000 | 1500 | ms | |
| Over-discharge discharge voltage | VREL2 | 2.6 | 2.7 | 2.8 | V | |
| Overcurrent protection | Overcurrent detection voltage | VDET3 | 0.095 | 0.1 | 0.105 | V |
| Overcurrent protection current | IDP | 25 | 30 | 40 | A | |
| Detection delay time | tVDET3 | 500 | 1000 | 1500 | ms | |
| Short-circuit protection | Detection delay time | TSHORT | 200 | 250 | 300 | μS |
| Conditions for lifting protection | Disconnect the external short-circuit load or charge and restore | |||||
| Balancing | Balancing activation voltage | VBAL | 3.49 | 3.515 | 3.54 | V |
| Balancing current | IBAL | 50 | 70 | 90 | mA | |
| Internal resistance | Main circuit on-state resistor | IPWN | 50 | mΩ | ||
| Current consumption | It usually consumes current when in operation | IDD | 50 | μA | ||
| Static current | It consumes current during hibernation | IPWN | 10 | μA | ||
| Discharge Current | Sleep function | Yes | ||||
