XJ-D125 10S 20A Split Port BMS Charging 3A Discharge 20A
Split port BMS 10S 20A for scooter/e-bike
|
Product Name |
XJ-D125 BMS |
|

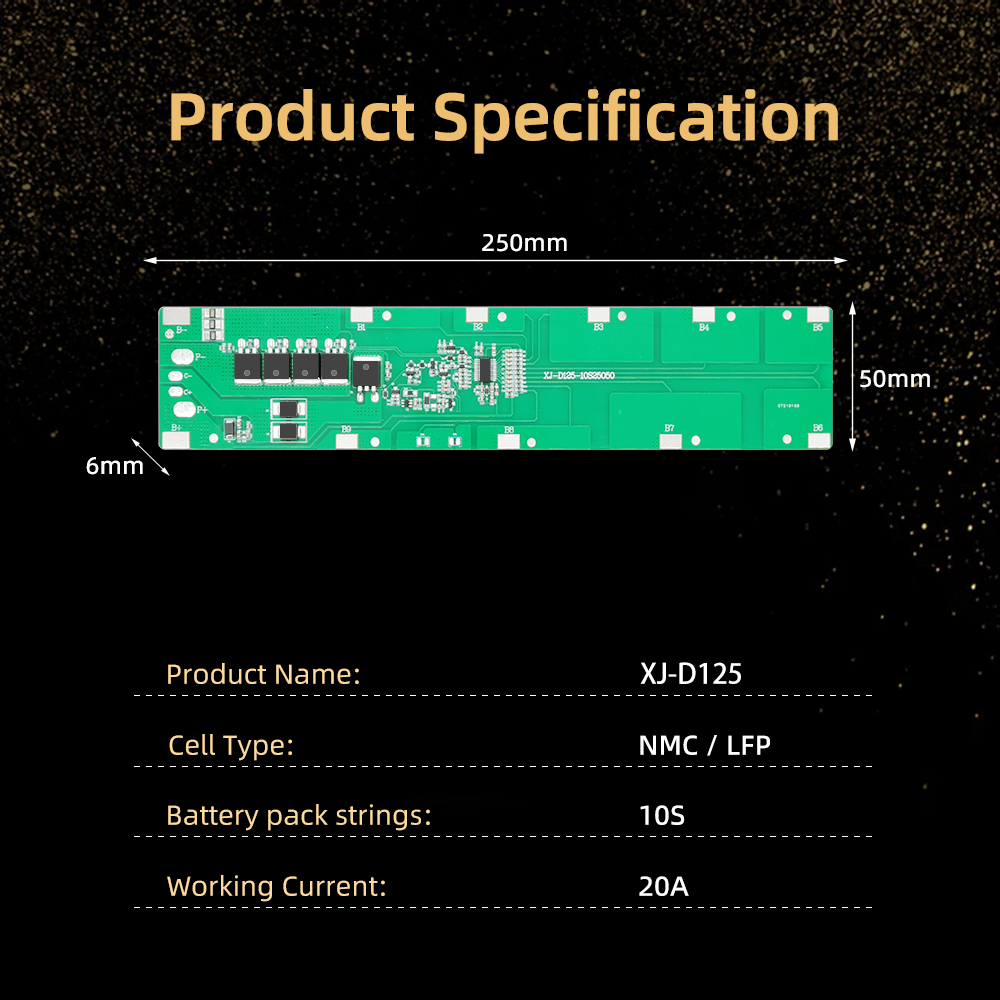

Size |
250*50*6mm |
|
Series |
10S |
|
Current |
20A |
|
Cell Type |
NCM |
|

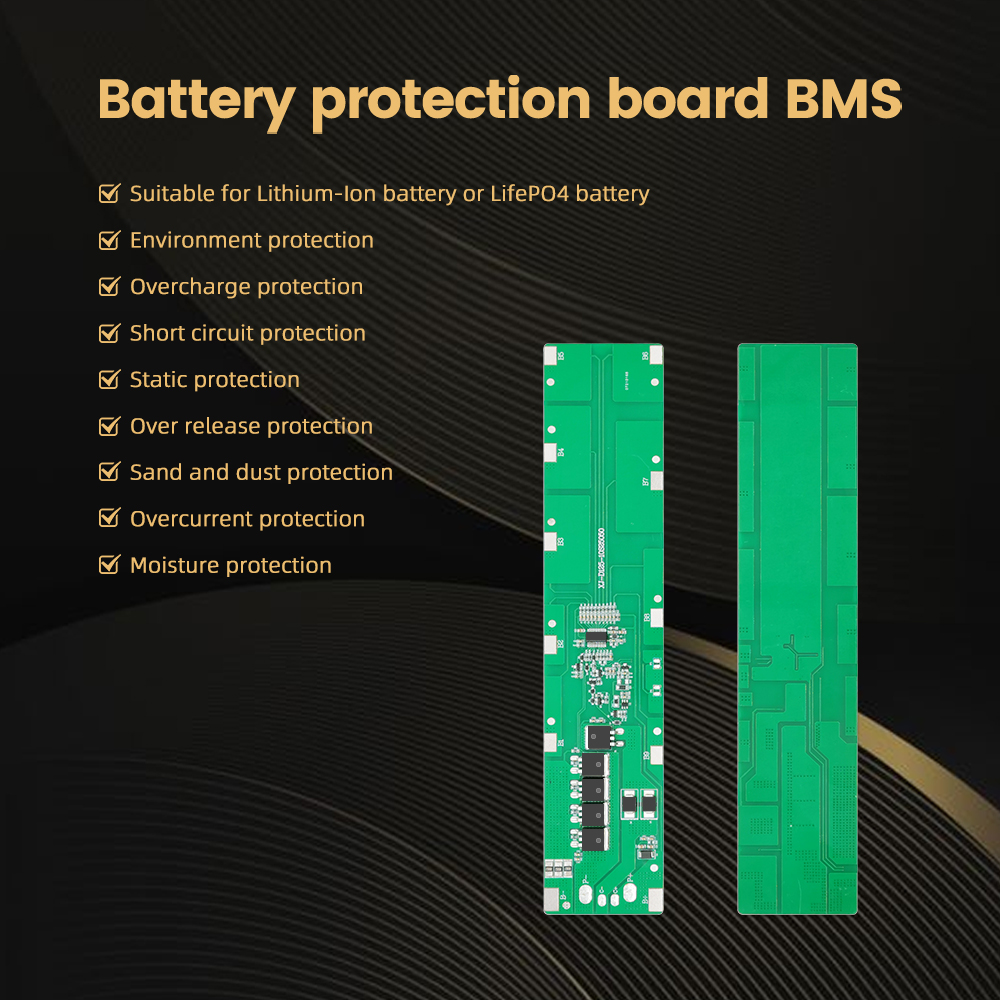

Function |
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance function, Electrostatic protection, Dust Protection, Moisture Protection |
|
Warranty |
24 Months |
| Item | Min | Typical | Max | Unit |
| Battery pack charging voltage | 42 | 42.5 | V | |
| The withstand voltage of the charging MOS | 65 | V | ||
| Discharge MOS withstand voltage value | 65 | V | ||
| Single-cell overcharge detection voltage | 4.2 | 4.25 | 4.3 | V |
| Overcharge recovery voltage | 4.05 | 4.1 | 4.15 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Single-section overdischarge detection voltage | 2.6 | 2.7 | 2.8 | V |
| Overdischarge recovery voltage | 2.9 | 3 | 3.1 | V |
| Over-discharge detection delay | 500 | 1000 | 1500 | mS |
| Continuous discharge current of the battery pack | 20 | A | ||
| Continuous charging current of the battery pack | 3 | A | ||
| Discharge overcurrent protection | 65 | 75 | 85 | A |
| Overcurrent protection delay | 500 | 1000 | 1500 | mS |
| Self-consumption | 30 | 50 | uA | |
| Equilibrium current | 55 | 70 | 80 | mA |
| Charging temperature protection | High temperature: 55±5℃, low temperature: -5±5℃. | |||
| Discharge temperature protection | High temperature: 70±5℃, low temperature: -25±5℃. | |||
| Output short circuit/overdischarge/overcurrent protection recovery | After short-circuit/overdischarge/overcurrent protection, the load is removed and it automatically recovers | |||
| Short-circuit protection delay | 100 | 300 | 600 | uS |
| Under normal working conditions, B- to C- internal resistance | 40 | mΩ | ||
| Maximum temperature rise with a continuous output current of 20A | 40 | ℃ | ||
