XJ-D117 6S 15A BMS for LifePO4 Li-ion Battery Management System BMS
6S 15A, for 3.2V LifePO4 3.7V Li-ion Battery, common port with NTC.
|

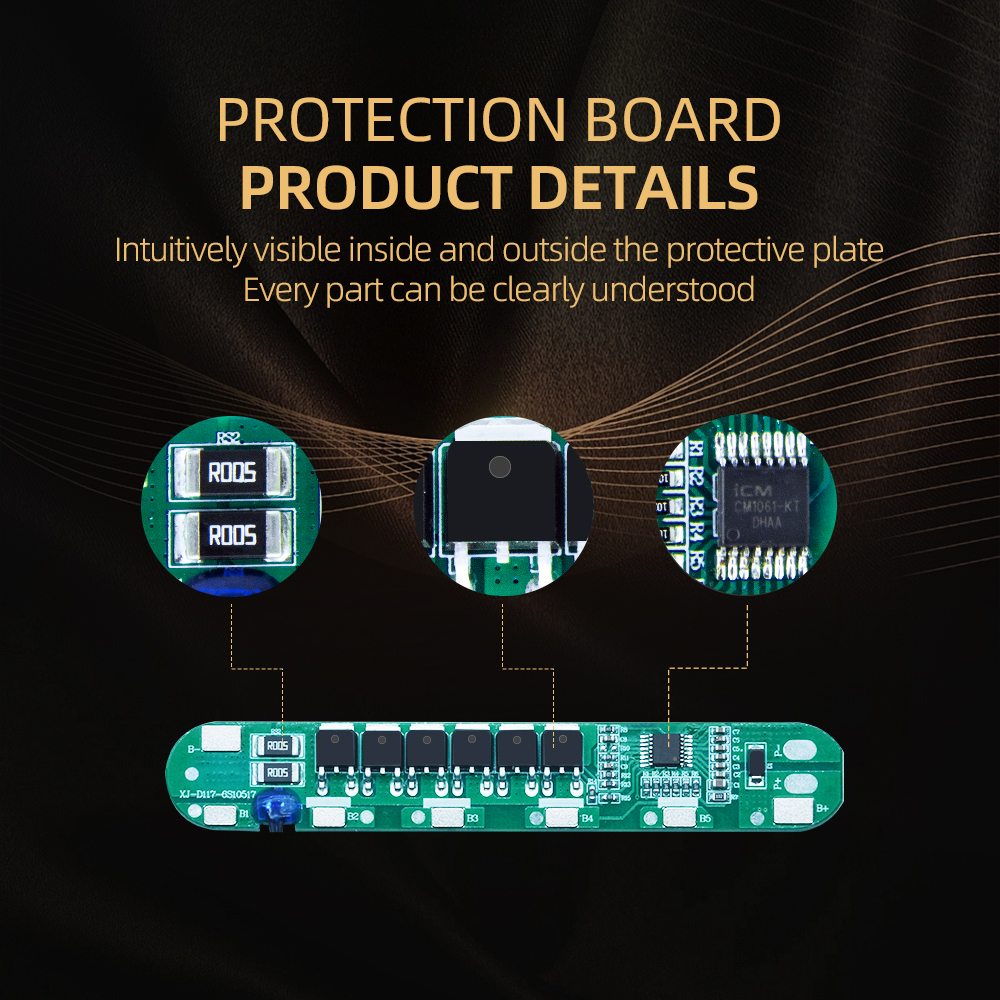

Product Name
|
6S 15A BMS battery protection board
|
|
Size
|

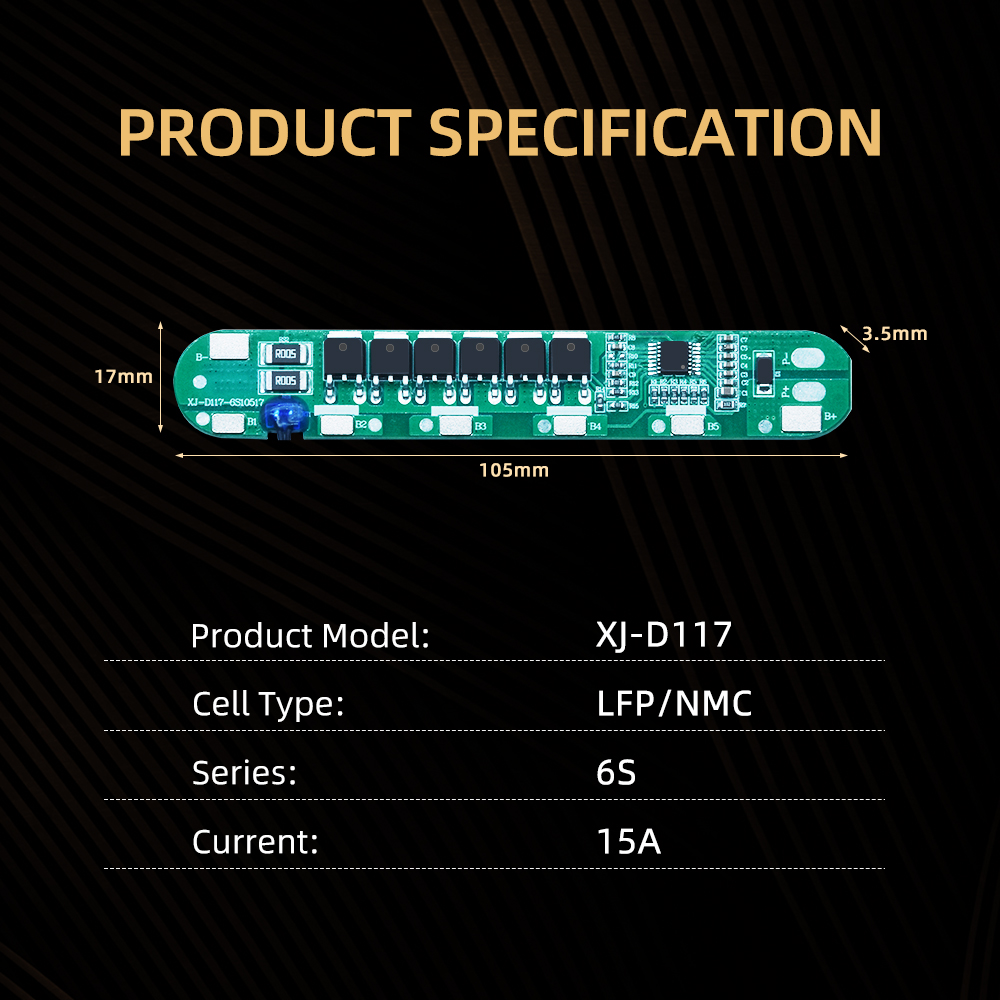

105*17*3.5mm
|
|

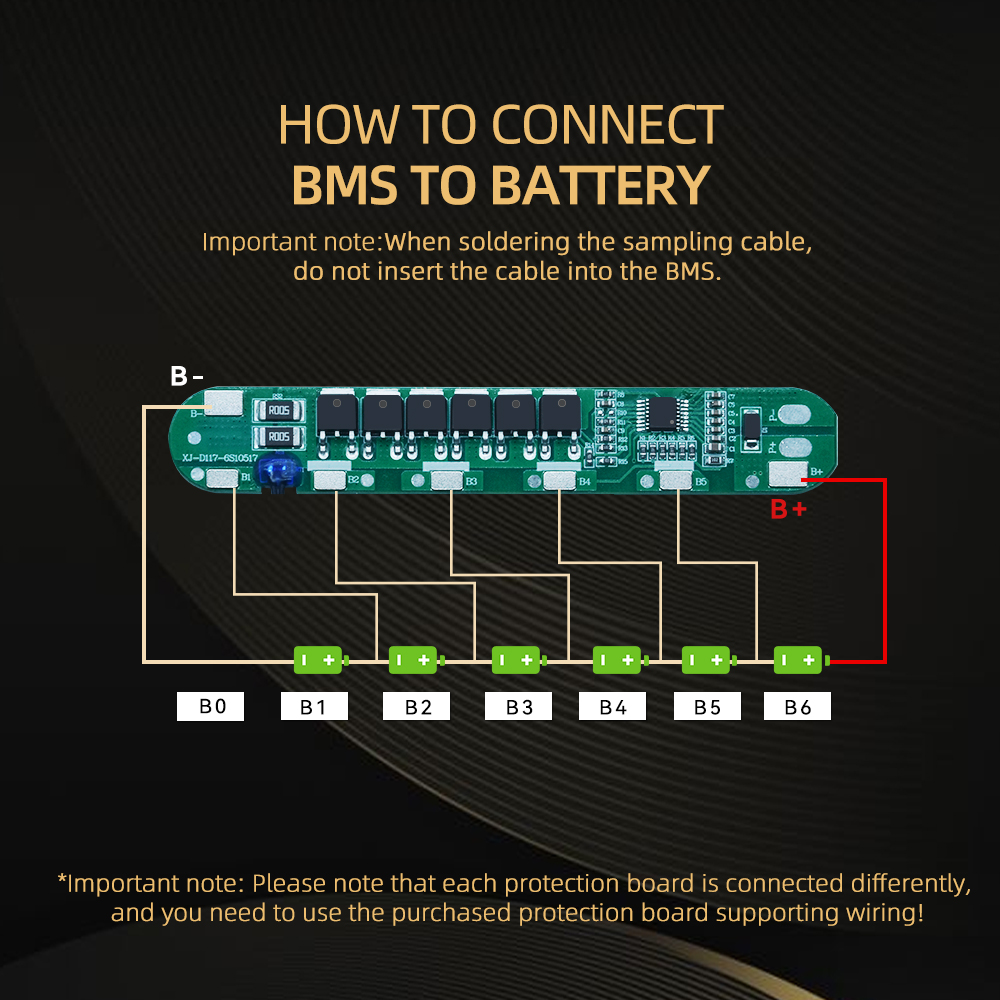

Series
|
6S
|
|
Working Current
|
5A/10A/15A/20A
|
|

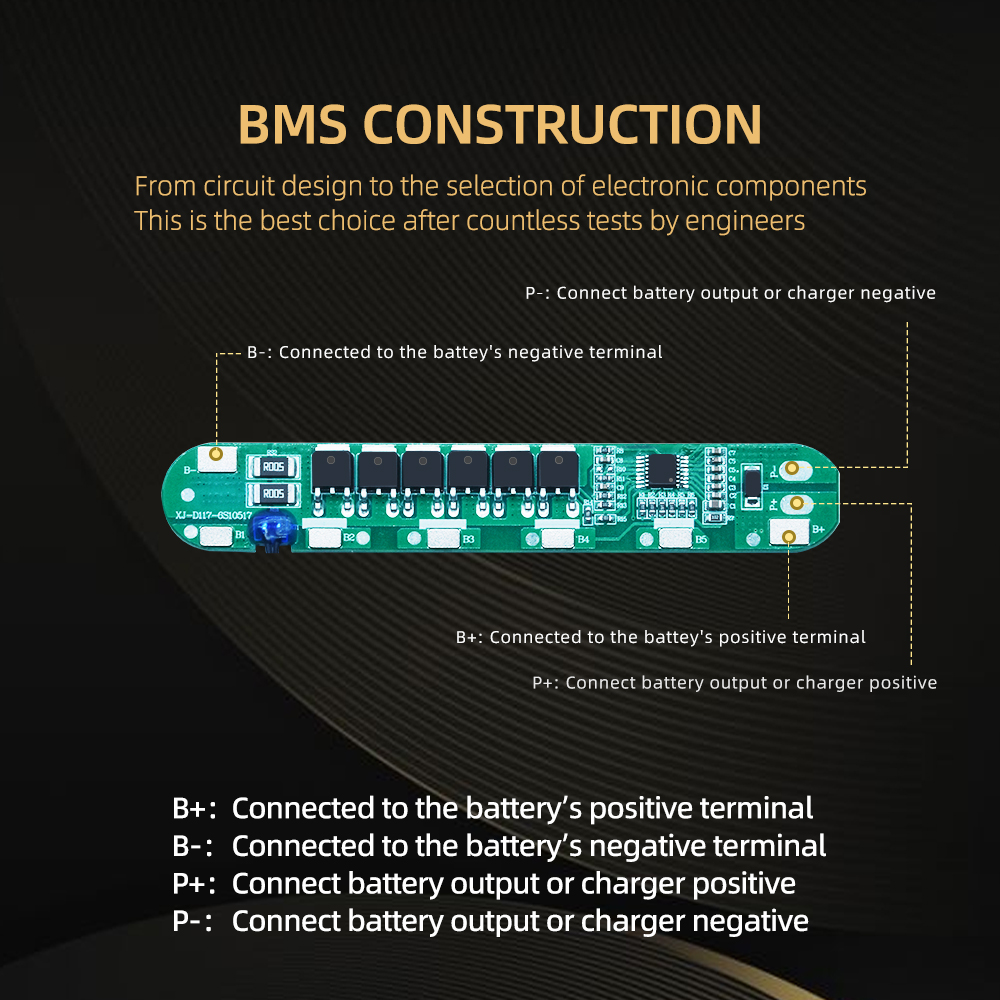

Input & Output
|
Same Port
|
|
Cell Type
|
LifePO4, Li-ion battery
|
|

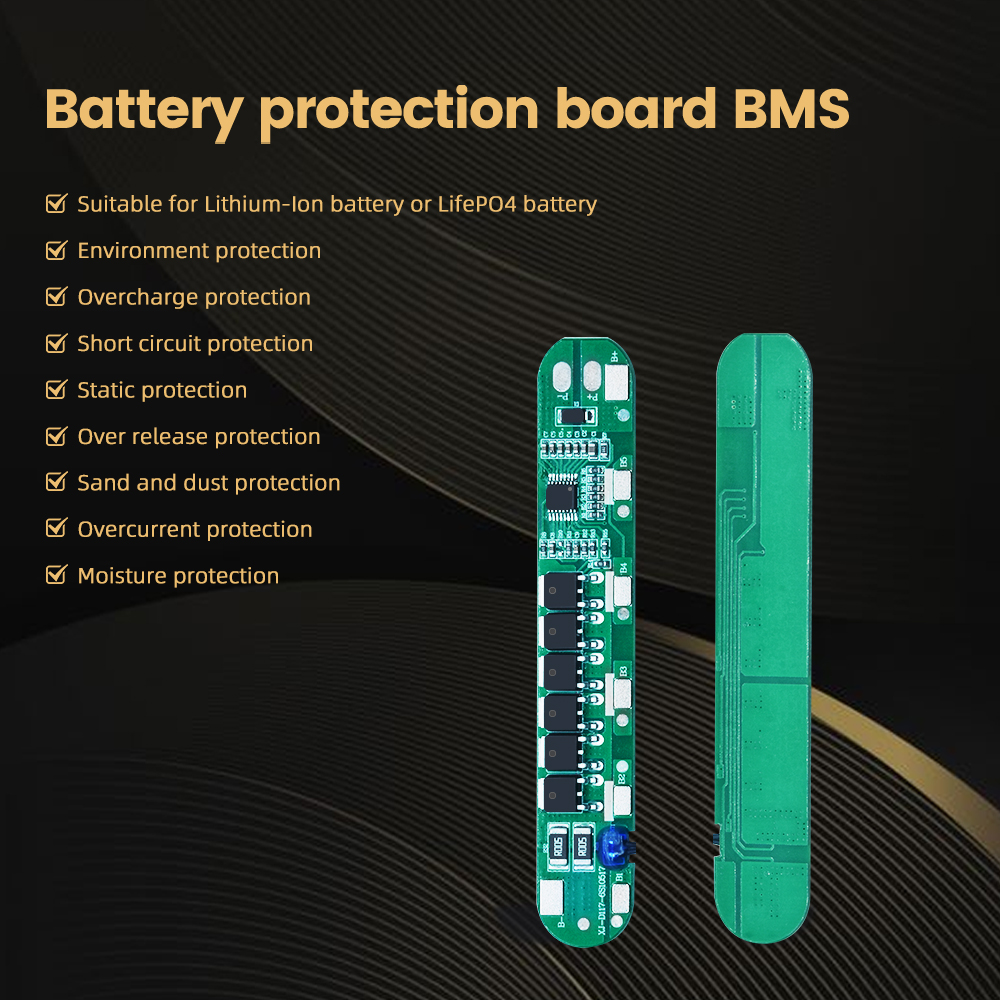

Function
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Temp protection, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
| Item (the spec of 6S 10A) | Min | Typical | Max | Unit |
| Battery pack charging voltage | 25.2 | 25.5 | V | |
| Charging MOS withstand voltage | 40 | V | ||
| Discharging MOS withstand voltage | 40 | V | ||
| Single cell overcharge detection voltage | 4.2 | 4.25 | 4.3 | V |
| Overcharge recovery voltage | 4.1 | 4.15 | 4.2 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Single cell over-discharge detection voltage | 2.6 | 2.7 | 2.8 | V |
| Over-discharge recovery voltage | 2.9 | 3 | 3.1 | V |
| Over-discharge detection delay | 500 | 1000 | 1500 | mS |
| Battery pack continuous discharge current | 10 | A | ||
| Battery pack continuous charging current | 10 | A | ||
| Discharge overcurrent protection | 15 | 20 | 25 | A |
| Overcurrent protection delay | 500 | 1000 | 1500 | mS |
| Self-consumption | 30 | 40 | uA | |
| Charging protection temperature | 50±4℃. | |||
| Discharge protection temperature | 70±4℃ | |||
| Output short circuit/over-discharge/overcurrent protection recovery | Automatic recovery after removing load following short circuit/over-discharge/over-current protection | |||
| Short circuit protection delay | 100 | 300 | 600 | uS |
| Normal operating state B-to-P- internal resistance | 30 | mΩ | ||
| Continuous 10A output current maximum temperature rise | 40 | ℃ | ||
