3S BMS

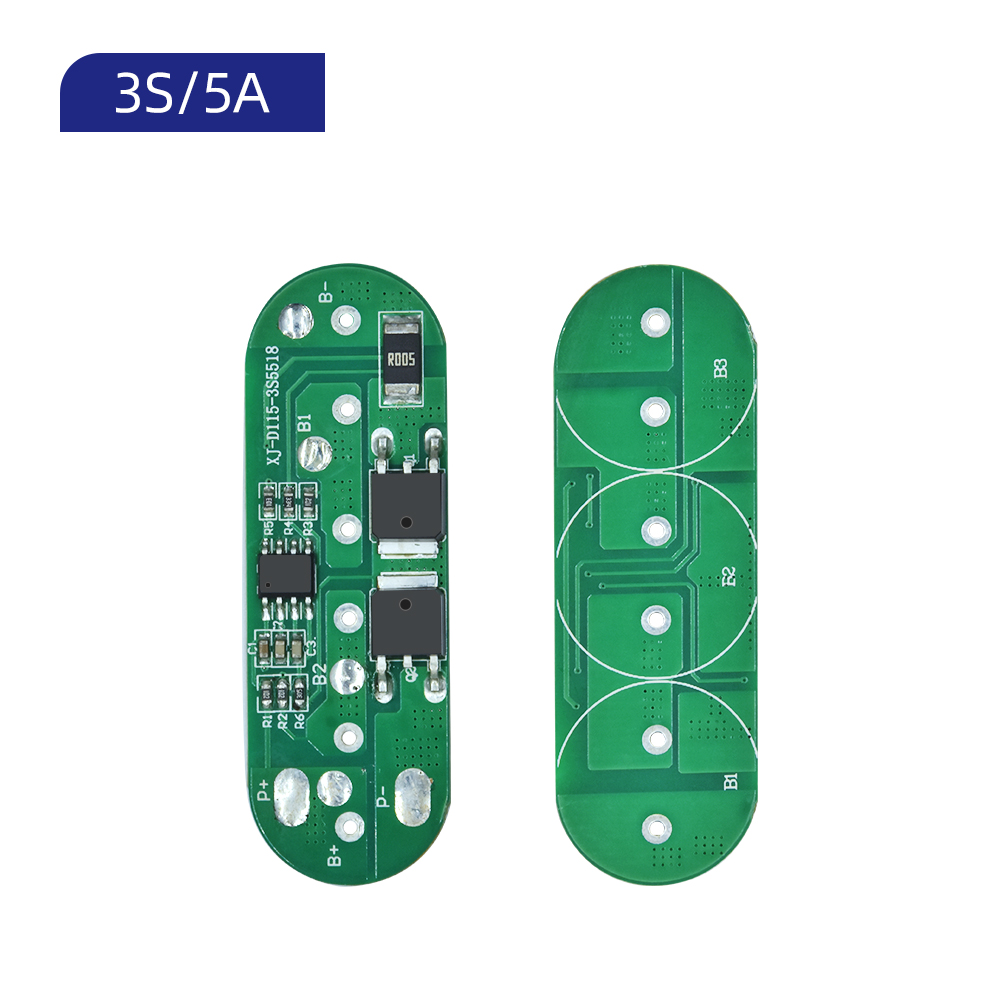

XJ-D115 3S 5A Install on the Top BMS Common Port 12V 3-cell battery pack BMS
XJ-D115 3S 5A BMS, common port, install on the top BMS, support 3.2V 3.7V 4.2V lithium battery.
|

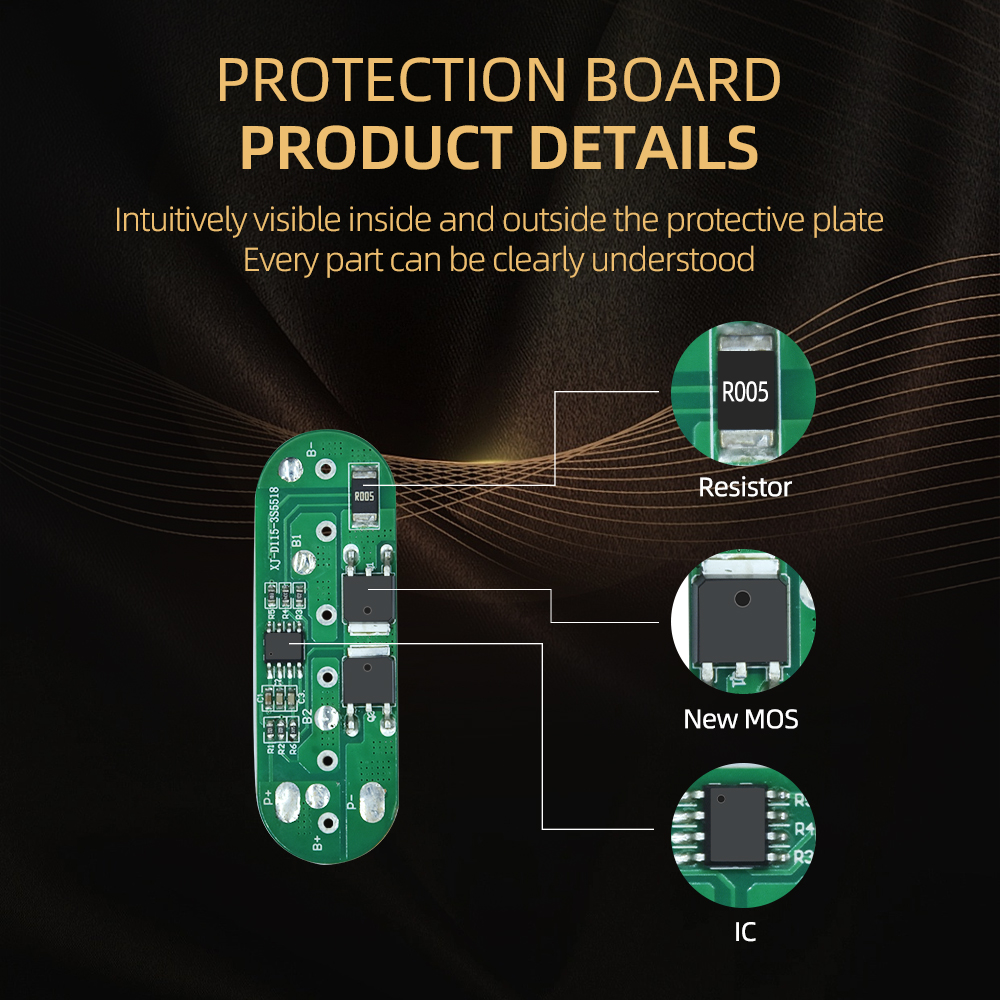

Product Name
|
3S Lithium Battery BMS
|
|
Size
|

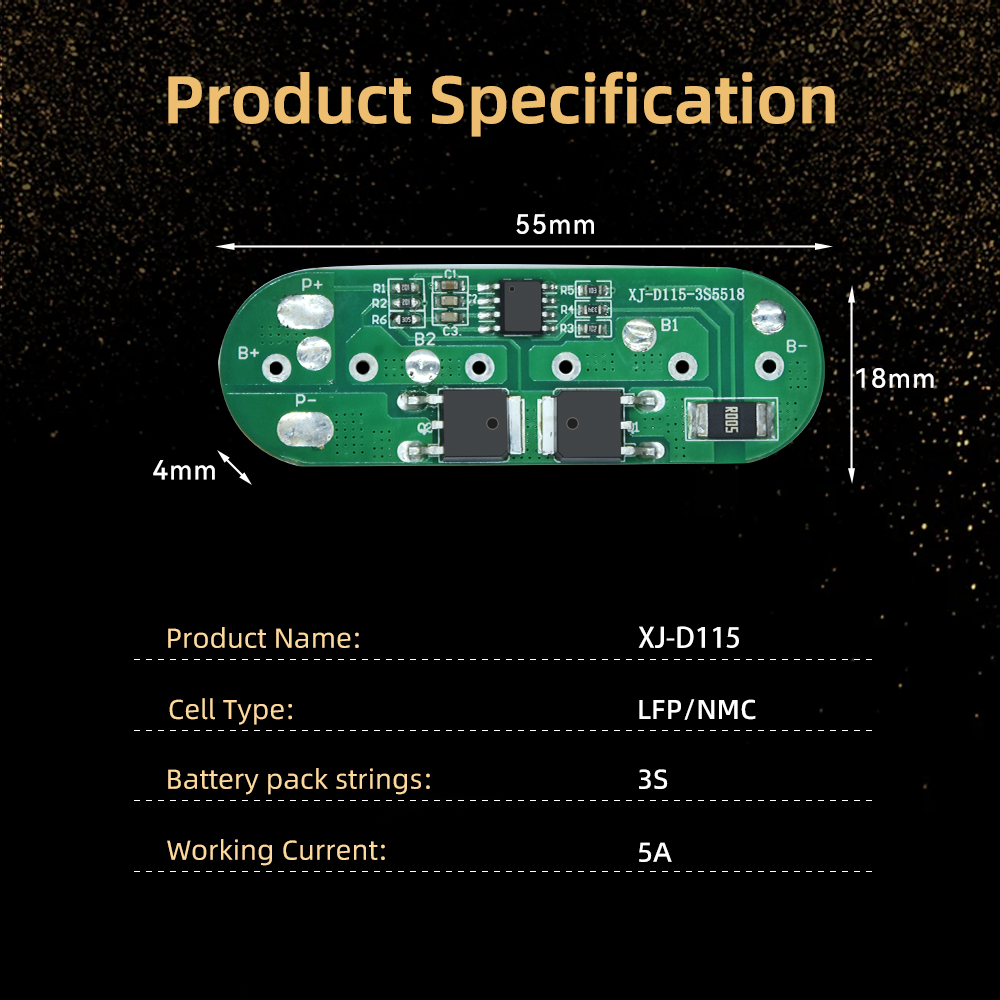

Length 55mm * Width 18mm * Thickness 4mm
|
|

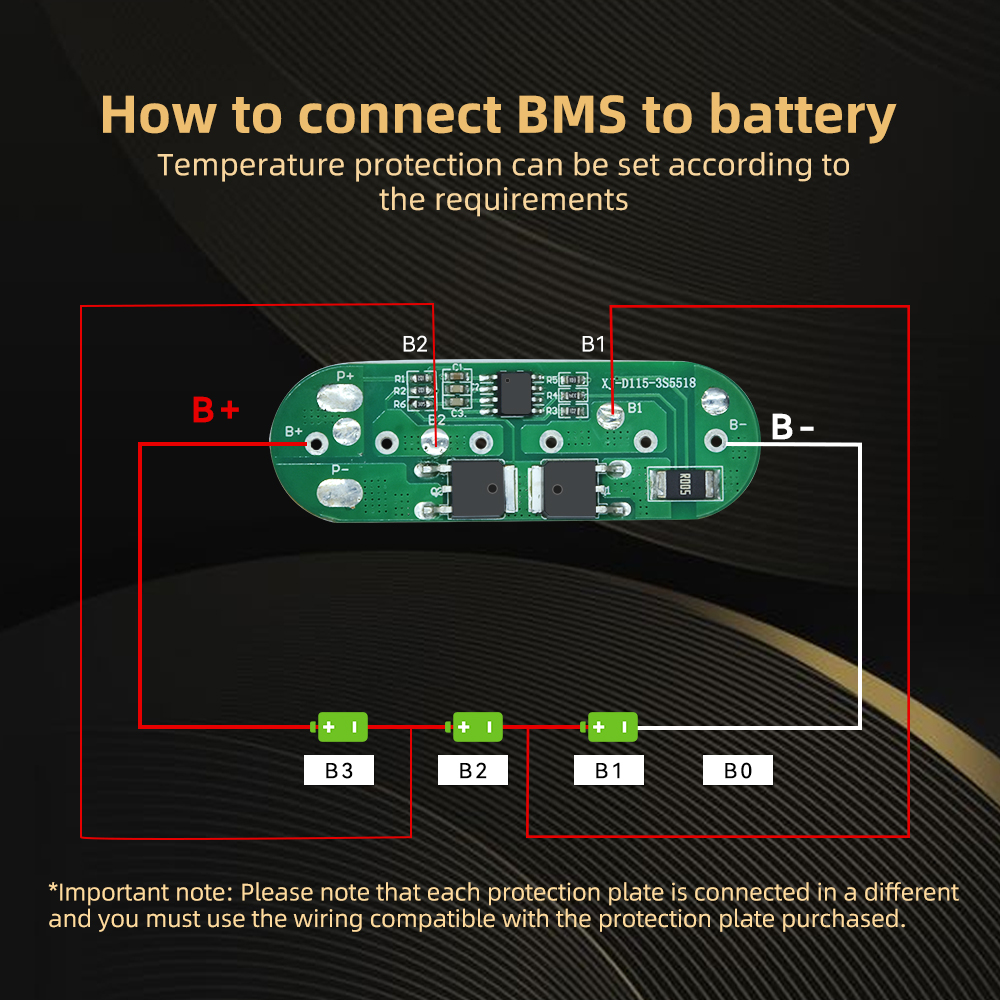

Series
|
3S |
|
Current
|
5A
|
|
Single Cell Battery Voltage
|
3.2V / 3.7V / 4.2V
|
|
Cell Type
|
LifePO4/NMC/Lithium
|
|
Function
|

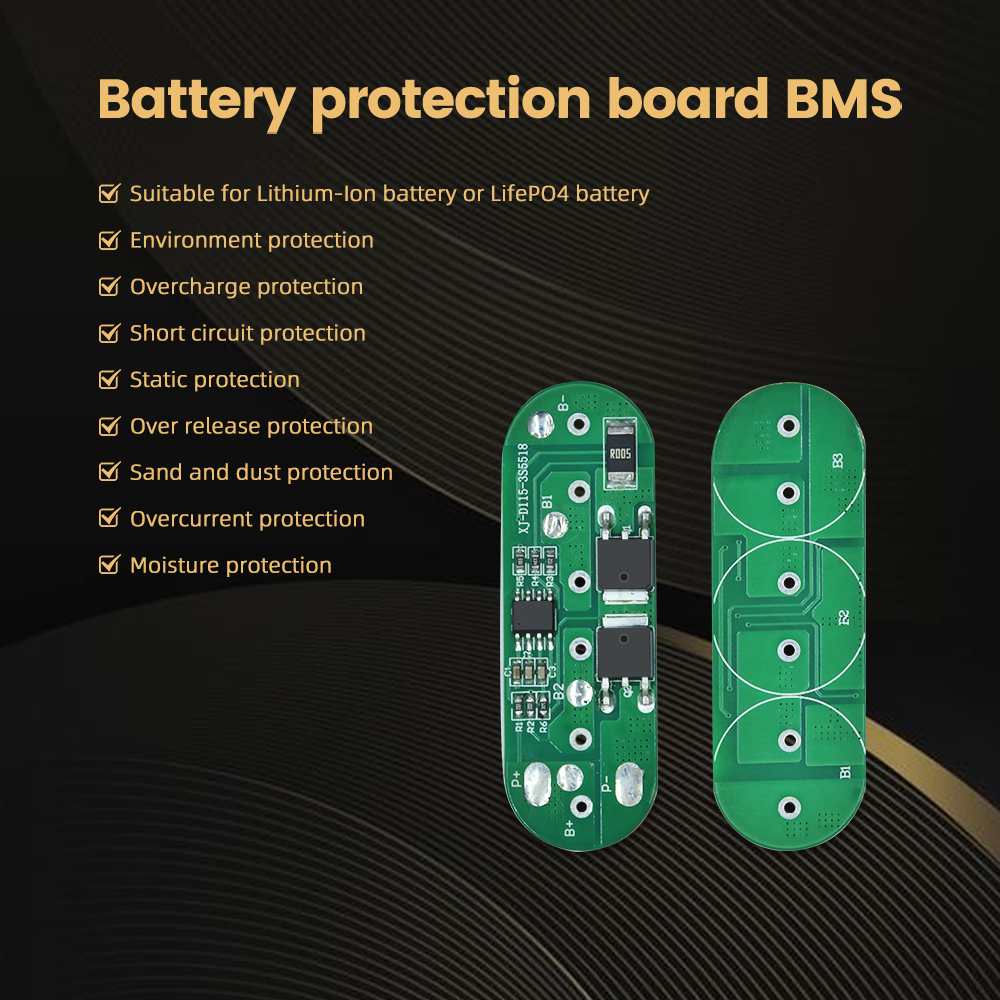

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
| Item (the spec of 3S 5A) | Min | Typical | Max | Unit |
| Battery pack charging voltage | 12.6 | 12.75 | V | |
| Charging MOS withstand voltage | 30 | V | ||
| Discharging MOS withstand voltage | 30 | V | ||
| Single cell overcharge detection voltage | 4.2 | 4.25 | 4.3 | V |
| Overcharge recovery voltage | 4 | 4.05 | 4.1 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Single cell over-discharge detection voltage | 2.6 | 2.7 | 2.8 | V |
| Over-discharge recovery voltage | 2.9 | 3 | 3.1 | V |
| Over-discharge detection delay | 500 | 1000 | 1500 | mS |
| Battery pack continuous discharge current | 5 | A | ||
| Battery pack continuous charging current | 5 | A | ||
| Discharge overcurrent protection | 15 | 20 | 25 | A |
| Overcurrent protection delay | 500 | 1000 | 1500 | mS |
| Self-consumption | 30 | 40 | uA | |
| Output short circuit/over-discharge/overcurrent protection recovery | Automatic recovery after removing load following short circuit/over-discharge/over-current protection | |||
| Short circuit protection delay | 100 | 300 | 600 | uS |
| Normal operating state B-to-P- internal resistance | 40 | mΩ | ||
| Continuous 5A output current maximum temperature rise | 40 | ℃ | ||
