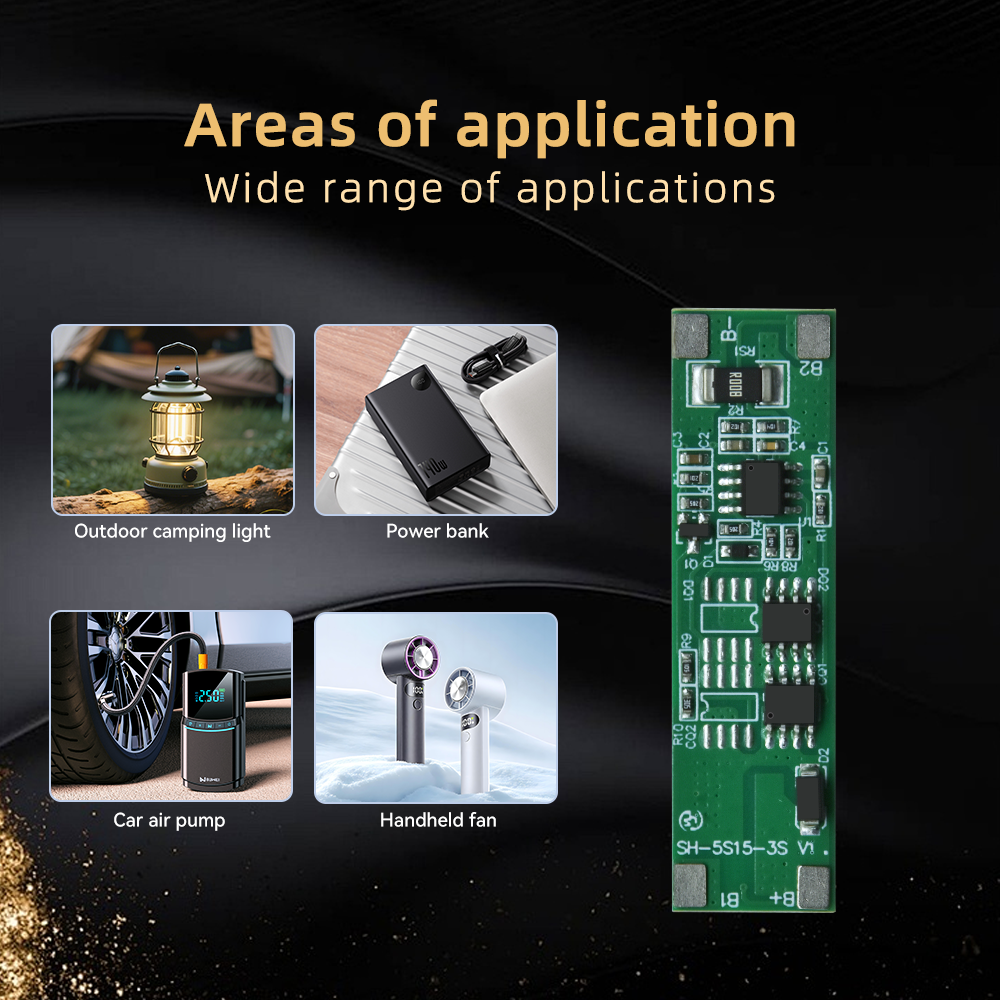

XJ-D100 3S 8A BMS Common Port Battery Protection Board for LifePO4 NMC Lithium Battery

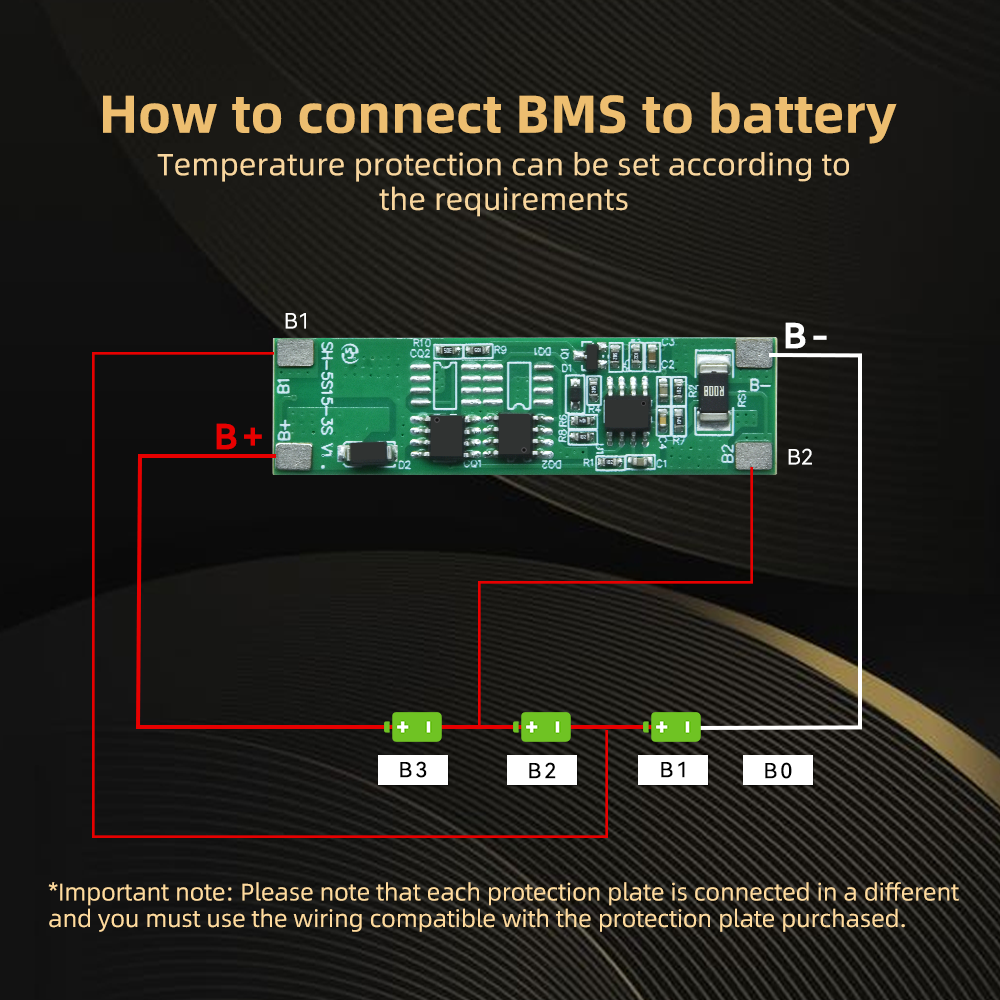

XJ-D100 3S BMS, common port, continuous working current is 6A/8A, for LFP/NMC lithium battery.
|
Product Name
|
3S Lithium Battery BMS
|
|
Size
|

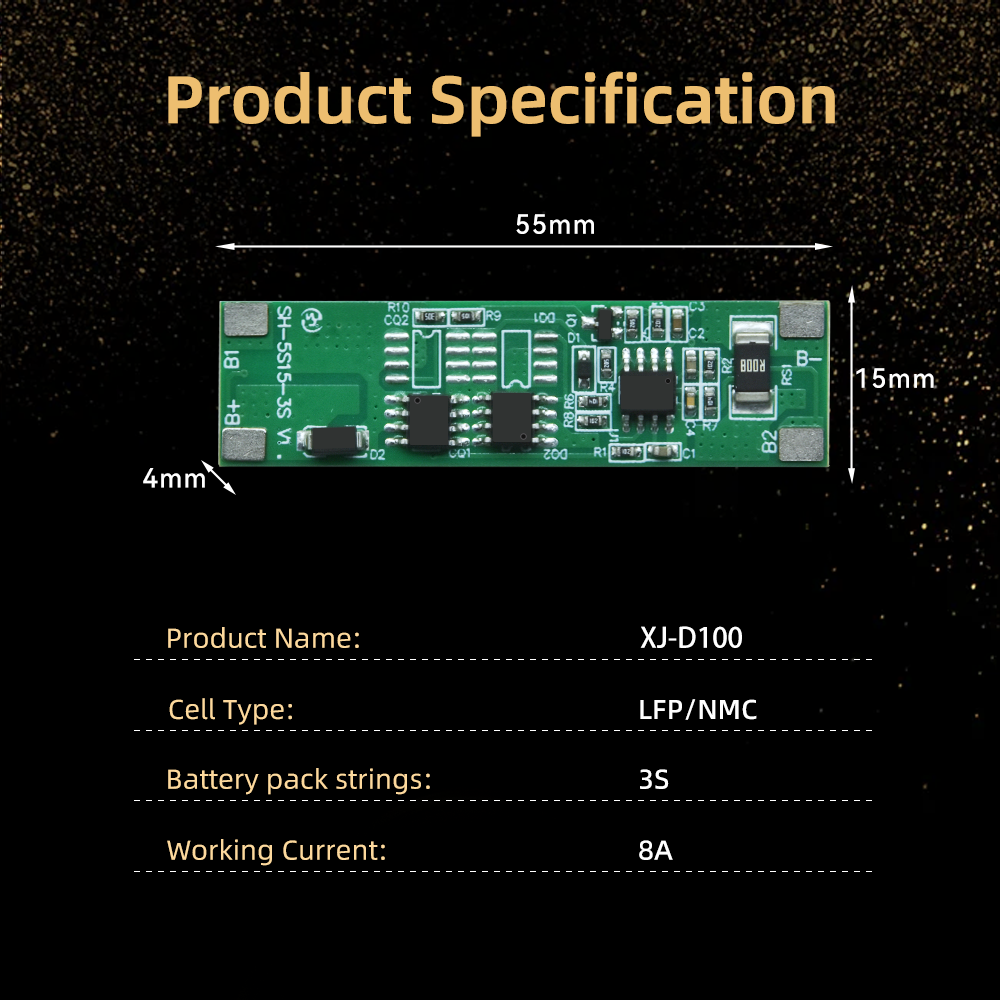

Length 55mm * Width 15mm * Thickness 4mm
|
|
Series
|
3S |
|
Current
|
6A/8A
|
|
Single Cell Battery Voltage
|
3.2V / 3.7V / 4.2V
|
|
Cell Type
|
LifePO4/NMC/Lithium
|
|

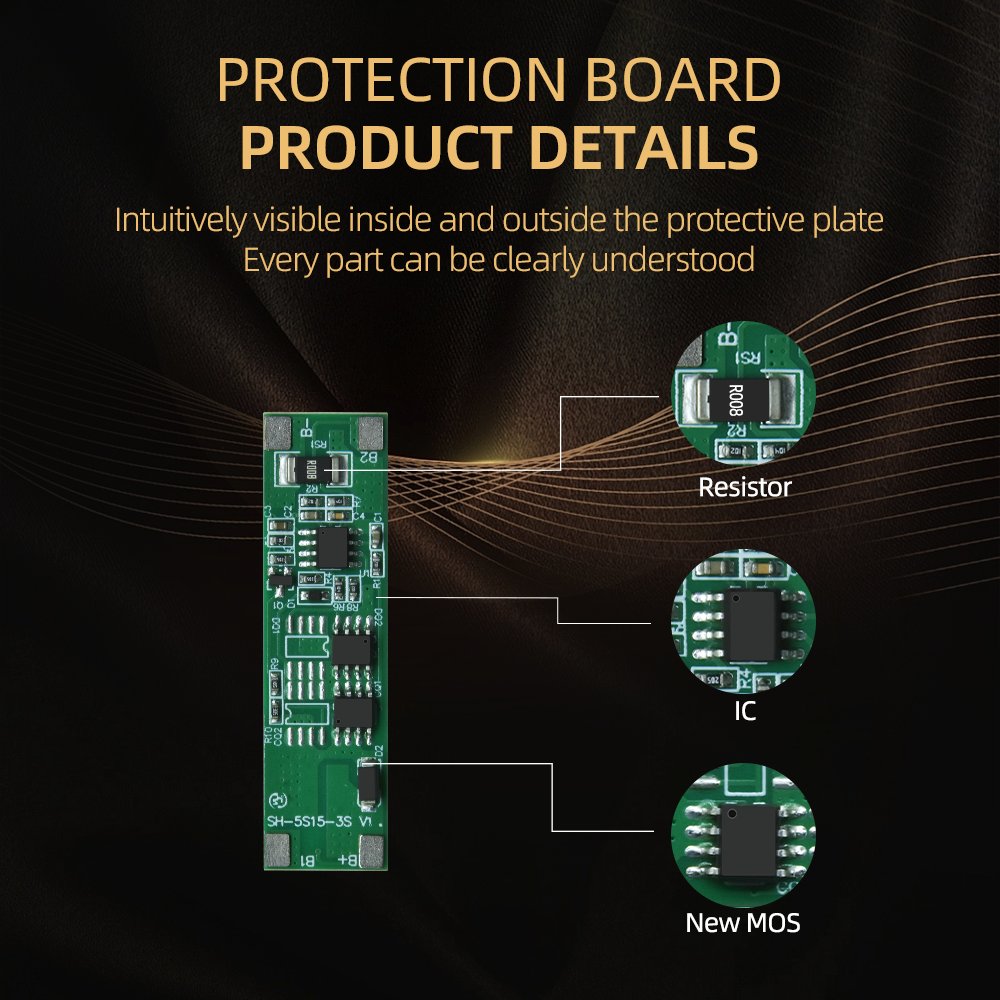

Function
|

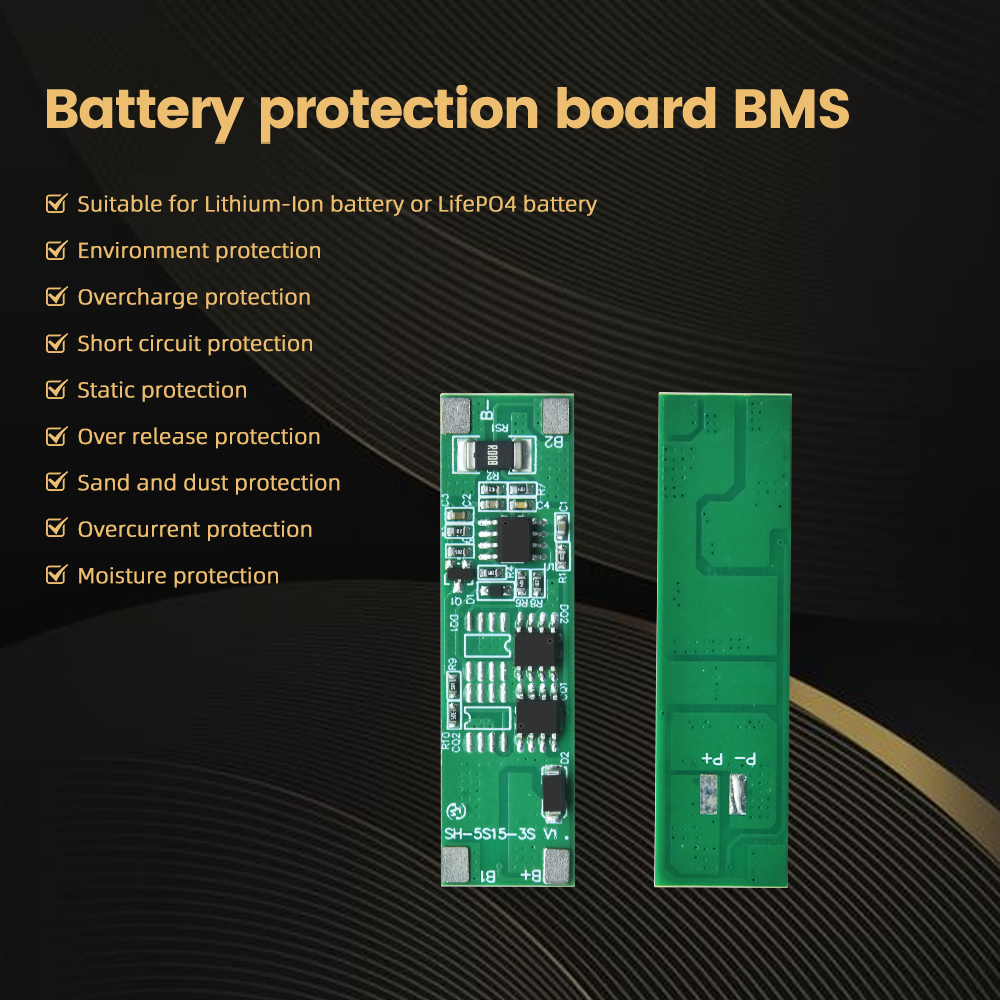

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
| Item (the spec of 3S 6A) | Min | Typical | Max | Unit |
| Battery pack charging voltage | 12.6 | 12.7 | V | |
| Charging MOS withstand voltage | 30 | V | ||
| Discharging MOS withstand voltage | 30 | V | ||
| Single cell overcharge detection voltage | 4.175 | 4.225 | 4.275 | V |
| Overcharge recovery voltage | 4.075 | 4.125 | 4.175 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Single cell over-discharge detection voltage | 2.6 | 2.7 | 2.8 | V |
| Over-discharge recovery voltage | 2.9 | 3 | 3.1 | V |
| Over-discharge detection delay | 500 | 1000 | 1500 | mS |
| Battery pack continuous discharge current | 6 | A | ||
| Battery pack continuous charging current | 6 | A | ||
| Discharge overcurrent protection | 8 | 10 | 12 | A |
| Overcurrent protection delay | 500 | 1000 | 1500 | mS |
| Self-consumption | 30 | 40 | uA | |
| Output short circuit/over-discharge/overcurrent protection recovery | Automatic recovery after removing load following short circuit/over-discharge/over-current protection | |||
| Short circuit protection delay | 100 | 300 | 600 | uS |
| Normal operating state B-to-P- internal resistance | 40 | mΩ | ||
| Continuous 6A output current maximum temperature rise | 40 | ℃ | ||
