XJ-D068 4S-21S 10A-40A BMS for LifePO4 NMC Sodium-ion Na-ion E-motorcycle Battery
4S~21S, 10A~40A, for LifePO4, NMC, Sodium-Ion battery
|
Product Name
|
BMS battery management system
|
|
Size
|
Length 100mm*Width 60mm*Thickness 9mm
|
|
Series
|
4S~21S
|
|
Current
|
10A~40A
|
|
Voltage
|
12V~78V
|
|
Cell Type
|
LifePO4/NMC/Sodium-Ion/Li-ion Battery
|
|
Function
|
Balance, NTC temperature sensors
|
|
Protection
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance function, Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
|

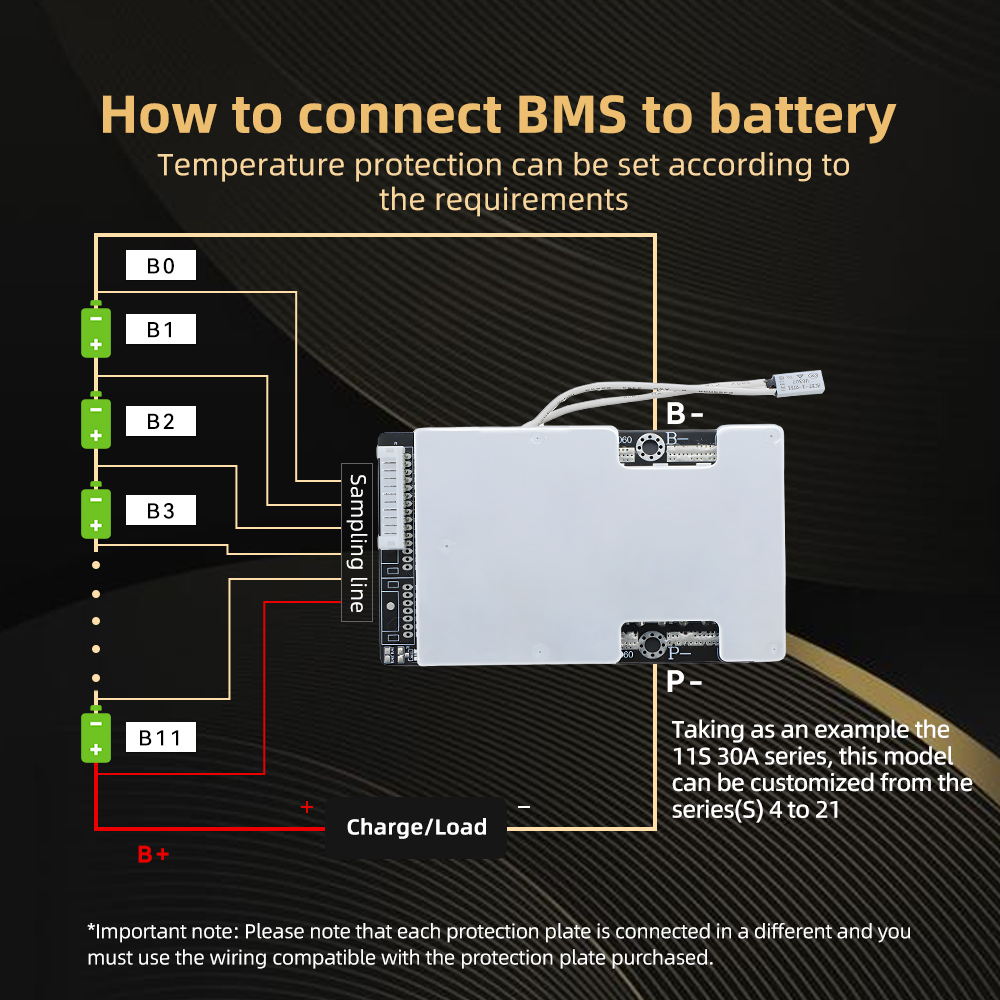

Item (The specification of 11S 30A NMC Battery)
|
Min
|
Typical
|
Max
|
Unit
|
|
Battery Pack Charging Voltage
|
39.8
|
40.1
|
V
|
|
|
Charging MOSFET Voltage Rating
|
65
|
V
|
||
|
Discharging MOSFET Voltage Rating
|
65
|
V
|
||
|
Single Cell Overcharge Detection Voltage
|
3.6
|
3.65
|
3.7
|
V
|
|
Overcharge Recovery Voltage
|
3.5
|
3.55
|
3.6
|
V
|
|
Overcharge Detection Delay
|
500
|
1000
|
1500
|
ms
|
|
Single Cell Overdischarge Detection Voltage
|
2.2
|
2.3
|
2.4
|
V
|
|
Overdischarge Recovery Voltage
|
2.6
|
2.7
|
2.8
|
V
|
|
Overdischarge Detection Delay
|
500
|
1000
|
1500
|
ms
|
|
Battery Pack Continuous Discharge Current
|
30
|
A
|
||
|
Battery Pack Continuous Charge Current
|
30
|
A
|
||
|
Discharge Overcurrent Protection
|
80
|
100
|
120
|
A
|
|
Overcurrent Protection Delay
|
500
|
1000
|
1500
|
ms
|
|
Self-Consumption Current
|
30
|
50
|
μA
|
|
|
Cell Balancing Current
|
55
|
70
|
80
|
mA
|
|
Charging Temperature Protection
|
High: 55±5°C, Low: -5±5°C
|
|||
|
Discharging Temperature Protection
|
High: 70±5°C, Low: -25±5°C
|
|||
|
Protection Recovery (Short-circuit/Overdischarge/Overcurrent)
|
Automatically recovers after fault clearance when load is removed
|
|||
|
Short-Circuit Protection Delay
|
100
|
300
|
600
|
μs
|
|
Internal Resistance (B- to C- in normal operation)
|
40
|
mΩ
|
||
|
Maximum Temperature Rise at 30A Continuous Output
|
40
|
°C
|
||
