3S BMS
XJ-D050 3S 12V 10A/15A BMS for LifePO4 NMC Li-ion Battery
3S 12V 10A/15A BMS for LifePO4 NMC Li-ion Battery
|
Product Name |
XJ-D050 3S 10A/15A BMS |
|

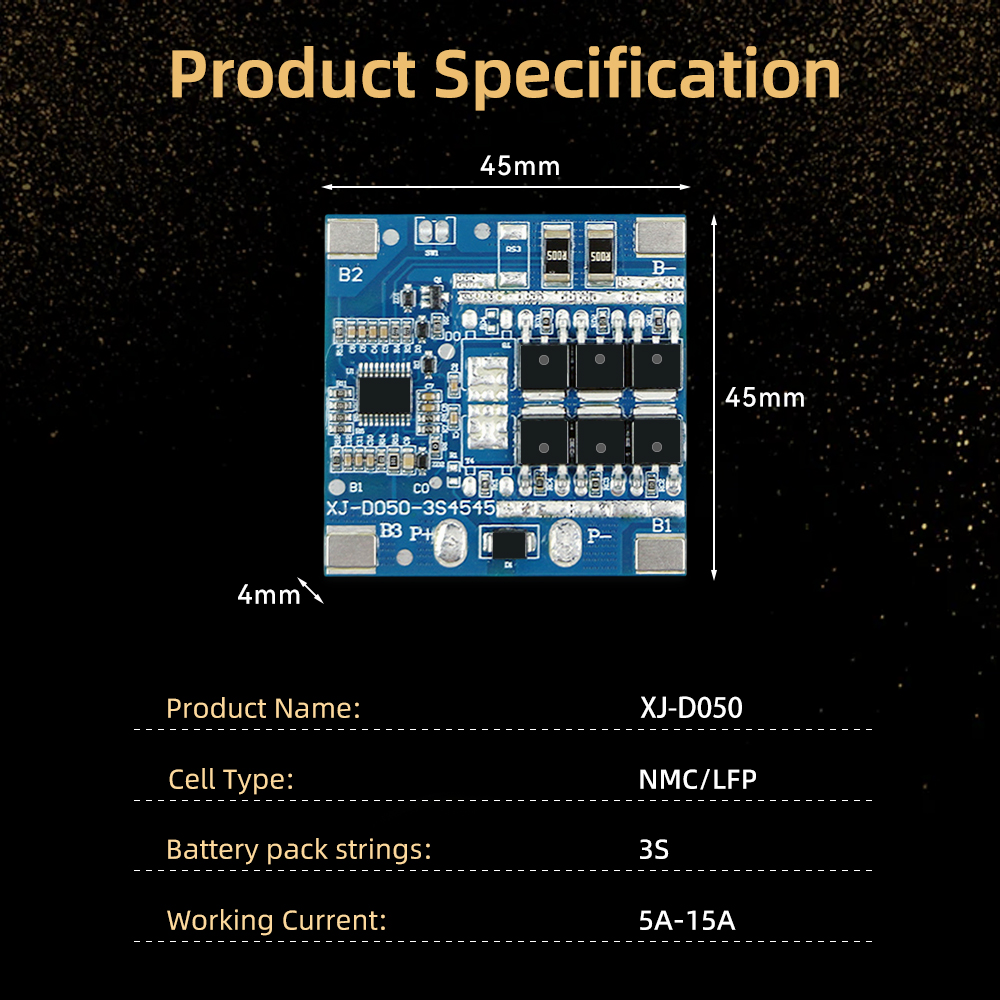

Size |
45*45*4MM |
|
Series |
3S |
|
Current |
10A/15A |
|
Cell Type |
LifePO4/NMC/Li-ion battery |
|
Function |

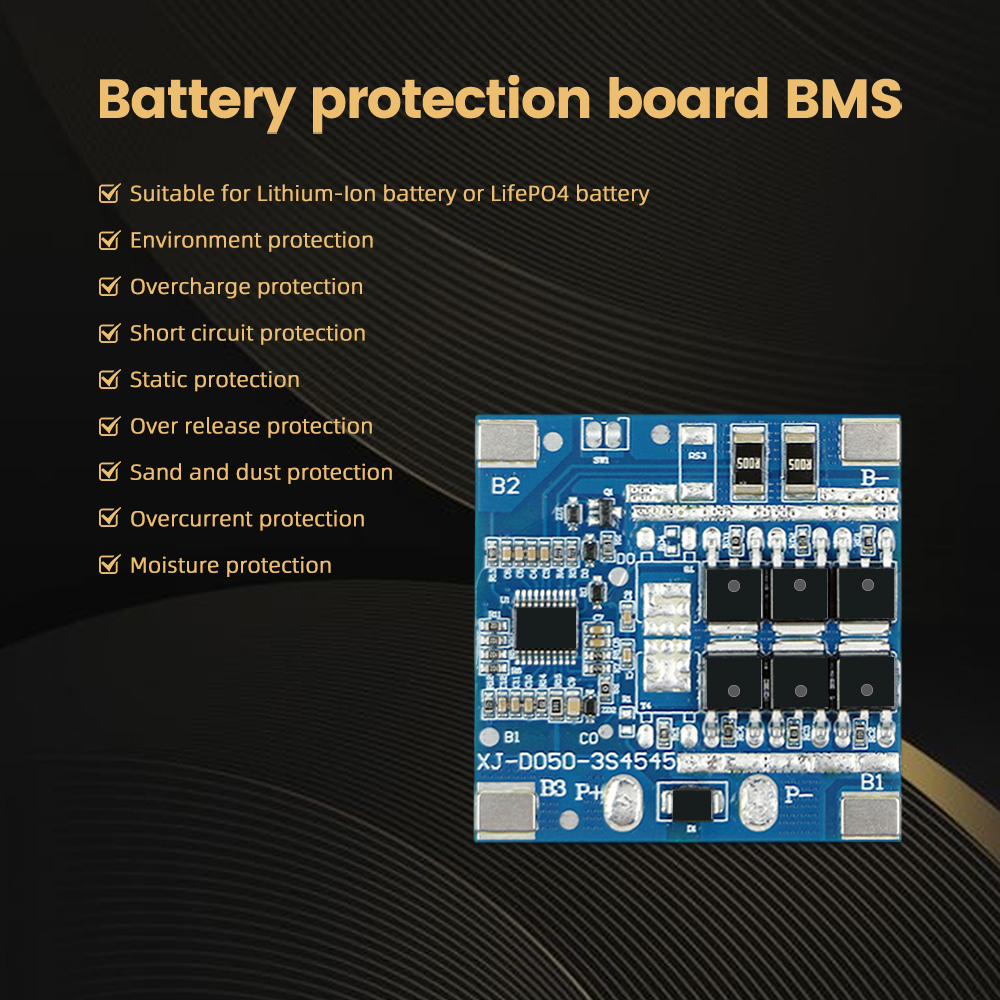

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Electrostatic protection, Dust Protection, Moisture Protection |
|
Warranty |
24 Months |
| Item (The spec of 3S 15A) | Min | Typical | Max | Unit |
| Battery pack charging voltage | 12.6 | 12.7 | V | |
| The withstand voltage of the charging MOS | 30 | V | ||
| Discharge MOS withstand voltage value | 30 | V | ||
| Single-cell overcharge detection voltage | 4.2 | 4.25 | 4.3 | V |
| Overcharge recovery voltage | 4.1 | 4.15 | 4.2 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Single-section overdischarge detection voltage | 2.65 | 2.75 | 2.85 | V |
| Overdischarge recovery voltage | 2.9 | 3 | 3.1 | V |
| Over-discharge detection delay | 50 | 100 | 150 | mS |
| Continuous discharge current of the battery pack | 15 | A | ||
| Continuous charging current of the battery pack | 15 | A | ||
| Discharge overcurrent protection | 35 | 40 | 45 | A |
| Overcurrent protection delay | 50 | 100 | 150 | mS |
| Self-consumption | 30 | 40 | uA | |
| Equilibrium current | / | / | / | mA |
| Charging temperature protection | /℃. | |||
| Discharge temperature protection | /℃ | |||
| Output short circuit/overdischarge/overcurrent protection recovery | After short-circuit/overdischarge/overcurrent protection, the load is removed and it automatically recovers | |||
| Short-circuit protection delay | 100 | 300 | 600 | uS |
| Under normal working conditions, the internal resistance is B- to P- | 50 | mΩ | ||
| Maximum temperature rise with a continuous output current of 15A | 40 | ℃ | ||
