4S BMS

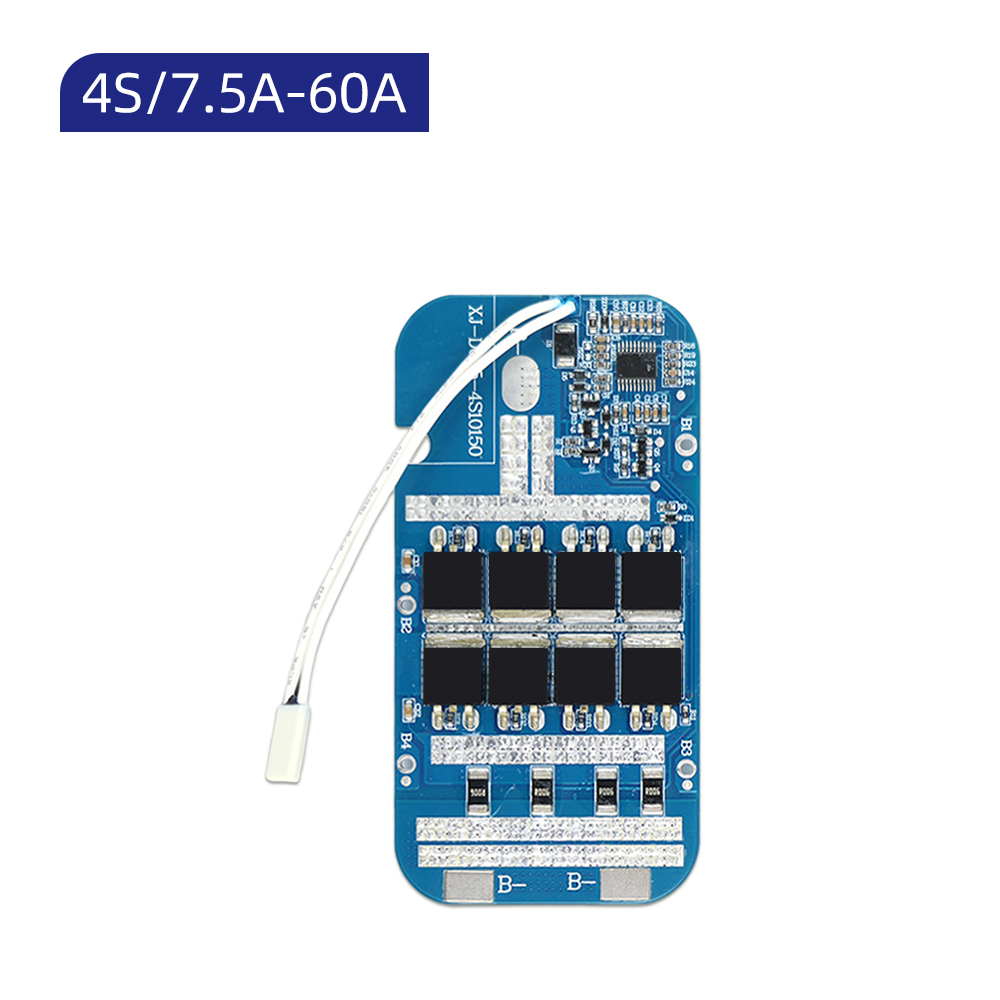

XJ-D045 4S 60A NMC Ternary Battery with Balance NTC Temp Sensors for Portable Power Supply
4S 60A BMS for NMC battery, application to electric power tools and portable power supply...
|
Product Name |
XJ-D045 4S 60A BMS |
|
Size |

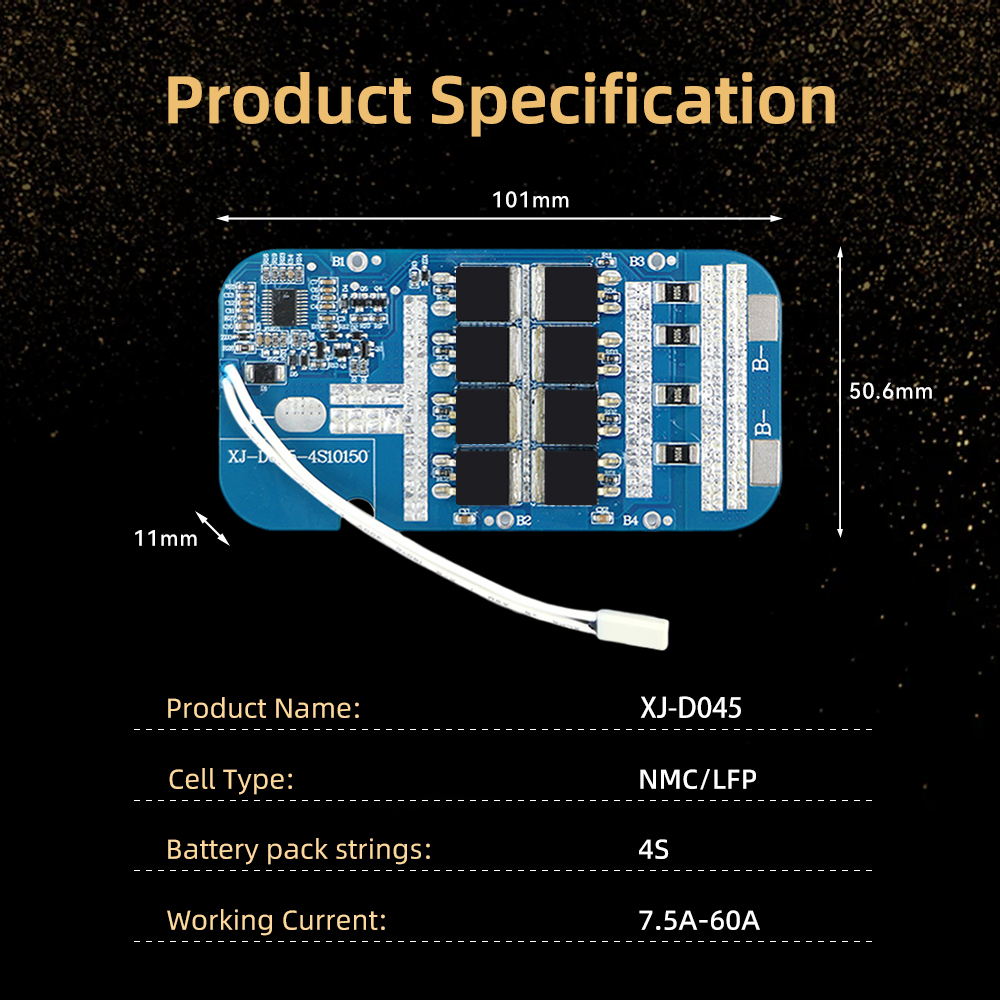

101*50.6*11MM |
|
Series |
4S |
|
Current |
60A |
|
Cell Type |
NMC battery |
|
Function |

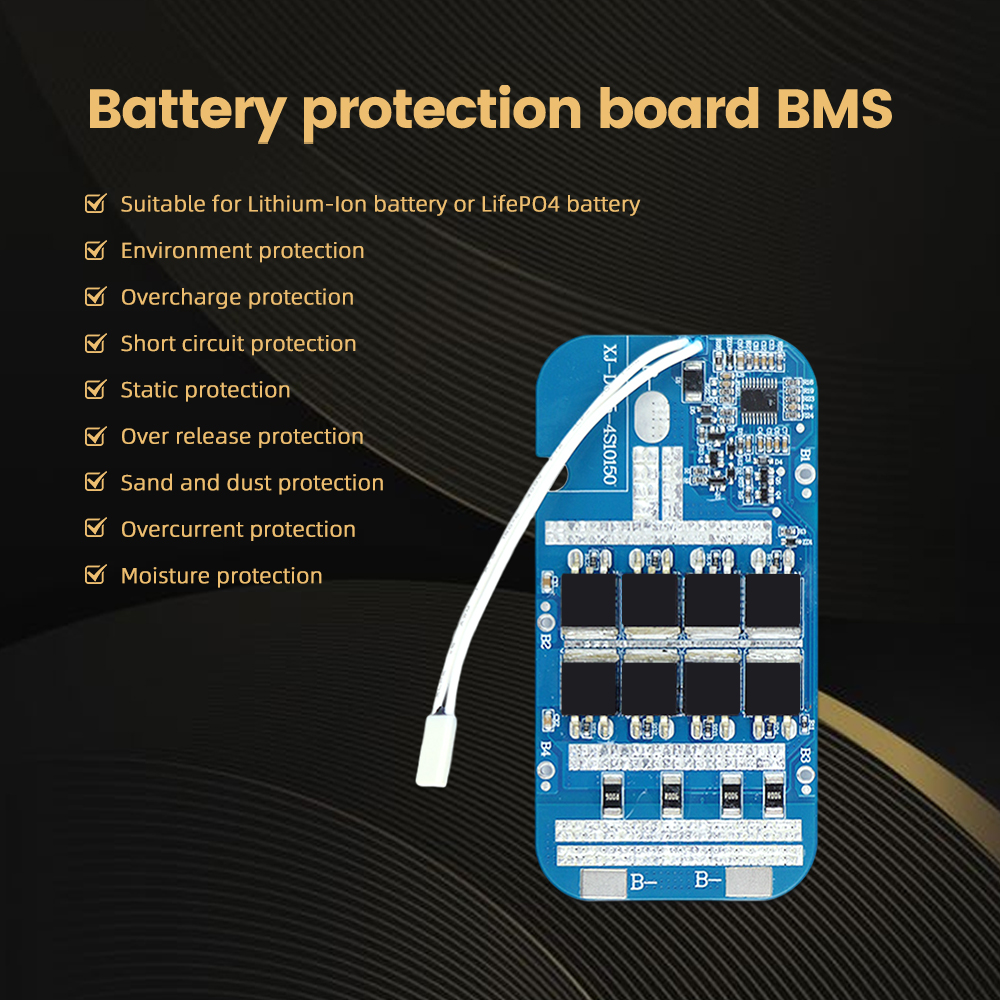

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance function, Temperature sensor function, Electrostatic protection, Dust Protection, Moisture Protection |
|
Warranty |
24 Months |
| Item (The spec of 4S 60A) | Min | Typical | Max | Unit |
| Battery pack charging voltage | 15.4 | 15.5 | V | |
| The withstand voltage of the charging MOS | 30 | V | ||
| Discharge MOS withstand voltage value | 30 | V | ||
| Single-cell overcharge detection voltage | 3.8 | 3.85 | 3.9 | V |
| Overcharge recovery voltage | 3.55 | 3.6 | 3.65 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Single-section overdischarge detection voltage | 2.2 | 2.3 | 2.4 | V |
| Overdischarge recovery voltage | 2.4 | 2.5 | 2.6 | V |
| Over-discharge detection delay | 500 | 1000 | 1500 | mS |
| Continuous discharge current of the battery pack | 60 | A | ||
| Continuous charging current of the battery pack | 60 | A | ||
| Discharge overcurrent protection | 180 | 200 | 220 | A |
| Overcurrent protection delay | 5 | 10 | 20 | mS |
| Self-consumption | 30 | 50 | uA | |
| Equilibrium current | 30 | 40 | 50 | mA |
| Charging temperature protection | 65±4℃. | |||
| Discharge temperature protection | 65±4℃. | |||
| Output short circuit/overdischarge/overcurrent protection recovery | After short-circuit/overdischarge/overcurrent protection, the load is removed and it automatically recovers | |||
| Short-circuit protection delay | 100 | 300 | 600 | uS |
| Under normal working conditions, the internal resistance is B- to P- | 10 | mΩ | ||
| Maximum temperature rise with a continuous output current of 60A | 40 | ℃ | ||
