3S BMS
XJ-D042 3S 12.6V 8A BMS Common Port NTC Temperature Sensors
3S 12.6V 8A BMS, common port charge and discharge current are 8A, with NTC temperature sensors, temp protection.
|
Product Name |
XJ 3S 12V 8A BMS |
|
Size |

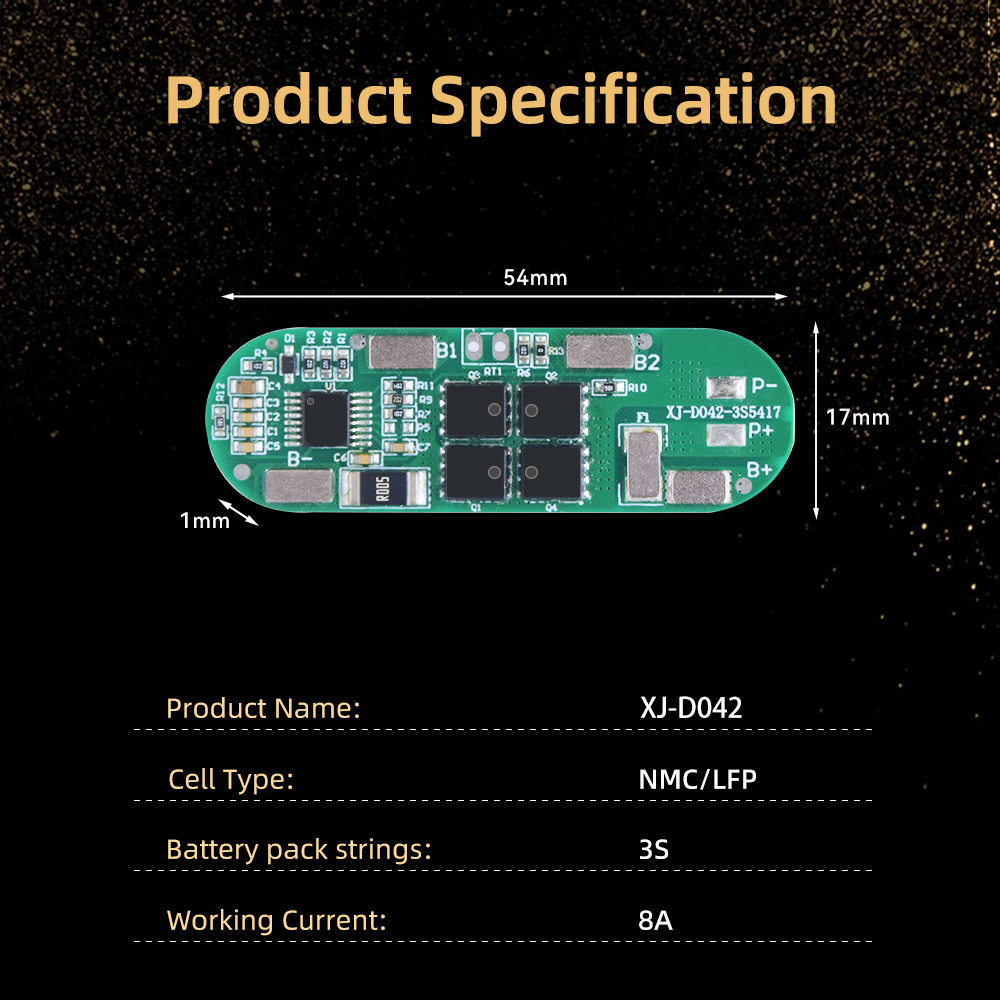

54*17*1MM |
|
Series |
3S |
|
Current |
8A |
|
Cell Type |
LifePO4/NMC (Li-ion) battery |
|
Function |

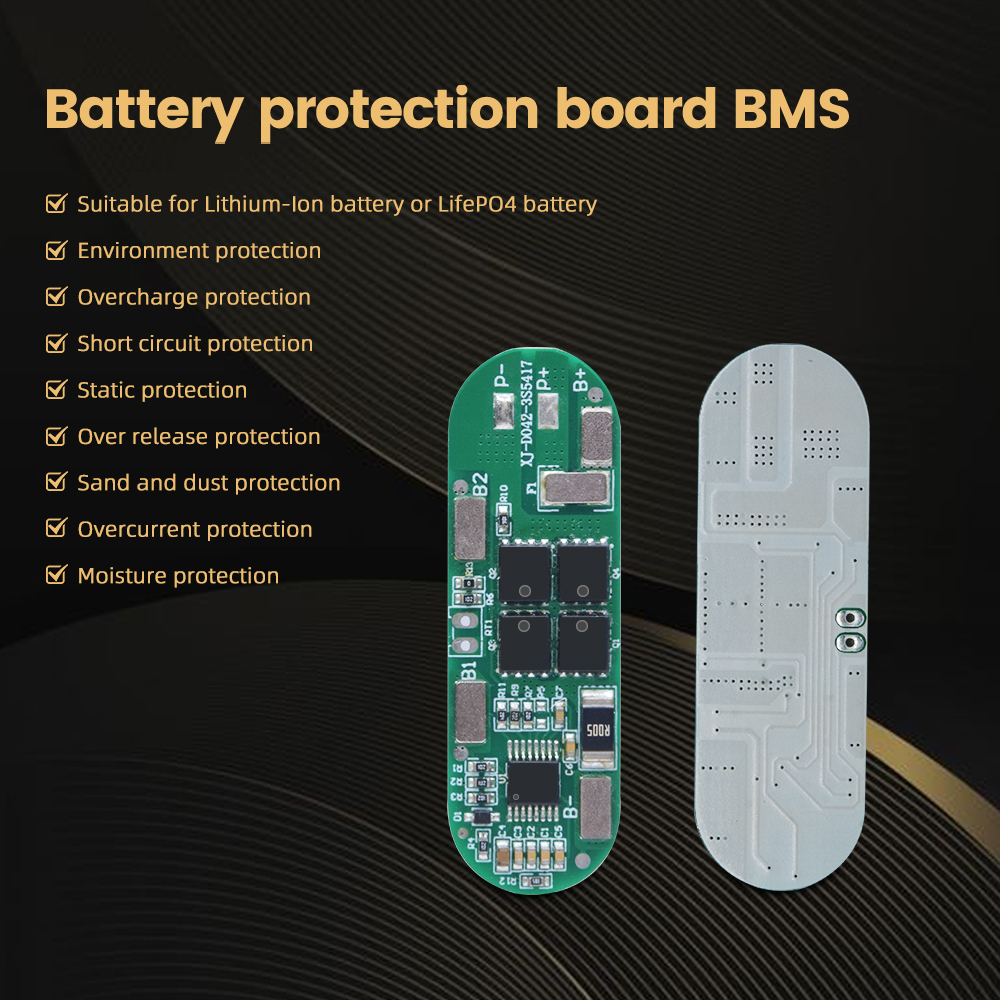

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Electrostatic protection, Dust Protection, Moisture Protection, NTC |
|
Warranty |
24 Months |
| Item | Min | Typical | Max | Unit |
| Battery pack charging voltage | 12.6 | 12.75 | V | |
| The withstand voltage of the charging MOS | 30 | V | ||
| Discharge MOS withstand voltage value | 30 | V | ||
| Single-cell overcharge detection voltage | 4.2 | 4.25 | 4.3 | V |
| Overcharge recovery voltage | 4.1 | 4.15 | 4.2 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Single-section overdischarge detection voltage | 2.6 | 2.7 | 2.8 | V |
| Overdischarge recovery voltage | 2.9 | 3 | 3 | V |
| Over-discharge detection delay | 500 | 1000 | 1500 | mS |
| Continuous discharge current of the battery pack | 8 | A | ||
| Continuous charging current of the battery pack | 8 | A | ||
| Discharge overcurrent protection | 15 | 20 | 25 | A |
| Overcurrent protection delay | 500 | 1000 | 1500 | mS |
| Self-consumption | 30 | 40 | uA | |
| Equilibrium current | / | / | / | mA |
| Charging temperature protection | 65±4℃. | |||
| Discharge temperature protection | 65±4℃ | |||
| Output short circuit/overdischarge/overcurrent protection recovery | After short-circuit/overdischarge/overcurrent protection, the load is removed and it automatically recovers | |||
| Short-circuit protection delay | 100 | 300 | 600 | uS |
| Under normal working conditions, the internal resistance is B- to P- | 40 | mΩ | ||
| Maximum temperature rise with a continuous output current of 8A | 40 | ℃ | ||
