4S BMS
XJ-D030 4S 40A BMS 12V LifePO4 Li-ion NMC Battery Protection Board
XJ-D030 4S 40A BMS, common port, application to LifePO4/Li-ion battery.
|
Product Name
|
4S Battery BMS
|
|

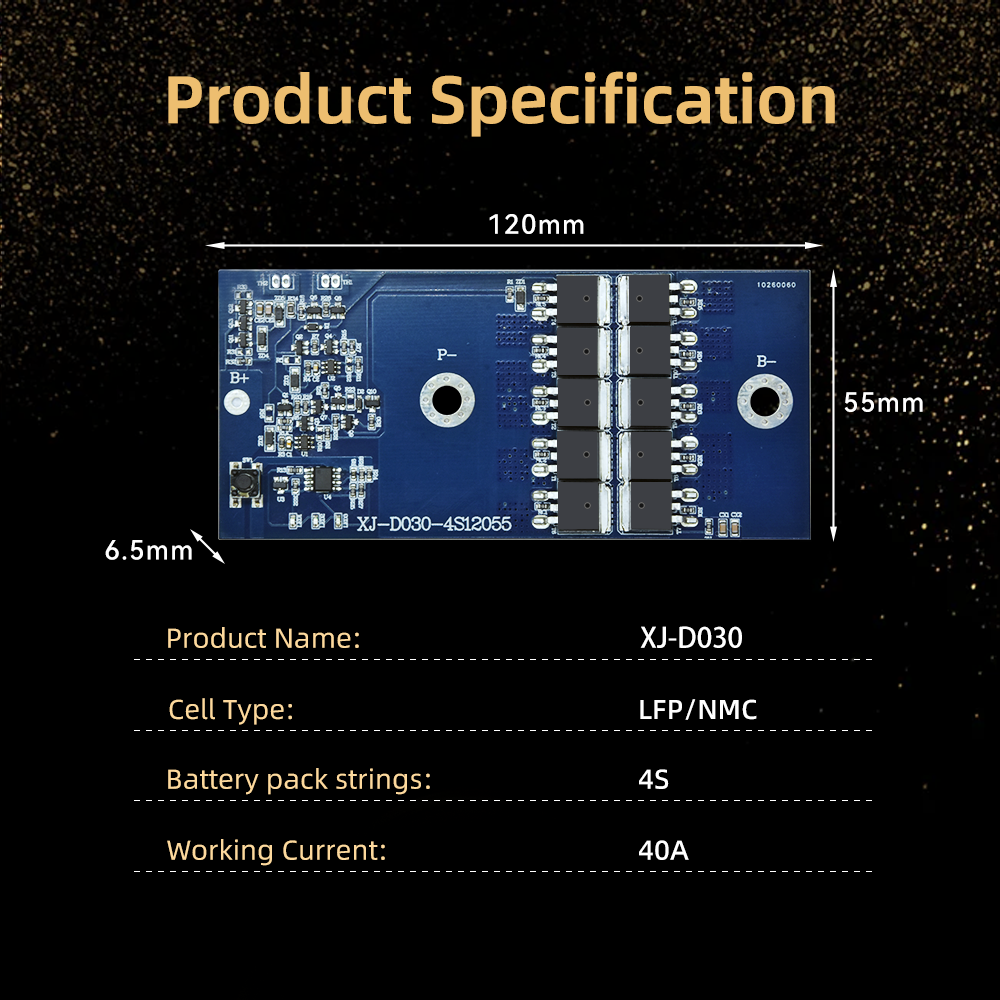

Size
|
Length 120mm * Width 55mm * Thickness 6.5mm
|
|
Series
|
4S |
|
Current
|
40A
|
|
Single Cell Battery Voltage
|
3.2V / 3.7V / 4.2V
|
|
Cell Type
|
LifePO4/NMC/Lithium
|
|

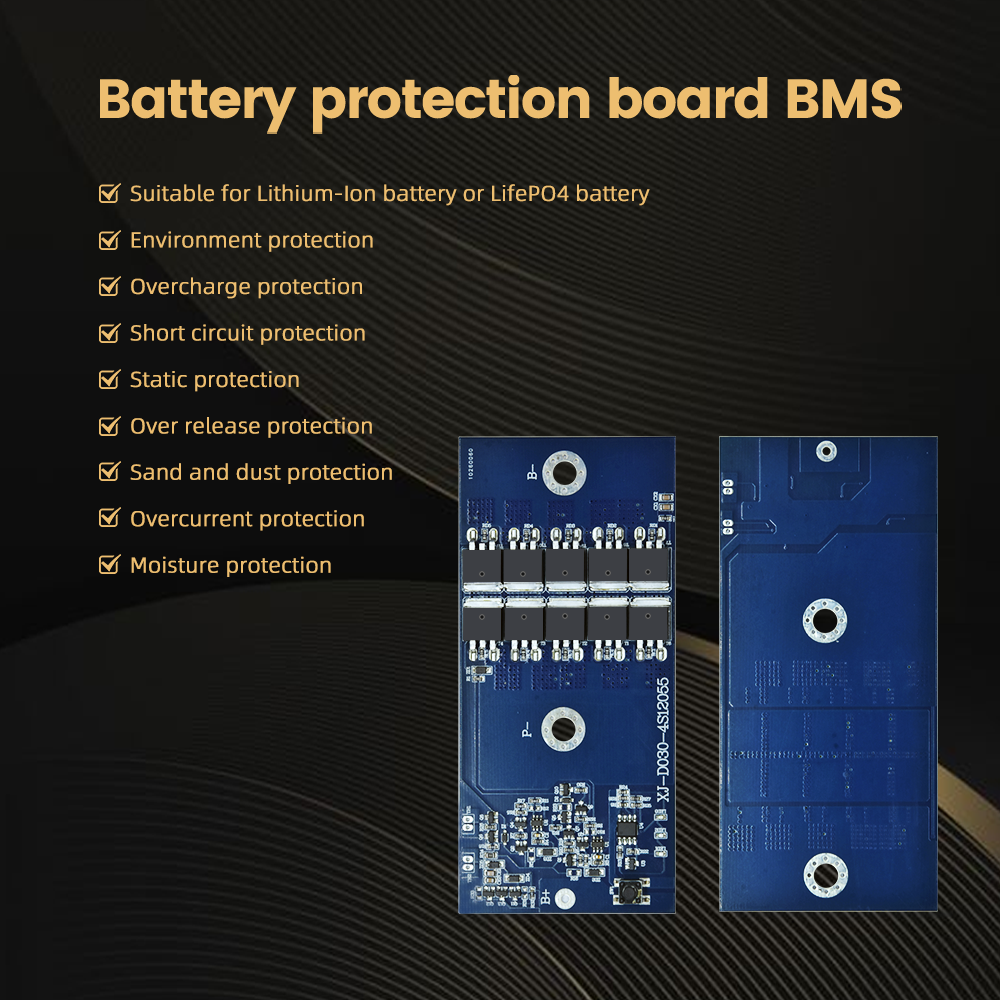

Function
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
| Item | Min | Typical | Max | Unite |
| Battery pack charging voltage | 15.4 | 15.6 | V | |
| Charging MOSFET voltage rating | 30 | V | ||
| Discharging MOSFET voltage rating | 30 | V | ||
| Overcharge detection voltage | 15.3 | 15.4 | 15.5 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Over-discharge detection voltage | 7.1 | 7.2 | 7.3 | V |
| Over-discharge detection delay | 50 | 100 | 200 | mS |
| Battery pack continuous discharge current | 40 | A | ||
| Battery pack continuous charge current | 40 | A | ||
| Discharge overcurrent protection | 500 | 600 | 700 | A |
| Overcurrent protection delay | 3000 | 5000 | 7000 | mS |
| Self-consumption | 30 | 40 | uA | |
| Recovery from output short-circuit/over-discharge/overcurrent protection | Short circuit / over-discharge / over-current protection is removed after the load is disconnected and automatic recovery occurs. | |||
| Internal resistance (B- to P-) during normal operation | 30 | mΩ | ||
| Maximum temperature rise at 40A continuous output current | 40 | ℃ | ||
