4S BMS
XJ-D021 4S 14.6V 8A/16A BMS Common Port Charge & Discharge 10A Short-circuit Protection Temp Sensors
XJ-D021 4S 8A/16A BMS, for LifePO4 NMC Li-ion battery, with temperature sensors
|
Product Name |
XJ-D021 4S 8A/16A BMS |
|
Size |

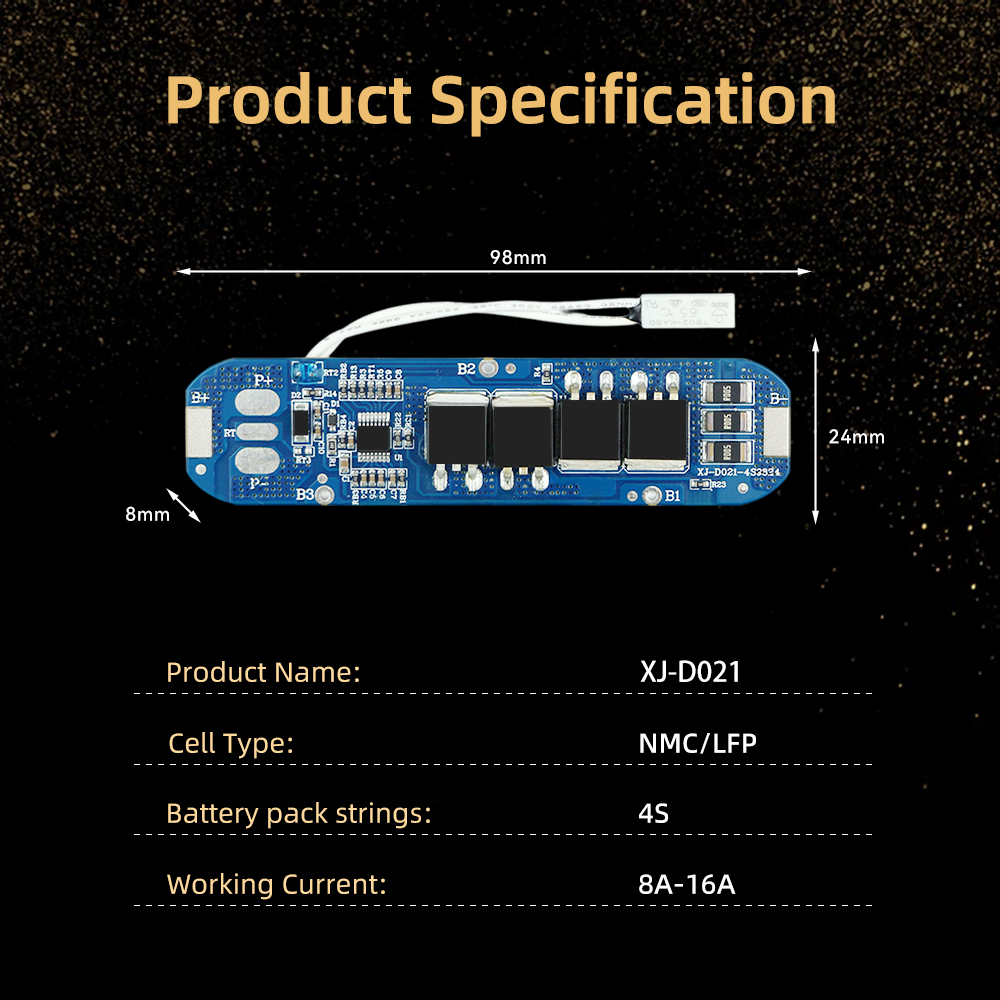

98*24*8MM |
|
Series |
4S |
|
Current |
8A/16A |
|
Cell Type |
LifePO4/NMC/Li-ion battery |
|
Function |

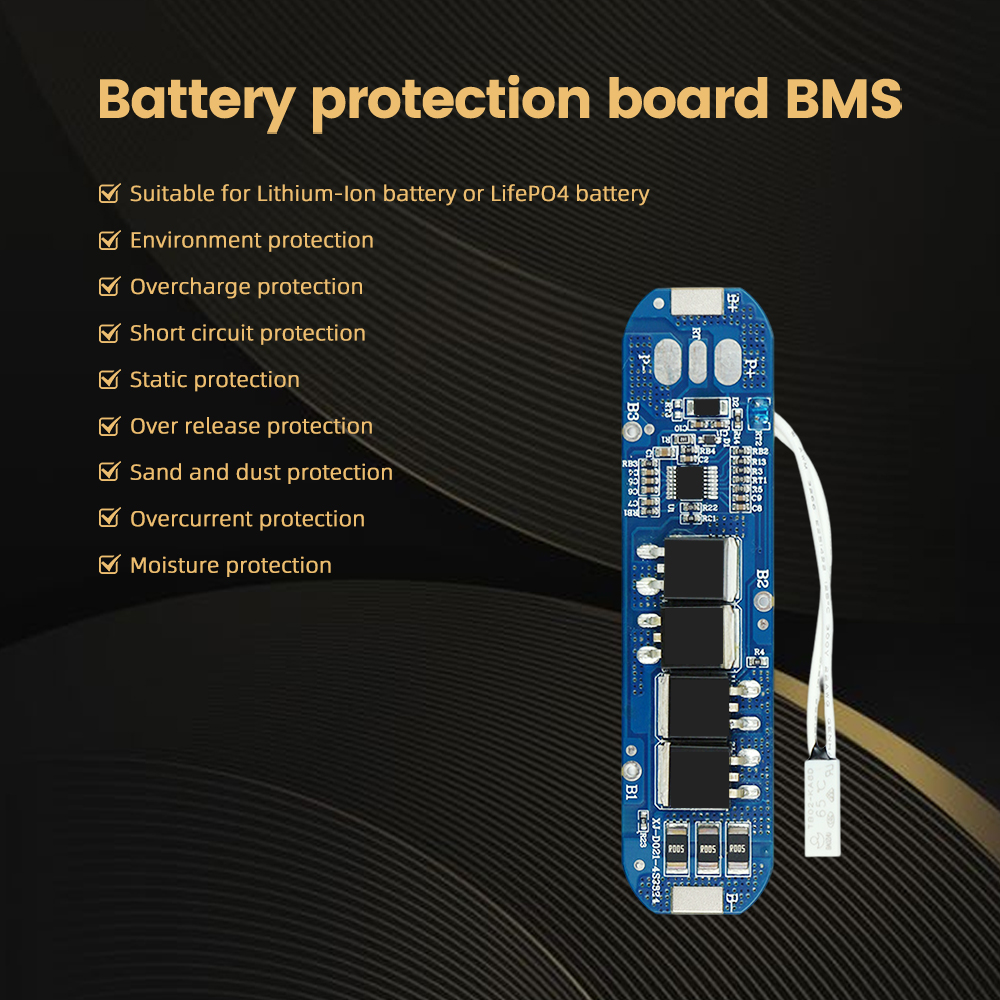

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Electrostatic protection, Dust Protection, Moisture Protection |
|
Warranty |
24 Months |
| Item (The spec of 4S 16A) | Min | Typical | Max | Unit |
| Battery pack charging voltage | 14.6 | 14.7 | V | |
| The withstand voltage of the charging MOS | 30 | V | ||
| Discharge MOS withstand voltage value | 30 | V | ||
| Single-cell overcharge detection voltage | 3.6 | 3.65 | 3.7 | V |
| Overcharge recovery voltage | 3.43 | 3.48 | 3.53 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Single-section overdischarge detection voltage | 2.22 | 2.32 | 2.42 | V |
| Overdischarge recovery voltage | 2.48 | 2.58 | 2.68 | V |
| Over-discharge detection delay | 500 | 1000 | 1500 | mS |
| Continuous discharge current of the battery pack | 16 | A | ||
| Continuous charging current of the battery pack | 16 | A | ||
| Discharge overcurrent protection | 50 | 60 | 70 | A |
| Overcurrent protection delay | 500 | 1000 | 1500 | mS |
| Self-consumption | 30 | 40 | uA | |
| Equilibrium current | / | / | / | mA |
| Charging temperature protection | 65±4℃. | |||
| Discharge temperature protection | 65±4℃ | |||
| Output short circuit/overdischarge/overcurrent protection recovery | After short-circuit/overdischarge/overcurrent protection, the load is removed and it automatically recovers | |||
| Short-circuit protection delay | 100 | 300 | 600 | uS |
| Under normal working conditions, the internal resistance is B- to P- | 30 | mΩ | ||
| Maximum temperature rise with a continuous output current of 16A | 40 | ℃ | ||
