3S BMS
XJ-D002 3S 12V 6A BMS for LifePO4 NMC Lithium Battery
3S 12V 6A BMS for LifePO4 NMC Lithium Battery
|
Product Name
|
3S 6A BMS
|
|

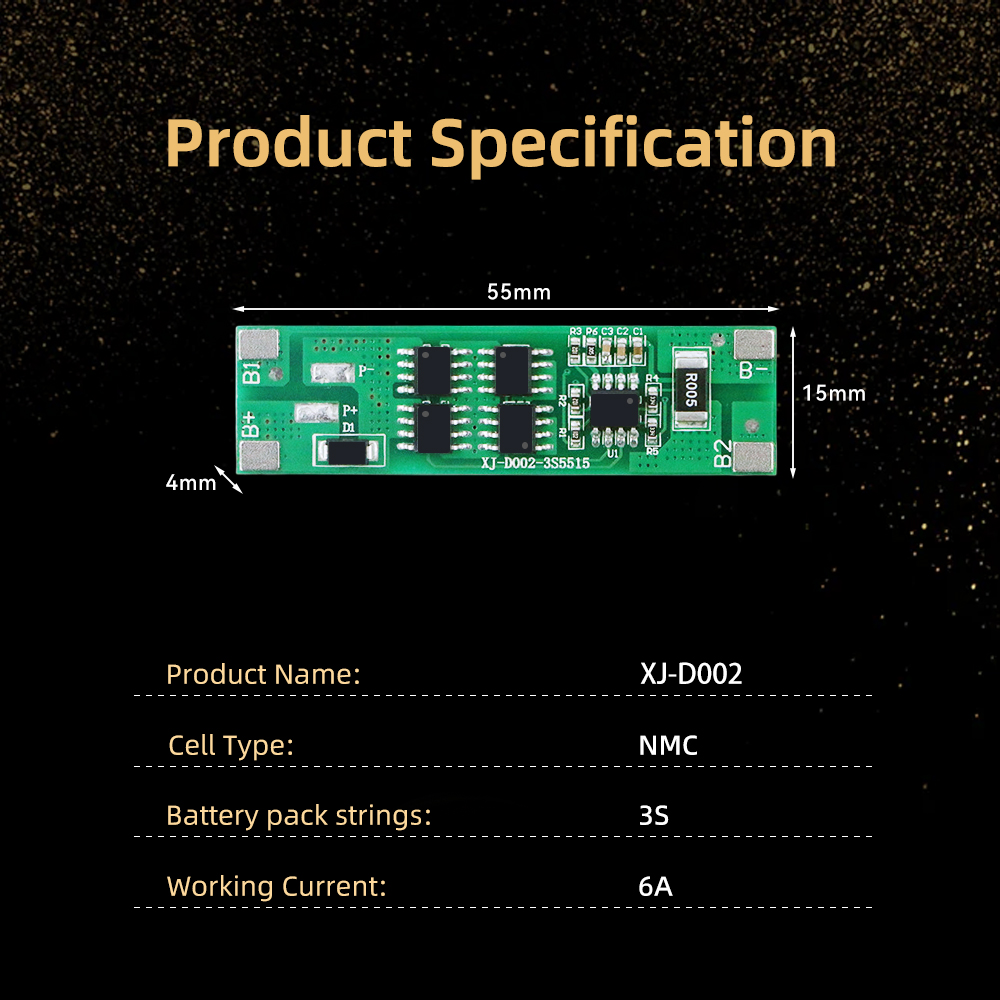

Size
|
55*15*4 mm
|
|
Series
|
3S
|
|
Working Current
|
6A
|
|
Cell Type
|
LifePO4/NMC/Lithium
|
|

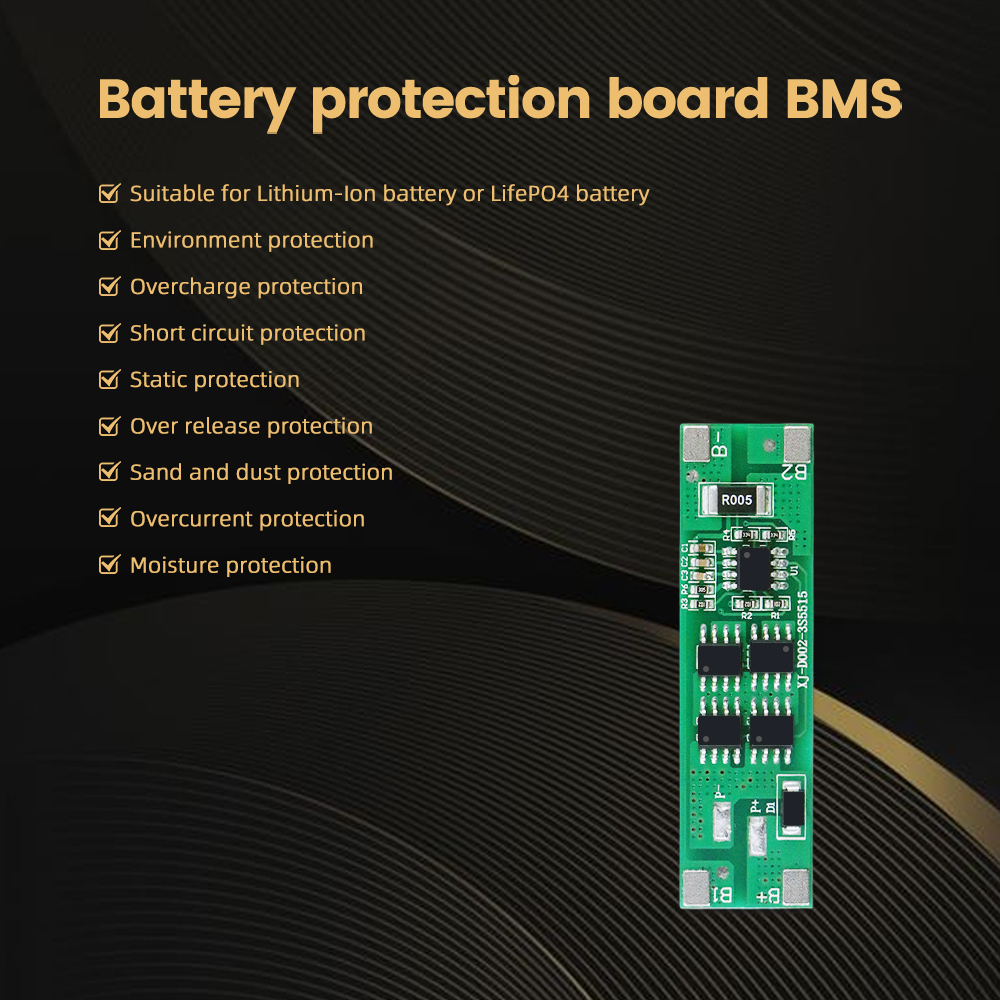

Function
|
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
| Item | Min | Typical | Max | Unit | |
| Overcharge protection | Overcharge detection voltage | 4.2 | 4.25 | 4.3 | V |
| Overcharge detection delay time | 500 | 1000 | 1500 | ms | |
| Overcharge voltage relief | 4 | 4.05 | 4.1 | V | |
| Over-discharge protection | Over-discharge detection voltage | 2.6 | 2.7 | 2.8 | V |
| Over-discharge detection delay time | 500 | 1000 | 1500 | ms | |
| Discharge voltage after over-discharge | 2.9 | 3 | 3.1 | V | |
| Overcurrent protection | Overcurrent detection voltage | 0.085 | 0.1 | 0.115 | V |
| Overcurrent protection current | 17 | 20 | 23 | A | |
| Detection delay time | 500 | 1000 | 1500 | ms | |
| Short-circuit protection | Detection delay time | 100 | 300 | 600 | μS |
| Conditions for protection release | Disconnect the external short-circuit load or charge and restore | ||||
| Internal resistance | Main circuit on-state resistor | 40 | mΩ | ||
| Consumed current | It usually consumes current when in operation | 12 | 30 | μA | |
| Static current | It consumes current during hibernation | 5 | μA | ||
| Charging | 0V charging function | Support | |||
| Discharge | Hibernation function | Support | |||
