5S BMS

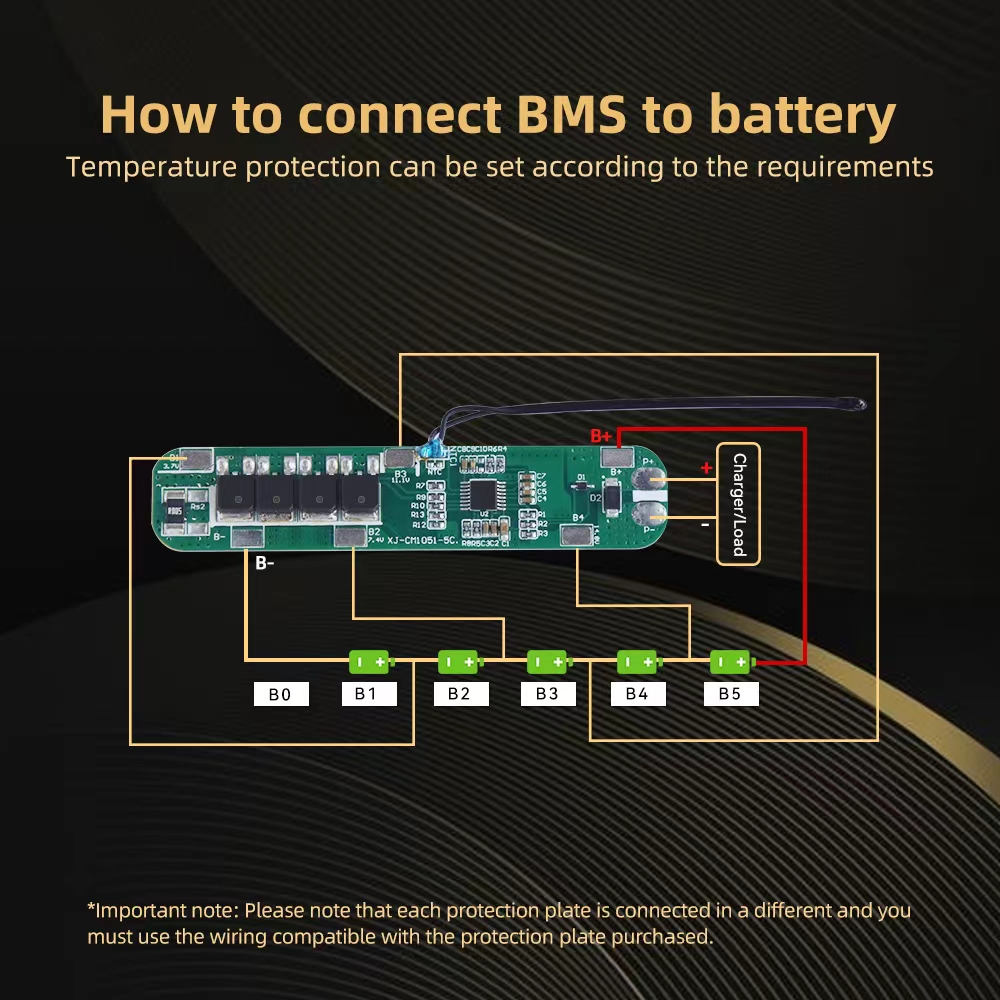

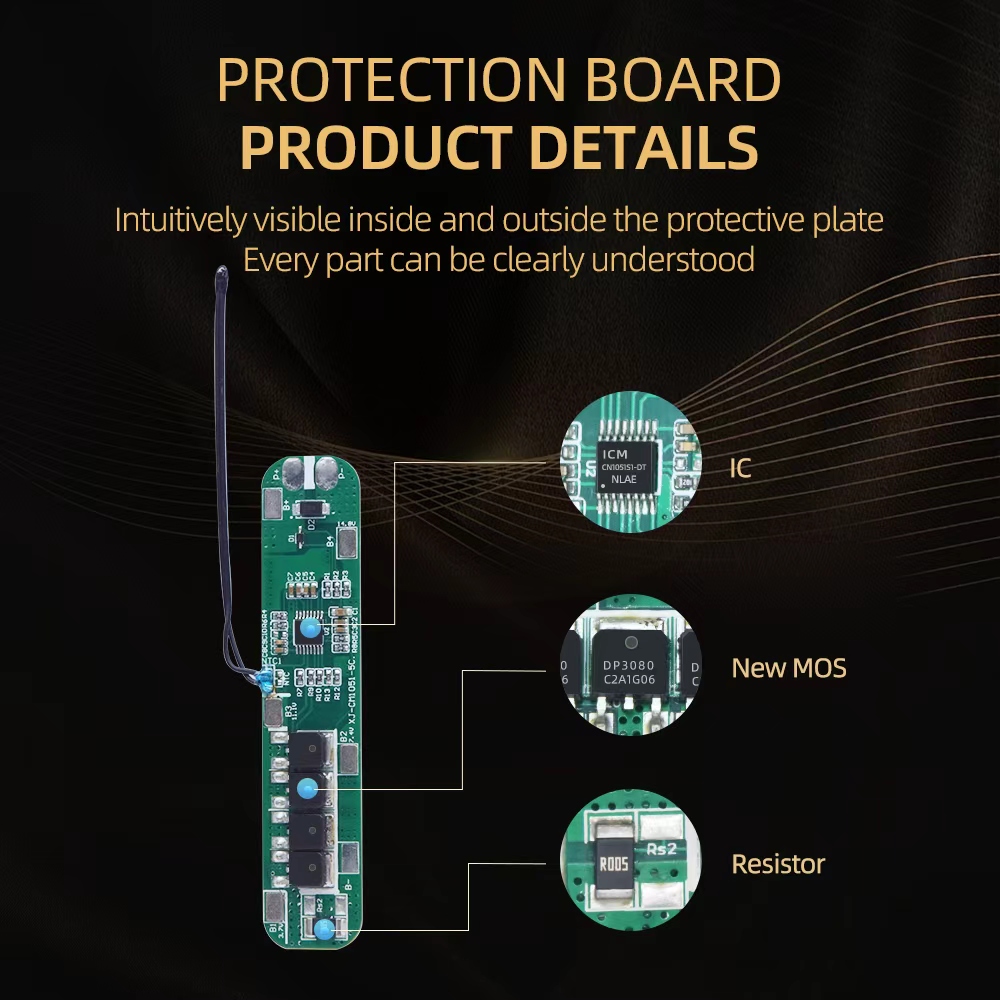

XJ-CM1051-5C 5S 10A 21.25V LifePO4 Li-ion Battery NTC Temperature Sensors
5S 10A BMS for 4.25V Li-ion battery, 5S 21.5V 10A BMS, with NTC temperature sensors, common port.
|
Product Name |
XJ-CM1051-5C 5S 10A BMS |
|
Size |

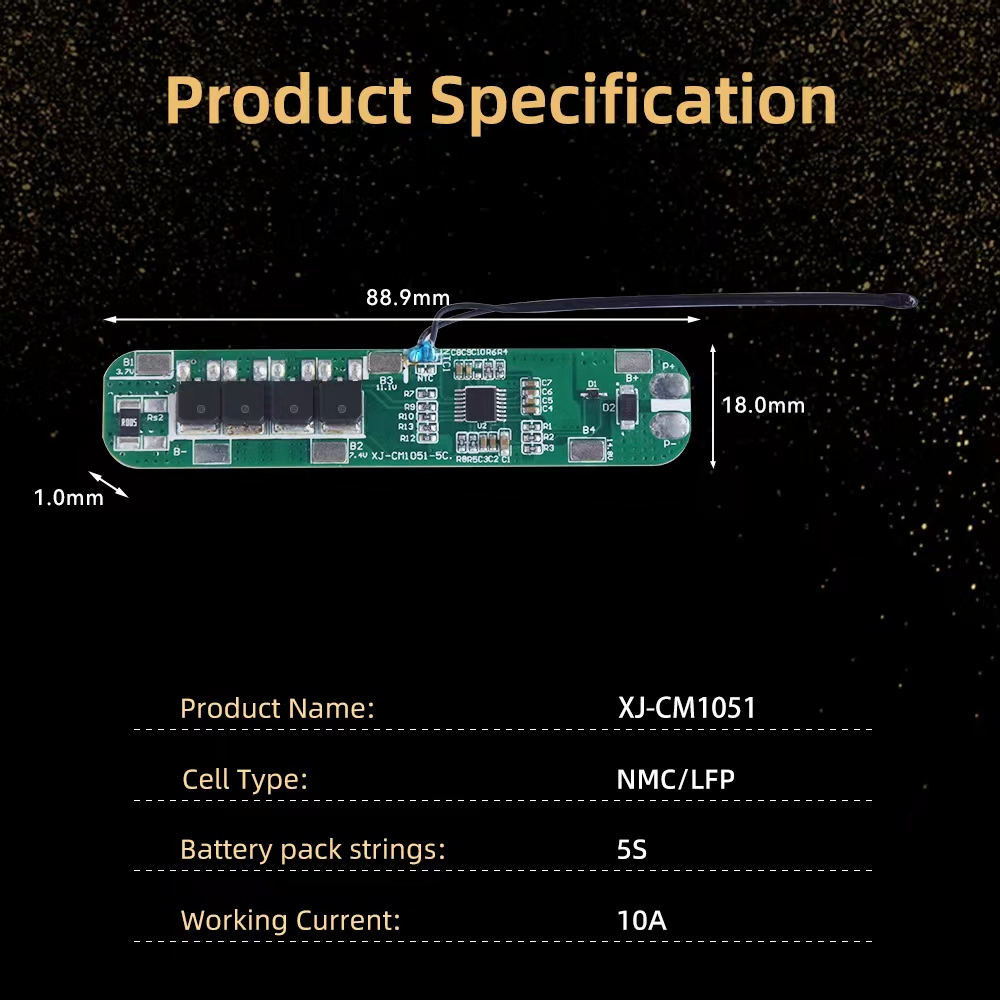

88.9*18*1MM |
|
Series |
5S |
|
Current |
10A |
|
Cell Type |
LifePO4/NMC (Li-ion) battery |
|

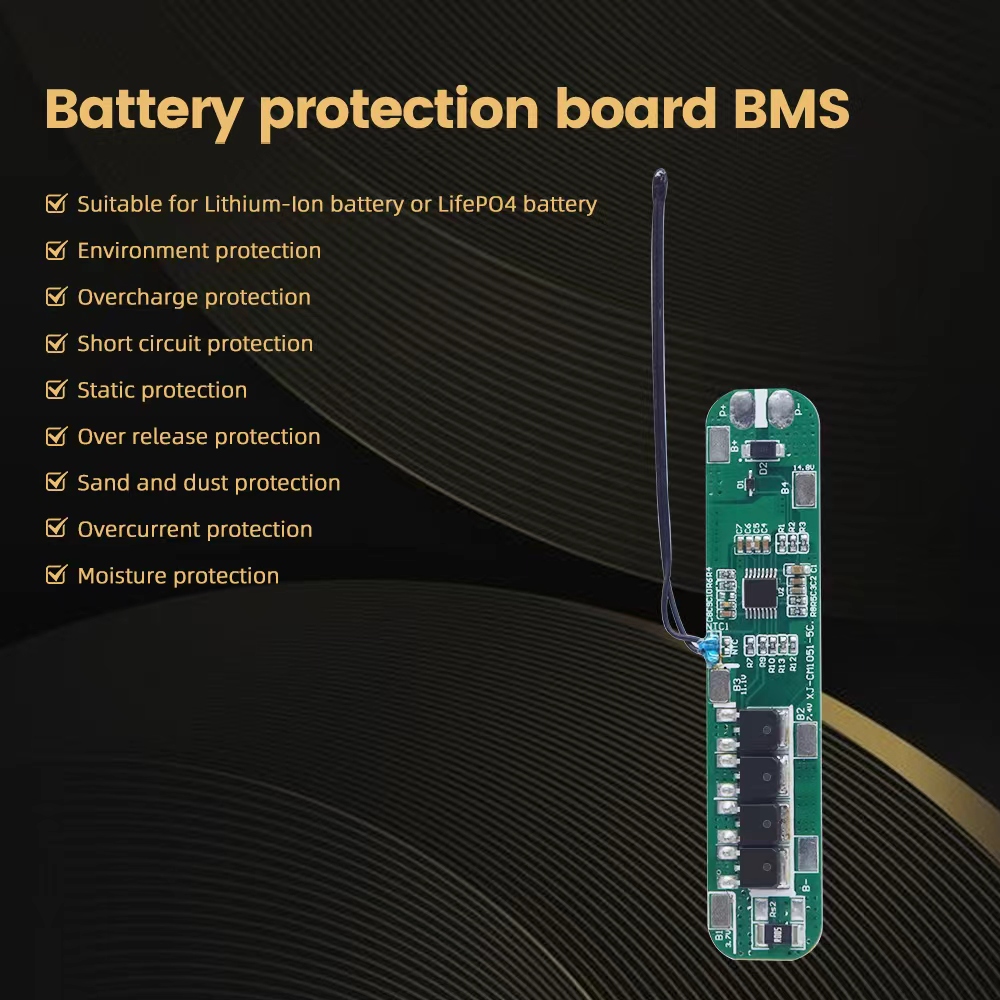

Function |
Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Electrostatic protection, Dust Protection, Moisture Protection, NTC temperature sensors |
|
Warranty |
24 Months |
| Item | Symbol | Inspection standard | Unit | |||
| Min | Typical | Max | ||||
| Overcharge protection | Overcharge detection voltage | VOVP | 4.225 | 4.25 | 4.275 | V |
| Overcharge protection delay time | tOVP | 500 | 1000 | 1500 | ms | |
| Overcharge discharge voltage | VOVR | 4.1 | 4.15 | 4.2 | V | |
| Over-discharge protection | Over-discharge detection voltage | VUVP | 2.62 | 2.7 | 2.78 | V |
| Overdischarge protection delay time | tUVP | 500 | 1000 | 1500 | ms | |
| Over-discharge discharge voltage | VUVR | 2.9 | 3 | 3.1 | V | |
| Overcurrent protection | Overcurrent 1 detects voltage | VDOCP1 | 0.085 | 0.1 | 0.115 | V |
| Overcurrent protection current | IDP | 25 | 30 | 35 | A | |
| Detection delay time | tDOCP1 | 50 | 100 | 150 | ms | |
| Short-circuit protection | Detection delay time | TSHORT | 100 | 300 | 600 | μS |
| Conditions for lifting protection | Disconnect the external short-circuit load or charge and restore | |||||
| Internal resistance | Main circuit on-state resistor | RDS | 80 | mΩ | ||
| Current consumption | It usually consumes current when in operation | IVCC-NOR | 15 | 30 | μA | |
| Static current | It consumes current during hibernation | IVCC-PD | 4.5 | 9 | μA | |
