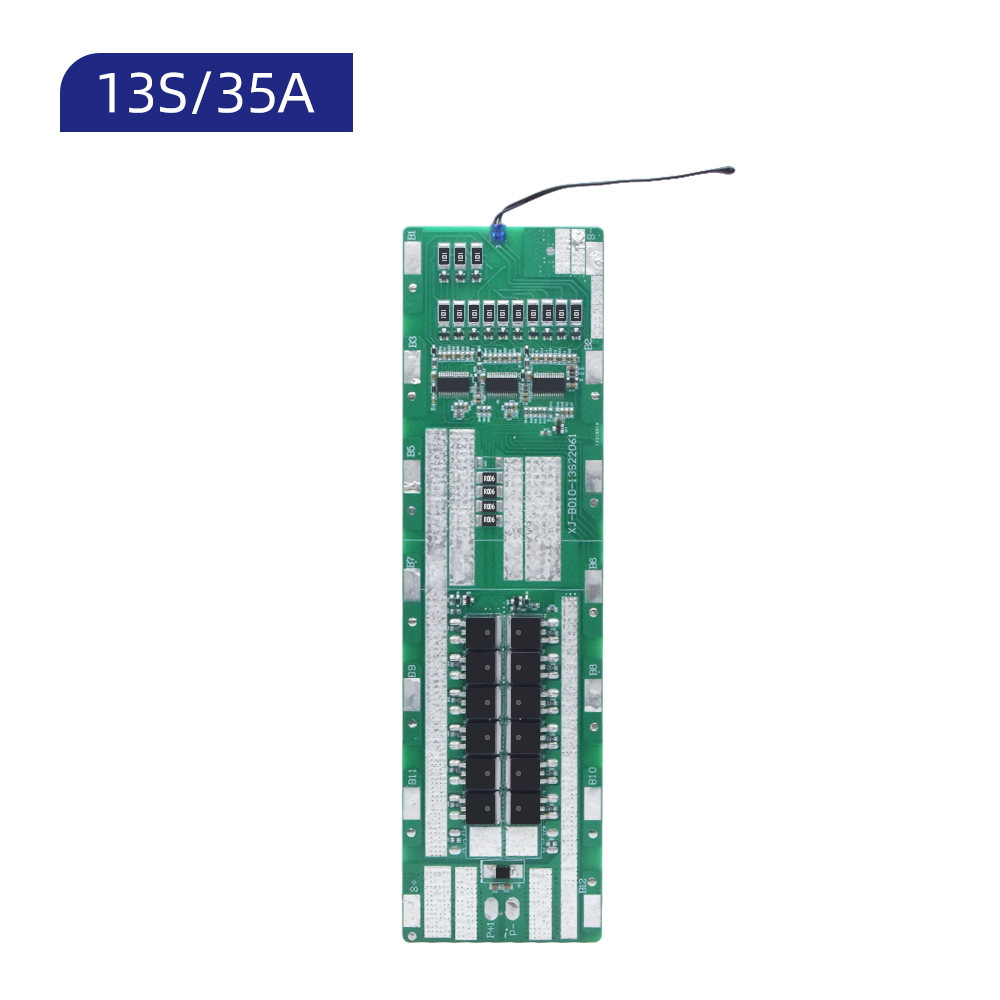

XJ-B010 BMS 13S 35A 48V 54V Balance Temperature protection for LifePO4 Li-ion Battery
13S 35A, for 3.7V Li-ion battery and 3.2V LifePO4 battery. With balance and temperature protection. Common port, the charge current and discharge current are 35A.
|

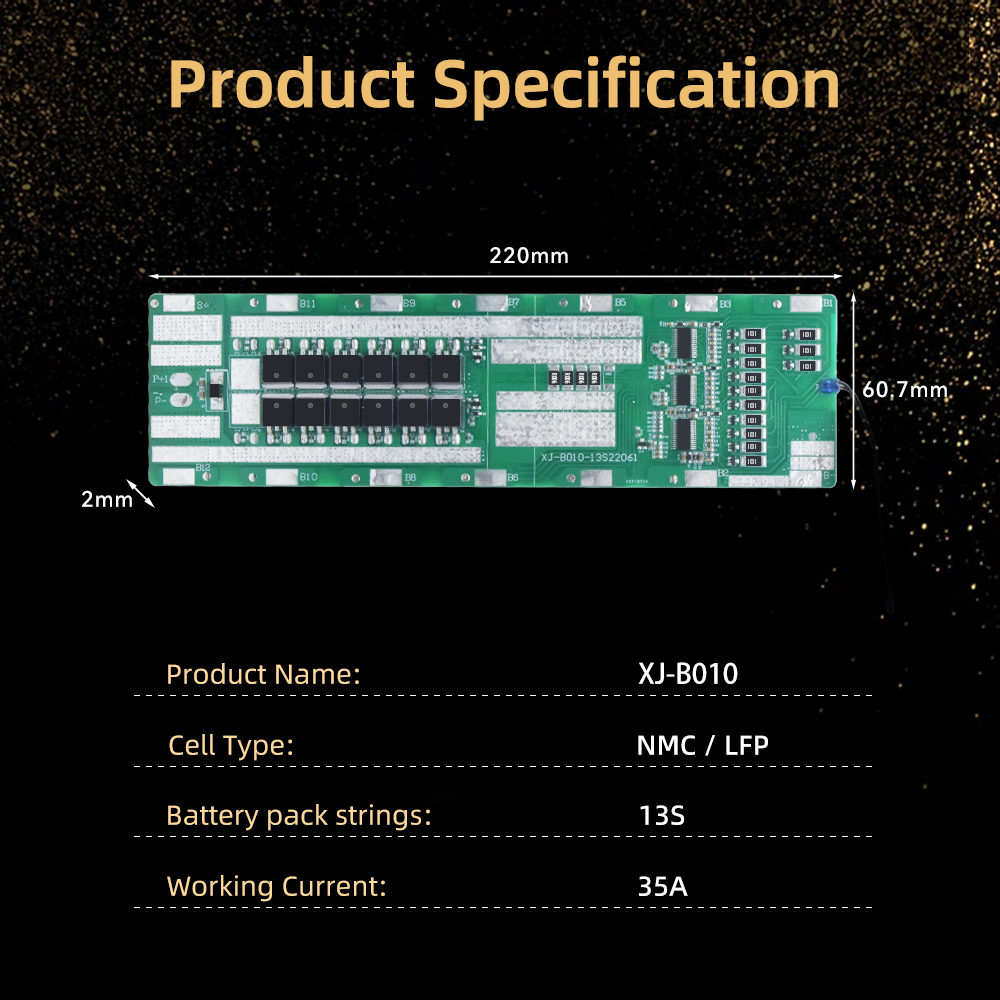

Product Name |
XJ-B010 13S 35A BMS |
|
Size |
220*60.7*2MM |
|
Series |
13S |
|
Current |
35A |
|
Cell Type |
LifePO4/NMC (Li-ion) battery |
|
Function |

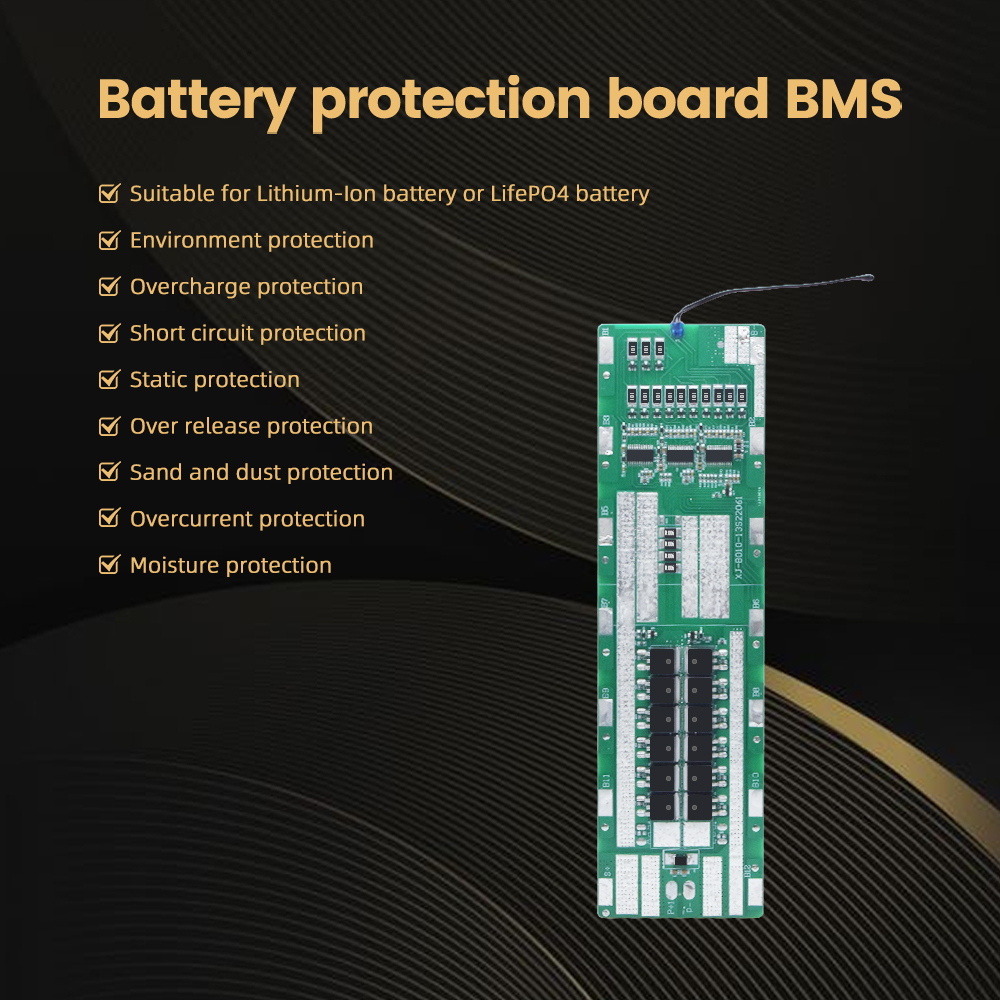

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Balance function, Temperature protection, Electrostatic protection, Dust Protection, Moisture Protection |
|
Warranty |
24 Months |
| Item | Min | Typical | Max | Unit |
| Battery pack charging voltage | 54.6 | 55.25 | V | |
| The withstand voltage of the charging MOS | 85 | V | ||
| Discharge MOS withstand voltage value | 85 | V | ||
| Single-cell overcharge detection voltage | 4.2 | 4.25 | 4.3 | V |
| Overcharge recovery voltage | 4.1 | 4.15 | 4.2 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Single-section overdischarge detection voltage | 2.7 | 2.8 | 2.9 | V |
| Overdischarge recovery voltage | 3.1 | 3.2 | 3.3 | V |
| Over-discharge detection delay | 80 | 120 | 200 | mS |
| Continuous discharge current of the battery pack | 35 | A | ||
| Continuous charging current of the battery pack | 35 | A | ||
| Discharge overcurrent protection | 55 | 65 | 75 | A |
| Overcurrent protection delay | 5 | 10 | 20 | mS |
| Self-consumption | 30 | 50 | uA | |
| Equilibrium current | 30 | 40 | 50 | mA |
| Charging temperature protection | High temperature: 50±5℃ | |||
| Discharge temperature protection | High temperature: 70±5℃ | |||
| Output short circuit/overdischarge/overcurrent protection recovery | After short-circuit/overdischarge/overcurrent protection, the load is removed and it automatically recovers | |||
| Short-circuit protection delay | 100 | 300 | 600 | uS |
| Under normal working conditions, the internal resistance is B- to P- | 30 | mΩ | ||
| Maximum temperature rise with a continuous output current of 35A | 40 | ℃ | ||
