XJ-B008V4 BMS 10S 36V 42V 10A 20A Split Port for E-bike Scooter LifePO4 NMC Lithium
10S 36V 42V 10A/15A/20A Separate Port BMS for Scooter
|
Product Name
|
10S 20A BMS for Scooter
|
|
Size
|

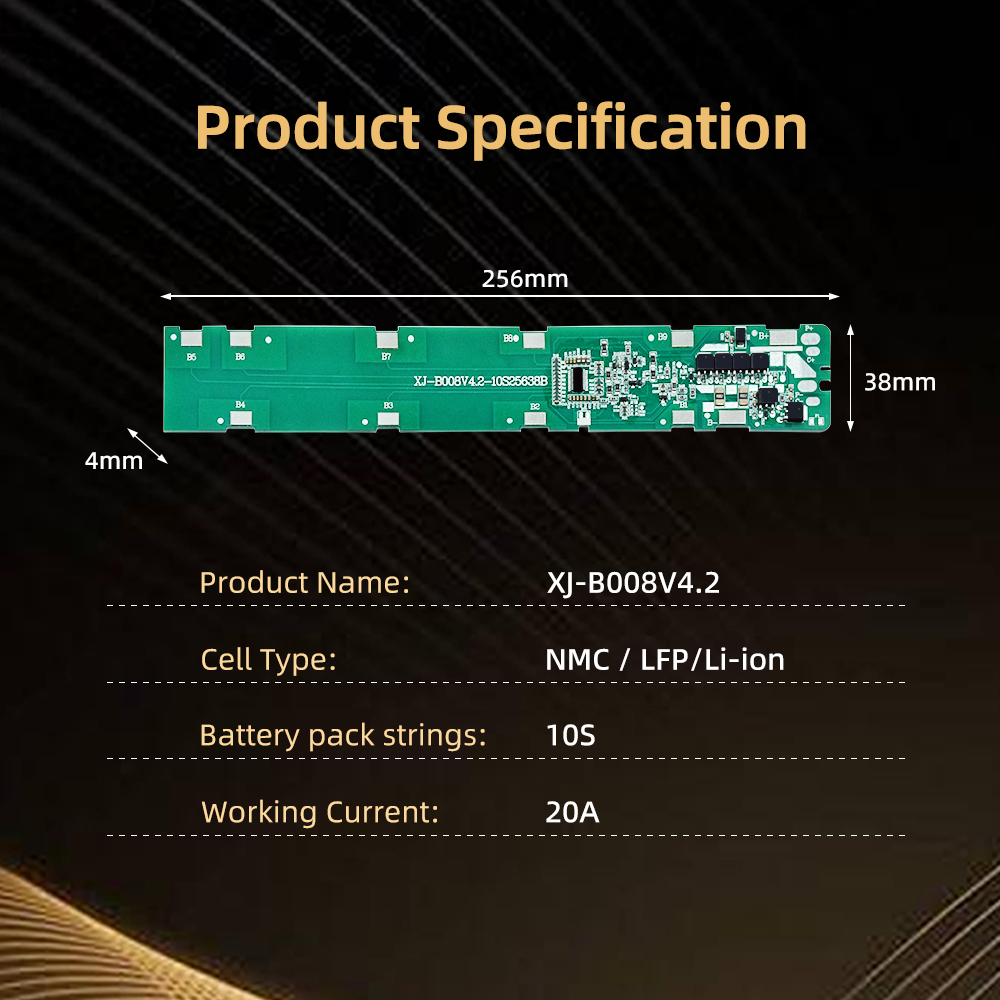

Length 256mm * Width 38mm * Thickness 4mm
|
|
Series
|
10S
|
|
Current
|
10A/15A/20A (optional)
|
|
Voltage
|
42V (typical)
|
|
Cell Type
|
LifePO4/NMC/Lithium
|
|
Function
|

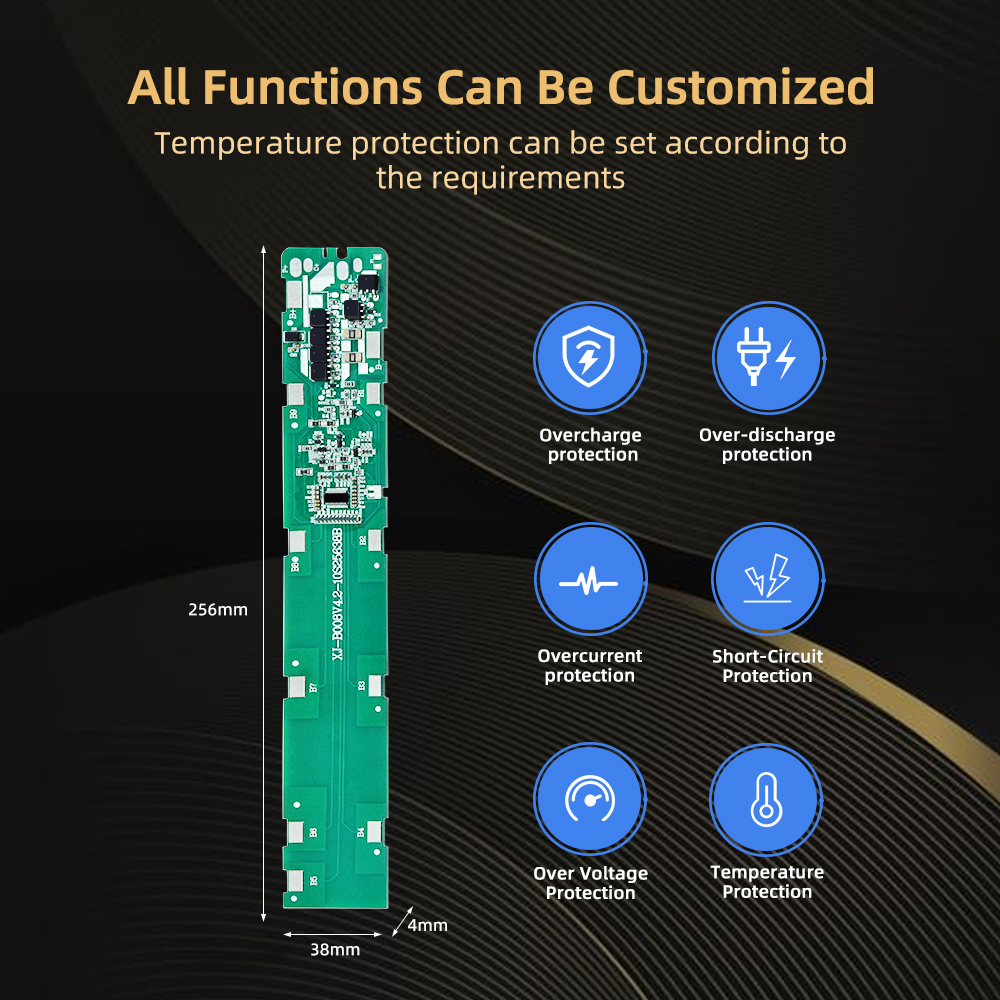

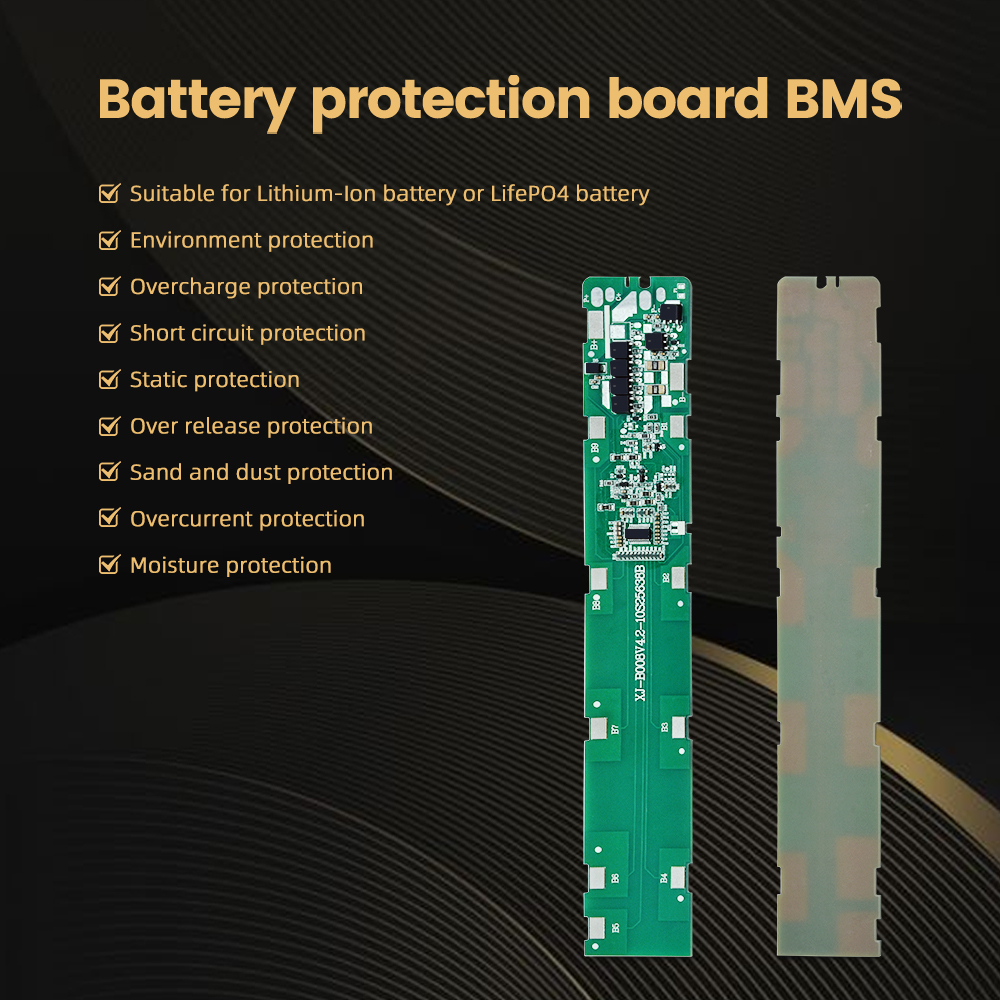

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
| Item (the spec of 10S 15A) | Min | Typical | Max | Unit |
| Battery pack charging voltage | 42 | V | ||
| Charging MOS withstand voltage value | 60 | V | ||
| Discharge MOS withstand voltage value | 60 | V | ||
| Single-cell overcharge detection voltage | 4.225 | 4.25 | 4.275 | V |
| Overcharge recovery voltage | 4 | 4.05 | 4.1 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Single-section over-discharge detection voltage | 2.62 | 2.7 | 2.78 | V |
| Over-discharge recovery voltage | 2.9 | 3 | 3.1 | V |
| Over-discharge detection delay | 500 | 1000 | 1500 | mS |
| Continuous discharge current of the battery pack | 15 | A | ||
| Continuous charging current of the battery pack | 3 | A | ||
| Discharge overcurrent protection | 40 | 50 | 60 | A |
| Overcurrent protection delay | 500 | 1000 | 1500 | mS |
| Self-consumption | 30 | 50 | uA | |
| Balanced current | / | / | / | mA |
| Charging temperature protection | 50±5℃. | |||
| Discharge temperature protection | 70±5℃ | |||
| Output short circuit/overdischarge/overcurrent protection recovery | Automatically recovers after fault clearance when load is removed | |||
| Short-circuit protection delay | 100 | 300 | 600 | uS |
| Internal resistance from B- to C- under normal working conditions | 30 | mΩ | ||
| The maximum temperature rise with a continuous output current of 15A | 40 | ℃ | ||
| Charging port: 0V | Yes | |||
| Charge but not discharge | NO | |||
