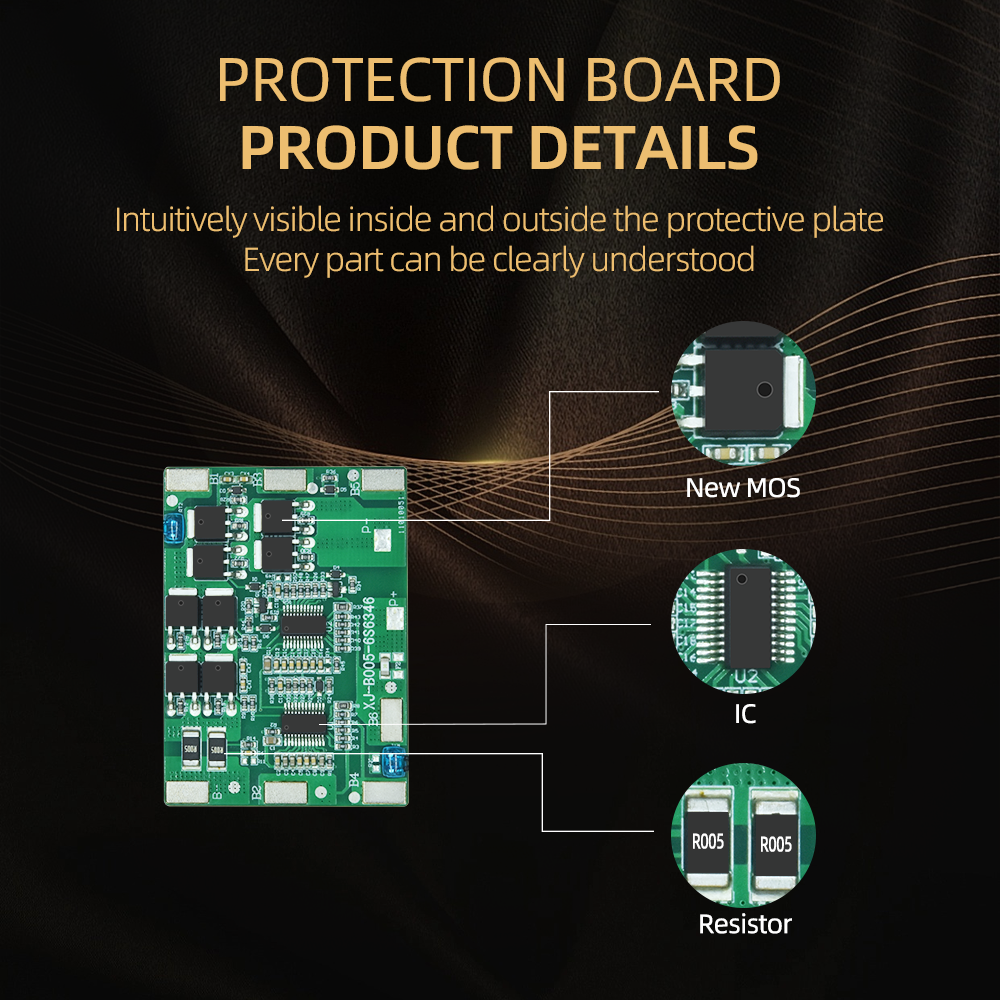

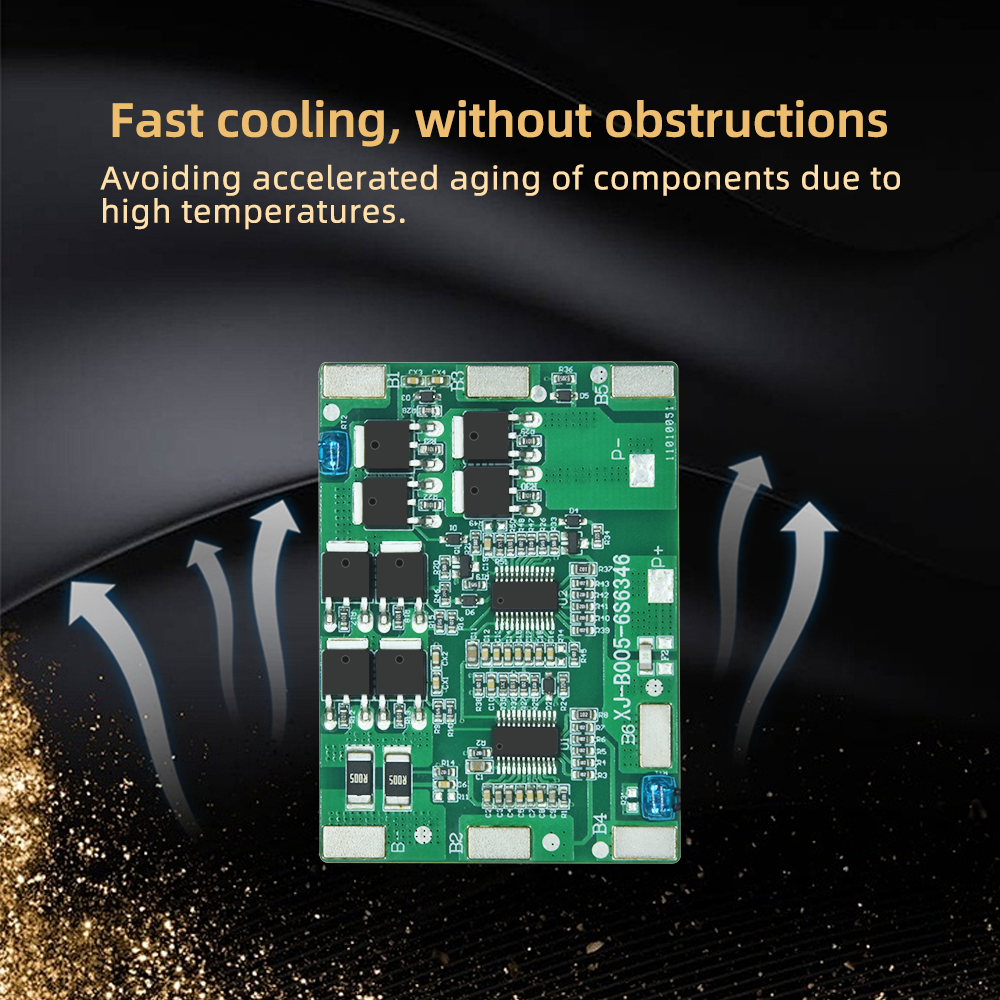

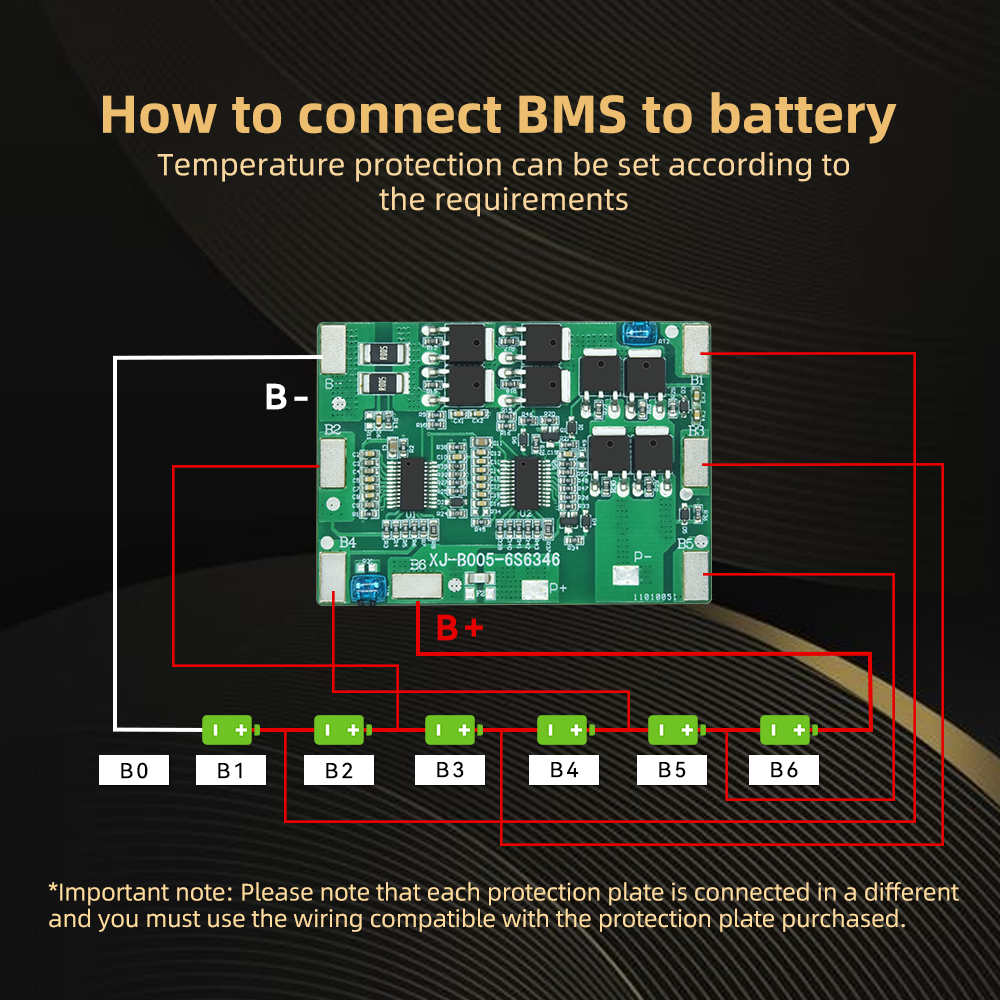

XJ-B005 6S 10A BMS Common Port With NTC Temperature Sensors for LifePO4 Li-ion Battery BMS
XJ-B005 6S 5A/10A BMS, common port, with NTC, for LifePO4/NMC battery BMS.
|
Product Name
|
6S Battery BMS
|
|
Size
|

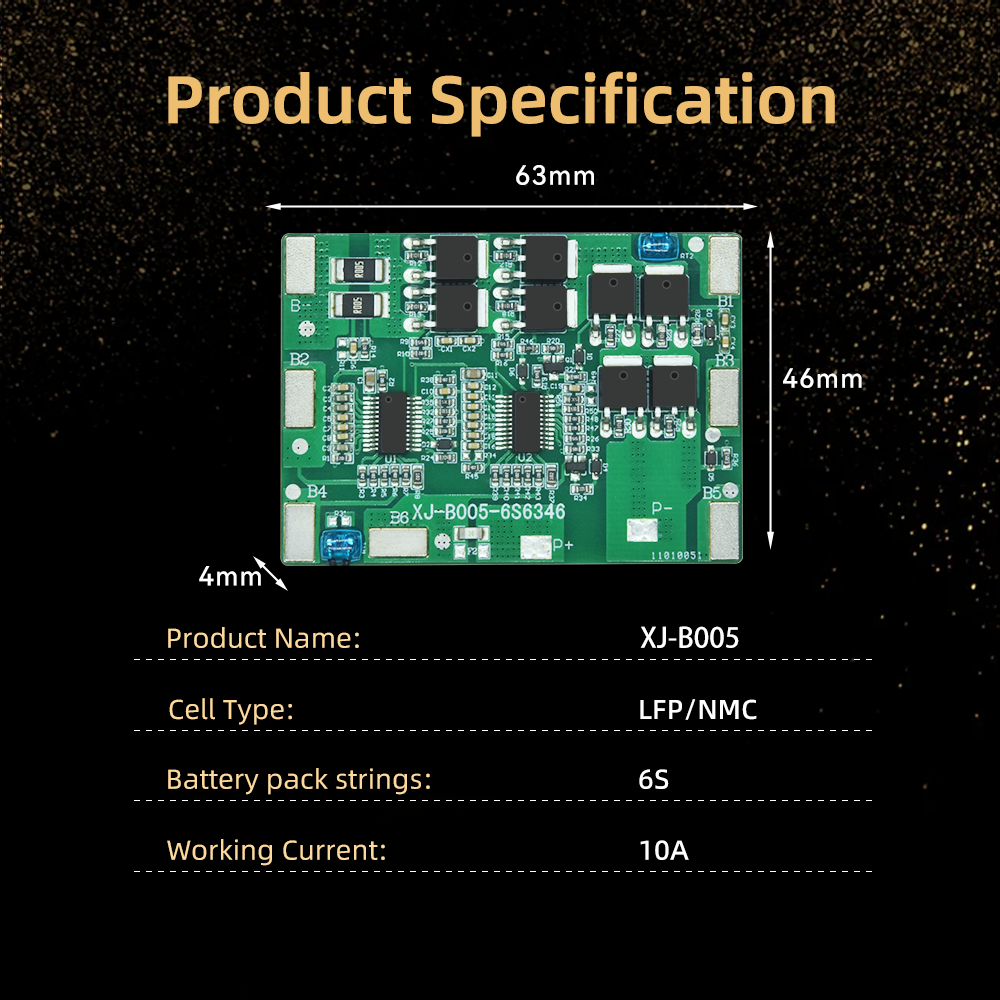

Length 63mm * Width 46mm * Thickness 4mm
|
|
Series
|
6S |
|
Current
|
5A/10A
|
|
Single Cell Battery Voltage
|
3.2V / 3.7V / 4.2V
|
|
Cell Type
|
LifePO4/NMC/Lithium
|
|
Function
|

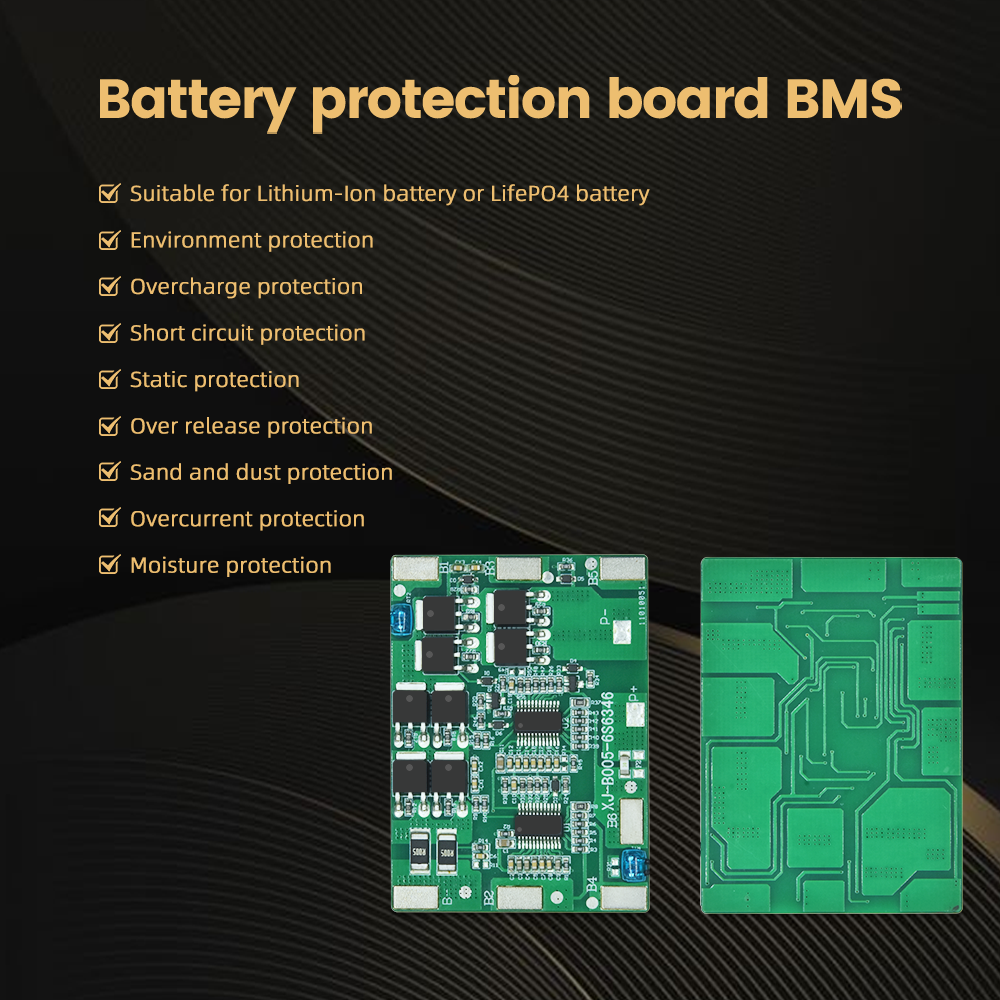

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Electrostatic protection, Dust Protection, Moisture Protection, NTC Temp Protection
|
|
Warranty
|
24 Months
|
| Item (the spec of 6S 10A) | Min | Typical | Max | Unit |
| Battery pack charging voltage | 25.2 | 25.5 | V | |
| Charging MOSFET voltage rating | 65 | V | ||
| Discharging MOSFET voltage rating | 65 | V | ||
| Level 1 single-cell overcharge detection voltage | 4.2 | 4.25 | 4.3 | V |
| Level 2 single-cell overcharge detection voltage | 4.2 | 4.25 | 4.3 | V |
| Overcharge recovery voltage | 4.1 | 4.15 | 4.2 | V |
| Overcharge detection delay | 500 | 1000 | 1500 | mS |
| Level 1 single-cell over-discharge detection voltage | 2.6 | 2.7 | 2.8 | V |
| Level 2 single-cell over-discharge detection voltage | 2.6 | 2.7 | 2.8 | V |
| Over-discharge recovery voltage | 2.9 | 3 | 3.9 | V |
| Over-discharge detection delay | 500 | 1000 | 1500 | mS |
| Battery pack continuous discharge current | 10 | A | ||
| Battery pack continuous charge current | 10 | A | ||
| Discharge overcurrent protection | 30 | 40 | 50 | A |
| Overcurrent protection delay | 500 | 1000 | 1500 | mS |
| Charging temperature protection | High temperature: 55 ± 5°C | |||
| Discharging temperature protection | High temperature: 75 ± 5°C | |||
| Recovery from output short-circuit/over-discharge/overcurrent protection | Automatic recovery after load removal following short-circuit, over-discharge, or over-current protection | |||
| Short-circuit protection delay | 100 | 300 | 600 | uS |
| Internal resistance between B- and C- in normal operating state | 40 | mΩ | ||
| Maximum temperature rise at 10A continuous output current | 40 | ℃ | ||
