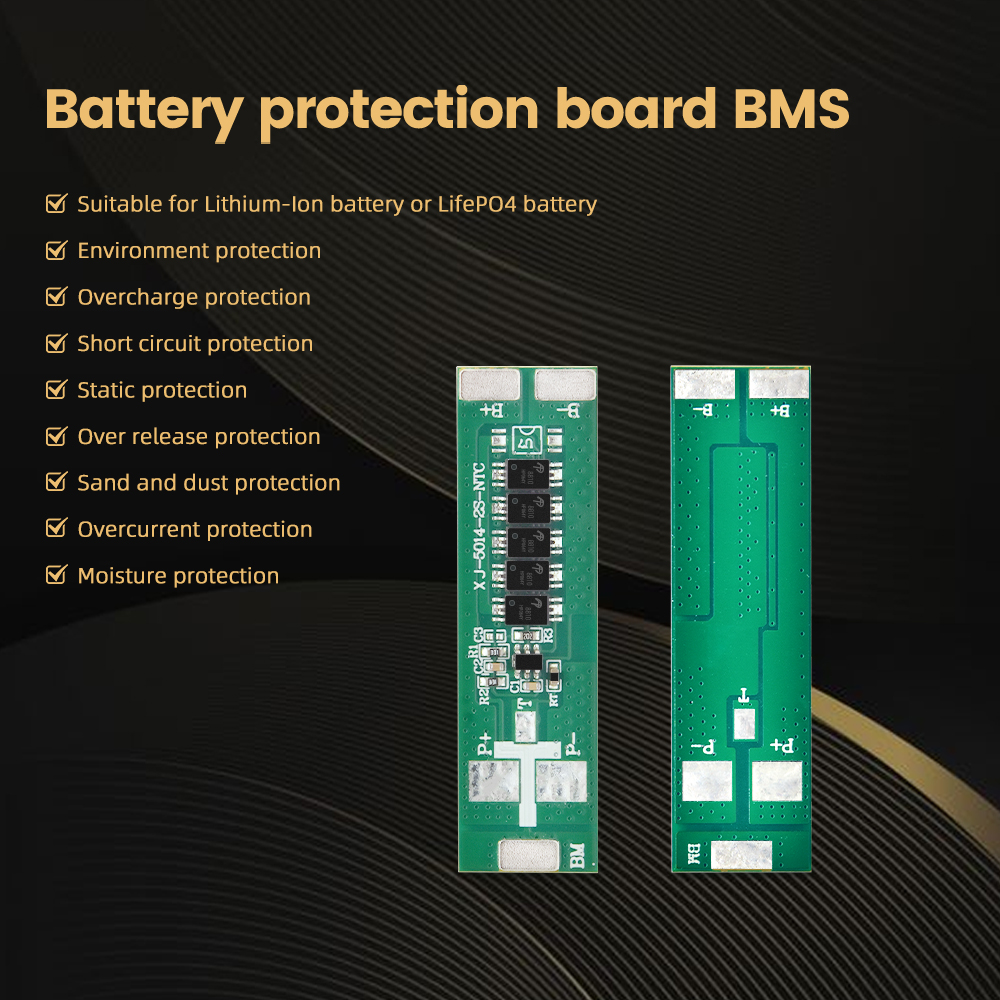

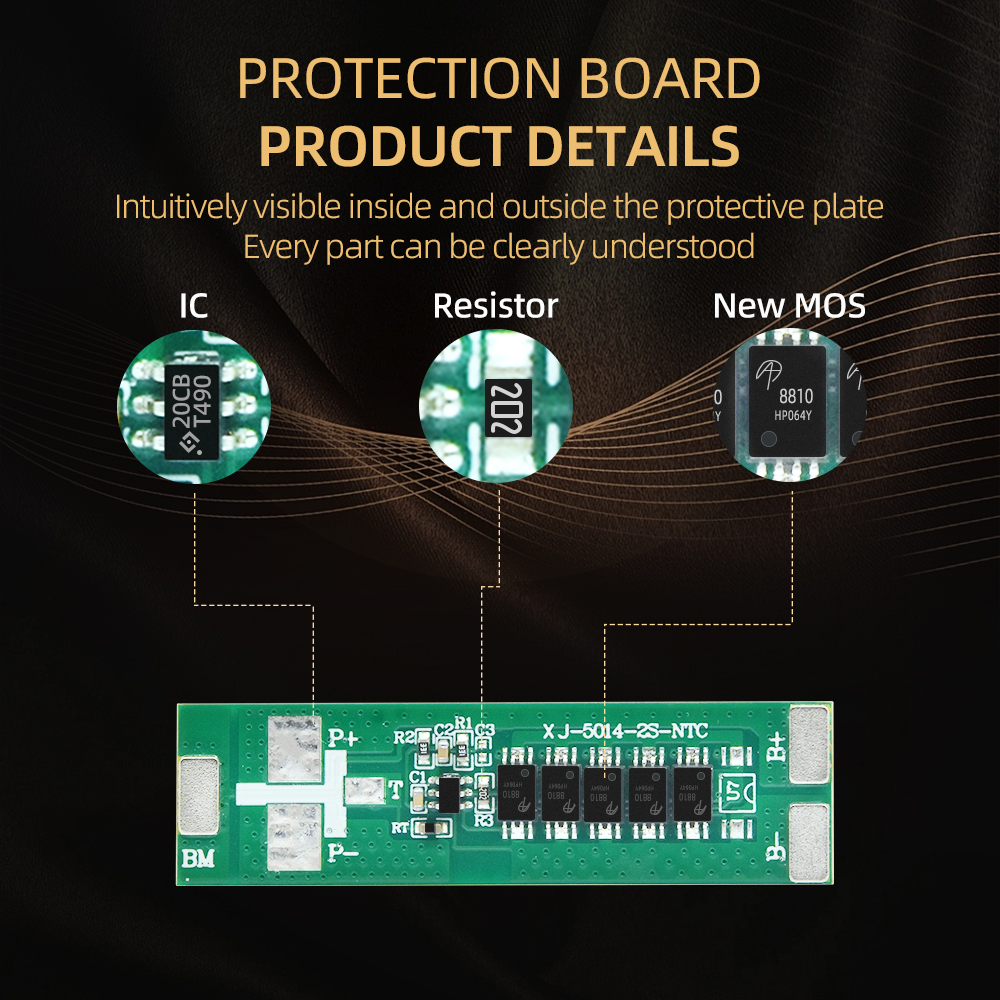

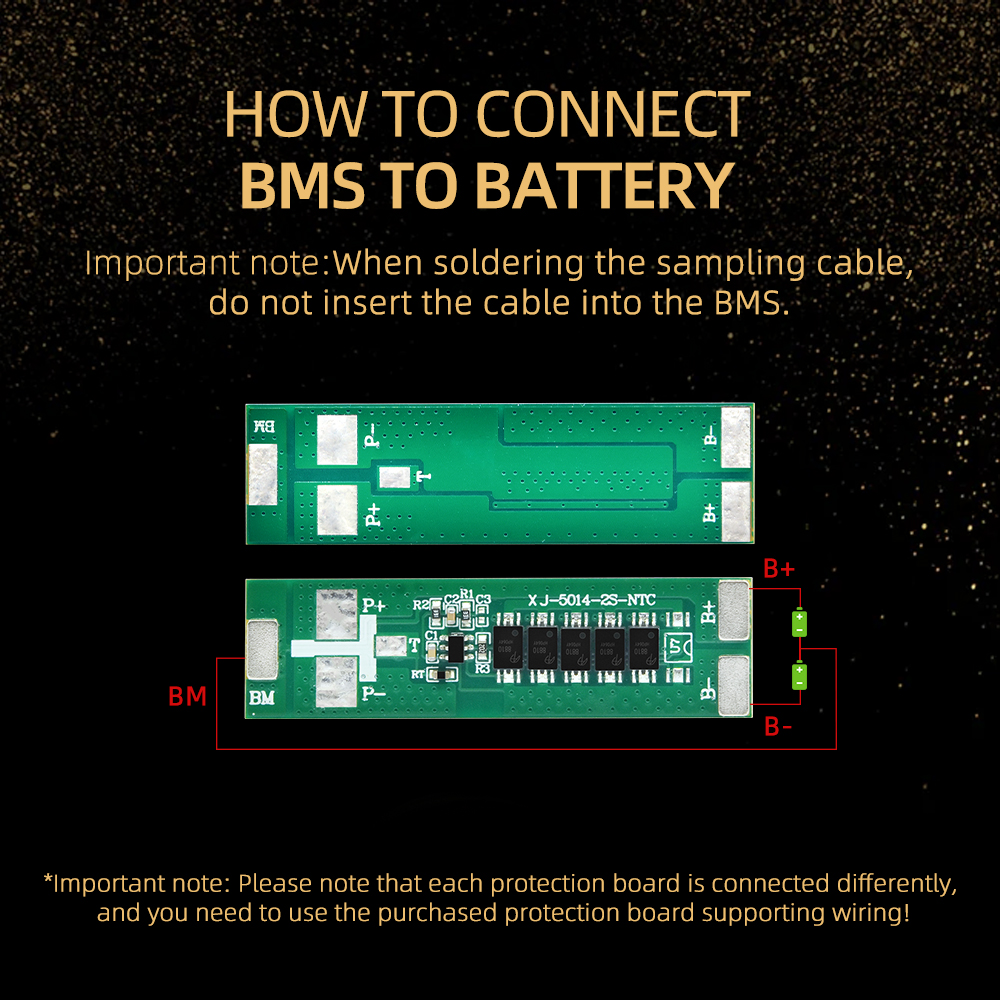

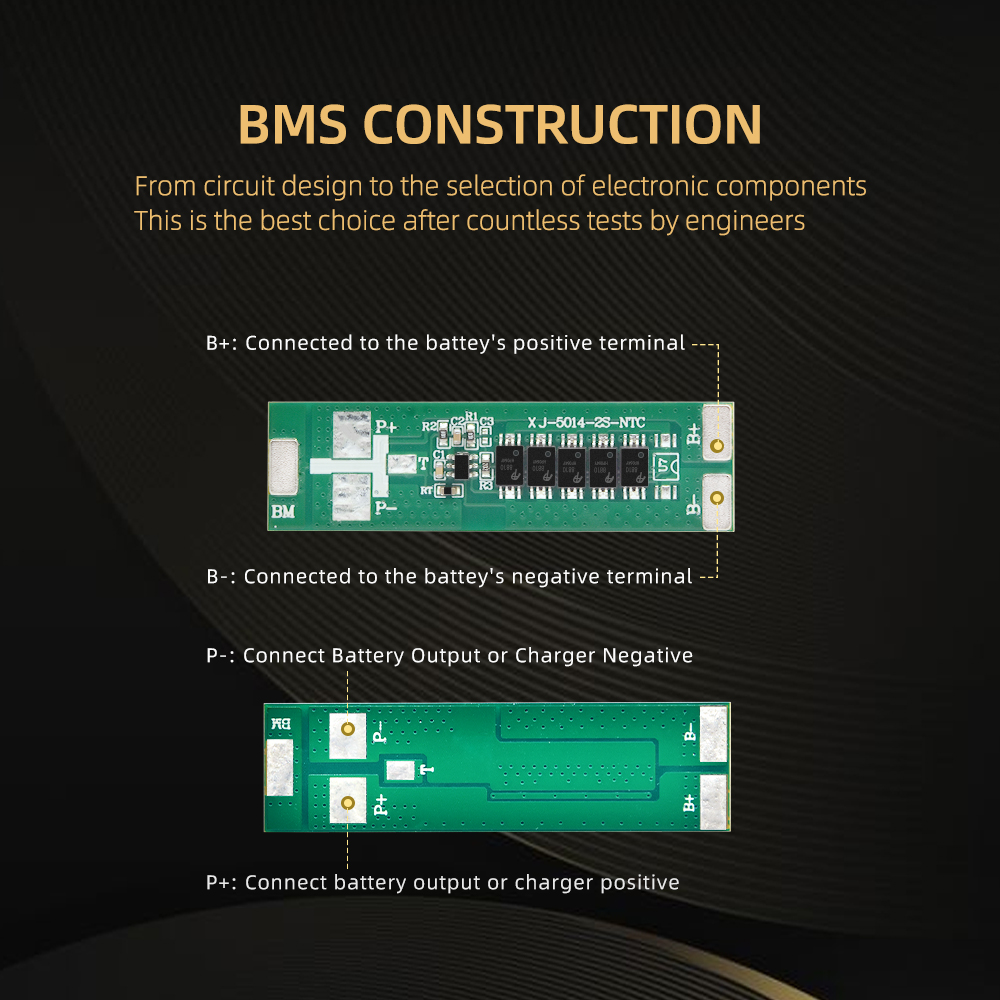

XJ-5014-2S-NTC 2S 9A with NTC and nickle strip for Lithium-ion and Lifepo4 battery

Type

Specification

(1) XJ-5014-2S-NTC

Supports 2S Batteries.

Battery Type: NMC/LFP

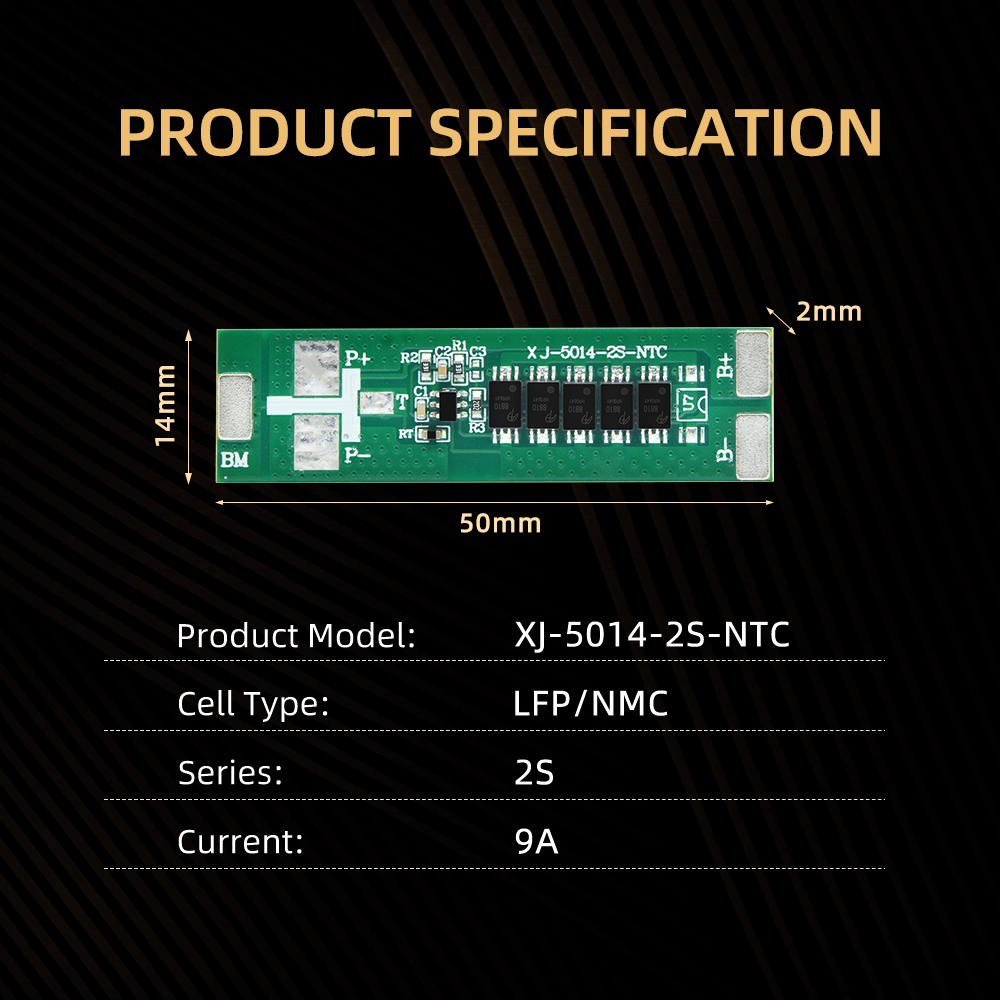

Dimension:50*14*1mm

NO

Item

Symbol

Inspection methods and equipment

Inspection Standards

Unit

Minimum

Typical Value

Maximum

4.1

Overcharge protection

Overcharge detection voltage

V_DET1

Lithium battery protection board tester

3.625

3.650

3.675

V

Overcharge detection delay time

tV_DET1

Lithium battery protection board tester

600

1000

1400

ms

Overcharge release voltage

V_REL1

Lithium battery protection board tester

3.43

3.48

3.53

V

4.2

Over discharge protection

Over discharge detection voltage

V_DET2

Lithium battery protection board tester

1.92

2.00

2.08

V

Over discharge detection delay time

tV_DET2

Lithium battery protection board tester

76.8

128

179.2

ms

Over discharge release voltage

V_REL2

Lithium battery protection board tester

2.25

2.35

2.45

V

4.3

Overcurrent protection

Overcurrent detection voltage

V_DET3

Lithium battery protection board tester

0.185

0.200

0.215

V

Overcurrent protection current

I_DP

Lithium battery protection board tester

35

55

A

Detection delay time

tV_DET3

Lithium battery protection board tester

6

10

14

ms

4.4

Short circuit protection

Detection delay time

T_SHORT

Lithium battery protection board tester

150

250

350

μS

Protection release conditions

Multimeter

Disconnect external short-circuit load or charge recovery

4.5

Internal resistance

Main circuit on-state resistance

R_DS

Lithium battery protection board tester

80

mΩ

4.6

Current consumption

Current consumption during normal operation

I_DD

Lithium battery protection board tester

20.0

μA

4.7

Quiescent Current

Current consumption in sleep mode

I_PWN

Lithium battery protection board tester

0.3

μA

4.8

Charging

0V charging function

Yes

4.9

Discharging

Sleep function

Yes
