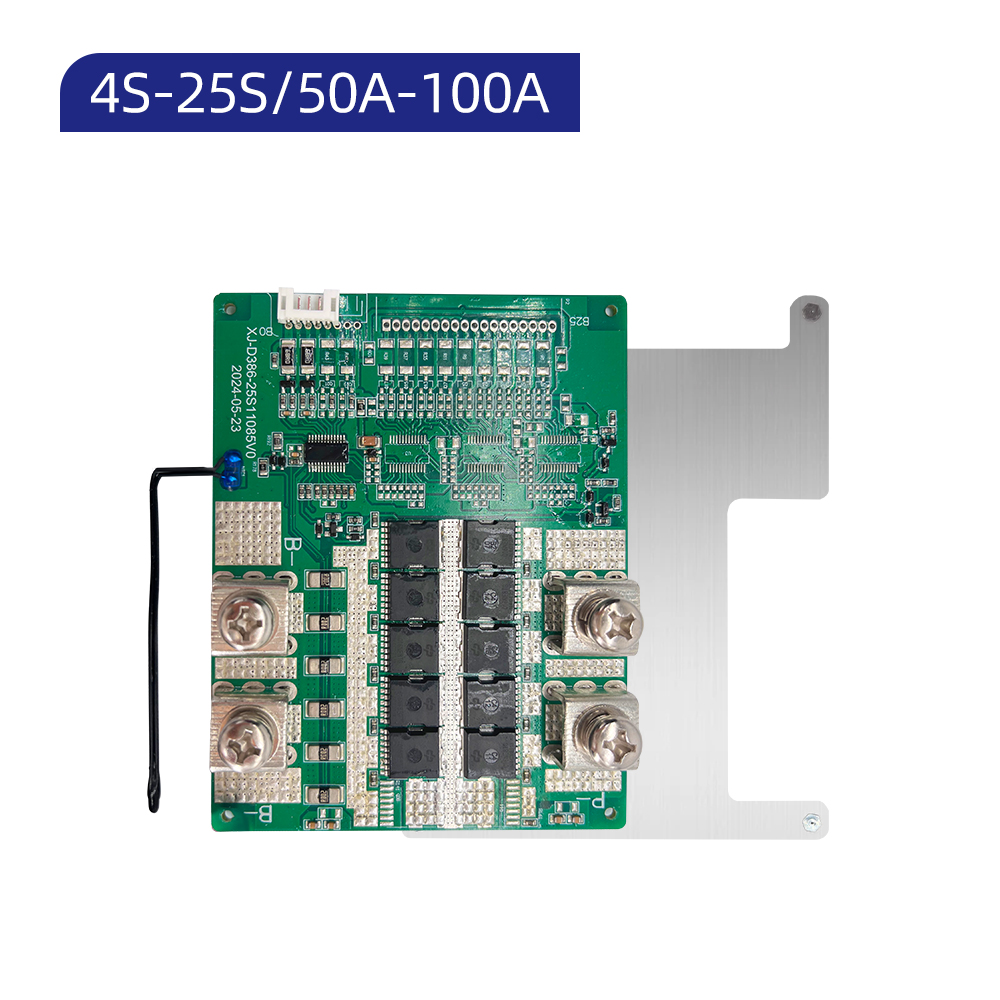

XJ-D386 4S-25S BMS 12V 48V 100A 150A BMS for Electric Vehicles Lifepo4/Li-ion battery packs

This device supports 4 - 25 strings of battery cells. With a maximum continuous working current of 100A/150A and a peak current reaching up to 450A, it's compatible with ternary lithium, lithium iron phosphate, and sodium ion battery packs. It's widely applied in low - speed electric vehicles, two - wheelers, three - wheelers, and forklifts. By offering enhanced protection, it improves battery safety and stability, thus extending battery life significantly.

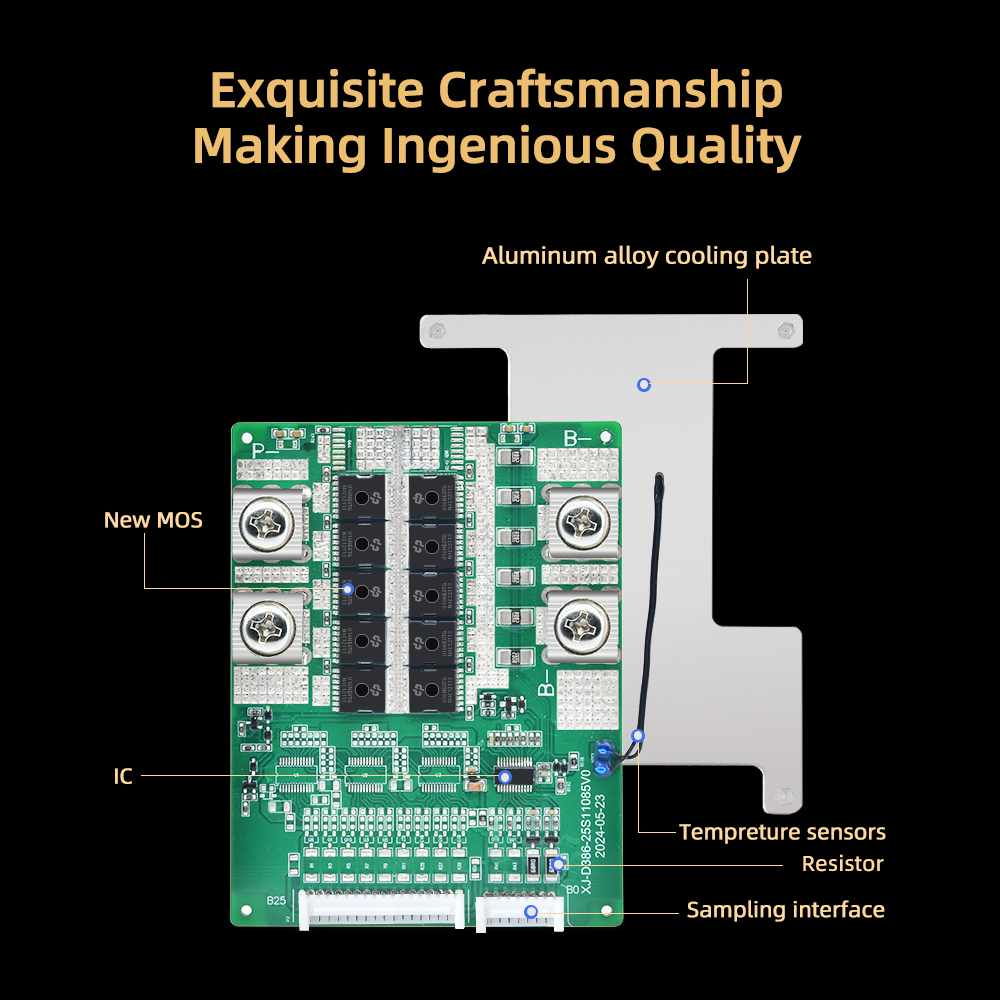

details

description

Serial number	project	Minimum	typical		maximum	unit
1	Battery pack charging voltage		29.75			V
2	Charging MOS withstand voltage	80				V
3	Discharge MOS withstand voltage	80				V
4	Single cell overcharge detection voltage	4.225	4.25		4.275	V
5	Overcharge recovery voltage	4.10	4.15		4.2	V
6	Overcharge detection delay	500	1000		1500	mxD
7	Single cell over discharge detection voltage	2.7	2. 80		2.9	V
8	Over discharge recovery voltage	2.9	3.00		3.1	V
9	Over discharge detection delay	500	1000		1500	mxD
10	Battery pack continuous discharge current				60	A
11	Battery pack continuous charging current				60	A
12	Discharge overcurrent protection	140	150		160	A
13	Overcurrent protection delay	50 0	100 0		150 0	mxD
14	Self-consumption		30		50	uA
15	Balance current	30	40		50	mA
16	Charging temperature protection	50± 4℃.
17	Discharge temperature protection	70± 4℃.
18	Output short circuit/over discharge/over current protection recovery	Automatic recovery after removing the load after short circuit/over discharge/over current protection
19	Short circuit protection delay	100		300	600	uS
20	Normal working state B- to P- internal resistance				20	mΩ

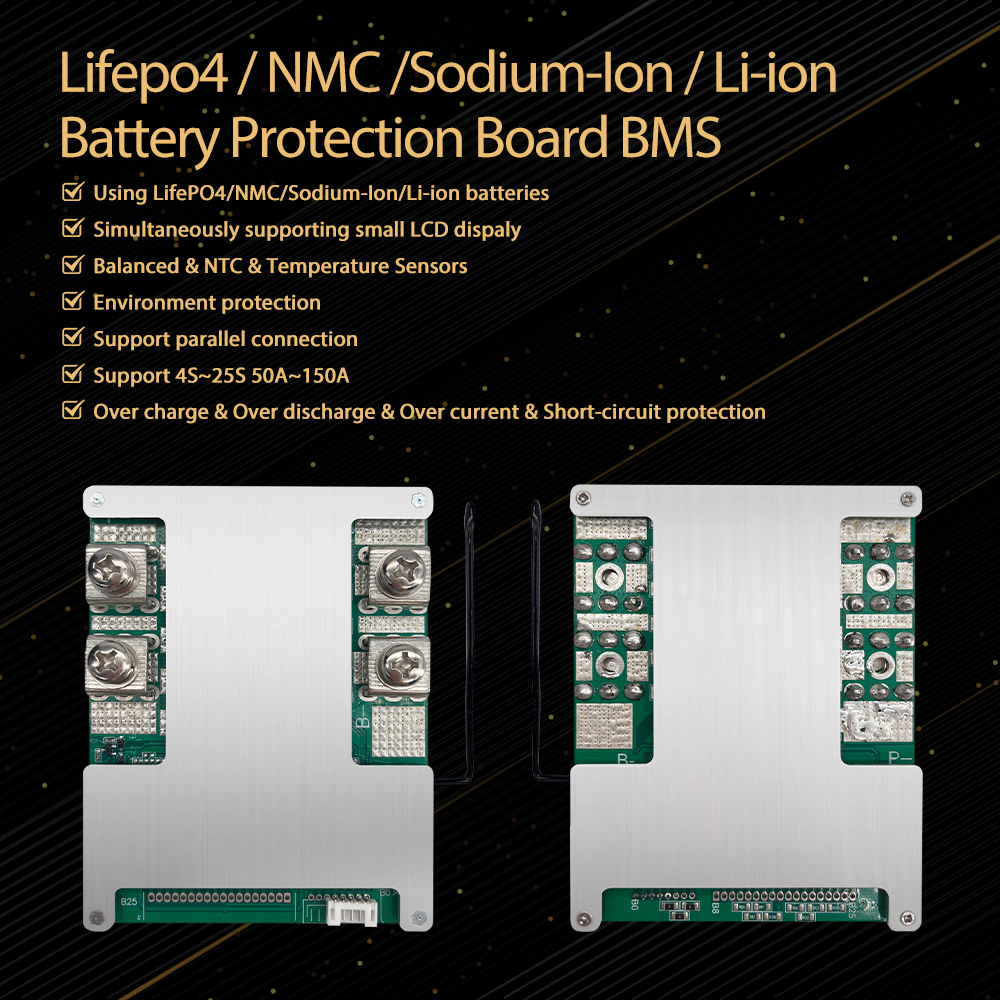

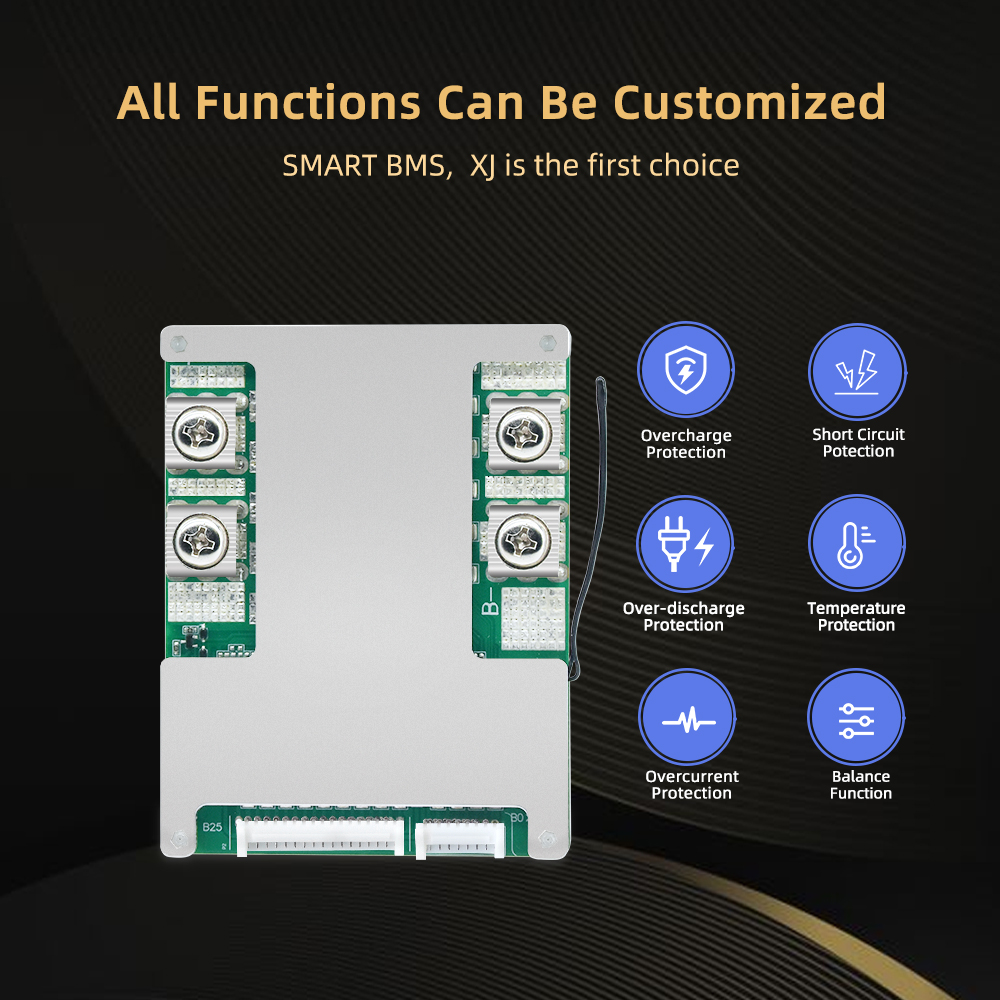

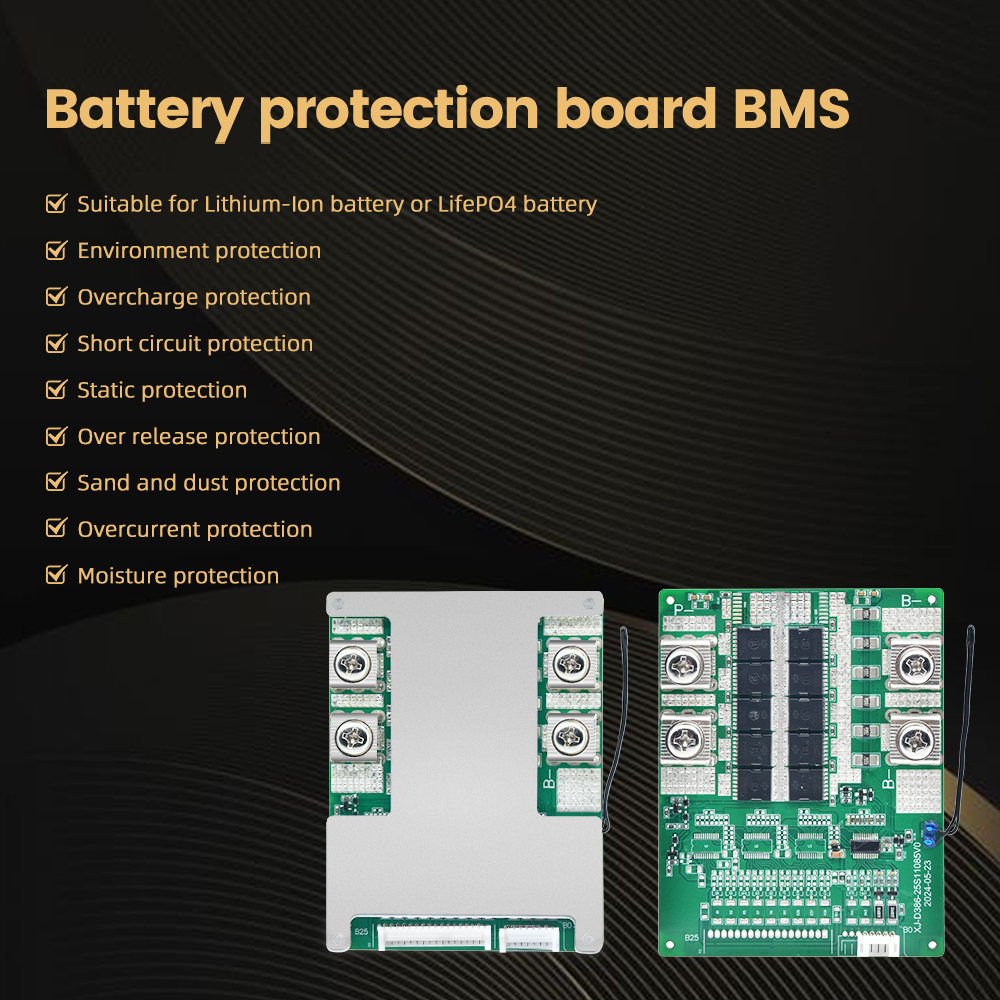

Features

1. Overcharge protection

2. Overdischarge protection

3. Overcurrent protection

4. Charging temperature protection

5. Discharging temperature protection

6. With equalization

7. Can be customized with weak current switch

Application

This advanced battery - related technology is extensively employed in a plethora of fields and diverse scenarios. For instance, in electric bicycles, it powers daily commutes and short - distance travels, ensuring a smooth and reliable ride. Two - wheeled and three - wheeled vehicles rely on it for efficient operation, whether for personal use or in delivery services. AGVs (Automated Guided Vehicles) and robots utilize it for continuous and stable energy supply during their tasks. Portable power supplies benefit from its high - performance characteristics, while RV energy storage and low - speed four - wheeled vehicles demand its stability for long - term use.

These application scenarios all have stringent requirements for battery safety and stability. To meet these demands, the hardware protection board offers crucial functions such as overvoltage protection, which shields the battery from excessive voltage that could cause damage. Undervoltage protection ensures the battery doesn't discharge too low, maintaining its lifespan. Overcurrent protection prevents over - current situations that might otherwise harm the battery. All these functions work in tandem to ensure the battery can operate normally under various working conditions.

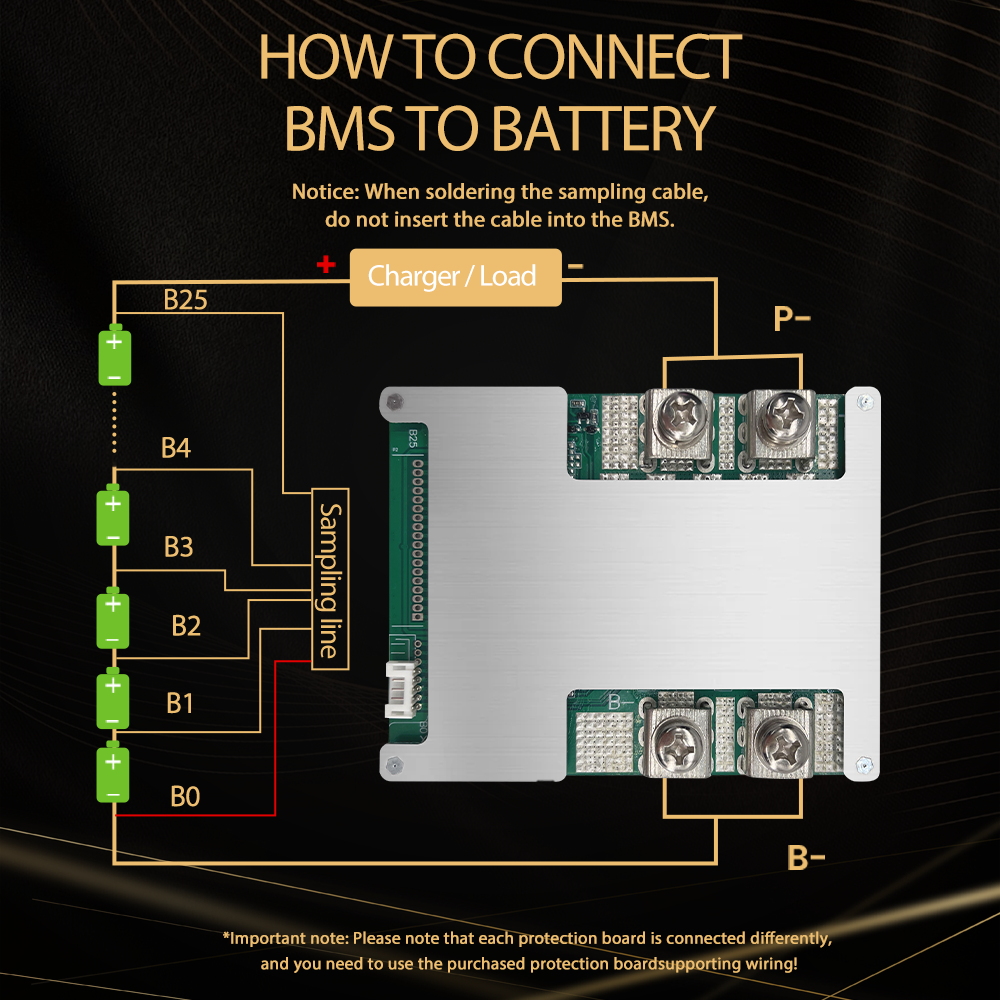

Type

Specification

(1) 4S-25S BMS

Supports max 100A/150A Batteries.

Peak Current reach 450A

Charging 50A-150A

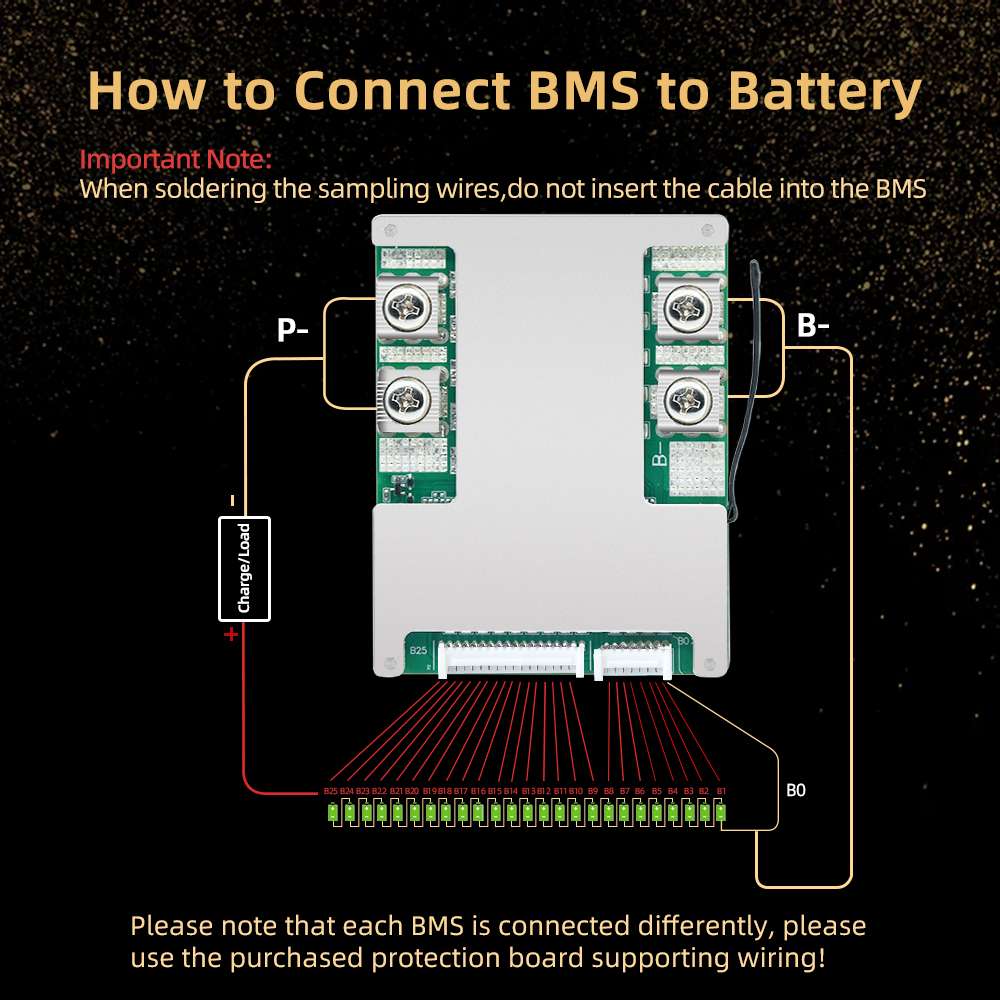

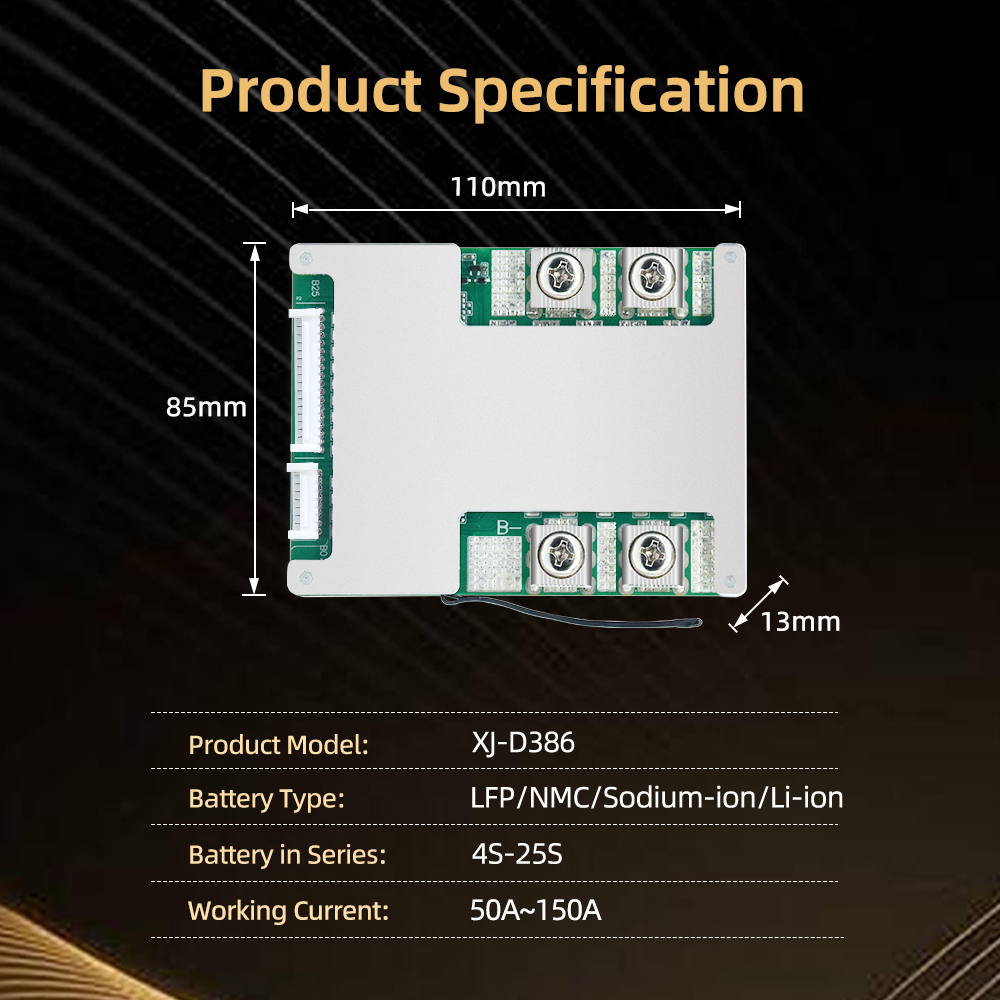

Dimension: 110*85*16mm
