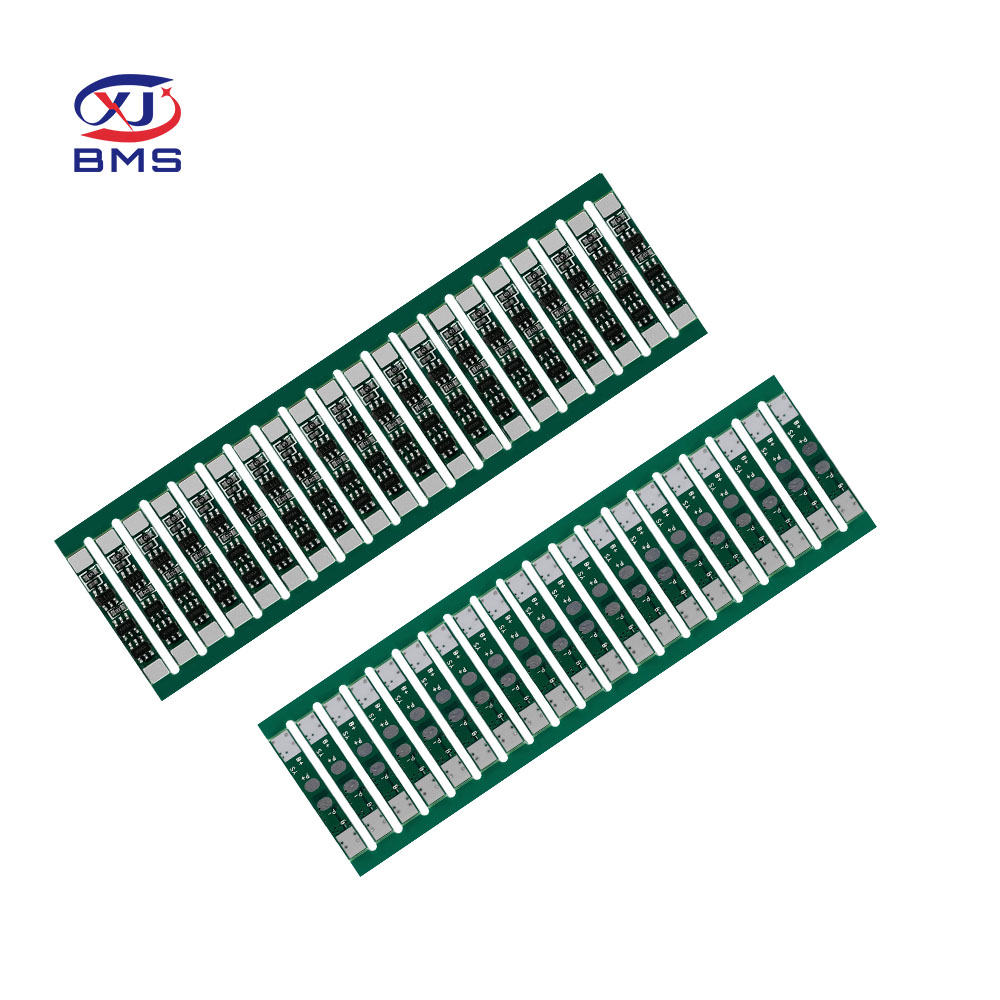

XJ-2237-6 1S 2A Single Cell Battery BMS for 18650 Lithium Battery

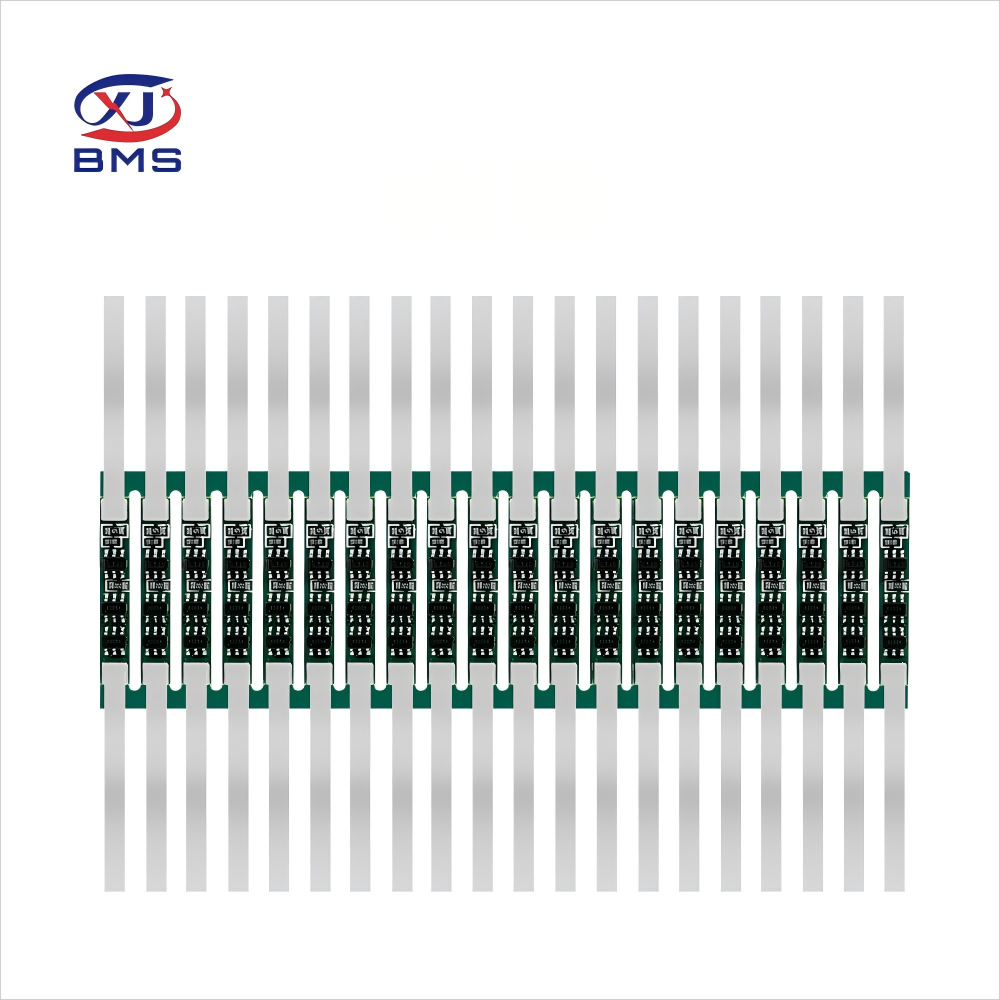

XJ-2237-6 1S 2A BMS for 18650 Lithium battery protection, this model is available with or without nickel tabs
|

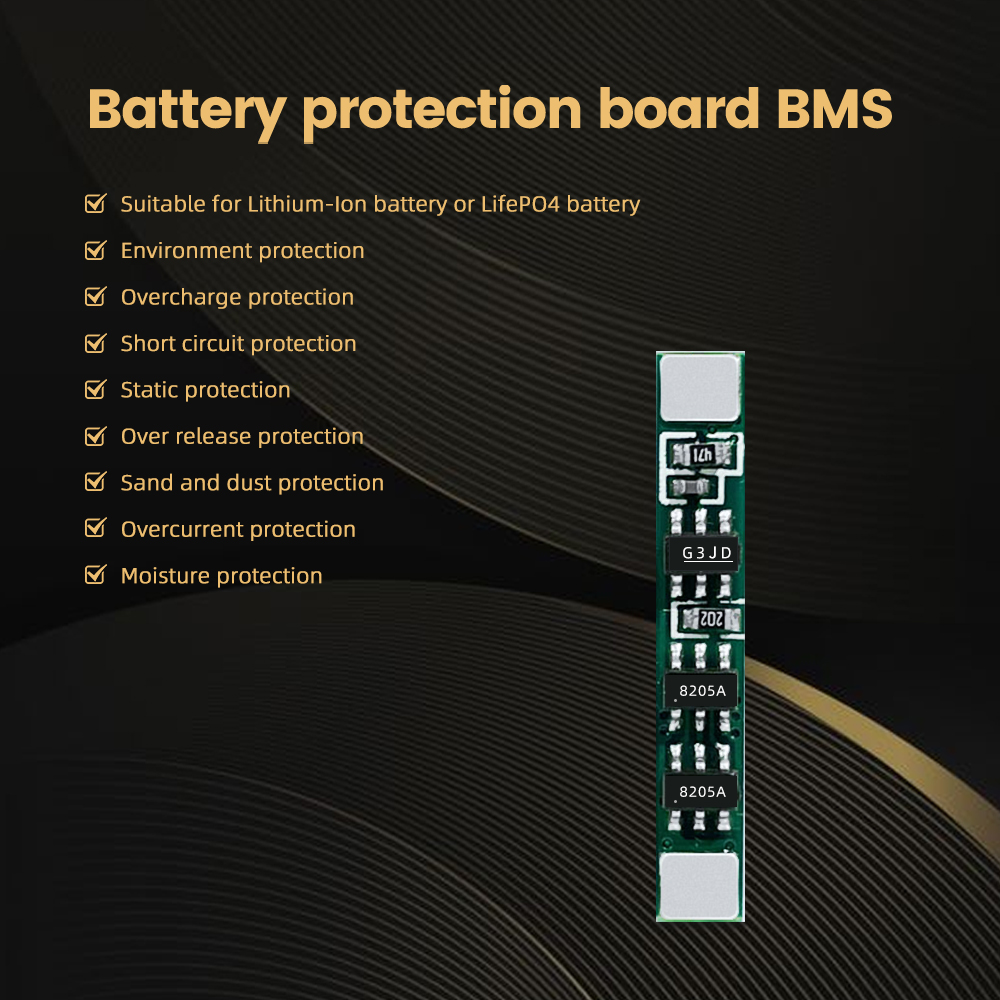

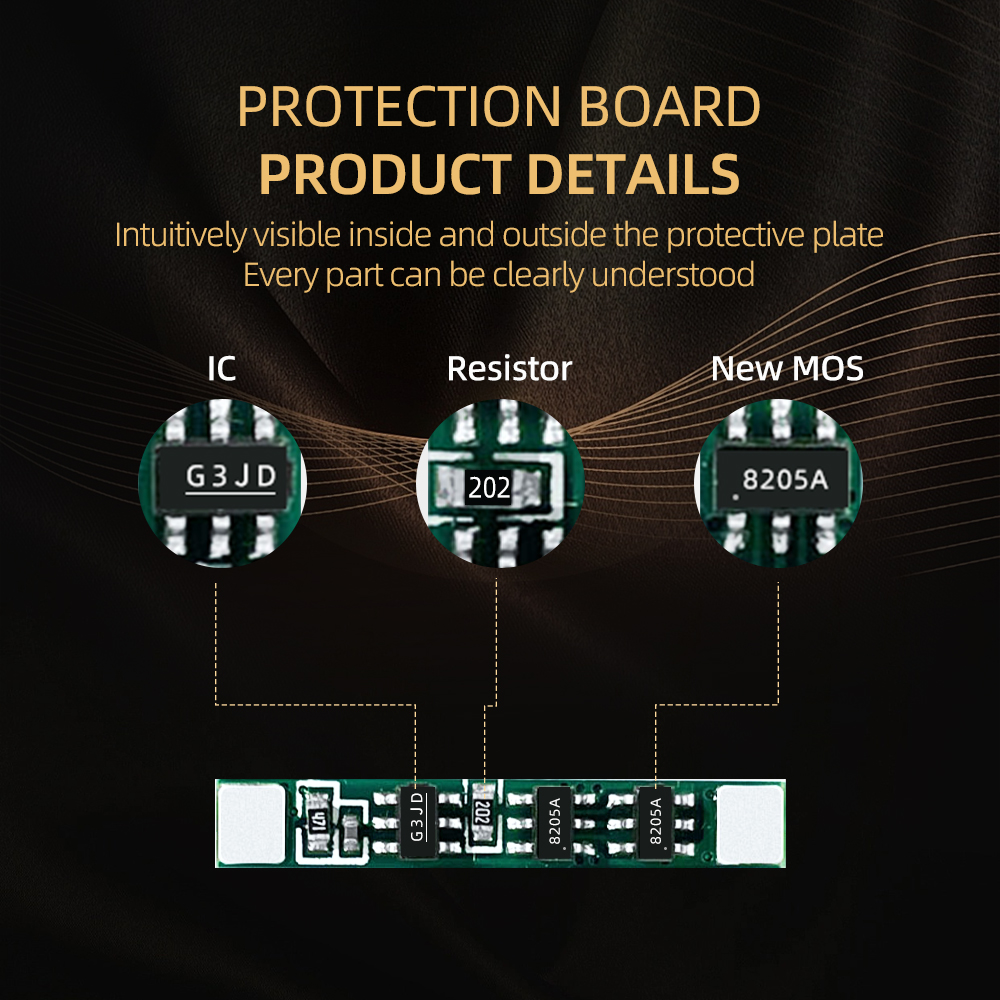

Product Name
|
1S Single Cell Battery BMS
|
|
Size
|

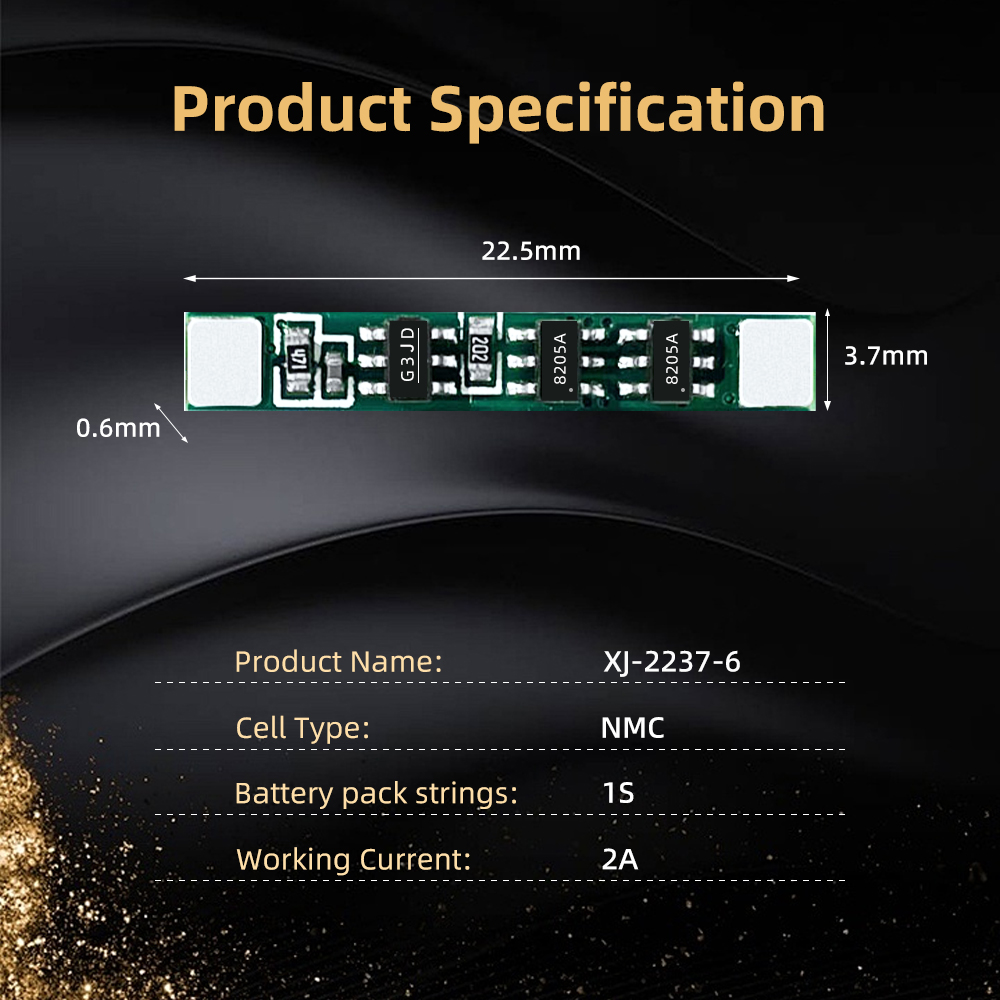

22.5*3.7*0.6mm
|
|
Current
|
2A
|
|
Cell Type
|
18650 battery
|
|
Warranty
|
24 Months
|

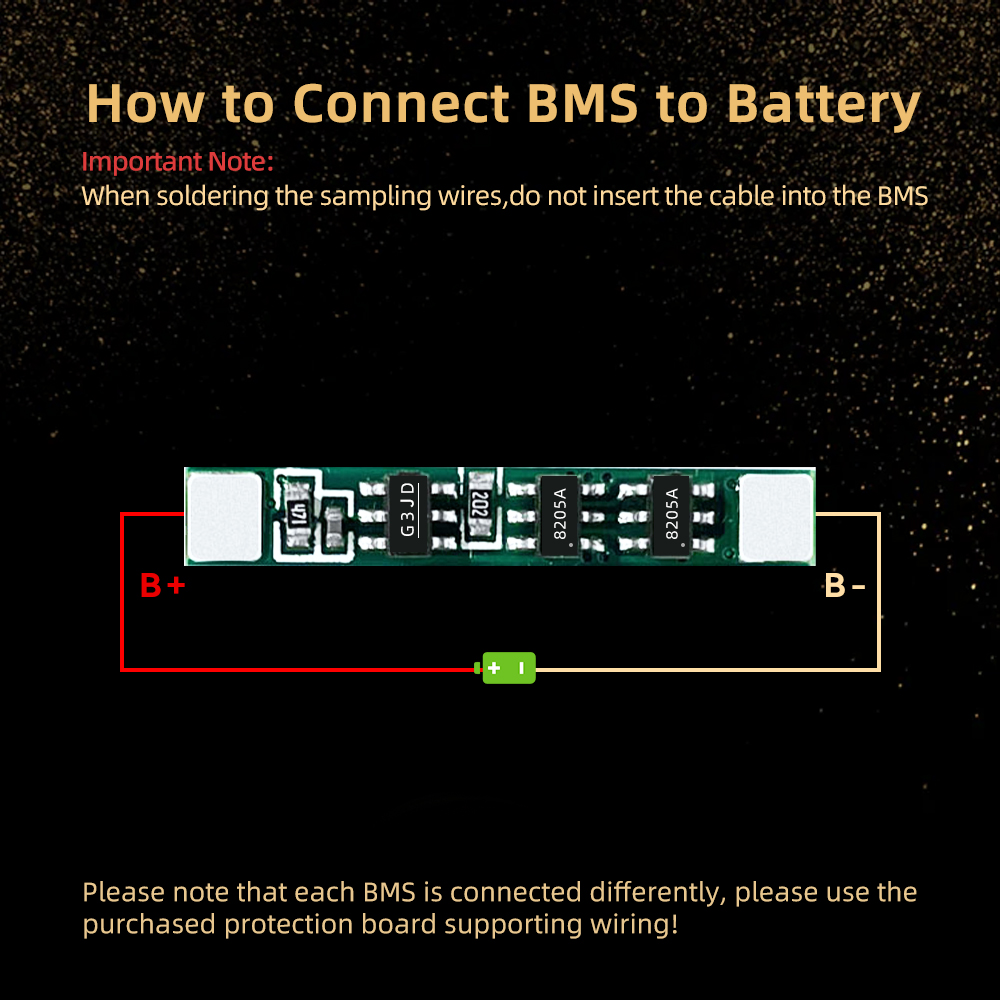

| Item | Symbol | Inspection standard | Unit | |||
| Min | Typical | Max | ||||
| Overcharge protection | Overcharge detection voltage | VDET1 | 4.23 | 4.28 | 4.33 | V |
| Overcharge detection delay time | tVDET1 | 80 | 120 | 160 | ms | |
| Overcharge discharge voltage | VREL1 | 4.03 | 4.08 | 4.13 | V | |
| Over-discharge protection | Over-discharge detection voltage | VDET2 | 2.3 | 2.4 | 2.5 | V |
| Over-discharge detection delay time | tVDET2 | 40 | 60 | 80 | ms | |
| Over-discharge discharge voltage | VREL2 | 2.9 | 3 | 3.1 | V | |
| Overcurrent protection | Overcurrent detection voltage | VDET3 | 0.12 | 0.15 | 0.18 | V |
| Overcurrent protection current | IDP | 5 | 9 | A | ||
| Detection delay time | tVDET3 | 5 | 7 | 10 | ms | |
| Short-circuit protection | Detection delay time | TSHORT | 200 | 400 | 600 | μS |
| Conditions for lifting protection | Disconnect the external short-circuit load or charge and restore | |||||
| Internal resistance | Main circuit on-state resistor | RDS | 80 | mΩ | ||
| Current consumption | It usually consumes current when in operation | IDD | 6 | μA | ||
| Static current | It consumes current during hibernation | IPWN | 2 | μA | ||
| Charge | 0V charging function | Yes | ||||
