    XJ-1S 60 1S 3.7V/ 3.2V 15A BMS for small home appliance Li-ion 18650 battery packs

    Despite its compact size, this 1S lithium battery protection board packs a punch with its remarkable capabilities. It's tailor - made for 18650 battery packs in a wide range of small household appliances. This board is engineered to safeguard the battery's health meticulously.

    By warding off over - charge, over - discharge, and over - current situations, it effectively extends the battery's lifespan. Additionally, its short - circuit protection function is a crucial feature, ensuring that small household appliances operate stably and safely, providing users with a reliable and worry - free experience.

      Contact us Download

      details

      description

      XJ-1S60 BMS (2)XJ-1S60 BMS (3)XJ-1S60 BMS (4)XJ-1S60 BMS (5)XJ-1S60 BMS (6)XJ-1S60 BMS (7)XJ-1S60 BMS (8)

      Serial number

      project

      symbol

      Inspection methods and equipment

      Inspection Standards

      unit

      Minimum

      Typical Value

      Maximum



      4.1

      Overcharge protection

      Overcharge detection voltage

      V DET1

      Lithium battery protection board tester

      3.725

      3.750

      3.775

      V

      Overcharge detection delay time

      tV DET1

      Lithium battery protection board tester

      40

      80

      160

      ms

      Overcharge release voltage

      V REL1

      Lithium battery protection board tester

      3.55

      3.60

      3.65

      V

      4.2

      Over discharge protection

      Over discharge detection voltage

      V DET2

      Lithium battery protection board tester

      2.02

      2.10

      2.18

      V

      Over discharge detection delay time

      tV DET2

      Lithium battery protection board tester

      20

      40

      80

      ms

      Over discharge release voltage

      V REL2

      Lithium battery protection board tester

      2.22

      2.32

      2.42

      V

      4.3

      Overcurrent protection

      Overcurrent detection voltage

      V DET3

      Lithium battery protection board tester

      0.185

      0.200

      0.215

      V

      Overcurrent protection current

      I DP

      Lithium battery protection board tester

      20



      30

      A

      Detection delay time

      tV DET3

      Lithium battery protection board tester

      6

      10

      twenty four

      ms

      4.4

      Short circuit protection

      Detection delay time

      T SHORT

      Lithium battery protection board tester

      150

      300

      600

      μS

      Protection release conditions



      multimeter

      Disconnect external short-circuit load or charge recovery

      4.5

      Internal resistance

      Main circuit on-state resistance

      R DS

      Lithium battery protection board tester





      80

      mΩ

      4.6

      Current consumption

      Current consumption during normal operation

      I DD

      Lithium battery protection board tester





      6.0

      μA

      4.7

      Quiescent Current

      Current consumption in sleep mode

      IP DN​

      Lithium battery protection board tester





      0.5

      μA

      4.8

      Charge

      0V charging function



      have





      4.9

      Discharge

      Sleep function



      have





      Features

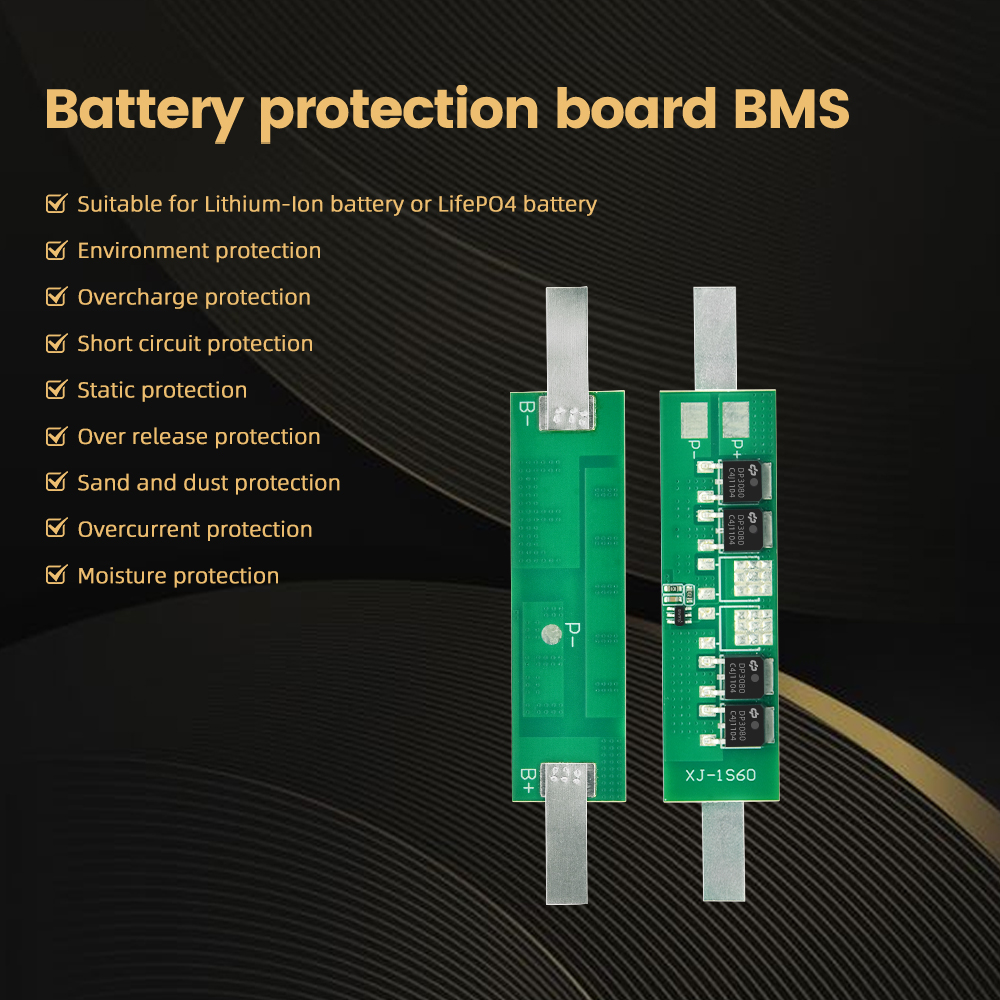

      1. Overcharge protection: When a cell reaches overcharge voltage, the board shuts down the charging circuit to prevent overcharging.
      2. Over - discharge protection: If a cell's voltage drops below the set limit, the discharge circuit is cut off to avoid over - discharging.
      3. Short - circuit protection: In case of a short - circuit at the output, the discharge circuit is immediately shut down for safety.
      4. Discharge over - current protection: When the current exceeds the limit, the discharge circuit stops to protect the battery.
      5. It has a 15A working current, high - accuracy voltage detection, secondary over - current protection, and low static current for energy savings.

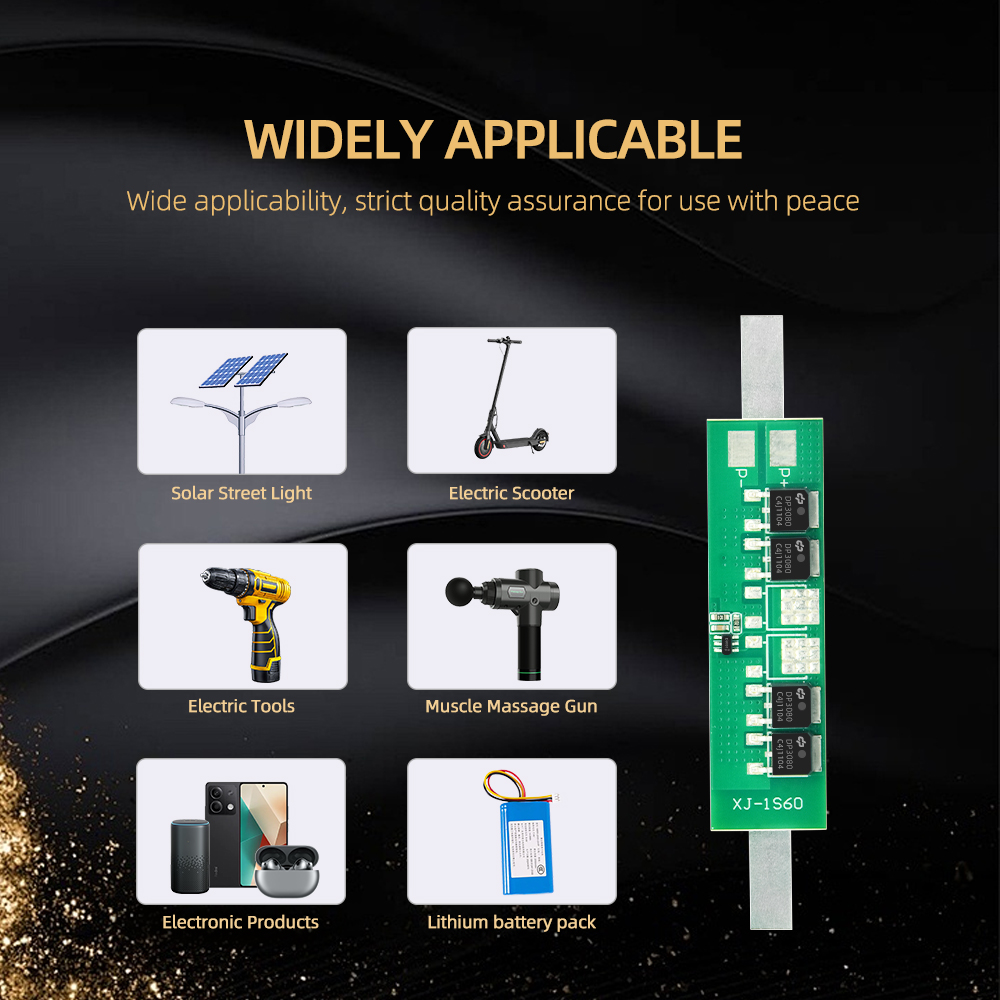

      Application

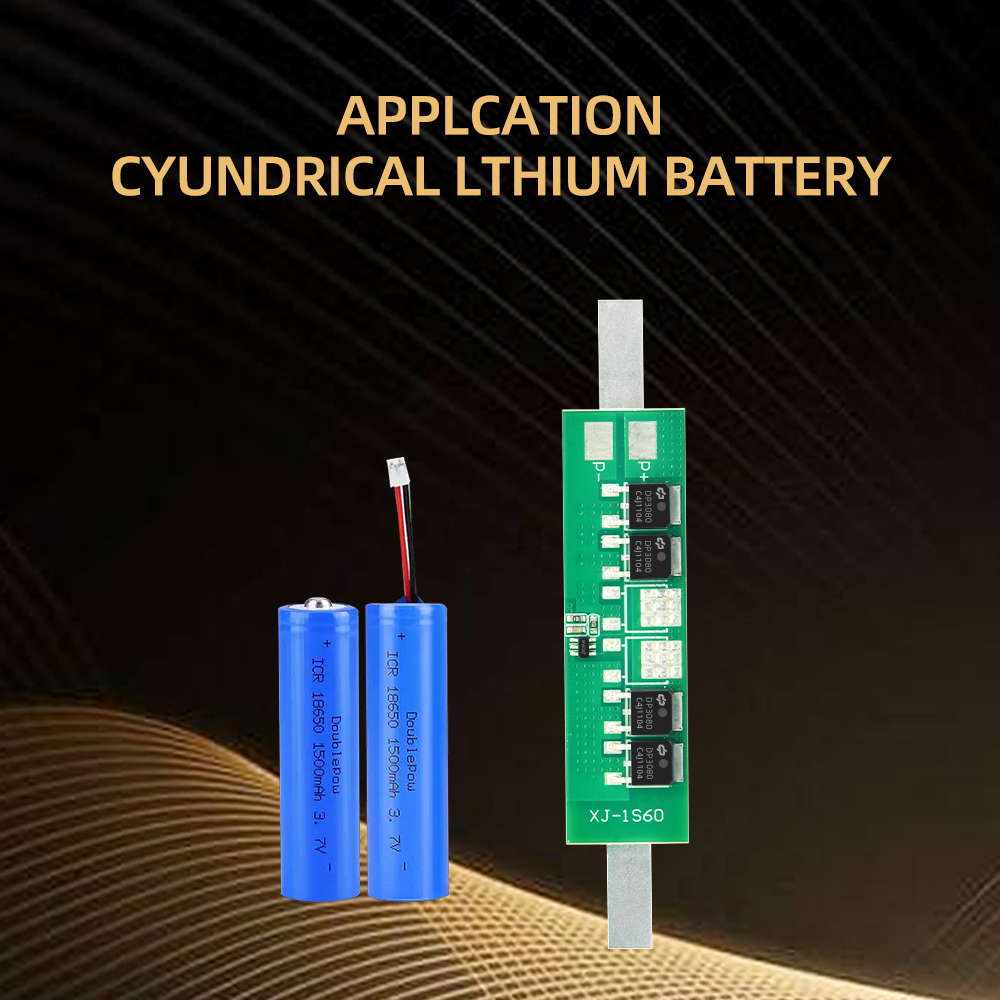

      This model is small but powerful and can be used for various small appliances such as electric drills, shavers, smart trash cans, electric razors, etc.

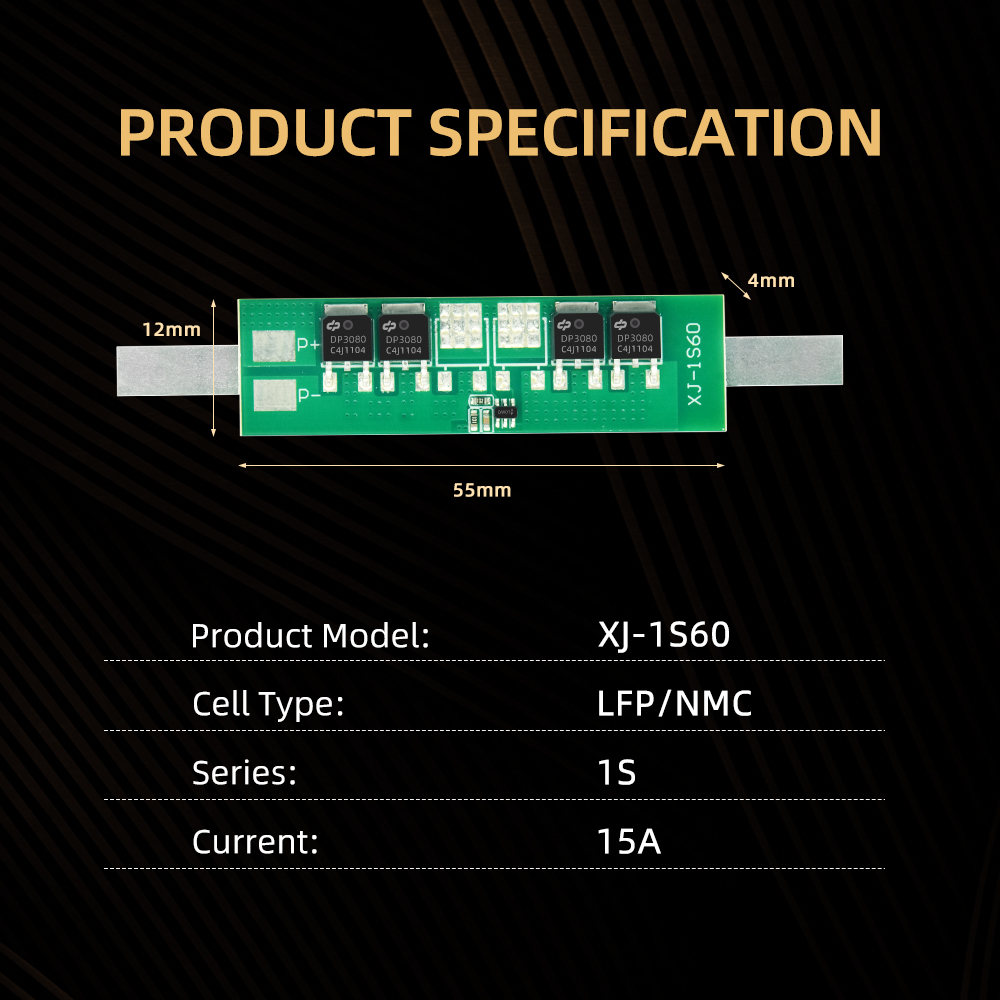

      Type

      Specification

      (1) 1S BMS

      1S : 3.7V/ 3.2V

      15A

      It can be with nickel strip
