1S BMS
XJ-1836-8 1S 1.5A 18650 Lithium Battery BMS Single Battery BMS

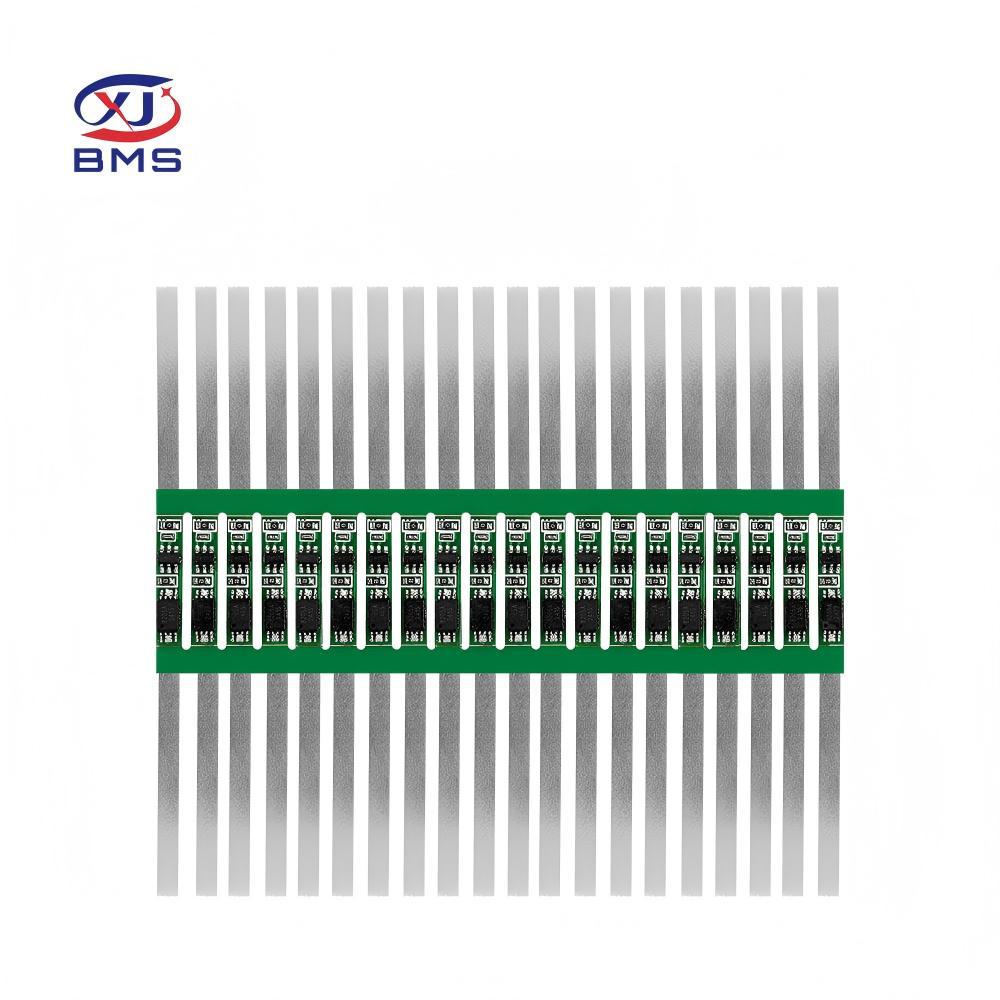

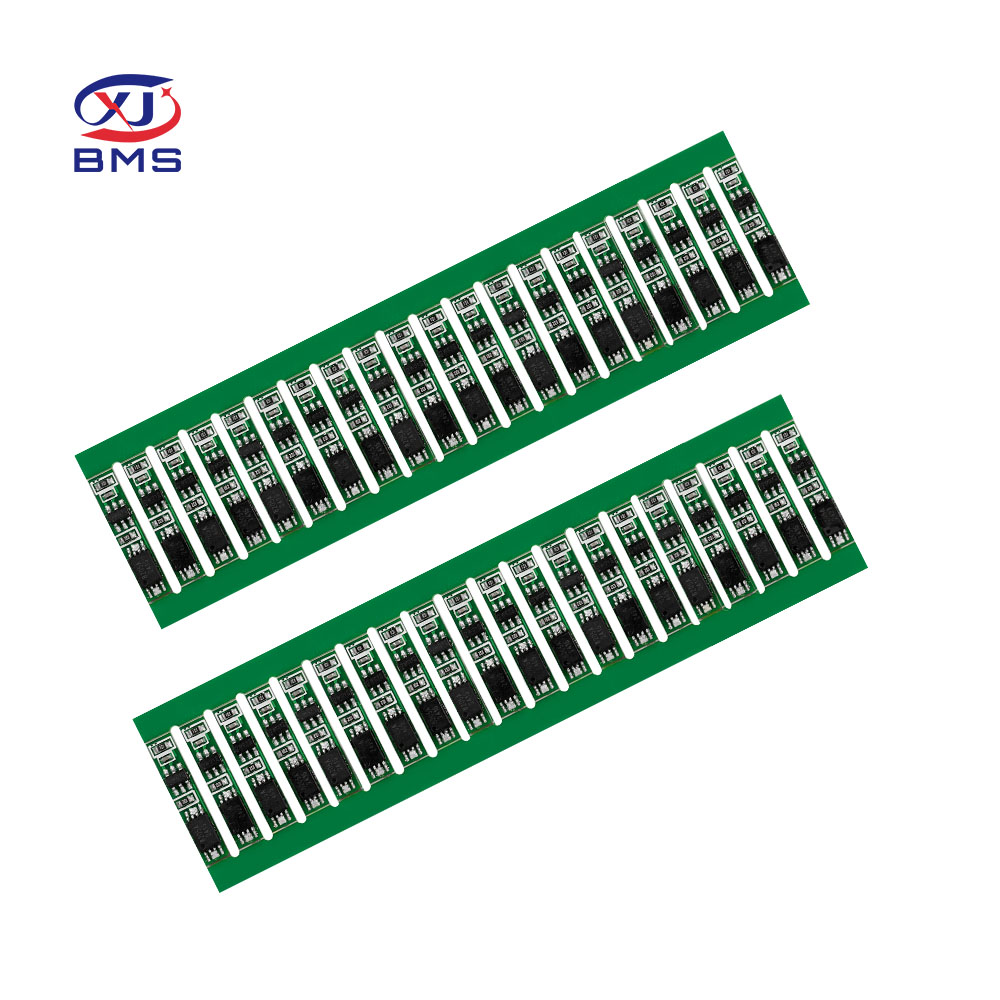

XJ-1836-8 1S 1.5A BMS for 18650 Lithium battery protection, this model is available with or without nickel tabs
|

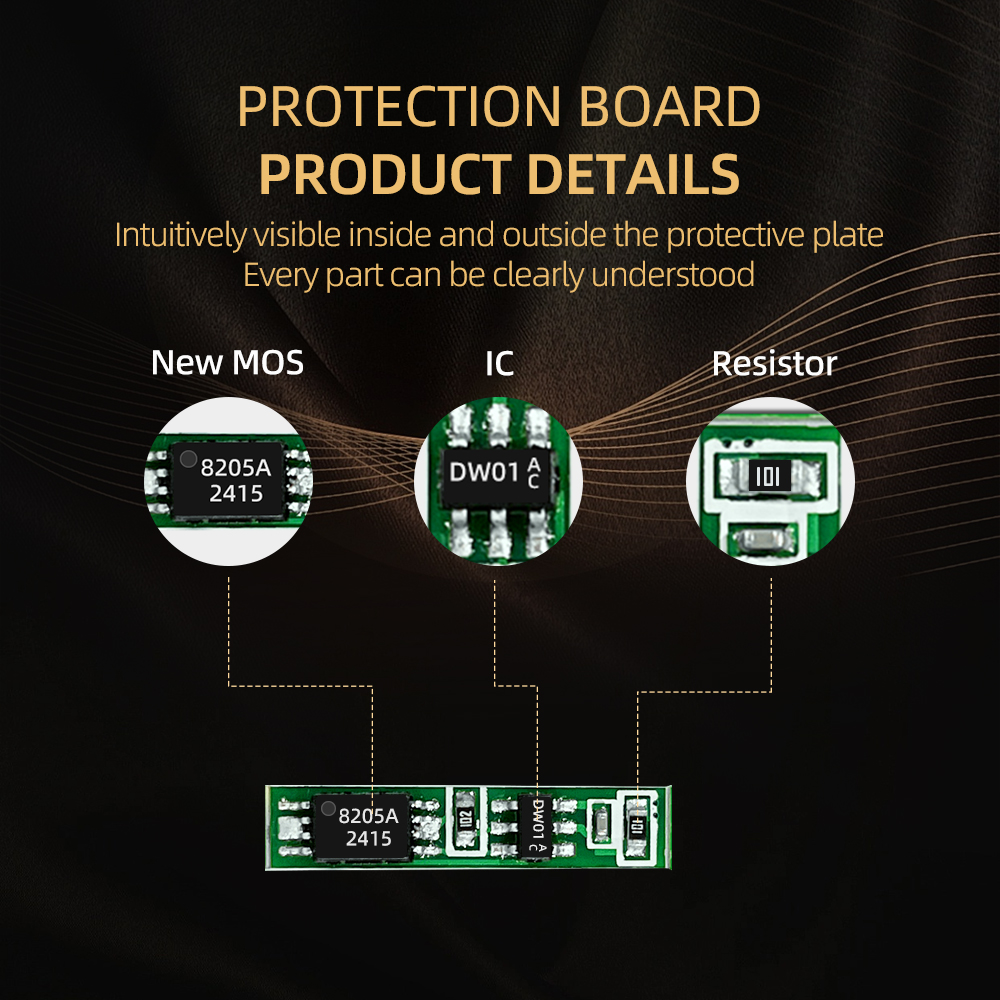

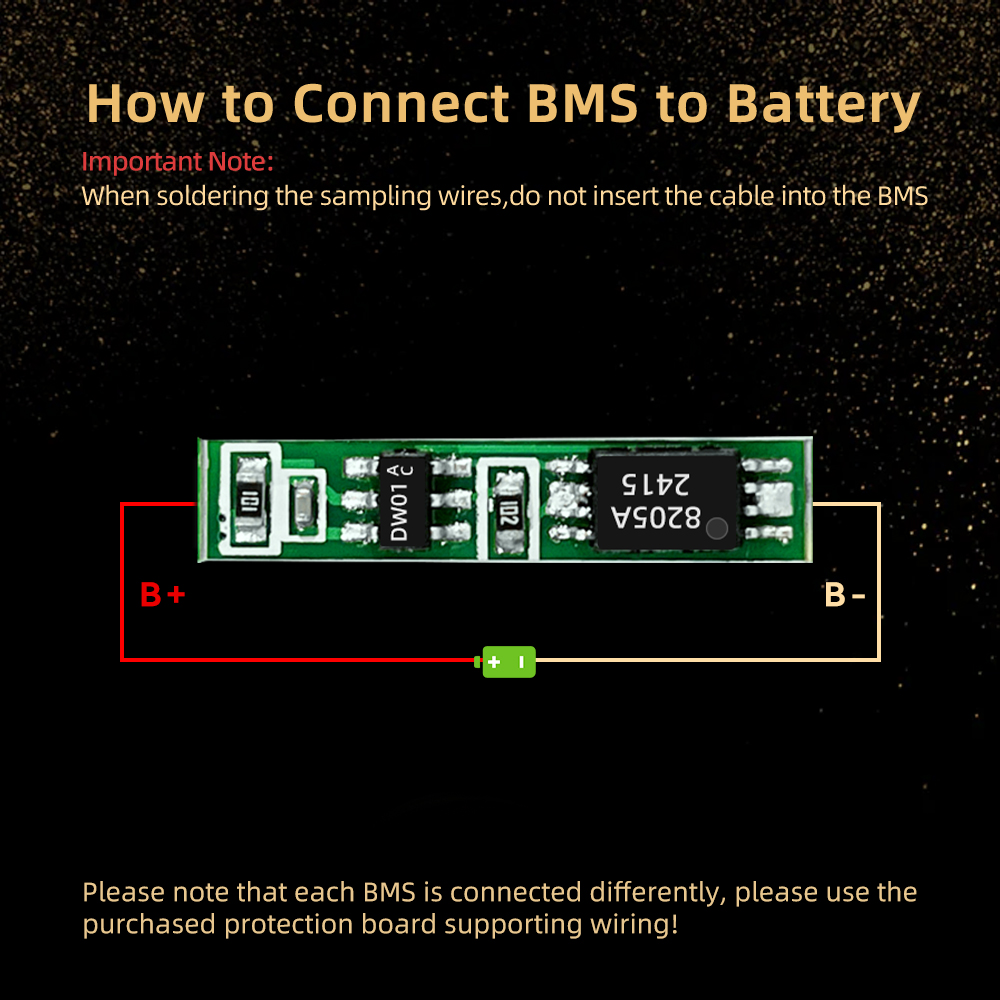

Product Name
|
1S Single Cell Battery BMS
|
|
Size
|

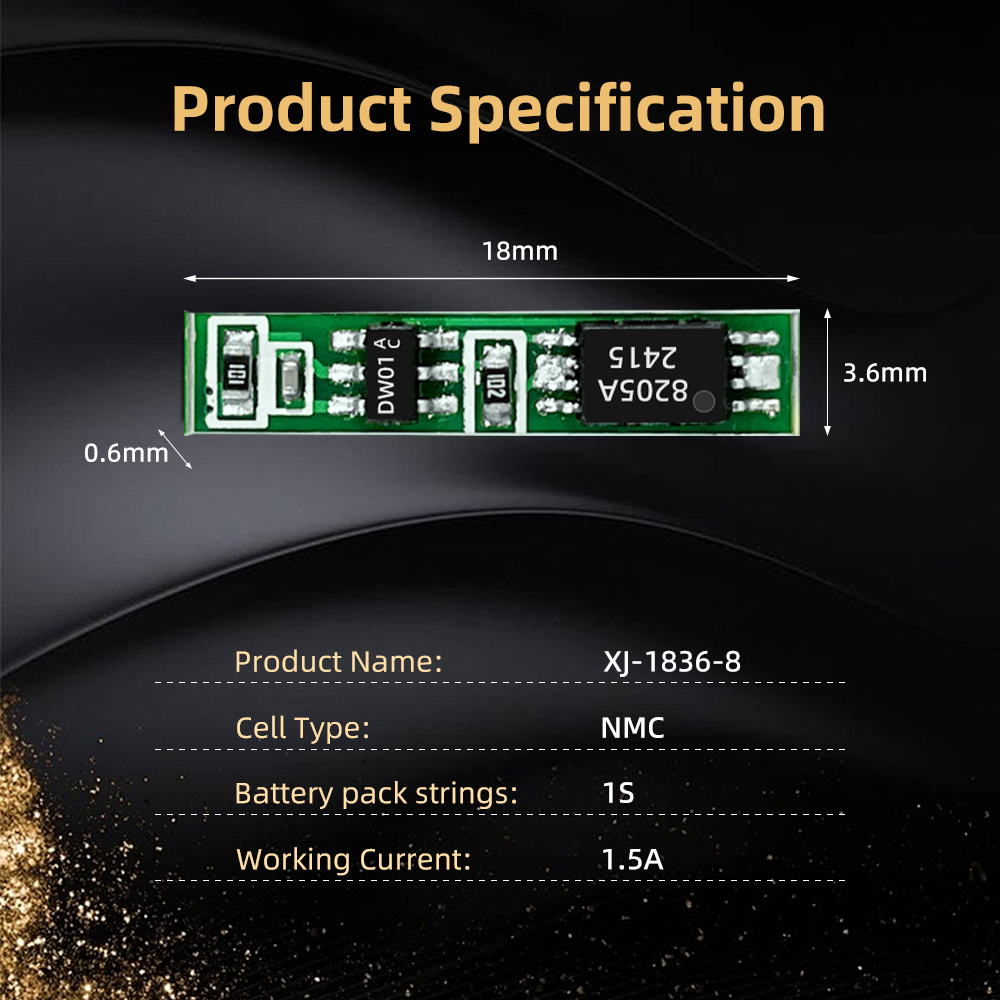

Length 18mm*Width 3.6mm*Thickness 0.6mm
|
|
Series
|
1S
|
|
Current
|
1.5A
|
|
Cell Type
|
18650
|
|
Function
|

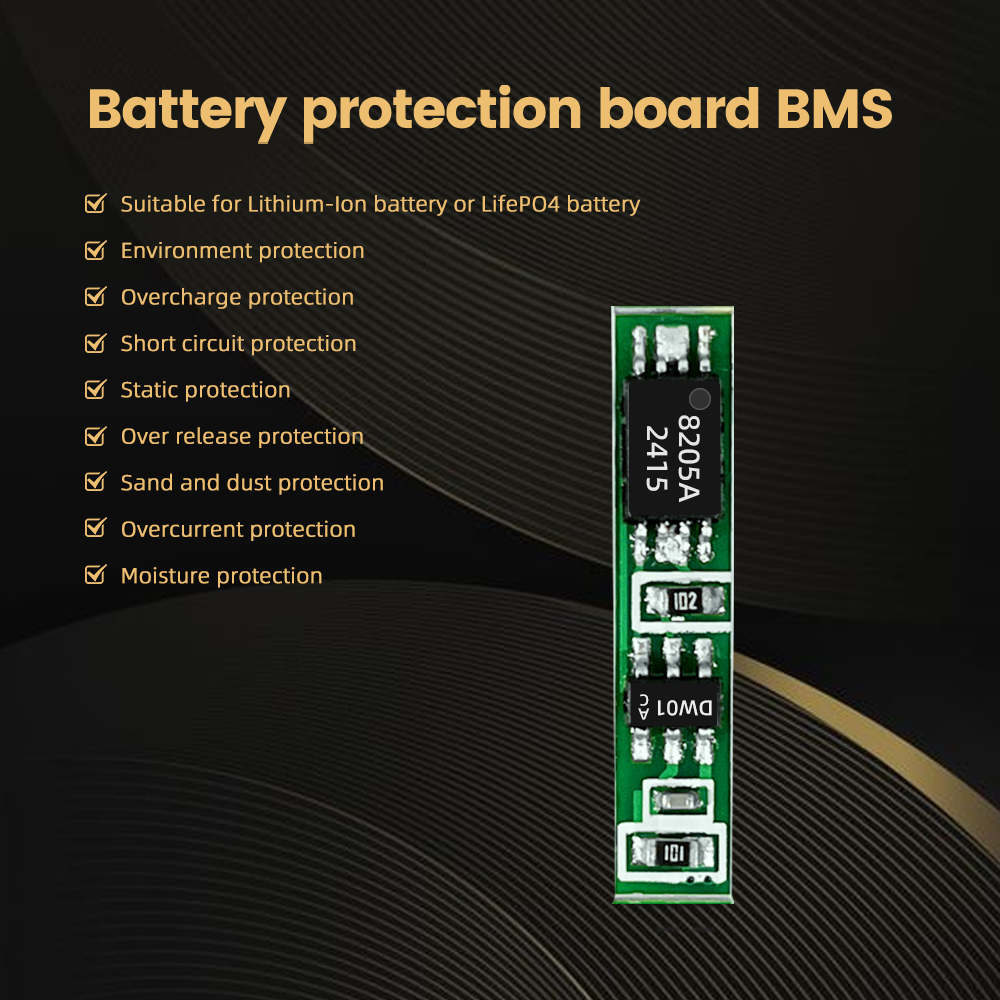

Over charge protection, Over discharge protection, Over current protection, Short-circuit protection, Electrostatic protection, Dust Protection, Moisture Protection
|
|
Warranty
|
24 Months
|
| Item | Symbol | Inspection standard | Unit | |||
| Min | Typical | Max | ||||
| Overcharge protection | Overcharge detection voltage | VDET1 | 4.255 | 4.28 | 4.305 | V |
| Overcharge detection delay time | tVDET1 | 960 | 1200 | 1400 | ms | |
| Overcharge discharge voltage | VREL1 | 4.03 | 4.08 | 4.13 | V | |
| Over-discharge protection | Over-discharge detection voltage | VDET2 | 2.95 | 3 | 3.05 | V |
| Over-discharge detection delay time | tVDET2 | 115 | 144 | 173 | ms | |
| Over-discharge discharge voltage | VREL2 | 2.95 | 3 | 3.05 | V | |
| Overcurrent protection | Overcurrent detection voltage | VDET3 | 0.065 | 0.08 | 0.095 | V |
| Overcurrent protection current | IDP | 1 | 2 | 3 | A | |
| Detection delay time | tVDET3 | 7.2 | 9 | 11 | ms | |
| Short-circuit protection | Detection delay time | TSHORT | 220 | 320 | 380 | μS |
| Conditions for lifting protection | Disconnect the external short-circuit load or charge and restore | |||||
| Internal resistance | Main circuit on-state resistor | RDS | 20 | 50 | 65 | mΩ |
| Current consumption | It usually consumes current when in operation | IDD | 1 | 3.5 | 7 | μA |
| Static current | It consumes current during hibernation | IPWN | 0.1 | μA | ||
