XJ-18-6H 1S 1A BMS for Lithium 18650 Battery Single Cell Battery Management System

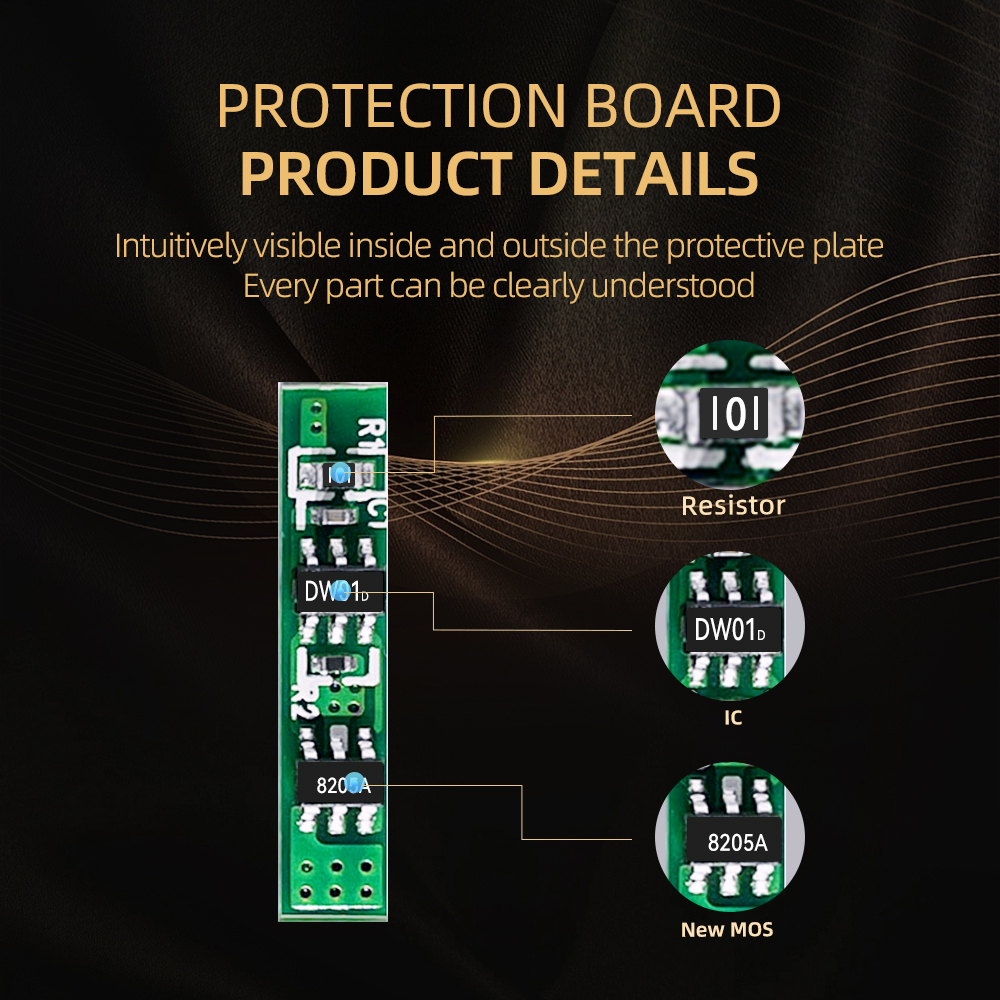

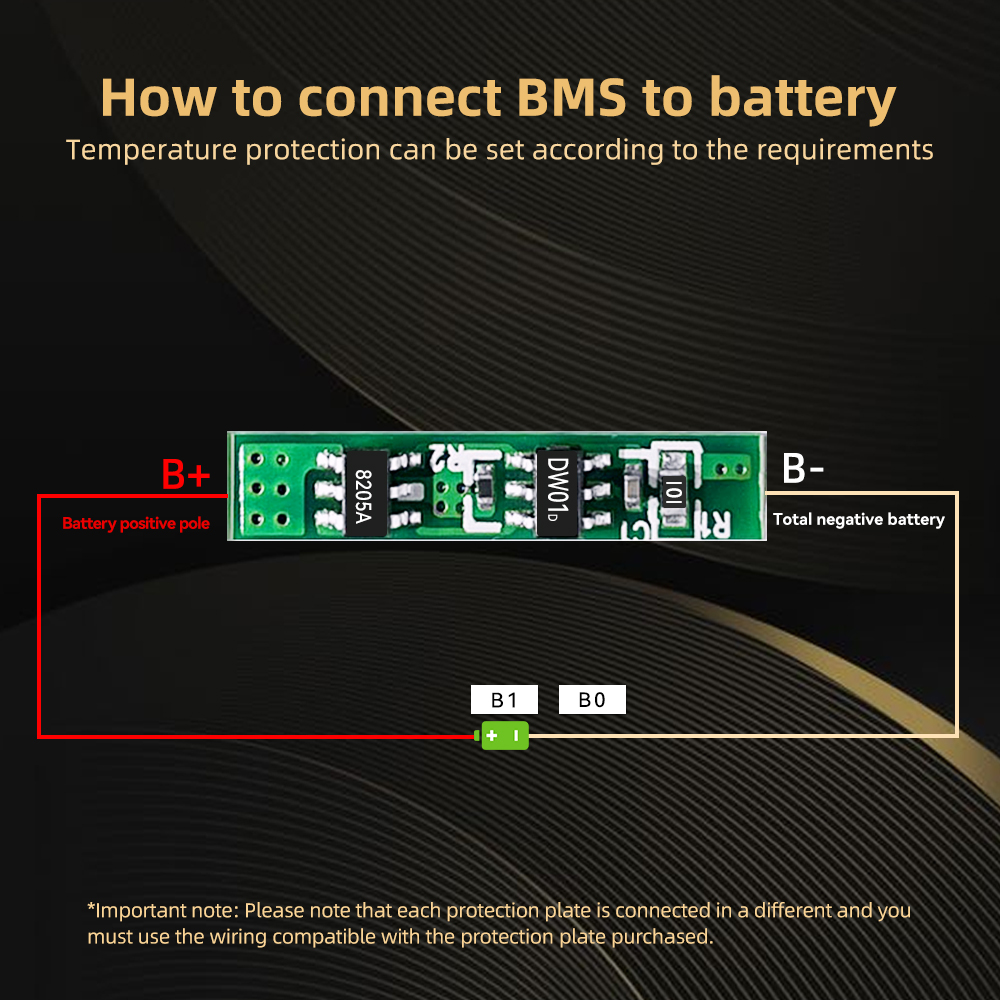

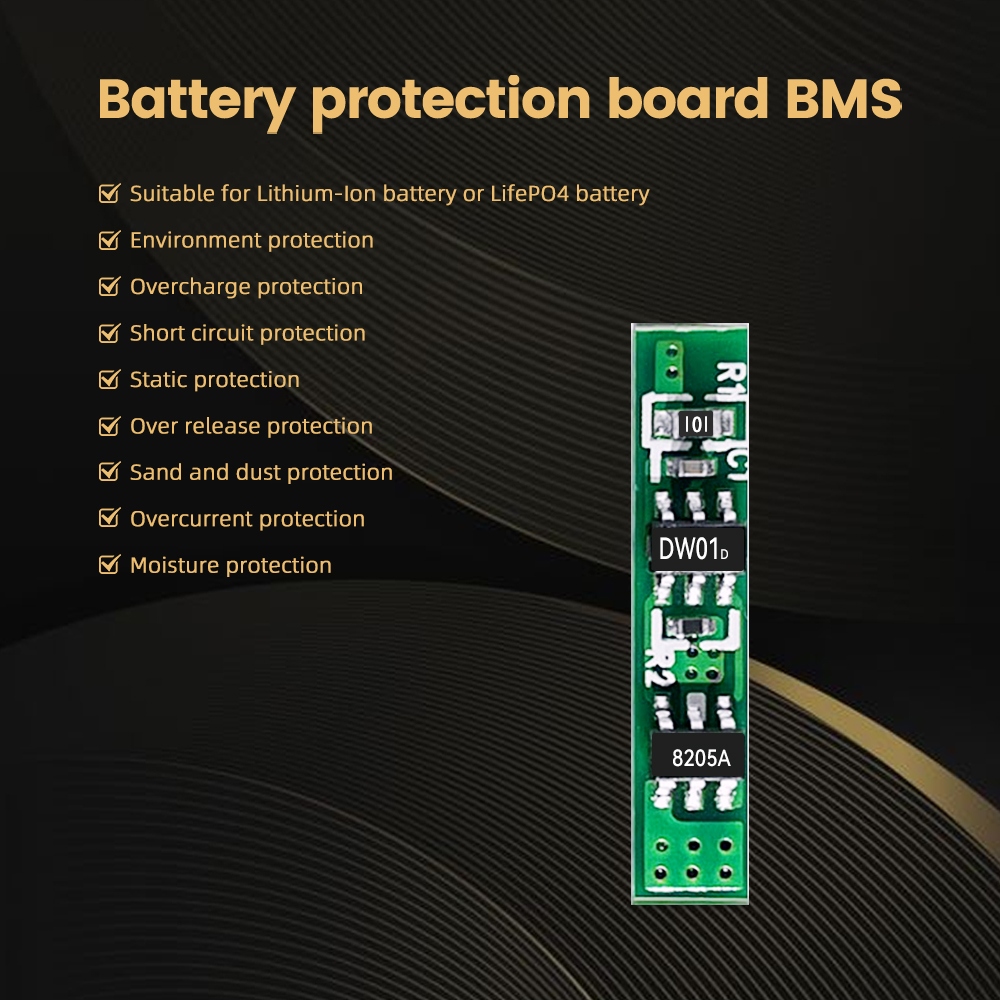

XJ-18-6H 1S 1A 3.2V 3.7V BMS, single cell battery protection board
It can be equipped with nickel strip or without nickel strip, which is optional.
|
Product Name
|
1S BMS
|
|
Size
|

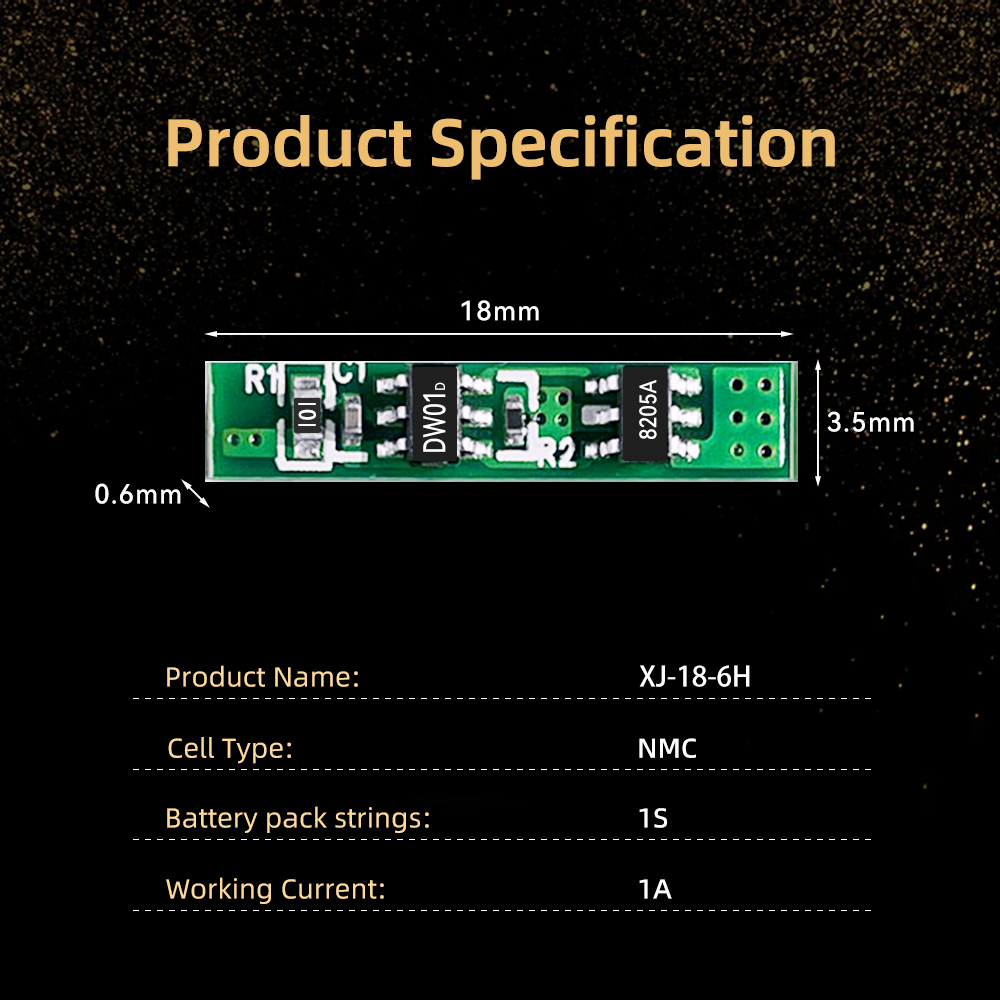

18*3.5*0.6mm
|
|
Current
|
1A
|
|
Cell Type
|
18650 Lithium battery
|
|
Warranty
|
24 Months
|
| Item | Symbol | Inspection standard | Unit | |||
| Min | Typical | Max | ||||
| Overcharge protection | Overcharge detection voltage | VDET1 | 4.25 | 4.3 | 4.35 | V |
| Overcharge detection delay time | tVDET1 | 100 | 200 | ms | ||
| Overcharge discharge voltage | VREL1 | 4.05 | 4.1 | 4.15 | V | |
| Over-discharge protection | Over-discharge detection voltage | VDET2 | 2.4 | 2.5 | 2.6 | V |
| Over-discharge detection delay time | tVDET2 | 50 | 100 | ms | ||
| Over-discharge discharge voltage | VREL2 | 2.8 | 2.9 | 3 | V | |
| Overcurrent protection | Overcurrent detection voltage | VDET3 | 0.12 | 0.15 | 0.18 | V |
| Overcurrent protection current | IDP | 2 | 3 | 4 | A | |
| Detection delay time | tVDET3 | 10 | 20 | ms | ||
| Short-circuit protection | Detection delay time | TSHORT | 5 | 50 | μS | |
| Conditions for lifting protection | Disconnect the external short-circuit load or charge and restore | |||||
| Internal resistance | Main circuit on-state resistor | RDS | 35 | 50 | 65 | mΩ |
| Current consumption | It usually consumes current when in operation | IDD | 3 | 6 | μA | |
| Static current | It consumes current during hibernation | IPWN | 0.1 | 0.6 | μA | |
