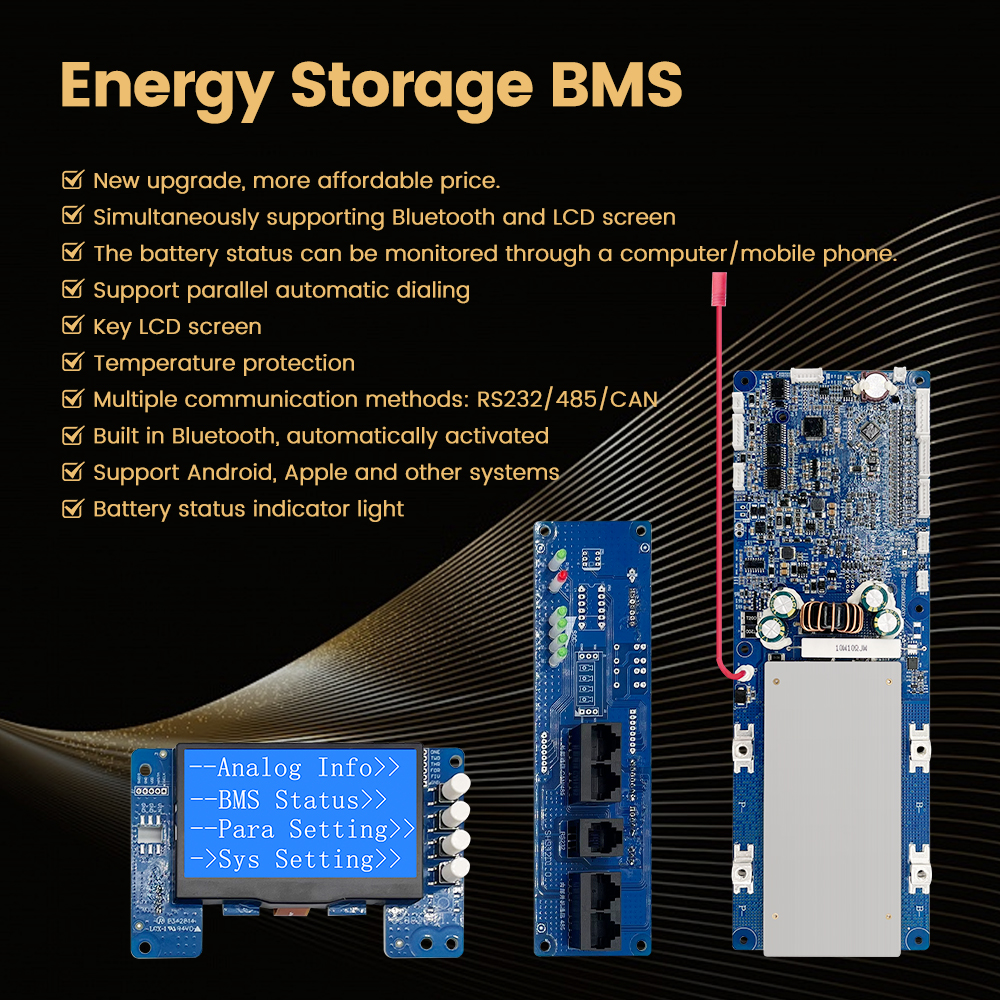

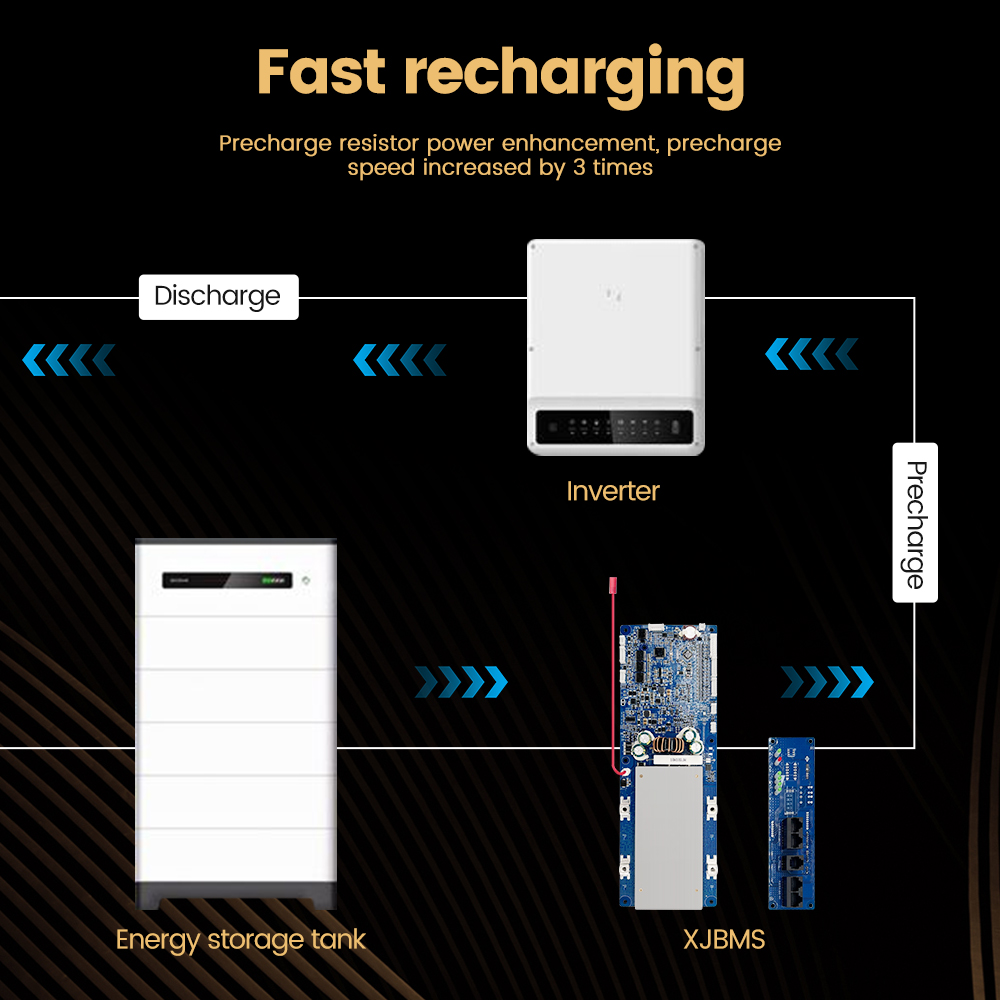

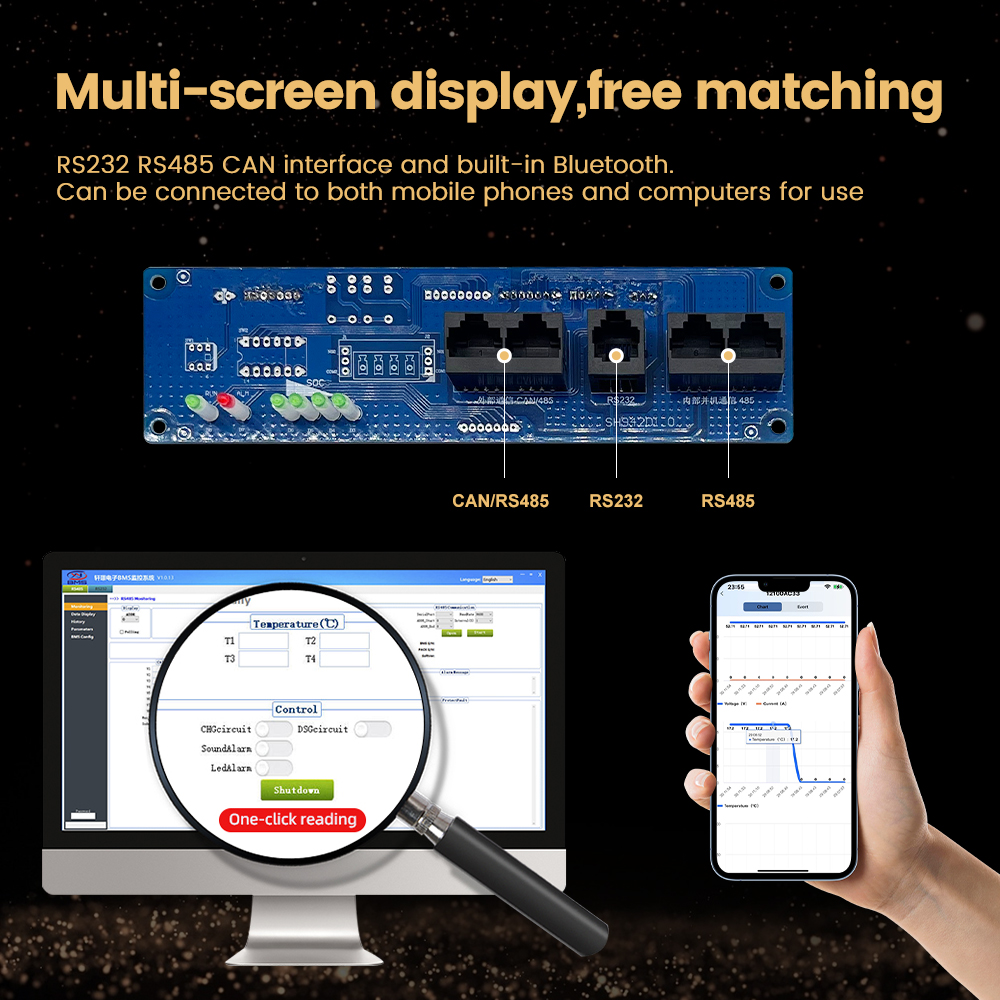

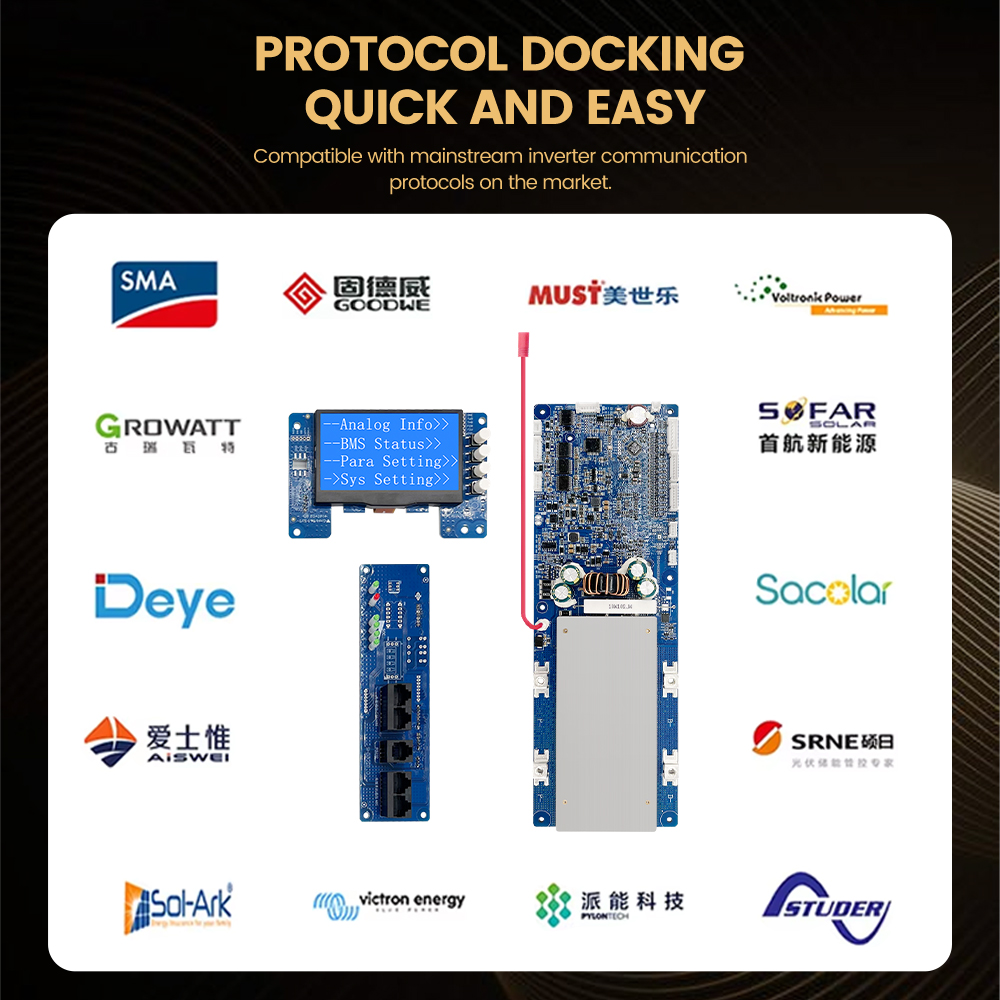

XJ-SH05-C 16S 100A Lithium Battery Management System with Display & Bluetooth
|
Type |
Specification |
|
(1) XJ-SH05-C 7-16S 100A BMS |
Supports 7-16S Batteries. Battery Type: NMC/LFP

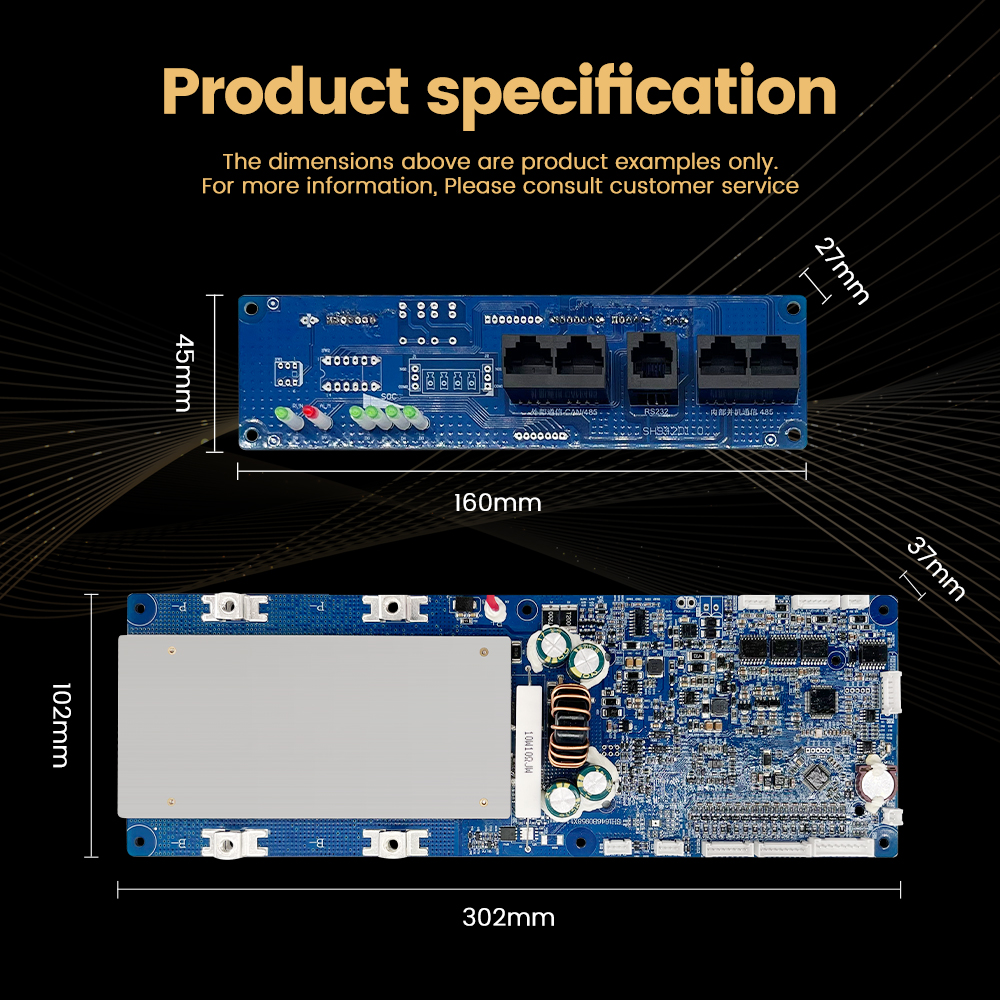

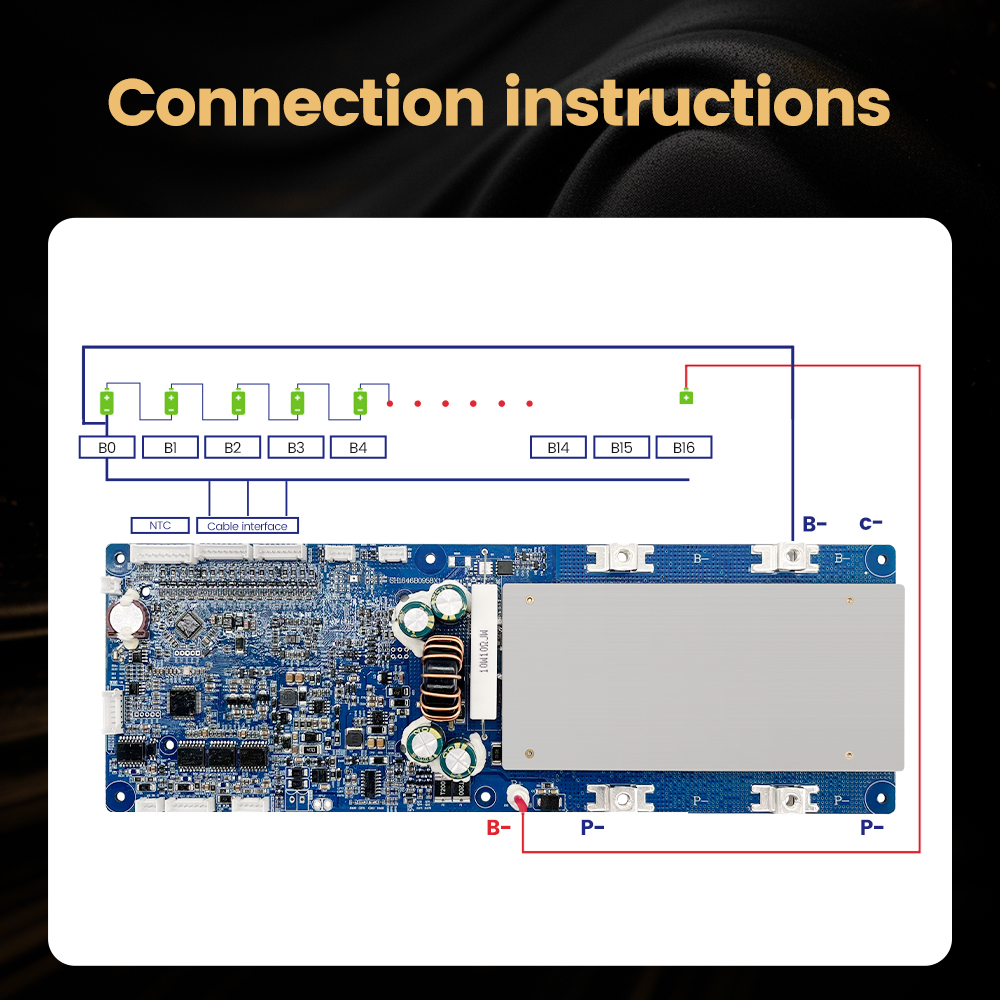

Dimension:302*102*37mm |
|
Serial number |
Indicator items |
Factory default parameters |
Is it possible to set |
Remark |
|
|
1 |
Single unit overcharge protection |
Cell overcharge alarm voltage |
3600mV |
Can be set |
|
|
Cell overcharge protection voltage |
3650mV |
Can be set |
|||
|
Single unit overcharge protection delay |
1.0S |
Can be set |
|||
|
Single unit over voltage protection is released |
Cell overcharge protection release voltage |
3380mV |
Can be set |
||
|
Discharge release |
Discharge current > 1A |
||||
|
2 |
Single unit over-discharge protection |
Cell over-discharge alarm voltage |
2900mV |
Can be set |
It still cannot recover after over-discharge protection , it will enter low power consumption mode. |
|
Single unit over-discharge protection voltage |
2800mV |
Can be set |
|||
|
Single unit over-discharge protection delay |
1.0S |
Can be set |
|||
|
Single unit over-discharge protection is released |
Cell over-discharge protection release voltage |
3000mV |
Can be set |
||
|
Release when charging |
Can be activated by plugging in a charger |
||||
|
3 |
Overall overcharge protection |
Overall overcharge alarm voltage |
56.8V |
Can be set |
|
|
Overall overcharge protection voltage |
57.6V |
Can be set |
|||
|
Overall overcharge protection delay |
1.0S |
Can be set |
|||
|
Overall over voltage protection is released |
Overall overcharge protection release voltage |
54.08V |
Can be set |
||
|
Discharge release |
Discharge current > 1A |
||||
|
4 |
Overall over-discharge protection |
Overall over-discharge alarm voltage |
47.2V |
Can be set |
It still cannot recover after over-discharge protection , it will enter low power consumption mode. |
|
Overall over-discharge protection voltage |
45.6V |
Can be set |
|||
|
Overall over-discharge protection delay |
1.0S |
Can be set |
|||
|
Overall over-discharge protection is released |
Overall over-discharge protection release voltage |
48V |
Can be set |
||
|
Release when charging |
Can be activated by plugging in a charger |
||||
|
5 |
Charging overcurrent protection |
Charging overcurrent alarm current |
205A |
Can be set |
|
|
Charging overcurrent protection current |
210A |
Can be set |
|||
|
Charging overcurrent protection delay |
1.0S |
Can be set |
|||
|
Charging overcurrent protection is released |
Automatically release |
Automatically cancel after 1 minute |
|||
|
|
|
Discharge release |
Discharge current > 1A |
|
|
|
6 |
Discharge overcurrent protection |
Discharge overcurrent 1 alarm current |
205A |
Can be set |
|
|
Discharge overcurrent 1 protection current |
210A |
Can be set |
|||
|
Discharge overcurrent 1 protection delay |
1.0S |
Can be set |
|||
|
Discharge overcurrent 1 protection is released |
Automatically release |
Automatically cancel after 1 minute |
|||
|
Charge released |
Charging current > 1A |
|
|||
|
7 |
Discharge overcurrent 2 |
Discharge overcurrent 2 protection current |
≥250A |
Can be set |
|
|
Discharge overcurrent 2 protection is released |
Automatically release |
Automatically cancel after 1 minute |
|||
|
Charge released |
Charging current > 1A |
|
|||
|
8 |
Short circuit protection |
Short circuit protection delay |
＜300Us |
|
|
|
Short circuit protection released |
When charging, short circuit protection is released |
||||
|
After the load is removed, it will be automatically released |
|||||
|
9 |
MOS high temperature protection |
MOS over temperature alarm temperature |
90℃ |
Can be set |
|
|
MOS over temperature protection temperature |
115℃ |
Can be set |
|||
|
MOS protection release temperature |
85℃ |
Can be set |
|||
|
10 |
Battery core temperature protection |
Charging low temperature alarm temperature |
5℃ |
Can be set |
|
|
Charging low temperature protection temperature |
-10℃ |
Can be set |
|||
|
Charging low temperature protection release temperature |
-8℃ |
Can be set |
|||
|
Charging high temperature alarm temperature |
50℃ |
Can be set |
|||
|
Charging high temperature protection temperature |
55℃ |
Can be set |
|||
|
Charging high temperature protection release temperature |
50℃ |
Can be set |
|||
|
Discharge low temperature alarm temperature |
-15℃ |
Can be set |
|
||
|
Discharge low temperature protection temperature |
-20℃ |
Can be set |
|||
|
Discharge low temperature protection release temperature |
-15℃ |
Can be set |
|||
|
Discharge high temperature alarm temperature |
55℃ |
Can be set |
|||
|
Discharge high temperature protection temperature |
60℃ |
Can be set |
|||
|
Discharge high temperature protection release temperature |
55℃ |
Can be set |
|||
|
11 |
Ambient temperature alarm |
Ambient low temperature alarm temperature |
-15℃ |
Can be set |
|
|
Environmental low Temperature protection temperature |
-20℃ |
Can be set |
|||
|
Ambient low temperature protection release temperature |
-15℃ |
Can be set |
|||
|
Ambient high temperature alarm temperature |
65℃ |
Can be set |
|||
|
Environmental high temperature protection temperature |
70℃ |
Can be set |
|||
|
Environmental high temperature protection release temperature |
65℃ |
Can be set |
|||
|
12 |
Equalization function |
Balanced turn-on voltage |
3400mV |
Can be set |
|
|
Open pressure difference |
30mV |
Can be set |
|||
|
13 |
Capacity default settings |
Low battery alarm threshold |
SOC＜5% |
Can be set |
|
|
Design capacity settings |
200AH |
Can be set |
|
||
|
Full capacity setting |
200AH |
Can be set |
|
||
|
14 |
Cell failure protection |
Cell pressure difference |
Voltage difference＞1V |
Cannot be set |
Charging and discharging are not allowed |
|
15 |
Full of judgment |
Full charging voltage |
>55.5V |
Can be set |
|
|
cut-off current |
<2A |
Can be set |
|||
