NTC Temperature Control for Battery Protection Boards: Why It Matters & How to Choose
In battery-powered applications—from electric vehicles (EVs) and AGVs to energy storage systems and marine equipment—safety is always the top priority. The battery protection board (Bms) acts as the "safety guard" for battery systems, handling overcharge, over-discharge, and overcurrent protection. But there's one critical feature that's often overlooked: NTC temperature control.
If you're shopping for a battery protection board, you might wonder: What is NTC? Why does it matter for battery safety? What's the difference between boards with and without NTC? This blog answers all these questions to help you understand the core value of NTC temperature control.
What Is NTC & How Does It Work?
First, NTC isn’t a complex "black technology"—it stands for Negative Temperature Coefficient Thermistor, an electronic component that changes its resistance based on temperature.
Its working principle is straightforward:
- When temperature rises, the resistance of NTC drops sharply;
- When temperature falls, the resistance of NTC increases accordingly.
In short, NTC acts like a "temperature sensor." It converts real-time battery temperature changes into "resistance signals" and sends them to the BMS's main control chip. The chip then interprets these signals to determine the battery's temperature status (normal, overheated, or too cold) and triggers corresponding protection actions.
For example: If a battery overheats to 50°C (thresholds vary by scenario) due to overcharging or heavy loads, the NTC's resistance drops rapidly. The main control chip detects this signal and immediately cuts off the charging or discharging circuit—preventing dangerous issues like battery swelling or fire.

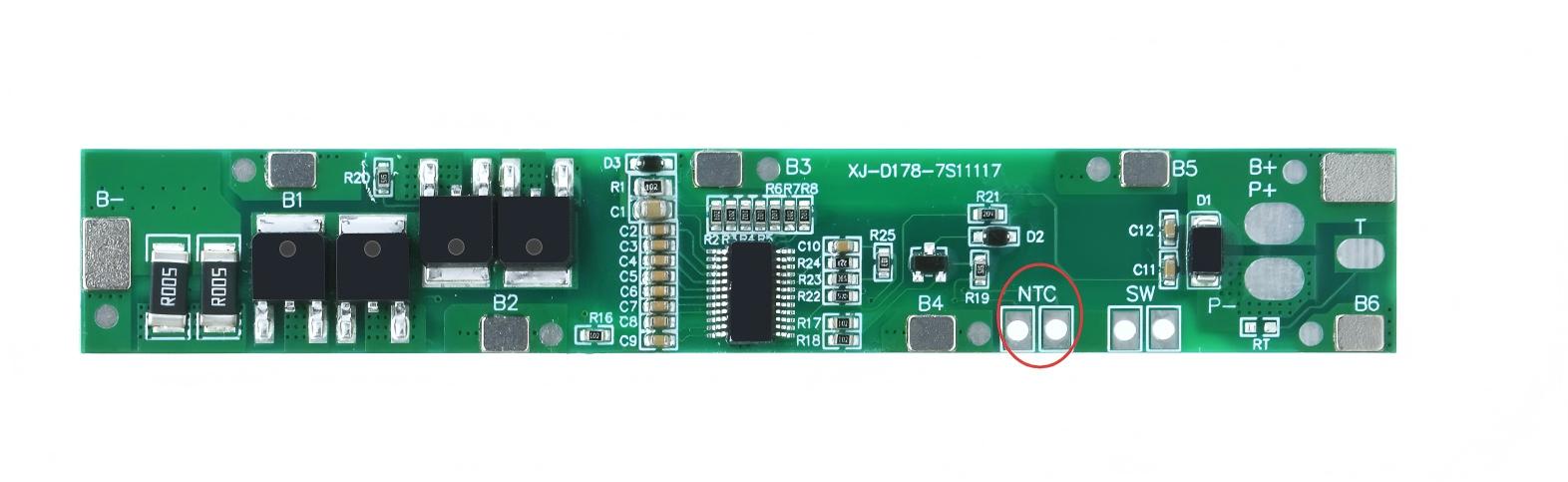

(XJ-D178 7S 10A with balance and NTC)
Why NTC Temperature Control Is Critical for Battery Protection Boards
Overcharge/overcurrent protection on BMS prevents "current runaway," while NTC temperature control prevents "temperature runaway"—addressing the most hidden and dangerous risk in battery safety. Here are its three core roles:
2.1 Stop "Overheating Disasters" & Safeguard Safety
High temperatures are one of the biggest threats to batteries. For lithium-ion or lead-acid batteries, when temperatures exceed safety thresholds (usually 60°C for lithium-ion, 50°C for lead-acid), internal electrolytes decompose rapidly, leading to "thermal runaway": mild cases cause battery swelling and shortened lifespan; severe cases trigger fires or explosions.
NTC monitors battery temperature in real time. When it nears dangerous levels, it triggers the BMS's "high-temperature shutdown" function, stopping charging/discharging to eliminate thermal runaway risks. This is especially critical in high-power scenarios like EV fast charging or AGV frequent start-stops.
2.2 Adapt to Low Temperatures & Prevent "Cold Damage"
Low temperatures also harm batteries. For example, charging lithium-ion batteries below -10°C can cause "lithium dendrites" (tree-like lithium deposits) to form, piercing the battery separator and causing short circuits. During discharge, low temperatures increase internal resistance, leading to "sudden range drops" or "failure to charge."
Some battery protection boards with NTC (like our XJ-F002 model) include a "low-temperature heating function": When NTC detects temperatures below 0°C, it activates the heating module to raise the battery temperature to a suitable range (5-10°C). This ensures charging efficiency and avoids permanent cold damage to the battery.
2.3 Optimize Charging/Discharging & Extend Battery Lifespan
Batteries perform best between 15-35°C. Outside this range, charging/discharging efficiency drops, and cycle life shortens (e.g., lithium-ion battery life can decrease by over 30% in high temperatures).
NTC acts as a "temperature calibrator" for the BMS: It reduces charging current (e.g., from 2A to 1A) when temperatures are too high, and limits discharge power when temperatures are too low. This "dynamic adjustment" keeps the battery operating in its "comfort zone," indirectly extending its lifespan.

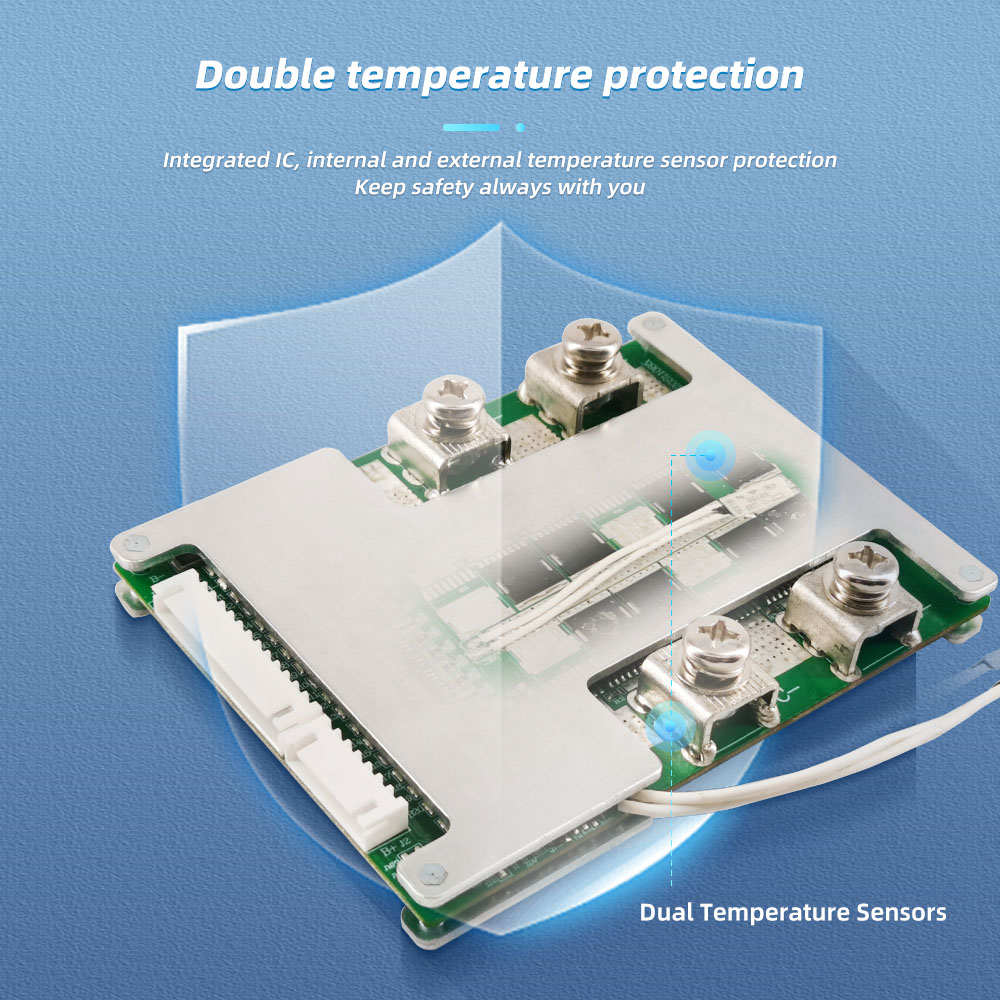

(XJ-D386, 4S-24S 50A-150A, with balance and NTC)
Boards With vs. Without NTC: What's the Difference?
Many users choose non-NTC boards to save costs, but this often leads to higher long-term risks. The core difference lies in "passive protection" vs. "active guardianship":
| Aspect | Battery Protection Boards With NTC | Battery Protection Boards Without NTC |
| Temperature Monitoring | Real-time accurate monitoring; sends data to the main chip | No monitoring; "blind control" only |
| Safety Protection | Active high/low temperature protection; prevents thermal runaway & cold damage | Only overcharge/overcurrent protection; no defense against temperature issues |
| Application Scenarios | Suitable for all scenarios (especially high-temperature, low-temperature, high-power use) | Only for simple, room-temperature, low-power scenarios (e.g., small toys) |
| Battery Lifespan | Dynamic adjustment extends cycle life | Temperature damage accelerates aging; lifespan may drop by 50%+ |
| Long-Term Risks | No temperature-related safety hazards; low maintenance costs | High risk of swelling, short circuits, or fire; high repair/replacement costs |
Buying Guide: Should You Choose NTC or Non-NTC?
The answer is clear: Except for extremely simple scenarios (e.g., small toy batteries) that require only room-temperature, low-power use, NTC is recommended for 99% of applications.
Use these scenarios to decide:
4.1 Scenarios Where NTC Is a Must
- New Energy: EVs, electric motorcycles, AGVs—high power use causes rapid battery heating; safety failures lead to heavy losses.
- Energy Storage: Home/industrial energy storage systems—batteries run long-term indoors; thermal runaway risks fires.
- Outdoor/Extreme Environments: Marine equipment, outdoor camping power stations—ships face humid heat; outdoor use may see -20°C cold.
- Medical Equipment: Backup batteries for medical devices—reliability is critical; temperature issues could disrupt care.
4.2 Scenarios Where NTC May Not Be Necessary
- Small Low-Power Devices: Children's toys, small remote controls, mini flashlights—batteries have low capacity (<1000mAh) and power; mild temperature rises pose no safety risks; lifespan is short (1-2 years).
4.3 Tips for Choosing NTC-Equipped Boards
- Number of NTC Sensors: High-end boards may have 2 NTCs (one for the battery pack, one for the board itself) for fuller protection.
- Temperature Range: Choose NTCs matching your environment—e.g., -40°C~125°C NTCs work better than 0°C~80°C ones for outdoor use.
- Linked Functions: Opt for boards where NTC connects to heating or current-adjustment modules (like the XJ-F002's heating feature)—this enables both monitoring and active temperature control.
(XJ-D038V3, 4S-24S 150A-300A, with balance and NTC)
NTC Is a "Safety Necessity," Not an "Optional Extra"
For battery protection boards, NTC temperature control isn't a "nice-to-have"—it's a "safety must-have." It acts as the battery's "thermometer + emergency stop button," providing real-time monitoring and active protection when risks arise.
Saving a few dollars on non-NTC boards isn't worth the risk of battery damage or safety incidents. Investing in NTC means buying "safety, longevity, and peace of mind"—and these are the most valuable assets for long-term battery use.
