How to Choose a BMS for Electric Tricycle Lithium Batteries?

Lithium batteries have become the first choice for electric tricycles—especially for lead-acid to lithium conversions—thanks to their high energy density and long lifespan. But a reliable battery Management System (BMS) is the unsung hero that protects your battery pack, ensures safety, and extends battery life. Choosing the wrong BMS leads to overcharging, swelling, or even thermal runaway, while a well-matched one boosts performance and peace of mind.

This guide breaks down the key steps to select the perfect BMS for your electric tricycle (cargo or commuter), and we’ll highlight our top BMS models XJ-D565, XJ-F002A, XJ-F002C, XJ-D495, XJ-D068—engineered for tricycle-specific use cases, including lead-acid to lithium upgrades.

Match Core Parameters First: Non-Negotiable for BMS Selection

Your BMS must align exactly with your lithium battery pack and tricycle’s specs—this is the foundation of safe and efficient use.

Voltage & Series (S): Match Battery Pack Directly

Lithium iron phosphate (LiFePO4) cells run at 3.2V, ternary lithium (NCM) at 3.7V. For electric tricycles, the standard series and our compatible BMS models are:

• 48V: 16S LiFePO4 /13S NCM → XJ-D565, XJ-D495, XJ-D068 (ideal for compact battery bays, perfect for lead-acid swaps)
• 60V: 20S LiFePO4 /16S NCM → XJ-F002A, XJ-F002C (high current support for heavy loads)
• 72V: 24S LiFePO4 /20S NCM → XJ-D386, XJ-F001 (premium protection for high-power tricycles)

Discharge Current: Match Controller Current Limit

Choose a BMS with continuous discharge current ≥ your tricycle’s controller limit (no need to match battery Ah):

• Commuter tricycles (40-60A controller): XJ-D565, XJ-D495, XJ-D068 (20-60A) – cost-effective and reliable for daily short trips
• Cargo/heavy-duty tricycles (80-120A controller): XJ-F002A, XJ-F002C (60-120A) – built for frequent climbing and heavy loads with extra current margin

Battery Type: LiFePO4 vs NCM – No Cross-Use

• LiFePO4 (best for tricycles: thermal stability, long cycle life): All our models (XJ-D565/XJ-F002A/XJ-F002C/XJ-D495/XJ-D068) have dedicated LiFePO4 protection (overcharge 3.65V/cell, over-discharge 2.5V/cell)
• NCM(better low-temperature performance): Our Bms Series supports NCM with one-click parameter switching (overcharge 4.2V/cell, over-discharge 2.8V/cell) – no need for a separate BMS!

Choose by Usage Scenario: Commuter vs Cargo vs Lead-Acid Conversion

Electric tricycles have distinct use cases—tailor your BMS choice to your needs, and our models are optimized for each scenario.

Commuter Tricycles (Daily Short Trips, Good Roads)

Needs: Cost-efficiency, basic protection, compact design

Our Pick: XJ-D565, XJ-D495 – passive balancing for cell voltage equilibrium, full basic protection (overcharge/over-discharge/over-current/short circuit/high-low temp), small size for easy installation in standard battery bays.

Cargo/Heavy-Duty Tricycles (Frequent Use, Climbing, Rough Roads)

Needs: High stability, active balancing, rugged protection

Our Pick: XJ-F002A, XJ-F002C, XJ-D068 – balancing, IP67 waterproof/dustproof (resists mud, rain, gravel), vehicle-grade chips for anti-vibration and extreme temperature resistance.

Lead-Acid to Lithium Conversions (Most Popular Upgrade)

Needs: Plug-and-play, fits original lead-acid battery bays

Our Pick: XJ-D565, XJ-D495 – plug-and-play design for 10-minute quick installation, no complex debugging, compact body that fits perfectly into original lead-acid battery compartments— the most cost-effective choice for lithium upgrades.

Low-Temperature Areas (Below -10°C)

Needs: Low-temperature adaptability, stable discharge

Our Pick: XJ-F002C, XJ-D068 – compatible with NCM lithium batteries for better low-temperature activity, optional heating module (auto-heats cells in cold weather to maintain range and discharge efficiency).

Non-Negotiable BMS Features for Electric Tricycles

No matter which model you choose, ensure your BMS has these core protections—non-negotiable for lithium battery safety:

• Full protection: Overcharge, over-discharge, over-current, short circuit, high/low temperature, cell voltage mismatch protection
• Efficient balancing: Passive balancing or active balancing – eliminates "weak cell" effect
• Good heat dissipation: Metal heat sink and low-on-resistance MOS tubes to prevent overheating during high-load use

Our entire BMS series (XJ-D565/XJ-F002A/XJ-F002C/XJ-D495/XJ-D068) comes with all the above features as standard—no cutting corners on safety.

Common Mistakes to Avoid When Choosing a Tricycle BMS

1. Choosing unbranded "universal" BMS: No clear specs, vague protection parameters, high risk of battery damage
2. Overlooking current matching: A too-large current BMS wastes money; a too-small one causes overload failure
3. Cross-using LiFePO4/NCM BMS: Mismatched protection voltages lead to immediate cell damage
4. Ignoring size for lead-acid conversions: Bulky BMS can’t fit original battery bays (our XJ-D565/XJ-D495 solve this!)
5. Skipping waterproofing: Tricycles work in harsh outdoor conditions—IP67 protection (XJ-F002A/XJ-F002C/XJ-D386) is a must

Our Top BMS Models for Electric Tricycles: At a Glance

For quick reference, our tailored BMS models for electric tricycles and lead-acid conversions:

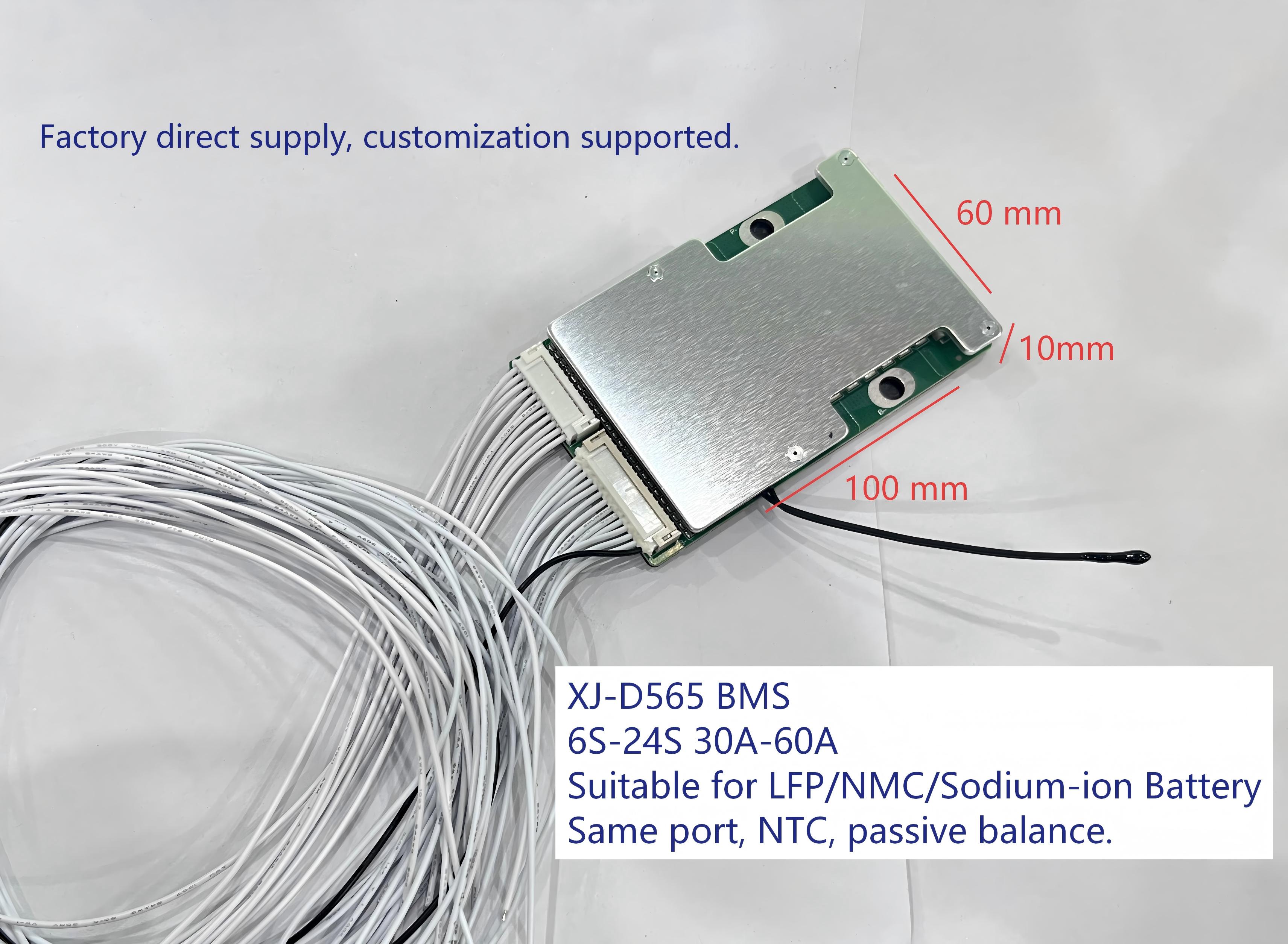

• XJ-D565/XJ-D495: 48V focus, plug-and-play, compact, passive balancing – Best for commuter tricycles & lead-acid to lithium swaps
• XJ-F002A/XJ-F002C: 60/72V, 80-120A, balancing, IP67 – Best for cargo/heavy-duty tricycles
• XJ-D068: 72V high-power, vehicle-grade, low-temperature support – Best for high-performance cargo tricycles in cold areas

Final Key Takeaways

Choosing a BMS for your electric tricycle boils down to 3 core rules: match battery/controller specs, tailor to your usage scenario, and prioritize full safety protections. For lead-acid to lithium conversions, compact plug-and-play models (XJ-D565/XJ-D495) are the go-to; for cargo tricycles, high-current active balancing BMS (XJ-F002A/XJ-F002C/XJ-D068) is essential.

Our BMS series XJ-D565, XJ-F002A, XJ-F002C, XJ-D495, XJ-D068 are all engineered for electric tricycle’s unique demands—rugged, reliable, and perfectly matched for both commuter and heavy-duty use, including the most popular lead-acid to lithium upgrades. Invest in a quality BMS, and your lithium battery pack will reward you with longer life, safer operation, and consistent performance.
