Consumer Electronics BMS: Full Application Guide, Strict Requirements & XJBMS Full Models
Consumer electronics are the most extensive and diverse lithium battery-powered products in the global market. Covering personal communication, audio-visual entertainment, smart home, portable energy storage, and handheld small home appliances, these devices rely entirely on high-precision, ultra-stable, miniaturized BMS (Battery Management System) to ensure battery safety, consistent performance, and long service life. Unlike high-power industrial and mobility BMS, consumer electronics BMS focuses more on ultra-thin size, low power consumption, precise protection, temperature adaptability, and cell balance consistency.
Different consumer electronic devices have completely differentiated BMS specifications in terms of battery type, continuous current, peak current, over-temperature protection, cell balancing, and basic safety mechanisms.
Five Major Categories of Consumer Electronics & BMS Core Requirements
All consumer electronic lithium battery devices adopt mainstream NCM lithium polymer or 18650 lithium-ion batteries. Most low-voltage small devices use 1S single-cell solutions, while medium-power portable devices and multi-functional equipment adopt 2S, 3S, or 4S multi-cell series packs. Each category has fixed hard indicators for BMS current rating, protection logic, and functional configuration.
1. Personal Communication & Office Devices
Applicable products: Mini fan, e-book readers, wireless keyboards, wireless mice, monitors, and portable office peripherals.
BMS Hard Requirements:
- Battery type: 1S lithium polymer battery (mainstream), ultra-flat and ultra-thin cell design
- Continuous current: 1A–3A, matching daily standby and low-power working load
- Peak current: 3A–5A, adapting to instantaneous current surge during screen brightening, device startup, and data transmission
- Key protection priorities: Ultra-precise overcharge/over-discharge protection and low self-consumption design. Office devices usually stay powered on for a long time, requiring BMS microamp-level standby power consumption to avoid frequent power loss. Over-temperature protection is essential to prevent battery heating during long-time charging and standby. Basic passive cell balancing ensures long-term single-cell voltage stability and avoids capacity attenuation after cycle use.
- Structural requirement: Ultra-thin and mini size, suitable for narrow internal space of portable office devices
2. Audio-Visual Entertainment Products
Applicable products: Bluetooth speakers, home projectors, sports cameras, video cameras, game consoles, handheld game players, and e-sports controllers.
BMS Hard Requirements:
- Battery type: 1S–2S lithium polymer batteries, partial high-power projectors and handheld devices use 3S packs
- Continuous current: 2A–10A, stable power supply for long-time video playback, audio output, and game operation
- Peak current: 5A–20A, coping with instantaneous high power of speaker bass boost, camera shooting, and game screen rendering
- Key protection priorities: Strict over-current and short-circuit protection to prevent sound distortion and device crash caused by instantaneous current fluctuation. Intelligent over-temperature protection adapts to closed heat dissipation environment of entertainment equipment. Cell balancing function guarantees consistent battery performance during frequent charge and discharge cycles, improving overall endurance stability.
3. Smart Home Devices
Applicable products: Robot vacuum cleaners, air purifiers, smart door locks, home surveillance cameras, and smart voice speakers.
BMS Hard Requirements:
- Battery type: 2S–3S lithium battery packs, supporting long-term standby and cyclic operation
- Continuous current: 5A–25A, adapting to repeated walking, cleaning, and low-frequency start-stop of smart home equipment
- Peak current: 10A–30A, meeting instantaneous power demand of robot rolling brush startup and sensor full-load operation
- Key protection priorities: High-sensitivity NTC over-temperature protection. Smart home devices work indoors for a long time with poor heat dissipation, requiring real-time temperature monitoring and overheating power-off protection. Multi-cell active/passive balancing is mandatory for 2S/3S packs to solve voltage inconsistency caused by long standby and cyclic discharge, effectively extending battery cycle life.
4. Portable Mobile Power & Energy Storage
Applicable products: Outdoor camping mobile power supplies, household small portable storage stations, multi-functional portable power banks.
BMS Hard Requirements:
- Battery type: 3S–4S 18650 lithium-ion or lithium polymer battery packs
- Continuous current: 10A–40A, supporting long-term stable output of energy storage power supply
- Peak current: 20A–45A, adapting to fast charging output and multi-port simultaneous power supply
- Key protection priorities: Full-range safety protection including overcharge, over-discharge, over-current, short-circuit, and over-temperature. Energy storage products have high battery capacity and large current output, requiring ultra-fast short-circuit protection response (microsecond-level). Multi-cell balancing function ensures uniform charge and discharge of each string of batteries, avoiding local cell overheating and aging during high-power output.
5. Handheld Small Home Appliances & Portable Power Tools
Applicable products: Electric toothbrushes, beauty instruments, portable vacuum cleaners, handheld mini power tools, portable fans.
BMS Hard Requirements:
- Battery type: 1S–3S ultra-small lithium batteries
- Continuous current: 1A–25A, matching low-power steady operation of small appliances and medium-power operation of handheld tools
- Peak current: 3A–30A, coping with instantaneous torque current of handheld tools and startup current of small motors
- Key protection priorities: Miniaturization and high shock resistance. Handheld devices are frequently moved and shaken, requiring stable BMS structure. Over-temperature protection prevents motor heating conduction from causing battery safety hazards. Precise current limiting protection avoids motor burnout caused by abnormal current.
Core Universal Hard Standards for All Consumer Electronics BMS
Regardless of product categories, all qualified consumer-grade BMS must meet unified industry hard indicators to ensure product compliance and user safety:
- Full basic protection: Overcharge protection, over-discharge protection, over-current protection, and short-circuit protection (hardware fast response) are mandatory for all models
- Over-temperature protection: Equipped with high-precision NTC temperature probe to achieve real-time temperature monitoring and overheating power-off
- Cell balancing function: All multi-string (2S/3S/4S) models support passive balancing to improve battery pack consistency and cycle life
- Low self-consumption: Adapt to long standby scenarios of consumer electronics, effectively reducing static power loss
- Mini ultra-thin design: Suitable for compact internal space of portable consumer devices

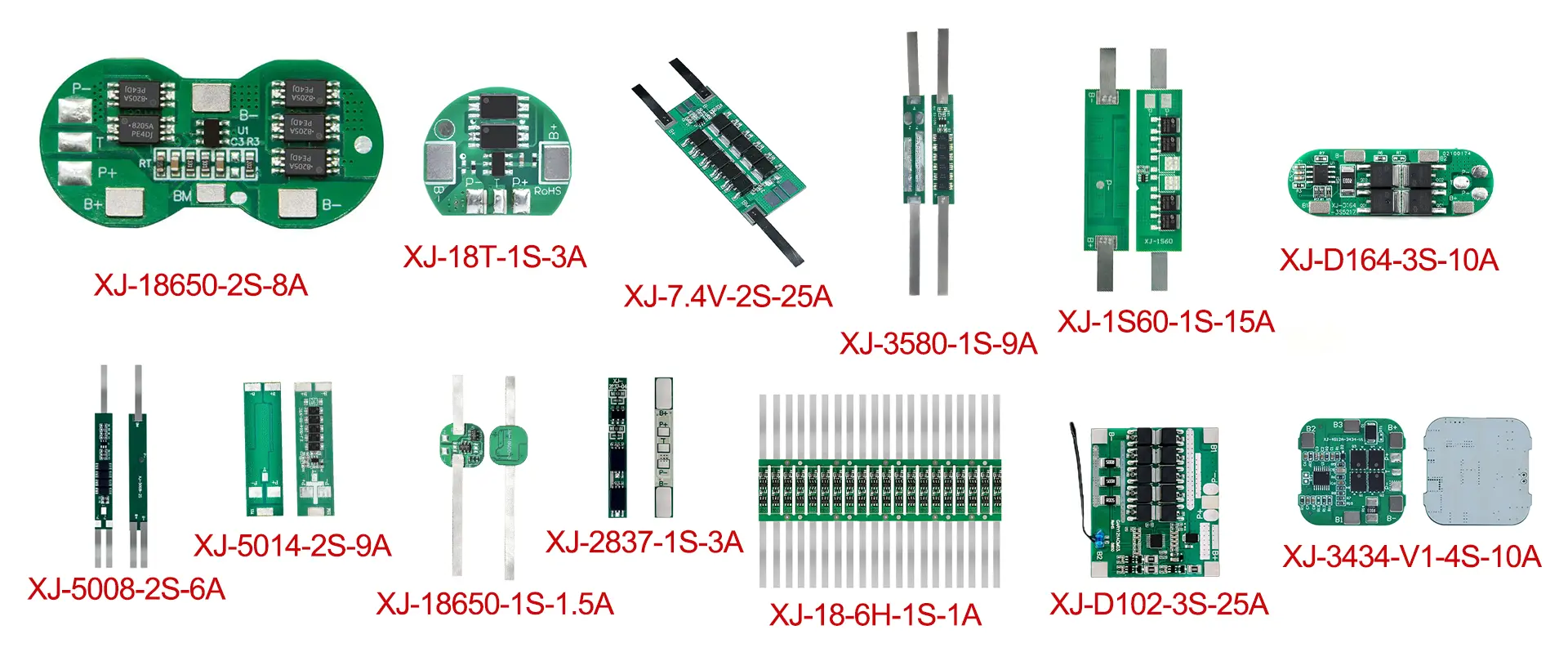

XJBMS Full Range Consumer Electronics BMS Models (1S–4S Complete Specification)
XJBMS launches a dedicated consumer electronics BMS series, covering ultra-thin 1S single-cell mini models, 2S medium-power models, and 3S/4S high-power portable energy storage models. All products have complete protection functions, precise current matching, and ultra-high cost performance, fully meeting the customized needs of global consumer electronic equipment manufacturers.
1S Ultra-Thin Mini BMS (For Single-Cell Small Devices)
- XJ-18-6H: 1S 1A, size 18*3.5*0.6mm, ultra-thin ultra-mini model for electric toothbrushes, smart door locks, wireless mice and keyboards
- XJ-1836-8: 1S 1.5A, size 28*3.7*0.6mm, low-power universal BMS for Bluetooth speakers and portable fans
- XJ-2237: 1S 2A, size 22.5*3.7*0.6mm, stable model for e-readers and home cameras
- XJ-2837-04: 1S 3A, size 28*3.7*0.6mm, medium-low current model for small beauty instruments and mini audio devices
- XJ-3580: 1S 4A/6A/9A, size 40*8*1.0mm, multi-current optional model for medium-power handheld small appliances
- XJ-1S60: 1S 15A, size 60*16.6*1.2mm, high-current 1S model for high-power single-cell portable equipment
2S Medium-Power BMS (For Dual-Cell Smart Home & Entertainment Devices)
- XJ-5008-2S: 2S 5A, size 50*8*0.8mm, ultra-thin low-current model for smart sensors and small audio-visual equipment
- XJ-5014-2S-NTC: 2S 9A, size 50*14*1.0mm, with NTC temperature probe, dedicated for indoor smart home devices
- XJ-7.4V-25A: 2S 15A/20A/25A, size 60*25*1.0mm, high-current multi-gear optional model for robot vacuum cleaners and projectors
3S High-Power BMS (For Handheld Tools & Medium Energy Storage)
- XJ-D164: 3S 5A/10A, size 52*17*5mm, compact universal model for mini handheld power tools
- XJ-D005: 3S 15A/20A, size 45*45*4.5mm, medium-current stable model for medium-power portable tools
- XJ-D102: 3S 5A–25A, size 58*50*4mm, wide current range model covering multiple 3S consumer devices
- XJ-D001: 3S 30A–45A, size 90*45*7.3mm, high-current flagship model for high-power handheld tools and small energy storage equipment
4S High-Current BMS (For Portable Energy Storage Power Station)
- XJ-D432: 4S 10A–25A, size 59*54*4mm, ultra-thin medium-current model for household small portable storage stations
- XJ-D430: 4S 10A–25A, size 65*36*8mm, compact high-cost performance energy storage dedicated BMS
- XJ-D096: 4S 10A–40A, size 78*60*6mm, wide-range high-current model for outdoor camping high-power mobile power supplies
Conclusion
Consumer electronics BMS has strict scenario-based customization requirements. From low-power single-cell office and wearable devices to high-power multi-string portable energy storage equipment, each field has matched current grades, temperature protection standards and balancing requirements. XJBMS full-series 1S–4S consumer-grade BMS covers all mainstream consumer electronic battery solutions, with ultra-thin mini size, complete safety protection, precise current matching and excellent cell balancing performance, providing reliable and professional battery management guarantees for global consumer electronic products.
