Car Startup Power Supply BMS: Why It Matters, How It Works, and Our D426 Solution
As a professional battery BMS manufacturer, we’ve noticed a key question from clients: “Do car startup power supplies really need a dedicated BMS?” The answer is clear—a high-quality Car Startup BMS is not just an accessory, but a critical safeguard for battery safety, performance, and lifespan. In this blog, we’ll break down why car startup power supplies require a BMS, explain how these systems work, and introduce our star product: the D426 Car Startup BMS, designed to meet the demands of diverse battery types and extreme startup scenarios.
Why Car Startup Power Supplies Can't Live Without a BMS
Car startup power supplies rely on lithium-ion (or sodium-ion) battery packs (e.g., LFP, NCM) to deliver the massive current needed to jumpstart a vehicle. However, these batteries are chemically sensitive to extreme conditions—without a BMS, they face serious risks that compromise both safety and functionality:
1, Prevents Overcharge & Overdischarge (Permanent Battery Damage)
- Overcharge Risk: Unmonitored charging (e.g., faulty chargers) can cause batteries to swell, leak, or even catch fire.
- Overdischarge Risk: Repeated deep discharge (e.g., multiple failed startup attempts without recharging) reduces battery capacity permanently.
A BMS detects critical voltage thresholds and automatically cuts off the charge/discharge circuit to avoid these issues.
2, Handles High-Current Surges (Stable Startup Performance)
Car engines require instant high current (often hundreds of amps) to start. Without a BMS, unregulated current can overheat battery cells, damage internal structures, or even cause the power supply to fail mid-start. A robust BMS withstands peak currents while limiting sustained overcurrent, ensuring reliable startup every time.
3, Balances Cell Consistency (Avoids the “Weakest Link” Problem)
Car startup power packs typically use 4-series (4S) battery configurations. Over time, individual cells degrade at different rates—one underperforming cell (“weak link”) drags down the entire pack’s capacity. A BMS with balancing (passive/active) equalizes cell voltages, keeping the pack consistent and extending its overall life.
4, Temperature Protection (Adapts to Extreme Environments)
Car startup power supplies work in harsh conditions: freezing winter temperatures (which reduce battery output) or scorching summer heat (which increases fire risk). A BMS with NTC (Negative Temperature Coefficient) thermistors monitors cell temperature and triggers protection (e.g., cutting power) if temperatures exceed safe limits (-20℃ to 60℃, for example).

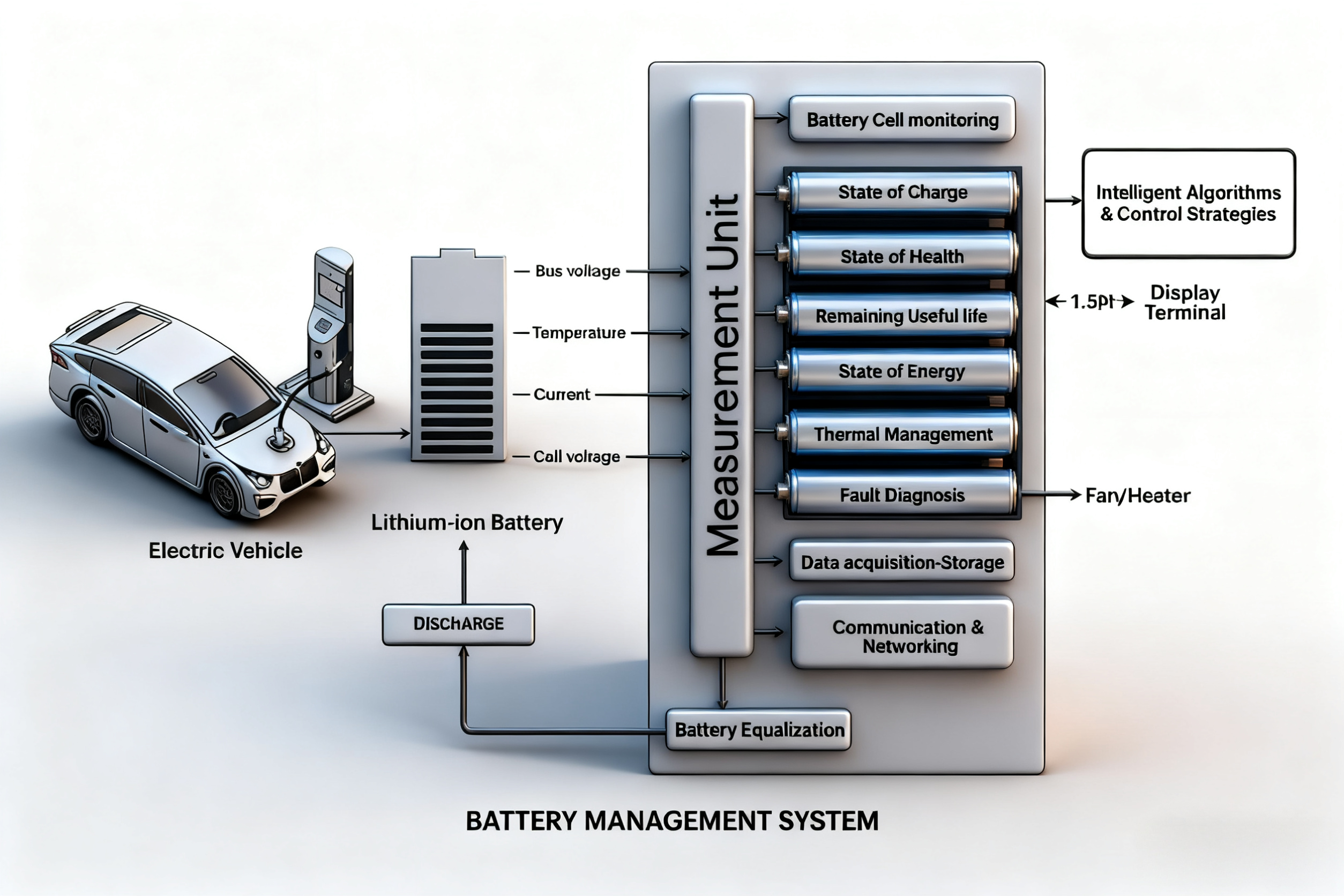

How a Car Startup BMS Works (The “Monitor-Judge-Execute” Cycle)
A car startup BMS operates on a simple but precise three-step logic to protect the battery pack:
Step 1: Real-Time Monitoring
The BMS uses built-in voltage detection circuits to track:
- Individual cell voltages (e.g., 3.2V for LFP cells, 3.7V for NCM cells),
- Total pack voltage,
- Charge/discharge current,
- Cell temperature (via NTC thermistors).
All data is sent to the BMS control chip for analysis.
Step 2: Intelligent Judgment
The control chip compares real-time data to preset safety thresholds (customized for battery type):
- Overcharge: Triggers if cell voltage exceeds 3.65V (LFP) or 4.25V (NCM),
- Overdischarge: Triggers if cell voltage drops below 2.5V (LFP) or 2.8V (NCM),
- Overcurrent: Triggers if sustained current exceeds the BMS rating (e.g., 100A/120A),
- High/Low Temperature: Triggers if NTC detects temperatures outside -20℃~60℃.
Step 3: Protective Action
If an anomaly is detected, the BMS uses MOSFETs (metal-oxide-semiconductor field-effect transistors) to cut off the charge/discharge loop instantly. For cell balancing:
- Passive Balancing: Uses resistors to drain excess voltage from overcharged cells,
- Active Balancing: Transfers energy from high-voltage cells to low-voltage cells (more efficient for long-term use).
Once the battery returns to a safe state (e.g., voltage/temperature normalizes), the BMS reconnects the circuit automatically.

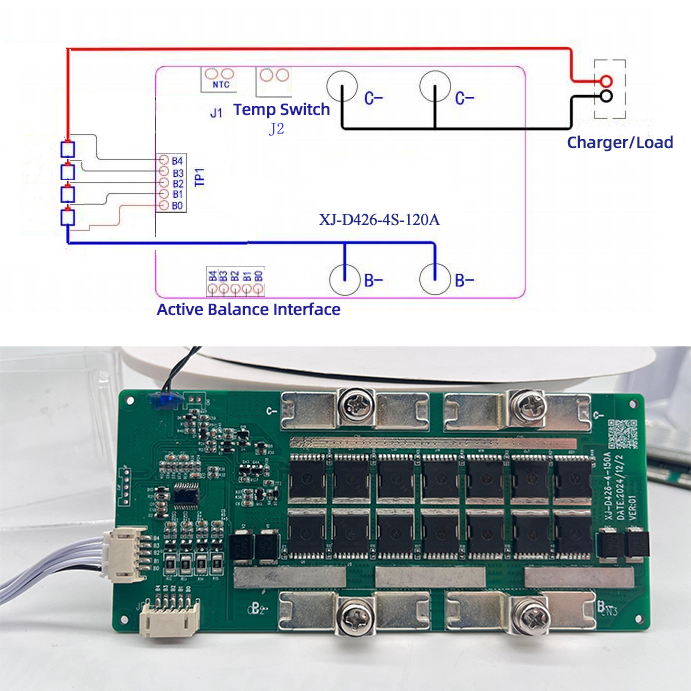

XJ-D426 Car Startup BMS – Built for Reliability & Versatility
At our factory, we've engineered the D426 4S Car Startup BMS to address the unique challenges of car startup power supplies. Here's why it's trusted by power supply manufacturers worldwide:
1, Wide Battery Compatibility
The D426 works seamlessly with three major battery types:
- LFP (Lithium Iron Phosphate),
- NCM (Nickel Cobalt Manganese, “Ternary Lithium”),
- Sodium-Ion Batteries.
No need to stock multiple BMS models—one D426 fits diverse product lines.
2, Powerful Current Performance
- Continuous Current: 100A / 120A (two options for different power needs),
- Peak Current: Up to 1000A.
This handles even high-demand startup scenarios (e.g., large trucks, cold weather starts) without compromising safety.
3, Dual Balancing Modes
Supports both passive balancing (cost-effective for basic applications) and active balancing (high-precision for long-life packs), giving you flexibility to match customer requirements. Passive balancing is enabled by default. If active balancing is required, please contact customer service.
4, Precise NTC Temperature Protection
Built-in NTC thermistors monitor cell temperature in real time, cutting power if temperatures go beyond -20℃ (low-temperature protection) or 60℃ (high-temperature protection). This ensures the BMS works reliably in all climates.
The spec of XJ-D426
| Function | Test project | Inspection standard | Unit | ||
| Minimum | Typical | Maximum | |||
| Working voltage | Voltage range | 8 | -- | 35 | V |
| Working current | Charging current (continuous) | 120 | A | ||
| Discharge current (continuous | 120 | A | |||
| Charging protection | Charger voltage (CC-CV) | 15.2±0.2 | V | ||
| Overcharge protection voltage | 3.65 | 3.7 | 3.75 | V | |
| Overcharge protection delay time | 700 | 1000 | 1300 | mS | |
| Overcharge protection recovery voltage | 3.45 | 3.5 | 3.55 | V | |
| Discharge protection | Overdischarge protection voltage | 1.95 | 2 | 2.05 | V |
| Over-discharge protection delay time | 700 | 1000 | 1300 | mS | |
| Overdischarge protection recovery voltage | 2.35 | 2.4 | 2.45 | V | |
| Overcurrent protection | Overcurrent protection value during charging | 50 | A | ||
| Charging overcurrent delay | 700 | 1000 | 1300 | mS | |
| Charging overcurrent release recovery conditions | Built-in charging overcurrent protection | ||||
| Discharge overcurrent 1 protection current value | 700 | 750 | 800 | A | |
| Discharge overcurrent 1 protection delay | 700 | 1000 | 2000 | mS | |
| Discharge overcurrent 2 protection current value | 900 | 1000 | 1100 | A | |
| Discharge overcurrent 2 protection delay | 350 | 500 | 1000 | mS | |
| Discharge overcurrent protection recovery conditions | Disconnect load or activate charging | ||||
| Short-circuit protection delay time | 230 | 330 | 430 | uS | |
| Short-circuit protection | Short-circuit protection recovery | Remove the short circuit and disconnect the load | |||
| Short-circuit current | 1200-2400A | ||||
| Balanced function | Balanced opening voltage | 3.55 | V | ||
| Balance the opening pressure difference | 25±5MV | mV | |||
| Balanced mode | Dynamic Balance | ||||
| Equilibrium current | 65 | / | 70 | mA | |
| Temperature protection | Charging high-temperature protection value | 64 | 67 | 70 | ℃ |
| Release value for high-temperature protection during charging | 55 | 58 | 61 | ℃ | |
| Low-temperature protection value for charging | -15 | -10 | -5 | ℃ | |
| Release value of low-temperature protection during charging | -3 | 0 | 3 | ℃ | |
| Discharge high-temperature protection value | 75 | 80 | 85 | ℃ | |
| Discharge high-temperature protection release value | 65 | 70 | 75 | ℃ | |
| Discharge low-temperature protection value | -35 | -30 | -25 | ℃ | |
| Discharge low-temperature protection release value | -25 | -20 | -15 | ℃ | |
| Internal resistance | Internal resistance of the discharge circuit | / | 0.24 | 0.25 | mR |
| Working mode | 50 | uA | |||
| Self-consumable power | Sleep mode | 25 | uA | ||
| Hibernation conditions and delays | / | ||||
| Working temperature | Normal working range | -40 | 105 | ℃ | |
| Storage temperature | The humidity is below 90%. | -40 | 125 | ℃ | |
| Finished product size | Length * width * height | MAX：65*140*12mm | |||
| Note: All parameter values, such as overcharge, overdischarge, overcurrent, equalization, and temperature, can be automatically changed through the software, which is more flexible | |||||
| Supports external active balancing, passive balancing, and dynamic balancing. According to customer needs, it can be flexibly adapted to actual applications at any time. This product, based on market application, has a default temperature of 25 degrees. Temperature protection requirements can be made according to customer needs. As the battery cells are different and the customer's usage environment varies, if there are temperature requirements, feedback from the market can be provided for software updates and adjustments. | |||||
A car startup power supply is only as good as its BMS. Without it, batteries risk damage, safety hazards, and shortened lifespans—costing you and your customers time and money. Our D426 4S Car Startup BMS is engineered to solve these pain points: it's compatible with multiple batteries, handles extreme currents, balances cells efficiently, and protects against temperature risks.
If you're looking for a reliable, versatile BMS for your car startup power supplies, the D426 is your solution. As a factory-direct manufacturer, we offer customized support to match your product specs—contact us today to learn more!

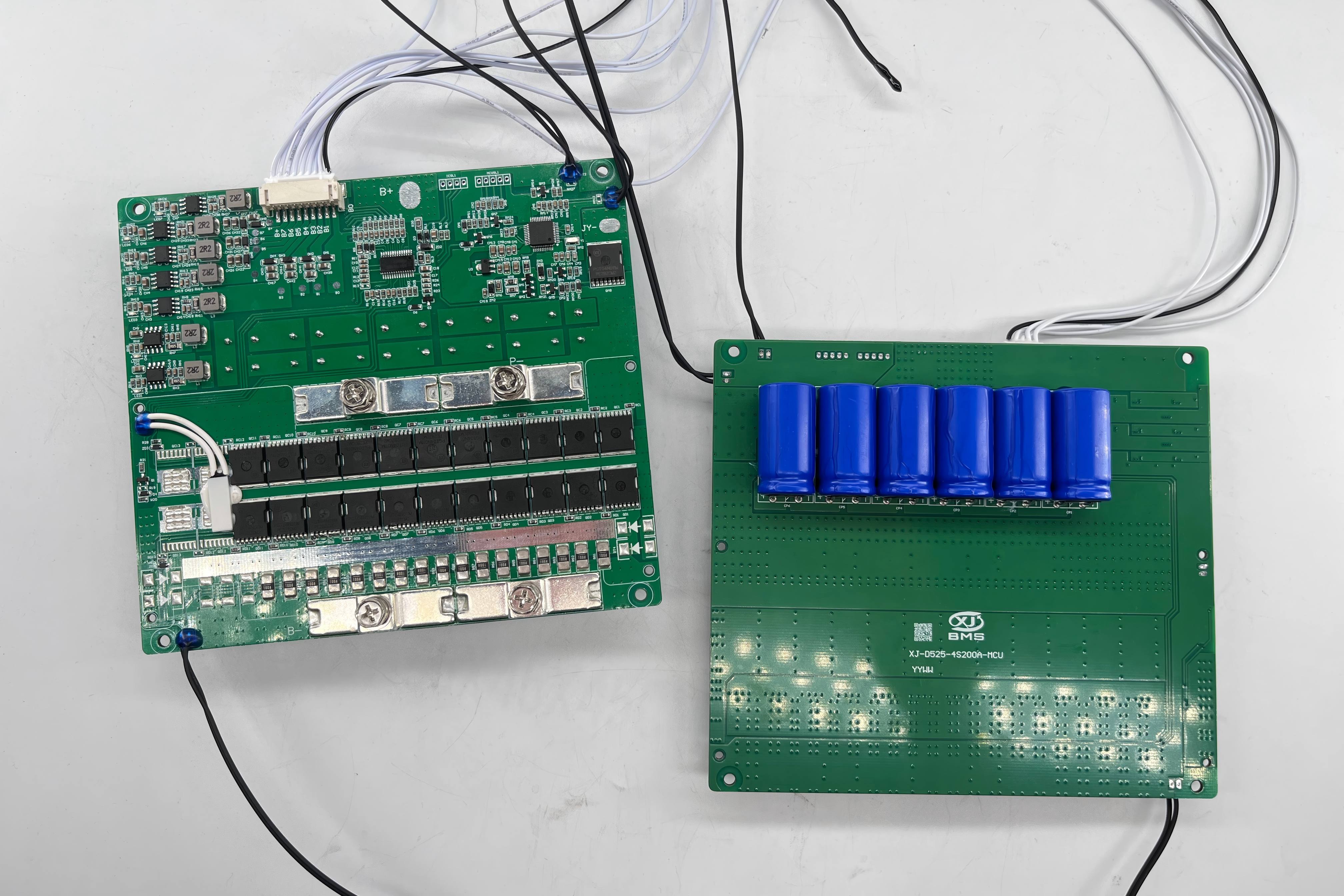

Beside, if want to know more models of car startup BMS, pls feel free to contact us, we still have more models for your business.
